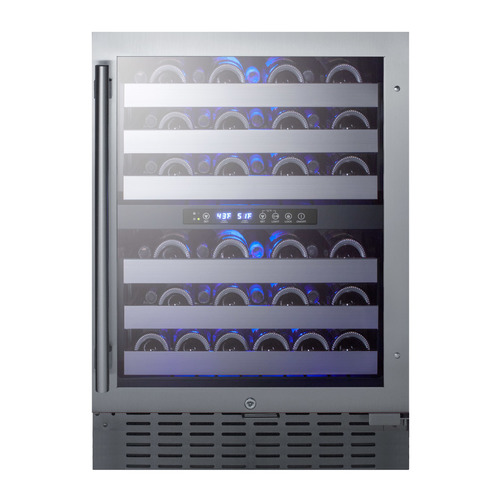

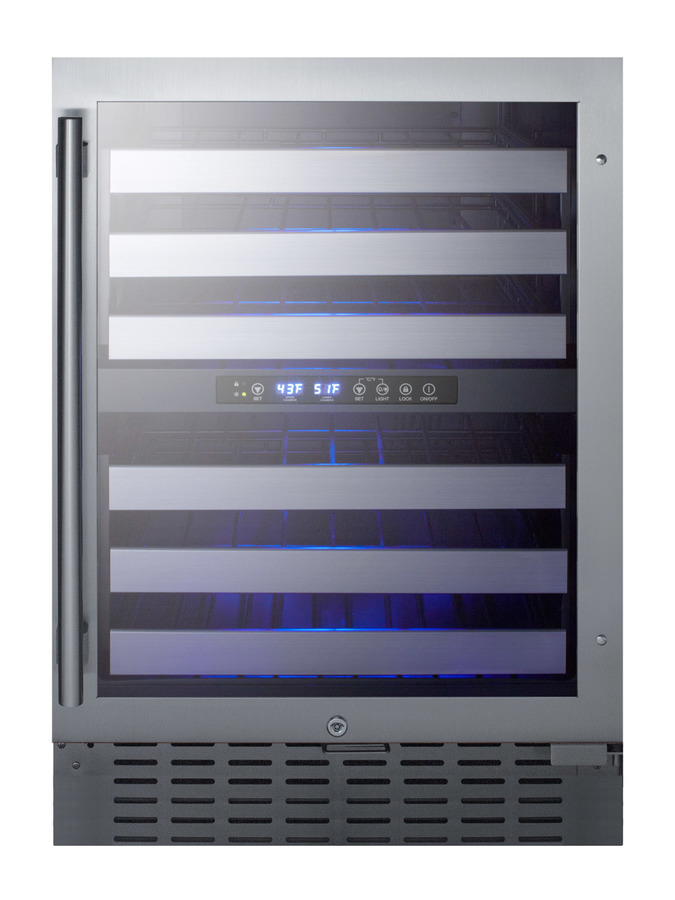

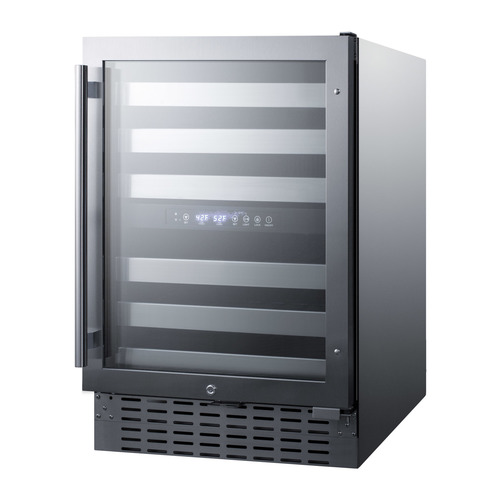

24" Wide Built-In Wine Cellar

SKU: SWC532BLBISTCSS
Commercial grade design meets NSF-7 standards, with a seamless stainless steel door trim for true luxury under the counter
Out of Stock; ETA:

10/31/2024

Cabinet:

*Additional features may vary

Available with an energy saving door tint to protect the interior from natural and artificial light. Choose from four tint finishes with varying levels of visibility.

All tints reject up to 99% of UV rays. Click here to view these options and learn more about their efficiency.
This unit can be used for commercial or residential applications. It meets applicable U.S. Department of Energy (DOE) standards for both household and commercial energy usage. For information on its commercial sanitation listing, see Specifications.
34.25" H x 23.5" W x 23.38" D
(87cm H x 60cm W x 59cm D)

Overview
Nominal Height 35.0" (89 cm)
Height of Cabinet 34.25" (87 cm)
Nominal Width 24.0" (61 cm)
Width 23.5" (60 cm)
Nominal Depth 24.0" (61 cm)
Depth 23.38" (59 cm)
Depth with Handle 25.38" (64 cm)
Depth with door at 90° 45.75" (116 cm)
Bottles 46 bottles
Defrost Type Automatic
Door Glass
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.25
Voltage/Frequency 115 V AC/60 Hz
Weight 113.0 lbs. (51 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101067025
Wine Cellar
Number of Zones 2
Door Swing RHD
Reversible Yes
Shelf Type Wire
Shelf Qty 6
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.23 oz.
High Side PSI 150.0
Low Side PSI 50.0
Interior Height 1 11.63" (30 cm)
Interior Width 1 20.5" (52 cm)
Interior Depth 1 18.0" (46 cm)
Compressor Step Depth 6.0" (15 cm)
Level Legs 2
Temperature Range 41 to 64ºF
Interior Height 2 11.88" (30 cm)
Interior Width 2 20.5" (52 cm)
Interior Depth 2 18.0" (46 cm)

Exterior
LHD - Left hand door swing
Door reversal to left hand swing
Door
T1 Door Tint
Tinted door in low-E mirror finish for maximum energy savings
T1S Door Tint
Reflective door tint in dark smoke finish for maximum energy savings
T2 Door Tint
Tinted door in reflective deep blue finish with high energy savings
T3 Door Tint
Reflective door tint in light blue finish for medium energy savings
T4 Door Tint
Neutral door tint in light smoke finish for moderate energy savings

Commercially approved

ETL-S listed to NSF-7 standards for use in commercial applications

Built-in capable

Front-breathing design allows this unit to be installed under counters

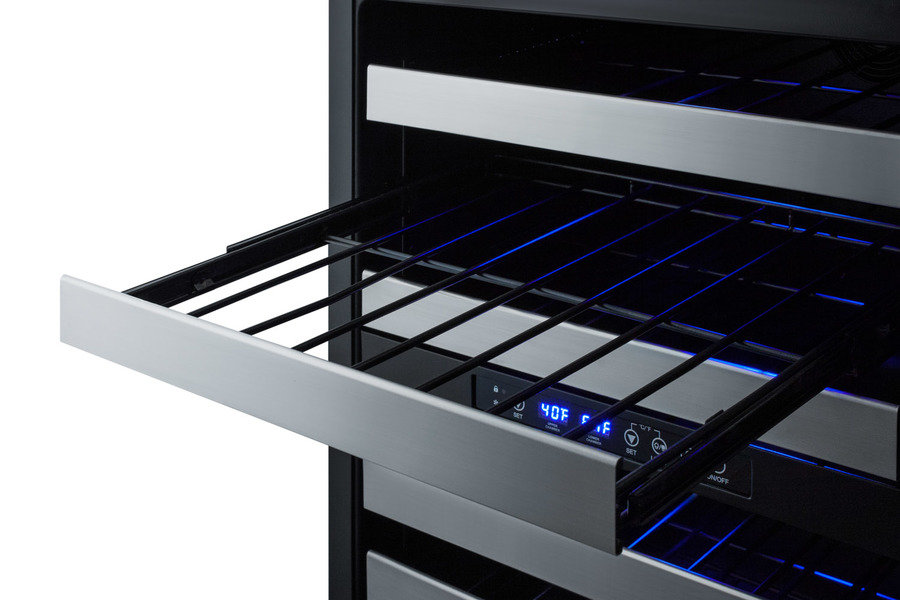

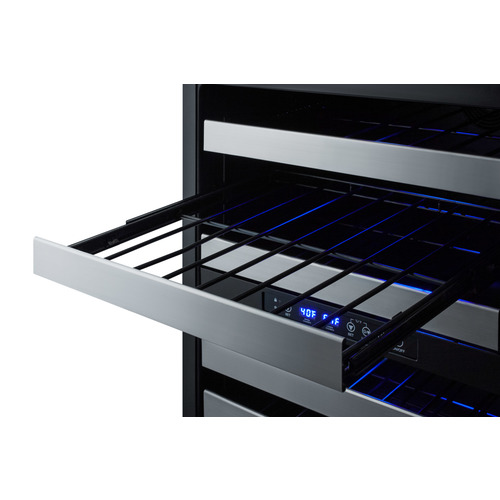

Commercial shelving design

Black wire shelves with oversized stainless steel front trim for a modern look that's easier to clean than standard wood shelving

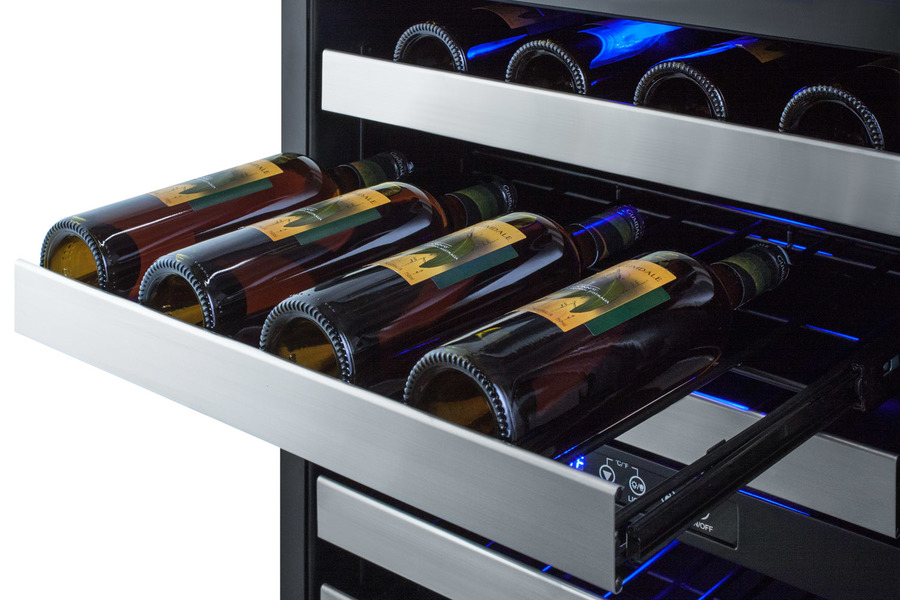

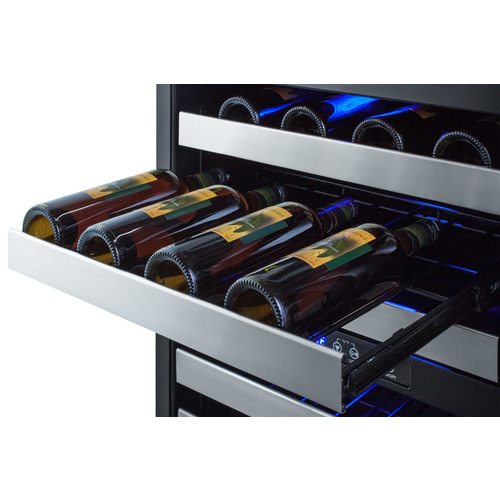

Full-extension shelving

Shelves move smoothly on ball-bearing glides for easier loading and unloading

Two temperature zones

Lower zone for reds has a temperature range of 50º F to 64º F; Upper zone stores whites and sparkling wine between 41º F and 50º F

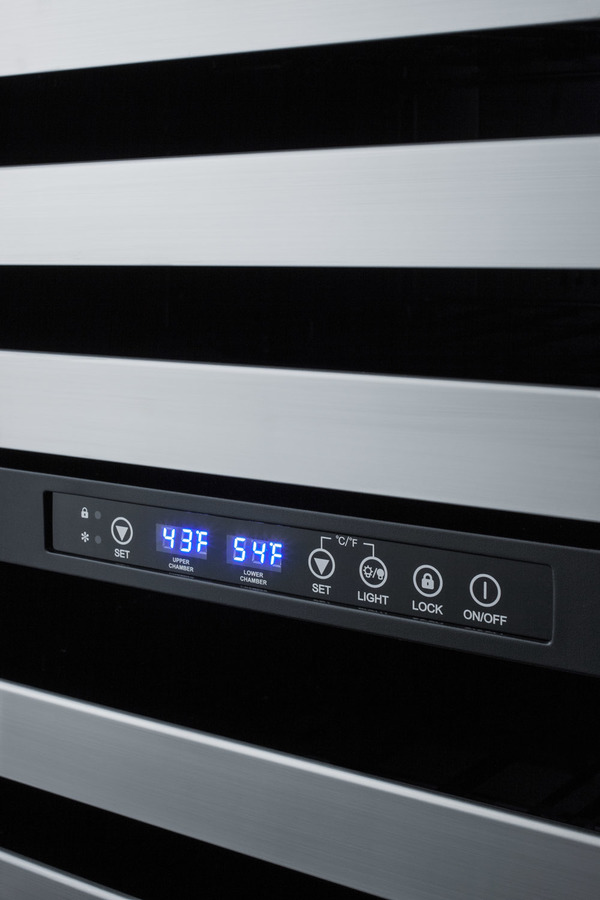

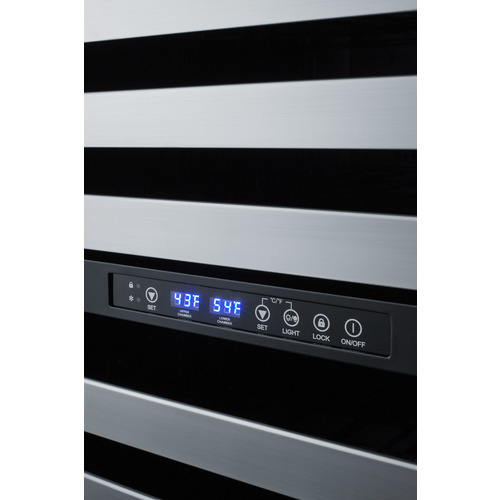

Digital control panel

Easy temperature management with electronic controls located inside

Versatile readout

Temperature viewable in Celsius or Fahrenheit

Automatic defrost

Reduced maintenance with auto defrost system

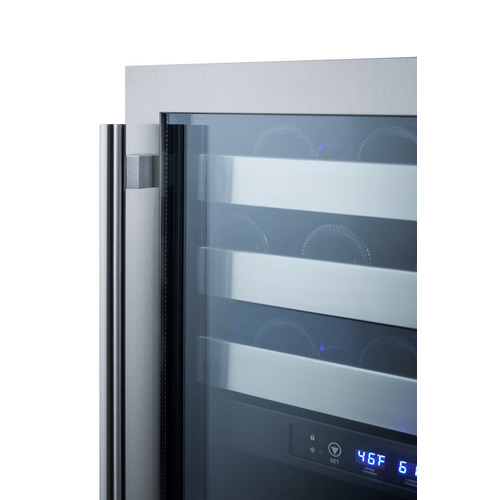

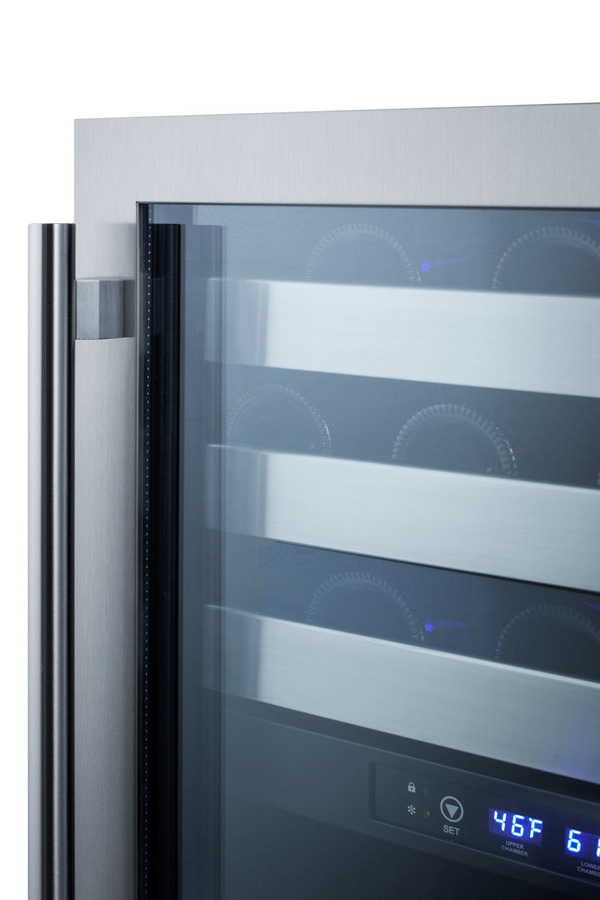

Stainless steel door frame

Single-piece door trim offers a more deluxe look

Professional handle

Stainless steel handle with solid 1" diameter for added style

Double pane tempered glass door

Provides a full display of the interior, with two levels of glass for added protection

Interior lighting

Recessed LED lighting in both compartments brings striking blue illumination to your collection

Factory installed lock

Keyed lock for secure interior, with two keys included

Reversible door

User-reversible door swing makes it easy to best accommodate your setting

Fully finished stainless steel cabinet

Allows the unit to be used freestanding

Matching beverage center available

Pairs perfectly with the SCR2466BCSS

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

Summit offers an extensive selection of wine cellars with versatile designs for residential or commercial use.

The SWC532BLBISTCSS is a dual zone wine cellar that is ETL-S listed to NSF-7 commercial standards. The front-breathing design allows built-in installation, while the fully finished stainless steel cabinet also enables freestanding use. The user-reversible double pane tempered glass door features a seamless stainless steel door trim and pro style handle in stainless steel. A factory-installed lock offers added security and a stainless steel kickplate completes the look.

Inside, the SWC532BLBISTCSS is designed to store up to 46 standard Bordeaux style bottles, or a combination of 30 Bordeaux and 16 wider Burgundy bottles. The digital control panel allows you to manage the upper temperature chamber between 41 and 50ºF for white wine, while the lower zone is designed to store red wine between 50 and 64ºF. Six full-extension black wire shelves with stainless steel front trim move out smoothly on ball-bearing glides for easy loading. Both compartments include recessed LED lighting in a gentle blue hue for an attractive and efficient presentation.

With its advanced user features and versatile design, the SWC532BLBISTCSS makes a great addition to any setting looking to store wine in modern style. This unit can be paired with the SCR2466BCSS beverage cooler for a matching set.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
