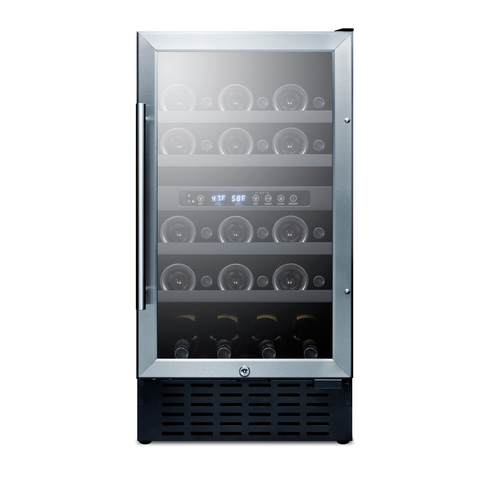

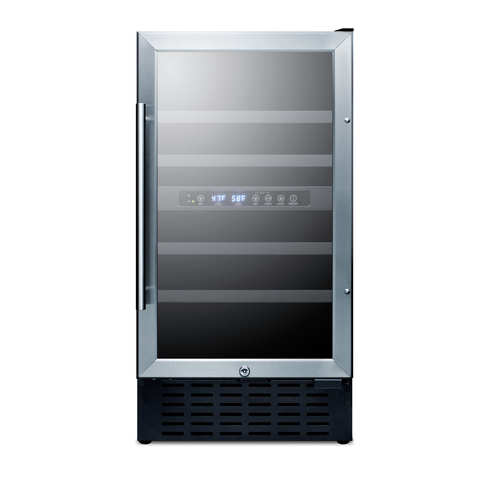

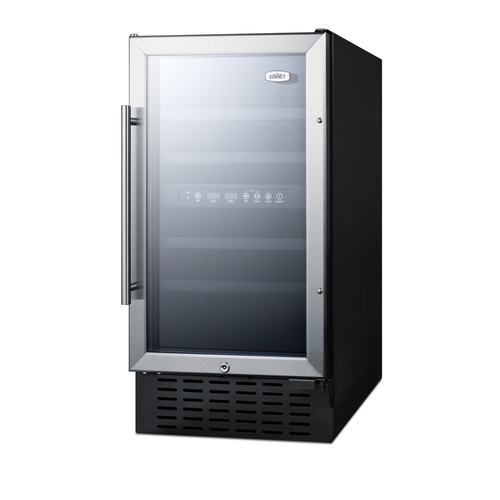

18" Wide Built-In Wine Cellar, ADA Compliant

SKU: SWC182ZADA Matching beveragecenter

Tints
Available with an energy saving door tint to protect the interior from natural and artificial light. Choose from four tint finishes with varying levels of visibility.

All tints reject up to 99% of UV rays. Click here to view these options and learn more about their efficiency.

Two temperature zones for versatile storage in a uniquely slim 18" width

31.63" H x 17.75" W x 23.5" D

(80cm H x 45cm W x 60cm D)

OVERVIEW

  • 32" height for use in ADA compliant settings
  • Chill white and sparkling wine while preserving red in two distinct temperature zones
  • Less than 18" wide for a perfect fit in smaller kitchen and wet bar spaces
  • Flexible design allows built-in or freestanding use under counters
  • Digital thermostat offers precise and convenient temperature control
  • Factory-installed lock provides security you can count on

SPECIFICATIONS

Overview
Height of Cabinet 31.63" (80 cm)
Width 17.75" (45 cm)
Depth 23.5" (60 cm)
Depth with Handle 25.25" (64 cm)
Depth with door at 90° 39.75" (101 cm)
Capacity 3.3 cu.ft. (93 L)
Bottles 28 bottles
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.25
Voltage/Frequency 115 V AC/60 Hz
Weight 95.0 lbs. (43 kg)
Shipping Weight 98.0 lbs. (44 kg)
Estimated Time to Ship 2 to 4 days
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Wine Cellar
Number of Zones 2
Door Swing RHD
Reversible Yes
Adjustable Shelves Yes
Shelf Type Wood
Shelf Qty 4
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.23 oz.
High Side PSI 150.0
Low Side PSI 50.0
Interior Height 1 10.63" (27 cm)
Interior Width 1 14.25" (36 cm)
Interior Depth 1 18.0" (46 cm)
Compressor Step Height 5.25" (13 cm)
Compressor Step Width 14.25" (36 cm)
Compressor Step Depth 5.0" (13 cm)
Level Legs 4
Temperature Range 41º to 64ºF
Interior Height 2 12.25" (31 cm)
Interior Width 2 14.25" (36 cm)
Interior Depth 2 18.0" (46 cm)

AVAILABLE UPGRADES

Exterior
SSK
Stainless steel kickplate factory installed
Extra key
Extra keys available for purchase
LHD - Left hand door swing
Door reversal to left hand swing
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
Door
T4 Door Tint
Neutral door tint in light smoke finish for moderate energy savings
T3 Door Tint
Reflective door tint in light blue finish for medium energy savings
T2 Door Tint
Tinted door in reflective deep blue finish with high energy savings
T1S Door Tint
Reflective door tint in dark smoke finish for maximum energy savings
T1 Door Tint
Tinted door in low-E mirror finish for maximum energy savings
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

WHERE TO BUY

Invalid Format

DESCRIPTION

SUMMIT's collection of built-in  wine cellars offers fully featured choices in slim fits, allowing smaller kitchens to bring convenient and reliable wine storage for every undercounter space.

Sized just under 18" wide and 32" high, the SWC182ZADA is front-breathing for built-in installation under lower ADA compliant counters, with a fully finished jet black cabinet that also allows freestanding use. The reversible glass door features an elegant stainless steel trim and professional handle. A factory installed lock offers added security, with two keys included.

Two separate zones allow you to store your reds and whites at their own temperature, ensuring each bottle is kept under the proper conditions. This unit can hold up to 28 standard Bordeaux style bottles or 22 wider Burgundy style bottles. The wooden shelves feature a black finish for a modern look, with recessed LED lighting to provide an attractive and efficient presentation. The digital controls are located in the center for easy temperature management.

With its slim fit and convenient design, the SWC182ZADA makes an attractive addition to any room.

FEATURES

Dual zone storage
Keep white wine in the upper compartment stored between 41 and 50ºF and red wine at a warmer 50 to 64ºF range in the lower chamber
ADA compliant
32" height is designed to fit under lower ADA compliant counters
Built-in capable
Make the best use of space by installing your appliance under the counter
28 bottle capacity
Versatile interior can store up to 28 standard 750ml Bordeaux style or 22 wider Burgundy style bottles

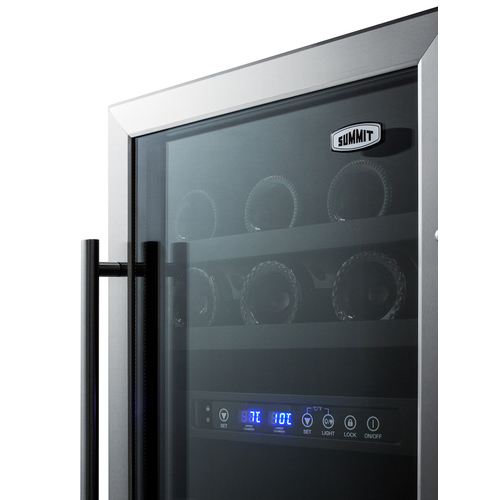

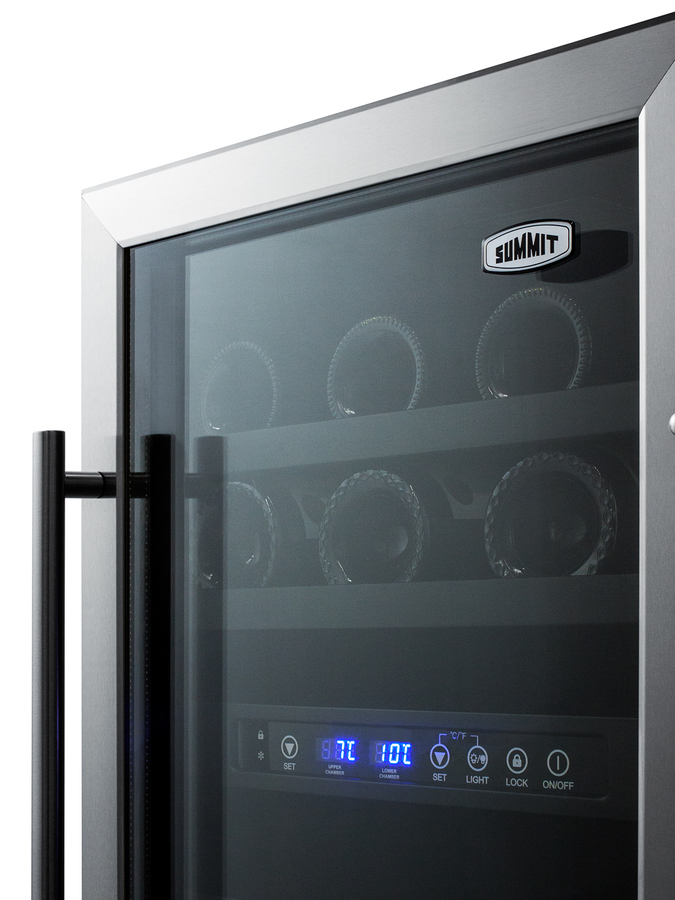

Glass door with stainless steel trim
Provides a full display of stored contents with a heat-safe double tempered design
Factory installed lock
Keyed lock for a secure interior, with 2 keys included

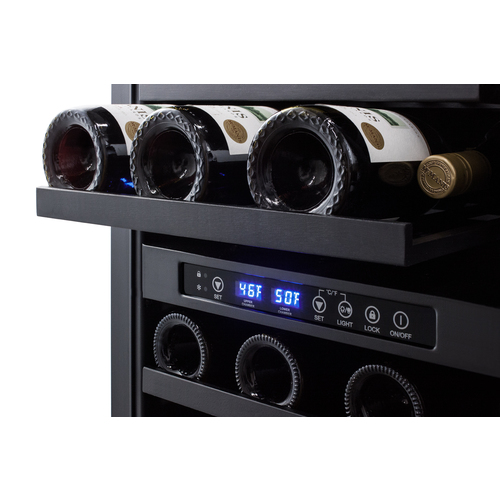

Digital thermostat
Electronic controls for precise temperature management.
Digital display
Temperature readout can be shown in Celsius or Fahrenheit
LED lighting
Gentle illumination for each temperature zone for an elegant presentation
Automatic defrost
Reduced maintenance with the convenience of auto defrost
Wooden shelves
4 wooden shelves in a painted black finish offer the perfect storage for wine bottles in a classic wooden finish
Reversible door
Keep your options flexible with a reversible door that is easy to switch when your arrangement changes
Professional handle
Stainless steel handle completes the look
Flush back
Space saving design
Integrated door hinge
Hinge is flush with cabinet, adding no additional height to the unit
Fully finished black cabinet
Allows the unit to be used freestanding
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet 31.63" (80 cm)
Width 17.75" (45 cm)
Depth 23.5" (60 cm)
Depth with Handle 25.25" (64 cm)
Depth with door at 90° 39.75" (101 cm)
Capacity 3.3 cu.ft. (93 L)
Bottles 28 bottles
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.25
Voltage/Frequency 115 V AC/60 Hz
Weight 95.0 lbs. (43 kg)
Shipping Weight 98.0 lbs. (44 kg)
Estimated Time to Ship 2 to 4 days
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Wine Cellar
Number of Zones 2
Door Swing RHD
Reversible Yes
Adjustable Shelves Yes
Shelf Type Wood
Shelf Qty 4
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.23 oz.
High Side PSI 150.0
Low Side PSI 50.0
Interior Height 1 10.63" (27 cm)
Interior Width 1 14.25" (36 cm)
Interior Depth 1 18.0" (46 cm)
Compressor Step Height 5.25" (13 cm)
Compressor Step Width 14.25" (36 cm)
Compressor Step Depth 5.0" (13 cm)
Level Legs 4
Temperature Range 41º to 64ºF
Interior Height 2 12.25" (31 cm)
Interior Width 2 14.25" (36 cm)
Interior Depth 2 18.0" (46 cm)

AVAILABLE UPGRADES

Exterior
SSK
Stainless steel kickplate factory installed
Extra key
Extra keys available for purchase
LHD - Left hand door swing
Door reversal to left hand swing
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
Door
T4 Door Tint
Neutral door tint in light smoke finish for moderate energy savings
T3 Door Tint
Reflective door tint in light blue finish for medium energy savings
T2 Door Tint
Tinted door in reflective deep blue finish with high energy savings
T1S Door Tint
Reflective door tint in dark smoke finish for maximum energy savings
T1 Door Tint
Tinted door in low-E mirror finish for maximum energy savings

DOWNLOADS

Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
