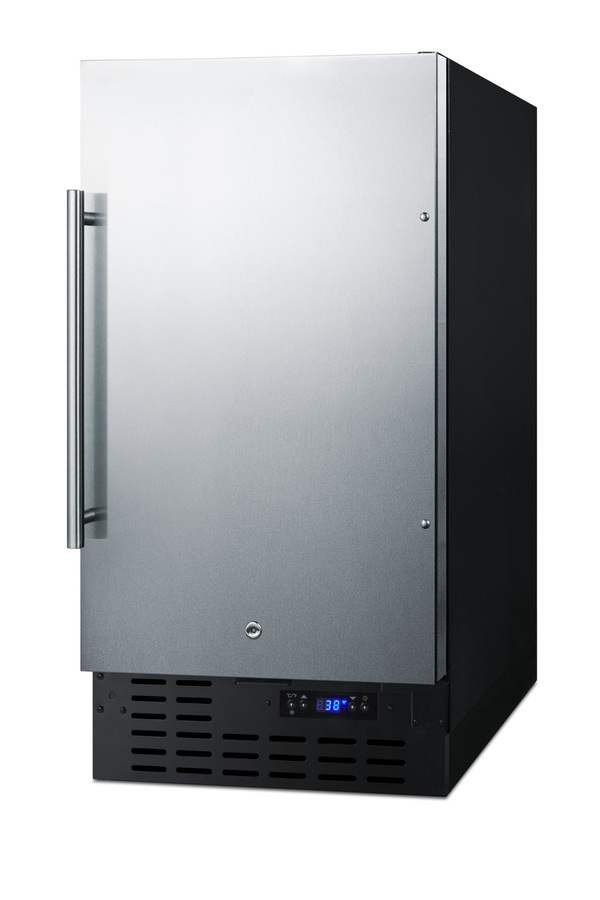

18" Wide Built-In All-Refrigerator, ADA Compliant

SKU: FF1843BSSADA Matching freezer

Commercial home
This unit can be used for commercial or residential applications. It meets applicable U.S. Department of Energy (DOE) standards for both household and commercial energy usage. For information on its commercial sanitation listing, see Specifications.

31.5" H x 17.75" W x 24.0" D

(80cm H x 45cm W x 61cm D)

OVERVIEW

  • Just under 18" wide for an easy fit, with a flush back design to save space
  • 32" height allows installation under lower ADA compliant counters
  • Flexible design allows built-in or freestanding use
  • Digital thermostat offers precise and convenient temperature control
  • Factory installed lock provides security you can count on
  • User-reversible stainless steel wrapped door complete with sleek handle

SPECIFICATIONS

Overview
Height of Cabinet 31.5" (80 cm)
Width 17.75" (45 cm)
Width with Door Open 18.5" (47 cm)
Depth 24.0" (61 cm)
Depth with Handle 24.75" (63 cm)
Depth with door at 90° 40.0" (102 cm)
Capacity 2.7 cu.ft. (76 L)
Defrost Type Automatic
Door Stainless Steel
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 250.0kWh/year
Amps 1.1
Voltage/Frequency 115 V AC/60 Hz
Weight 103.0 lbs. (47 kg)
Shipping Weight 108.0 lbs. (49 kg)
Estimated Time to Ship 2 to 4 days
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator Features
Door Swing RHD
Reversible Yes
Shelf Type Chrome
Shelf Qty 4
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.06oz.
High Side PSI 150.0
Low Side PSI 50.0
Level Legs Qty 2
Interior Light Yes
Dimensions
Interior Height 23.5" (60 cm)
Interior Width 12.75" (32 cm)
Interior Depth 16.75" (43 cm)
Compressor Step Height 4.5" (11 cm)
Compressor Step Width 12.75" (32 cm)
Compressor Step Depth 4.5" (11 cm)

AVAILABLE UPGRADES

Exterior
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD - Left hand door swing
Door reversal to left hand swing
SCD - Self-closing door
Protect interior contents and reduce energy waste with the Self Closing Door Option
Extra key
Extra keys available for purchase
SSK
Stainless steel kickplate factory installed
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

WHERE TO BUY

Invalid Format

DESCRIPTION

SUMMIT's selection of built-in undercounter refrigeration includes one of the industry's only complete 18" wide lines for use in ADA compliant settings.

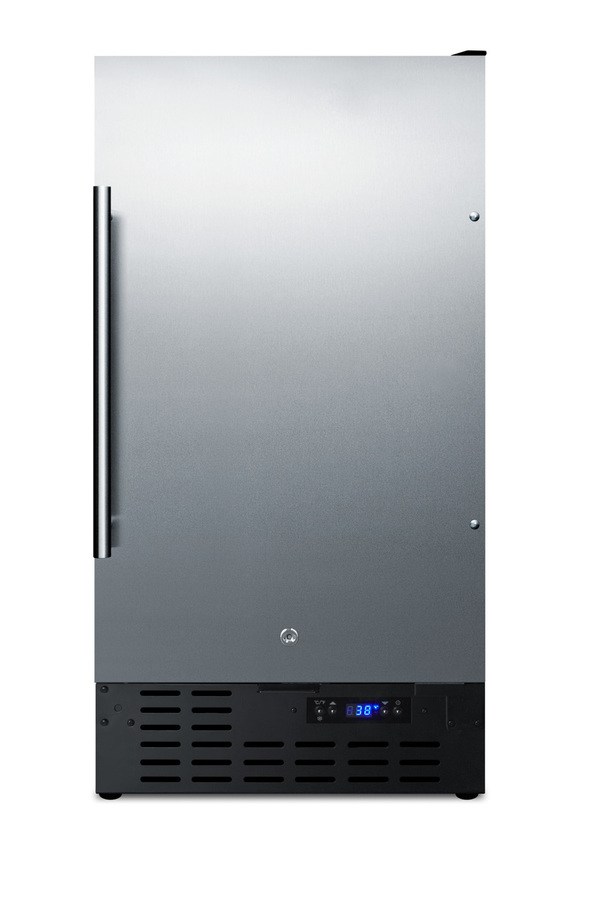

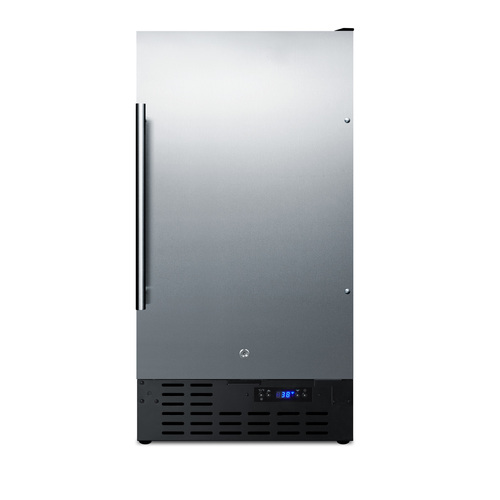

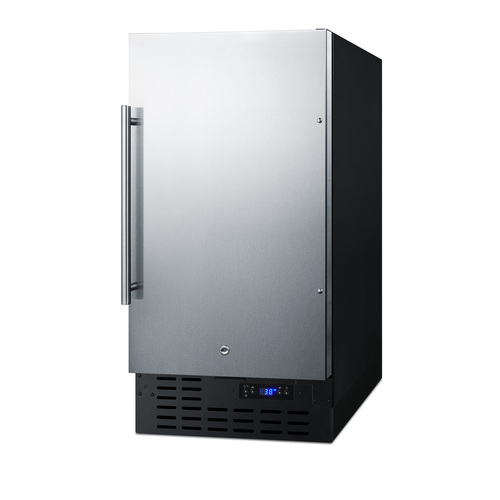

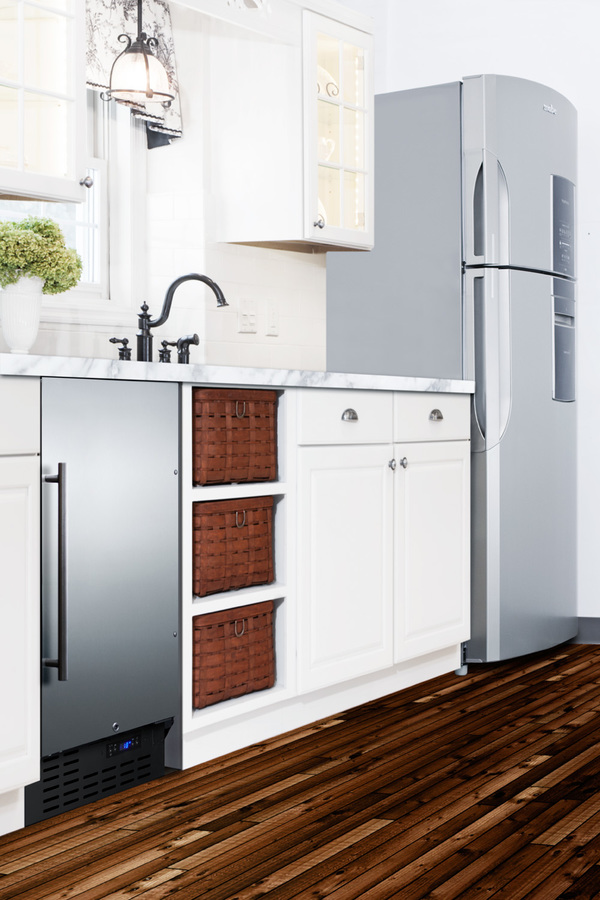

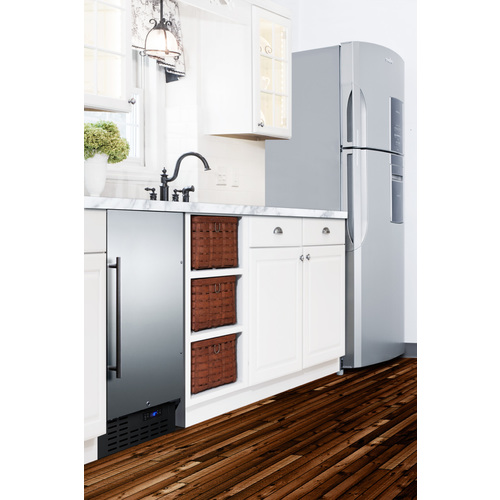

Sized just under 18" wide and 32" high, the FF1843BSSADA is the perfect all-refrigerator for space-challenged kitchens. It comes with a black cabinet and stainless steel wrapped door with a pro style handle. This unit can be used built-in or freestanding. The user-reversible door includes a factory installed front lock.

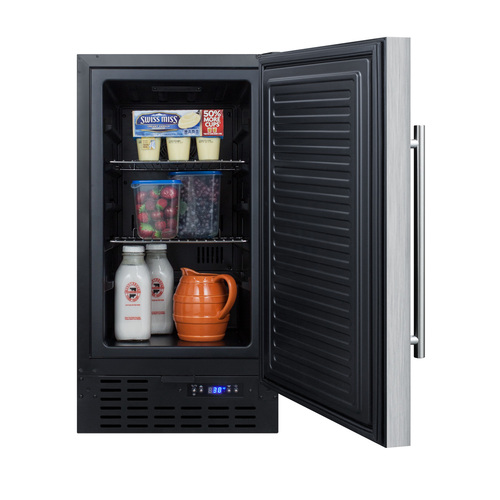

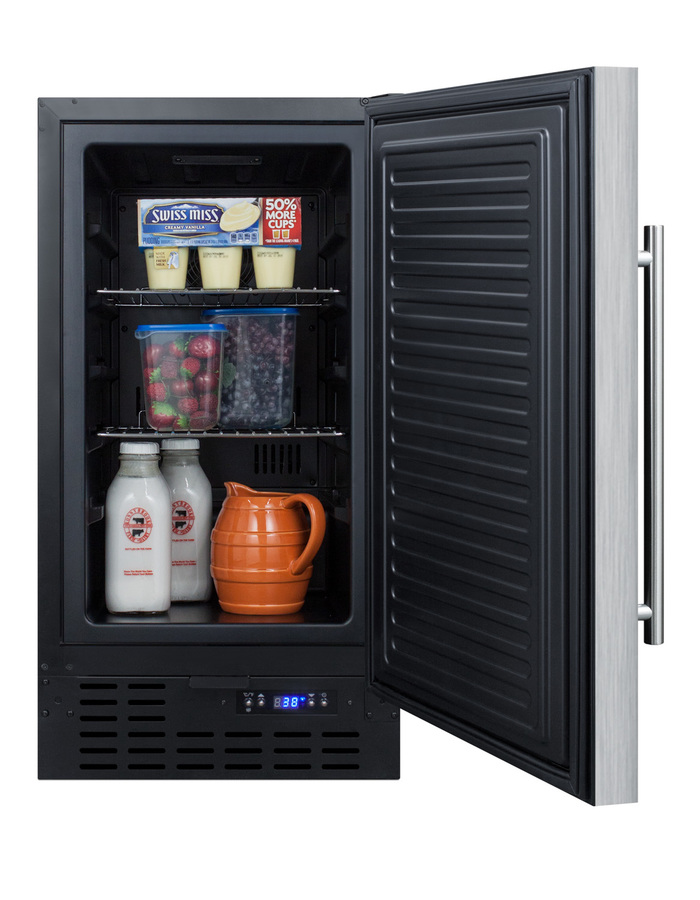

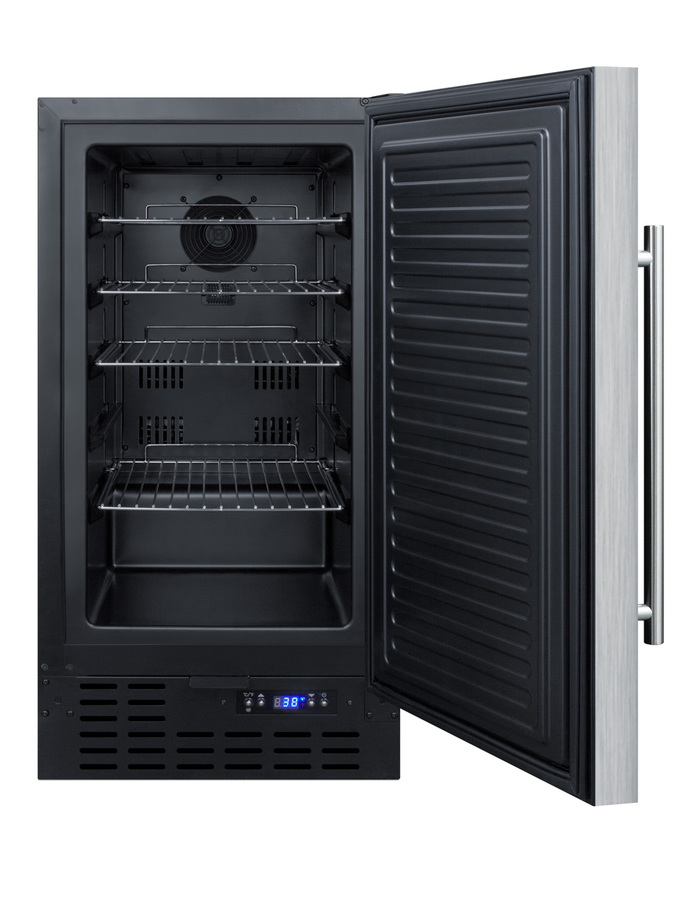

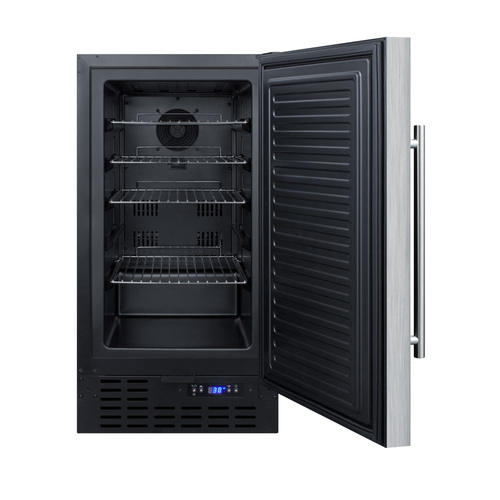

Inside, the FF1843BSSADA utilizes automatic defrost operation for low maintenance use. Four adjustable chrome shelves accommodate a variety of sizes and LED lighting offers an efficient interior view. This unit includes a digital thermostat for optimum temperature management.

Combine the FF1843BSSADA with its matching freezer, wine cellar, or beverage refrigerator. We also offer this model in black or with a panel-ready door.

FEATURES

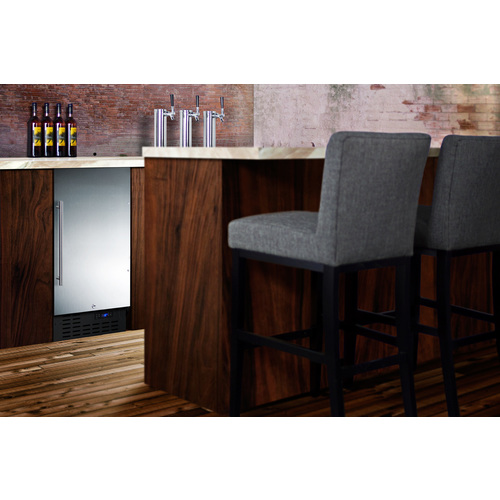

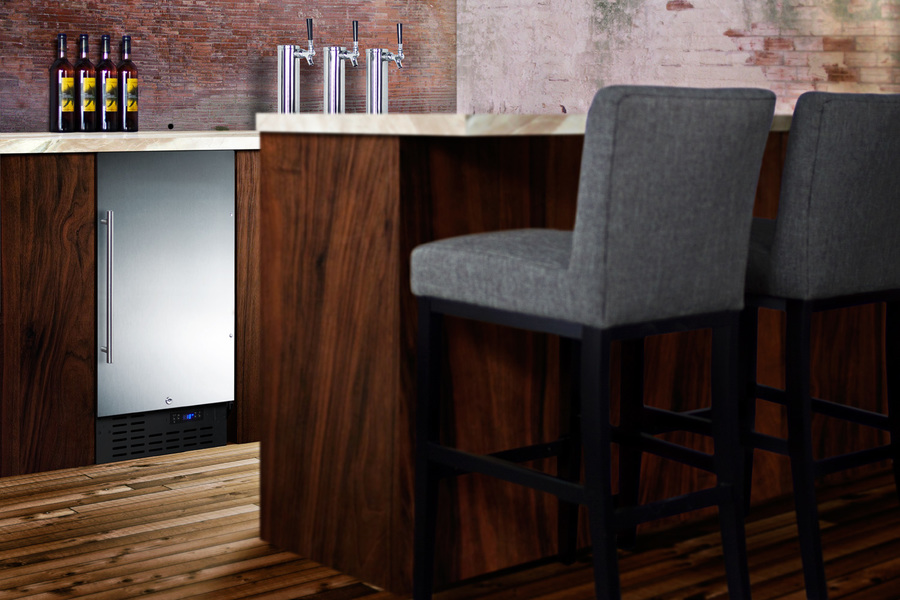

Built-in capable
Make the best use of space by installing your appliance under the counter
Commercially approved
ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments
ADA compliant
32" height is designed to fit under lower ADA compliant counters
Stainless steel wrapped door
Durable design with lasting elegance
Factory installed lock
Keyed lock for a secure interior
Automatic defrost
Reduced maintenance with auto defrost system
Digital thermostat
Electronic controls for precise temperature management.
LED lighting
Gentle illumination with an on/off switch
Reversible door
User-reversible door swing allows for more flexibility in placing the unit
Adjustable chrome shelves
Rearrange interior space to accommodate all sizes or remove shelves for simple cleanup
Flush back
Space saving design
Fully finished black cabinet
Allows the unit to be used freestanding
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet 31.5" (80 cm)
Width 17.75" (45 cm)
Width with Door Open 18.5" (47 cm)
Depth 24.0" (61 cm)
Depth with Handle 24.75" (63 cm)
Depth with door at 90° 40.0" (102 cm)
Capacity 2.7 cu.ft. (76 L)
Defrost Type Automatic
Door Stainless Steel
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 250.0kWh/year
Amps 1.1
Voltage/Frequency 115 V AC/60 Hz
Weight 103.0 lbs. (47 kg)
Shipping Weight 108.0 lbs. (49 kg)
Estimated Time to Ship 2 to 4 days
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator Features
Door Swing RHD
Reversible Yes
Shelf Type Chrome
Shelf Qty 4
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.06oz.
High Side PSI 150.0
Low Side PSI 50.0
Level Legs Qty 2
Interior Light Yes
Dimensions
Interior Height 23.5" (60 cm)
Interior Width 12.75" (32 cm)
Interior Depth 16.75" (43 cm)
Compressor Step Height 4.5" (11 cm)
Compressor Step Width 12.75" (32 cm)
Compressor Step Depth 4.5" (11 cm)

AVAILABLE UPGRADES

Exterior
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD - Left hand door swing
Door reversal to left hand swing
SCD - Self-closing door
Protect interior contents and reduce energy waste with the Self Closing Door Option
Extra key
Extra keys available for purchase
SSK
Stainless steel kickplate factory installed

DOWNLOADS

Download
BROCHURE w/ DRAWINGS
FF1843BSSADA.pdf
Download
TECHNICAL DRAWING (.dwg)
FF1843BADA_REF.__A-C_2000_.dwg
Download
MSDS INFORMATION
R600a_K.pdf
Energy Guide
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
