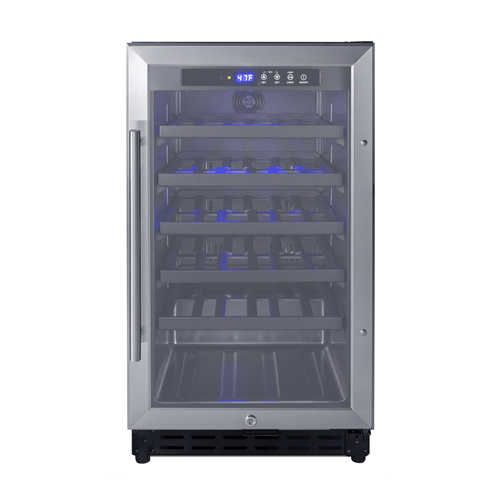

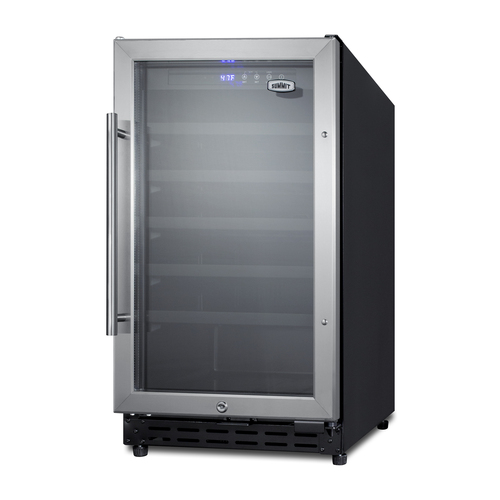

18" Wide Built-In Wine Cellar, ADA Compliant

SKU: SWC1840BADA Matching beveragecenter

Tints
Available with an energy saving door tint to protect the interior from natural and artificial light. Choose from four tint finishes with varying levels of visibility.

All tints reject up to 99% of UV rays. Click here to view these options and learn more about their efficiency.
Commercial home
This unit can be used for commercial or residential applications. It meets applicable U.S. Department of Energy (DOE) standards for both household and commercial energy usage. For information on its commercial sanitation listing, see Specifications.

One of the industry's only 18" wide undercounter wine cellars

31.38" H x 17.75" W x 23.5" D

(80cm H x 45cm W x 60cm D)

OVERVIEW

  • Commercially listed to NSF-7 standards
  • Less than 18" wide for a perfect fit in
  • 32" height for use in ADA compliant settings
  • Flexible design allows built-in or freestanding use under counters
  • Digital thermostat offers precise and convenient temperature control
  • Factory-installed lock provides security you can count on

SPECIFICATIONS

Overview
Height of Cabinet 31.38" (80 cm)
Width 17.75" (45 cm)
Depth 23.5" (60 cm)
Depth with door at 90° 39.75" (101 cm)
Capacity 3.3 cu.ft. (93 L)
Bottles 34 bottles
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.25
Voltage/Frequency 115 V AC/60 Hz
Weight 95.0 lbs. (43 kg)
Shipping Weight 98.0 lbs. (44 kg)
Estimated Time to Ship 2 to 4 days
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Wine Cellar
Number of Zones 1
Door Swing RHD
Reversible Yes
Adjustable Shelves Yes
Shelf Type Wood
Shelf Qty 5
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 10.6 oz.
High Side PSI 150.0
Low Side PSI 50.0
Level Legs 4
Temperature Range 41º to 68ºF

AVAILABLE UPGRADES

Exterior
SSK
Stainless steel kickplate factory installed
Extra key
Extra keys available for purchase
LHD - Left hand door swing
Door reversal to left hand swing
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
Door
T4 Door Tint
Neutral door tint in light smoke finish for moderate energy savings
T3 Door Tint
Reflective door tint in light blue finish for medium energy savings
T2 Door Tint
Tinted door in reflective deep blue finish with high energy savings
T1S Door Tint
Reflective door tint in dark smoke finish for maximum energy savings
T1 Door Tint
Tinted door in low-E mirror finish for maximum energy savings
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

WHERE TO BUY

Invalid Format

DESCRIPTION

SUMMIT's collection of built-in undercounter wine cellars offers quality storage with user-friendly convenience and elegant style.

The SWC1840BADA is a 32" high wine cellar designed for built-in or freestanding use under lower ADA compliant counters, with a unique 18" width. The reversible glass door features an elegant stainless steel trim and professional handle, with a factory installed lock for added security.

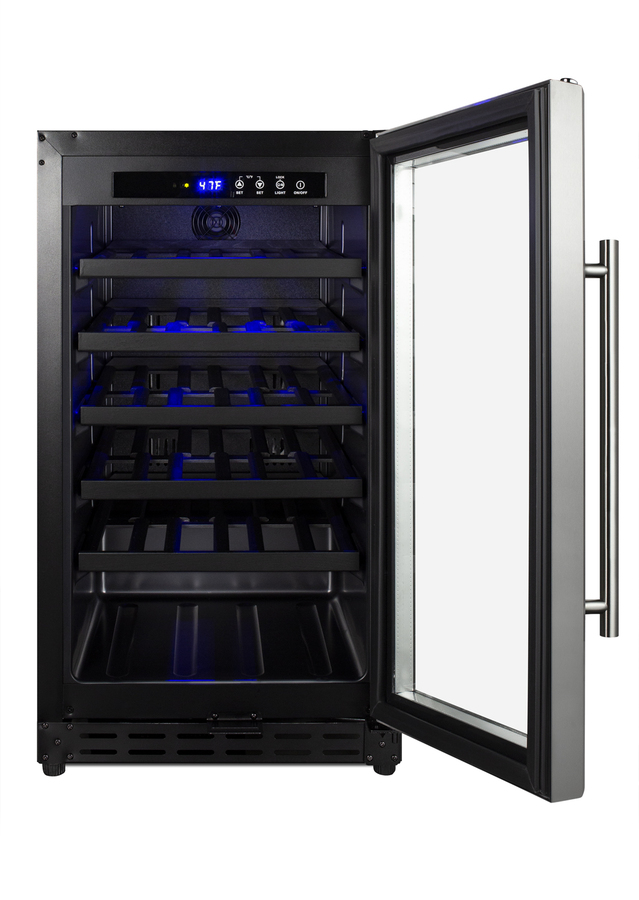

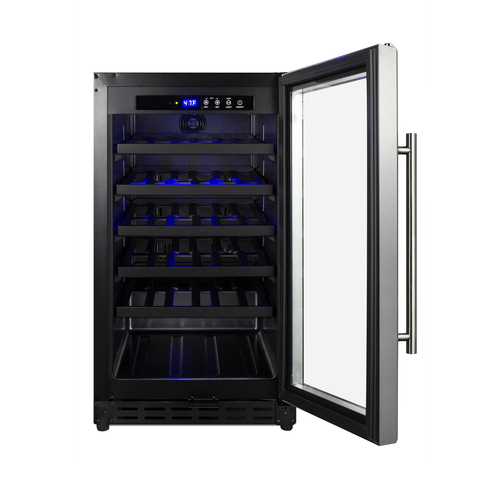

Inside, this auto defrost wine cellar can store up to 34 Bordeaux or Burgundy style bottles, with a slotted floor that can also accommodate champagne if needed. The slide-out wooden shelves come in a jet black finish for a modern look. Recessed LED lighting offers an elegant view of the items, while the digital thermostat ensures easy temperature management.

With its slim fit and convenient design, the SWC1840BADA makes an attractive addition to any room.

FEATURES

Commercially approved
ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments
ADA compliant
32" height is designed to fit under lower ADA compliant counters
Built-in capable
Make the best use of space by installing your appliance under the counter

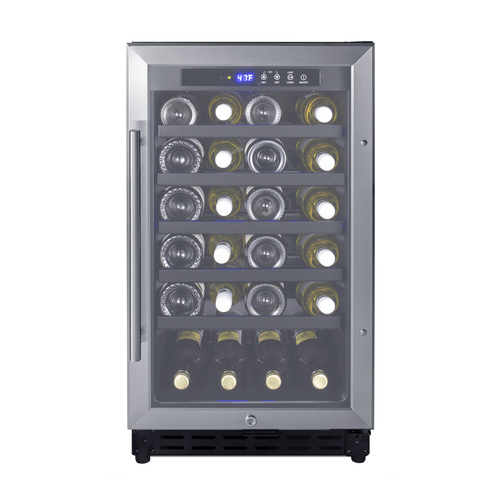

34 bottle capacity
Versatile interior can store up to 34 standard 750ml Bordeaux style or wider Burgundy style bottles

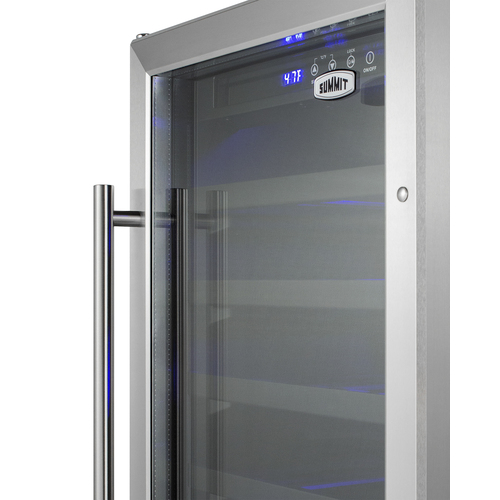

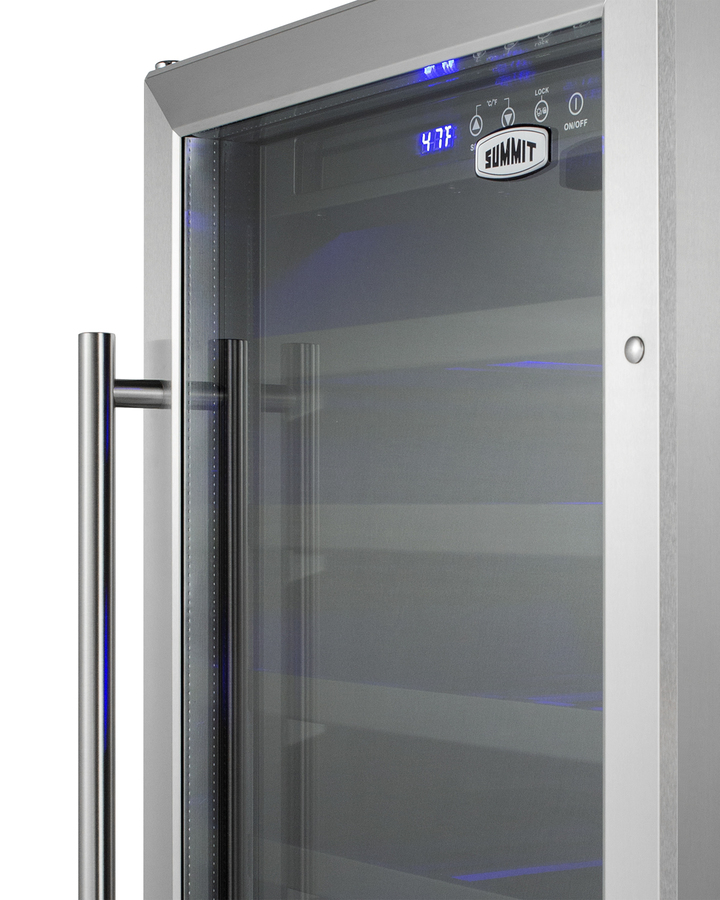

Glass door with stainless steel trim
Provides a full display of stored contents with a heat-safe double tempered design
Factory installed lock
Keyed security on the door
Digital thermostat
Electronic controls for precise temperature management.
Digital display
Temperature readout can be shown in Celsius or Fahrenheit
LED lighting
Gentle illumination with an on/off switch
Automatic defrost
Reduced maintenance with the convenience of auto defrost
Wooden shelves
5 shelves offer the perfect storage for wine bottles in a classic wooden finish
Reversible door
Keep your options flexible with a reversible door that is easy to switch when your arrangement changes
Professional handle
Stainless steel look for added elegance
Flush back
Space saving design
Fully finished black cabinet
Allows the unit to be used freestanding
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet 31.38" (80 cm)
Width 17.75" (45 cm)
Depth 23.5" (60 cm)
Depth with door at 90° 39.75" (101 cm)
Capacity 3.3 cu.ft. (93 L)
Bottles 34 bottles
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.25
Voltage/Frequency 115 V AC/60 Hz
Weight 95.0 lbs. (43 kg)
Shipping Weight 98.0 lbs. (44 kg)
Estimated Time to Ship 2 to 4 days
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Wine Cellar
Number of Zones 1
Door Swing RHD
Reversible Yes
Adjustable Shelves Yes
Shelf Type Wood
Shelf Qty 5
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 10.6 oz.
High Side PSI 150.0
Low Side PSI 50.0
Level Legs 4
Temperature Range 41º to 68ºF

AVAILABLE UPGRADES

Exterior
SSK
Stainless steel kickplate factory installed
Extra key
Extra keys available for purchase
LHD - Left hand door swing
Door reversal to left hand swing
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
Door
T4 Door Tint
Neutral door tint in light smoke finish for moderate energy savings
T3 Door Tint
Reflective door tint in light blue finish for medium energy savings
T2 Door Tint
Tinted door in reflective deep blue finish with high energy savings
T1S Door Tint
Reflective door tint in dark smoke finish for maximum energy savings
T1 Door Tint
Tinted door in low-E mirror finish for maximum energy savings

DOWNLOADS

Download
BROCHURE w/ DRAWINGS
SWC1840BADA.pdf
Download
TECHNICAL DRAWING (.dwg)
SWC1840ADAWINECELLARA-C2000.dwg
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
