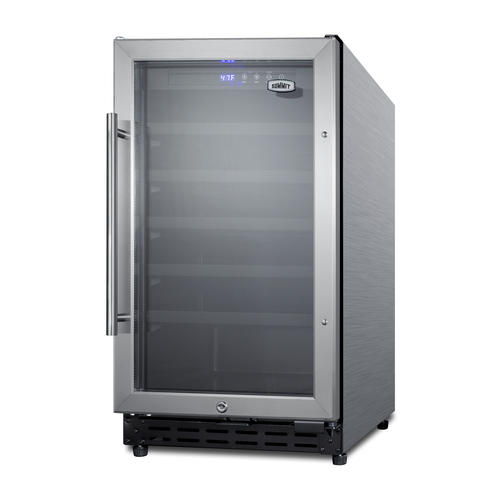

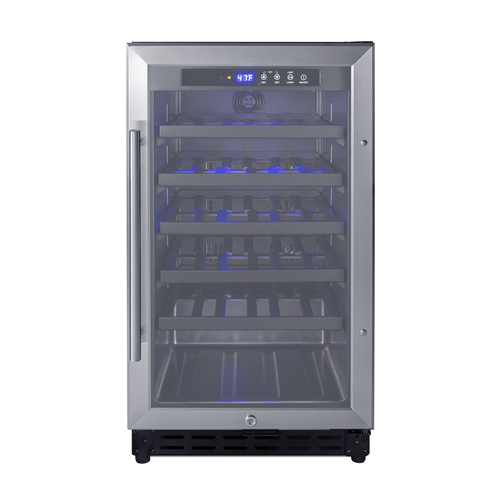

18" Wide Built-In Wine Cellar, ADA Compliant

SKU: SWC1840BCSSADA Matching beveragecenter

Tints
Available with an energy saving door tint to protect the interior from natural and artificial light. Choose from four tint finishes with varying levels of visibility.

All tints reject up to 99% of UV rays. Click here to view these options and learn more about their efficiency.
Commercial home
This unit can be used for commercial or residential applications. It meets applicable U.S. Department of Energy (DOE) standards for both household and commercial energy usage. For information on its commercial sanitation listing, see Specifications.

One of the industry's only 18" wide undercounter wine cellars

31.38" H x 17.94" W x 23.5" D

(80cm H x 46cm W x 60cm D)

OVERVIEW

  • Commercially listed to NSF-7 standards
  • 32" height allows installation under lower ADA compliant counters
  • Less than 18" wide for a perfect fit
  • Flexible design allows built-in or freestanding use
  • Digital thermostat offers precise and convenient temperature control
  • Factory installed lock provides security you can count on
  • Store up to 34 wine bottles on elegant wooden shelves

SPECIFICATIONS

Overview
Height of Cabinet 31.38" (80 cm)
Width 17.94" (46 cm)
Depth 23.5" (60 cm)
Capacity 3.3 cu.ft. (93 L)
Bottles 34 bottles
Defrost Type Automatic
Door Glass
Cabinet Stainless Steel
US Electrical Safety CSA
Amps 1.25
Voltage/Frequency 115 V AC/60 Hz
Weight 103.0 lbs. (47 kg)
Shipping Weight 108.0 lbs. (49 kg)
Estimated Time to Ship 2 to 4 days
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Wine Cellar
Number of Zones 1
Door Swing RHD
Reversible Yes
Adjustable Shelves Yes
Shelf Type Wood
Shelf Qty 5
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.06 oz.
High Side PSI 150.0
Low Side PSI 50.0
Level Legs 4
Temperature Range 41º to 68ºF

AVAILABLE UPGRADES

Exterior
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD - Left hand door swing
Door reversal to left hand swing
Extra key
Extra keys available for purchase
SSK
Stainless steel kickplate factory installed
Door
T1 Door Tint
Tinted door in low-E mirror finish for maximum energy savings
T1S Door Tint
Reflective door tint in dark smoke finish for maximum energy savings
T2 Door Tint
Tinted door in reflective deep blue finish with high energy savings
T3 Door Tint
Reflective door tint in light blue finish for medium energy savings
T4 Door Tint
Neutral door tint in light smoke finish for moderate energy savings
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

WHERE TO BUY

Invalid Format

DESCRIPTION

SUMMIT's collection of built-in undercounter wine cellars offers quality storage with user-friendly convenience and elegant style.

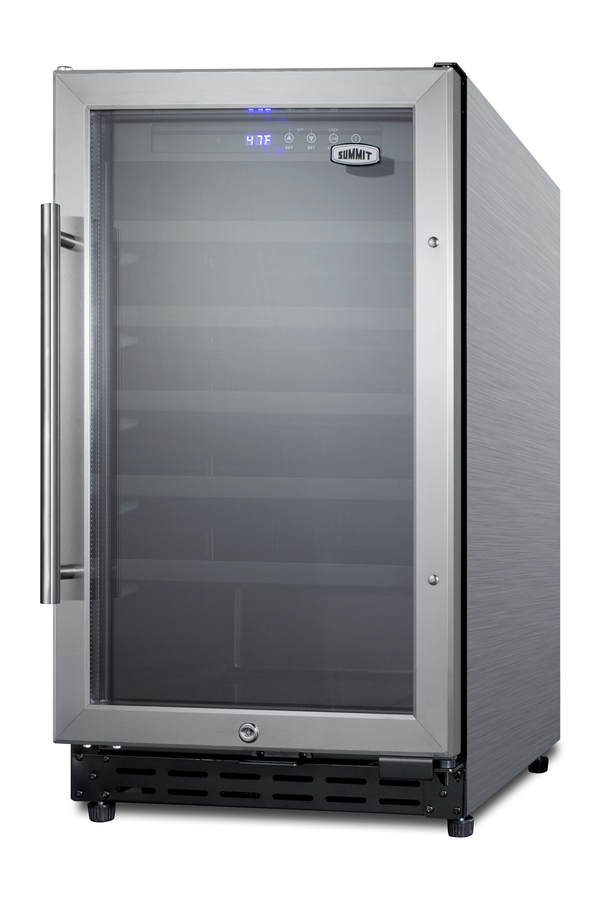

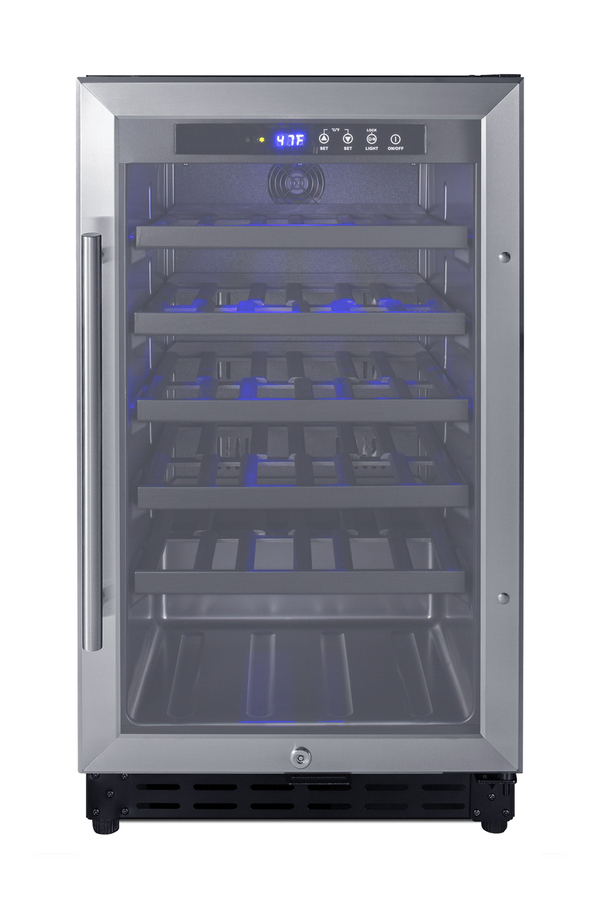

The SWC1840BCSSADA is a 32" high wine cellar designed for built-in or freestanding use under lower ADA compliant counters, with a unique 18" width. The user-reversible glass door features attractive stainless steel trim and a pro style handle, with a factory installed lock for added security. This unit comes with a wrapped stainless steel cabinet.

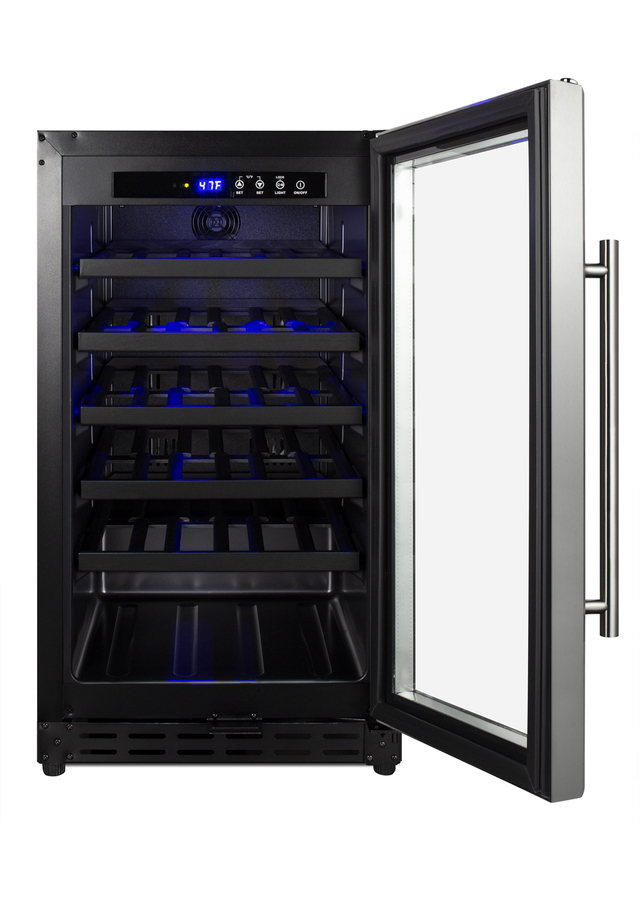

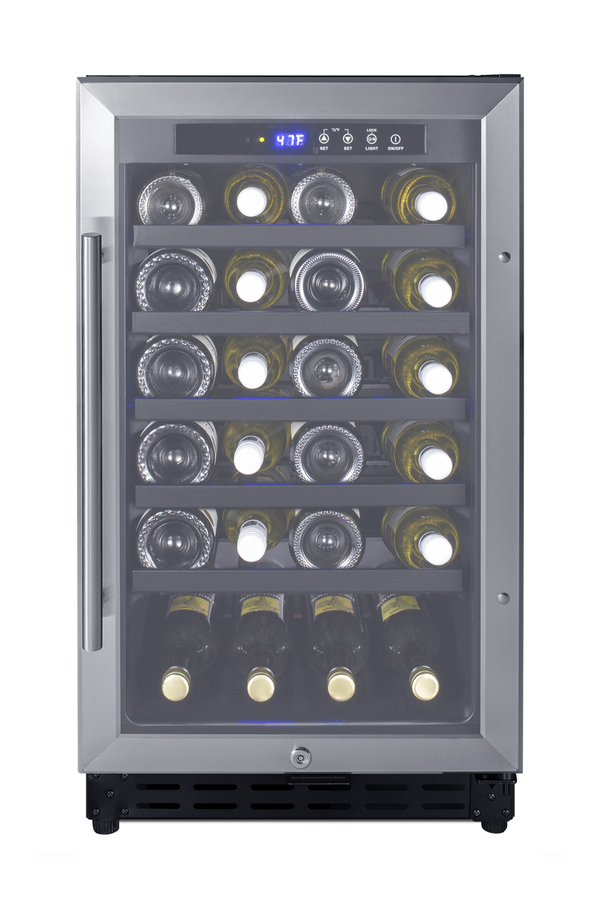

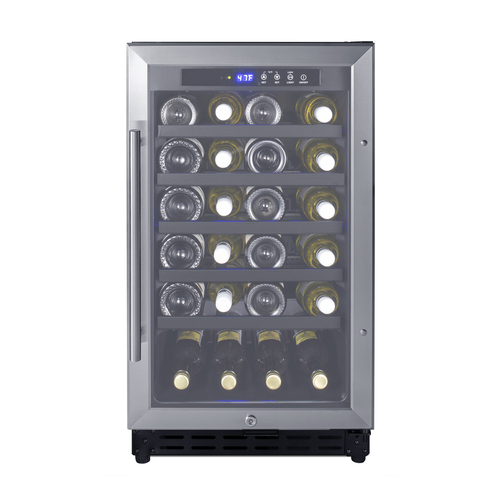

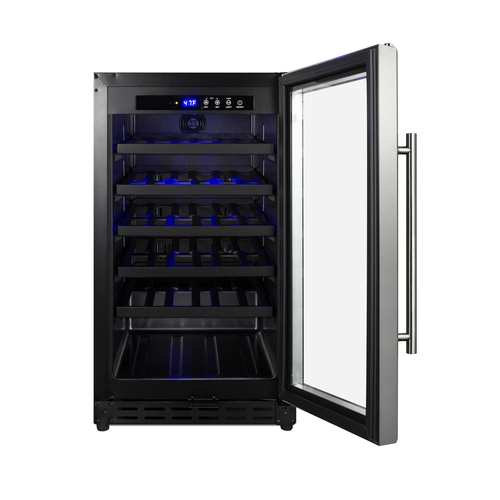

Inside, this auto defrost wine cellar can store up to 34 Bordeaux or Burgundy style bottles, with a slotted floor that can also accommodate champagne if needed. The slide-out wooden shelves come in a jet black finish for a modern look. Recessed LED lighting offers an elegant view of the items, while the digital thermostat ensures easy temperature management.

With its slim fit and convenient design, the SWC1840BCSSADA makes an attractive addition to any room. For a matching beverage center, see the SCR1841BCSSADA.

FEATURES

ADA compliant
32" height allows installation under lower ADA compliant counters
Built-in capable
Make the best use of space by installing your appliance under the counter
Commercially approved
ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments
34 bottle capacity
Versatile interior can store up to 34 standard 750ml Bordeaux style or wider Burgundy style bottles
Stainless steel wrapped cabinet
Stainless steel cabinet offers lasting durability and professional style

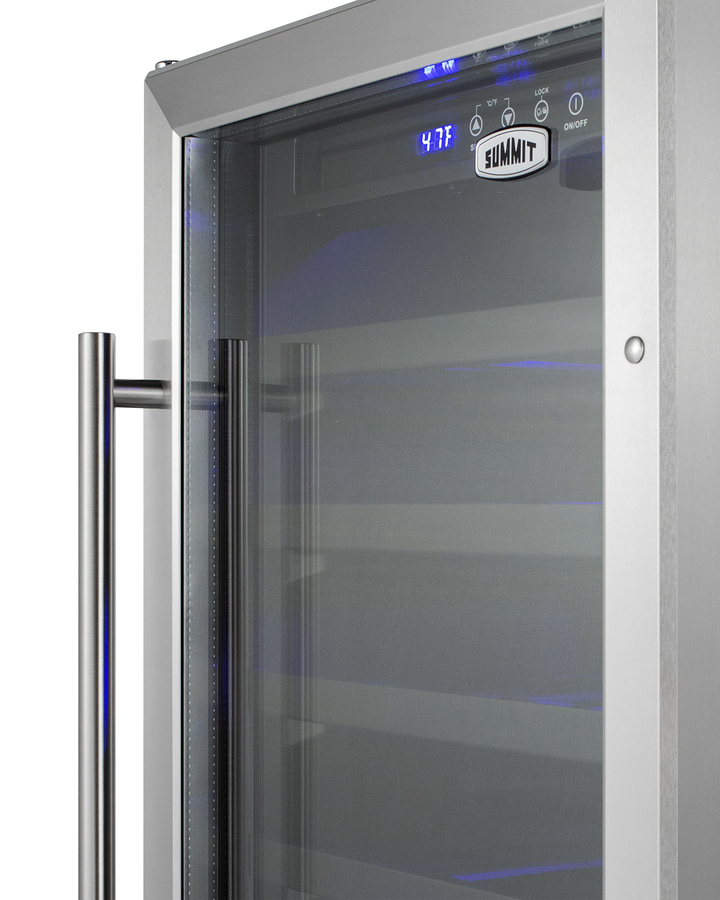

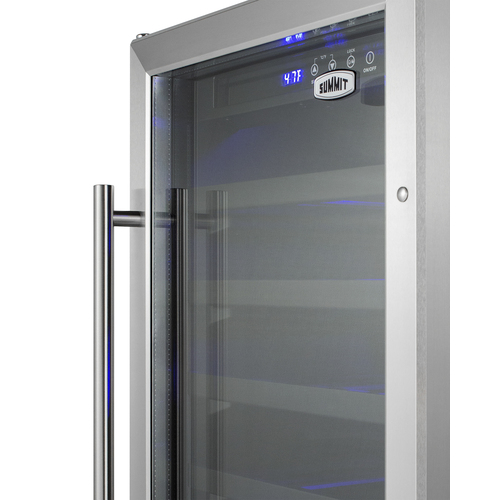

Professional towel bar handle
Curved stainless steel handle provides an easy grip with professional style
Factory installed lock
Keyed lock for a secure interior
Automatic defrost
Reduced maintenance with auto defrost system
Digital thermostat
Electronic controls for precise temperature management.
LED lighting
Gentle illumination with an on/off switch
Wooden shelves
5 shelves offer the perfect storage for wine bottles in a classic wooden finish
Reversible door
User-reversible door swing for added flexibility
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet 31.38" (80 cm)
Width 17.94" (46 cm)
Depth 23.5" (60 cm)
Capacity 3.3 cu.ft. (93 L)
Bottles 34 bottles
Defrost Type Automatic
Door Glass
Cabinet Stainless Steel
US Electrical Safety CSA
Amps 1.25
Voltage/Frequency 115 V AC/60 Hz
Weight 103.0 lbs. (47 kg)
Shipping Weight 108.0 lbs. (49 kg)
Estimated Time to Ship 2 to 4 days
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Wine Cellar
Number of Zones 1
Door Swing RHD
Reversible Yes
Adjustable Shelves Yes
Shelf Type Wood
Shelf Qty 5
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.06 oz.
High Side PSI 150.0
Low Side PSI 50.0
Level Legs 4
Temperature Range 41º to 68ºF

AVAILABLE UPGRADES

Exterior
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD - Left hand door swing
Door reversal to left hand swing
Extra key
Extra keys available for purchase
SSK
Stainless steel kickplate factory installed
Door
T1 Door Tint
Tinted door in low-E mirror finish for maximum energy savings
T1S Door Tint
Reflective door tint in dark smoke finish for maximum energy savings
T2 Door Tint
Tinted door in reflective deep blue finish with high energy savings
T3 Door Tint
Reflective door tint in light blue finish for medium energy savings
T4 Door Tint
Neutral door tint in light smoke finish for moderate energy savings

DOWNLOADS

Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
