18" Wide Built-In All-Refrigerator, ADA Compliant

SKU: FF1843BCSSADA
Unique 18" width and ADA compliant height for lower counters
Estimated Time to Ship:

3 to 5 days

This unit can be used for commercial or residential applications. It meets applicable U.S. Department of Energy (DOE) standards for both household and commercial energy usage. For information on its commercial sanitation listing, see Specifications.
31.5" H x 17.75" W x 24.0" D
(80cm H x 45cm W x 61cm D)

Overview
Height of Cabinet 31.5" (80 cm)
Width 17.75" (45 cm)
Width with Door Open 18.5" (47 cm)
Depth 24.0" (61 cm)
Depth with Handle 25.75" (65 cm)
Depth with door at 90° 40.0" (102 cm)
Capacity 2.7 cu.ft. (76 L)
Defrost Type Automatic
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 250.0kWh/year
Amps 1.1
Voltage/Frequency 115 V AC/60 Hz
Weight 103.0 lbs. (47 kg)
Shipping Weight 108.0 lbs. (49 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101047058
Refrigerator Features
Door Swing RHD
Reversible Yes
Shelf Type Chrome
Shelf Qty 4
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.06oz.
High Side PSI 150.0
Low Side PSI 50.0
Level Legs Qty 2
Interior Light Yes
Dimensions
Interior Height 23.5" (60 cm)
Interior Width 12.75" (32 cm)
Interior Depth 16.75" (43 cm)
Compressor Step Height 4.5" (11 cm)
Compressor Step Width 12.75" (32 cm)
Compressor Step Depth 4.5" (11 cm)

Exterior
Latch - Factory-installed door latch requires manual release to open unit
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD - Left hand door swing
Door reversal to left hand swing
SCD - Self-closing door
Protect interior contents and reduce energy waste with the Self Closing Door Option
Extra key
Extra keys available for purchase
SSK - Stainless steel kickplate
Stainless steel kickplate factory installed

Commercially approved

ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments

Built-in capable

Make the best use of space by installing your appliance under the counter

ADA compliant

32" height is designed to fit under lower ADA compliant counters

Stainless steel wrapped exterior

Cabinet and door are fully wrapped for an elegant look with long-lasting durability

Factory installed lock

Keyed lock for a secure interior

Automatic defrost

Reduced maintenance with auto defrost system

Digital thermostat

Electronic controls for precise temperature management.

LED lighting

Gentle illumination with an on/off switch

Adjustable chrome shelves

Rearrange interior space to accommodate all sizes or remove shelves for simple cleanup

Flush back

Space saving design

Reversible door

User-reversible door swing allows for more flexibility in placing the unit

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

SUMMIT's selection of built-in undercounter refrigeration includes one of the industry's only complete 18" wide lines for use in ADA compliant settings.

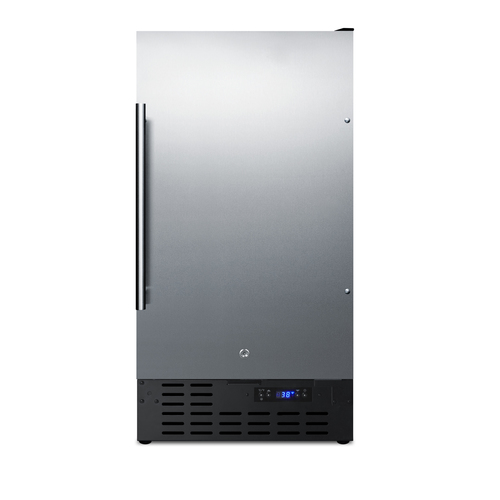

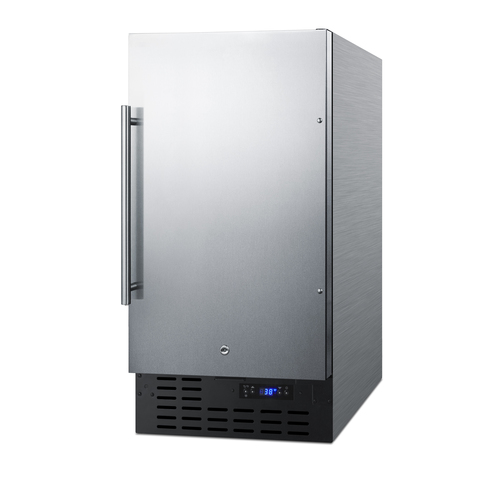

Sized just under 18" wide and 32" high, the FF1843BCSSADA is the perfect all-refrigerator for space-challenged kitchens. It comes with a fully wrapped stainless steel exterior and pro style handle. This unit can be used built-in or freestanding. The user-reversible door includes a factory installed front lock.

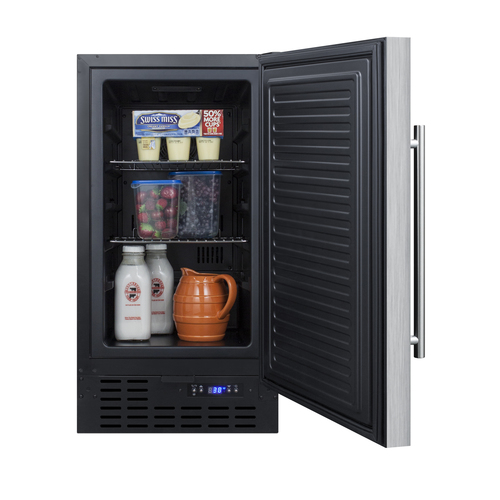

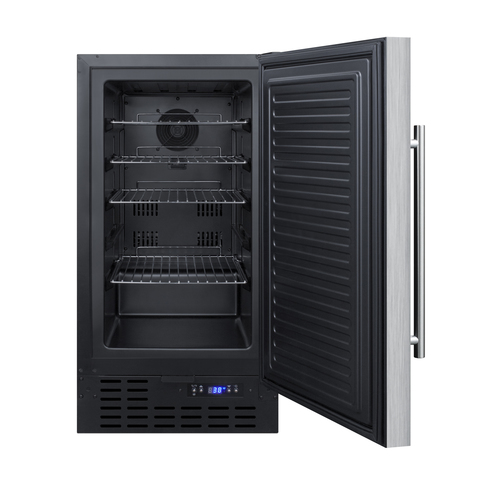

Inside, the FF1843BCSSADA utilizes automatic defrost operation for low maintenance use. Four adjustable chrome shelves accommodate a variety of sizes and LED lighting offers an efficient interior view. This unit includes a digital thermostat for optimum temperature management.

Combine the FF1843BCSSADA with its matching freezer, wine cellar, or beverage refrigerator. We also offer this model in black or with a panel-ready door.

Download
BROCHURE w/ DRAWINGS
FF1843BCSSADA.pdf
Download
TECHNICAL DRAWING (.dwg)
FF1843BADA_REF.__A-C_2000_.dwg
Download
MSDS INFORMATION
R600a_K.pdf
Energy Guide

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
