SWC3668ADA

Tints f38f71c7257ce8e8379d579d03d127066ebb465738d3759d49e5075b11ff9ae5
Available with an energy saving door tint to protect the interior from natural and artificial light. Choose from four tint finishes with varying levels of visibility.

All tints reject up to 99% of UV rays. Click here to view these options and learn more about their efficiency.

Dual zone storage with a modern French door swing and seamless stainless steel trim

31.5" H x 35.38" W x 23.5" D

(80cm H x 90cm W x 60cm D)

OVERVIEW

  • 32" height allows installation under lower ADA compliant counters
  • Dual zone design lets you store red and white wine in separate compartments under the appropriate temperature conditions
  • Flexible design allows built-in or freestanding use in 36" wide spaces
  • Versatile interior can store both slim Bordeaux bottles and wider Burgundy style wine bottles
  • Seamless stainless steel trimmed glass doors feature a modern French door swing
  • Digital controls offer easy and intuitive temperature management
  • Factory installed locks provide added security to both sections

SPECIFICATIONS

Overview
Height of Cabinet 31.5" (80 cm)
Width 35.38" (90 cm)
Depth 23.5" (60 cm)
Depth with Handle 25.25" (64 cm)
Depth with door at 90° 39.75" (101 cm)
Bottles 68 bottles
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.25
Voltage/Frequency 115 V AC/60 Hz
Weight 151.0 lbs. (68 kg)
Shipping Weight 158.0 lbs. (72 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Wine Cellar
Number of Zones 2
Door Swing French
Adjustable Shelves Yes
Shelf Type Wood
Shelf Qty 10
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.06 oz.
High Side PSI 150.0
Low Side PSI 50.0
Interior Height 1 23.0" (58 cm)
Interior Width 1 14.0" (36 cm)
Interior Depth 1 18.0" (46 cm)
Compressor Step Height 5.0" (13 cm)
Compressor Step Width 14.0" (36 cm)
Compressor Step Depth 5.0" (13 cm)
Level Legs 4
Temperature Range 40 to 72ºF
Interior Height 2 23.0" (58 cm)
Interior Width 2 14.0" (36 cm)
Interior Depth 2 18.0" (46 cm)

AVAILABLE UPGRADES

Exterior
SSK
Stainless steel kickplate factory installed
Extra key
Extra keys available for purchase
Door
T4F Door Tint
Neutral door tint in light smoke finish for moderate energy savings
T3F Door Tint
Reflective door tint in light blue finish for medium energy savings
T2F Door Tint
Tinted door in reflective deep blue finish with high energy savings
T1SF Door Tint
Reflective door tint in dark smoke finish for maximum energy savings on full-size and two-door models


California residents:
click here for information on Proposition 65

Due to our commitment to continuous product improvement, all specifications are subject to change without notice

WHERE TO BUY

Invalid Format

DESCRIPTION

SUMMIT's collection of built-in undercounter wine cellars offers quality storage with user-friendly convenience and elegant style.

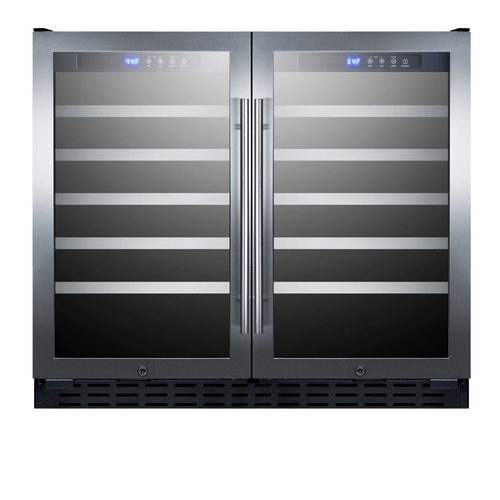

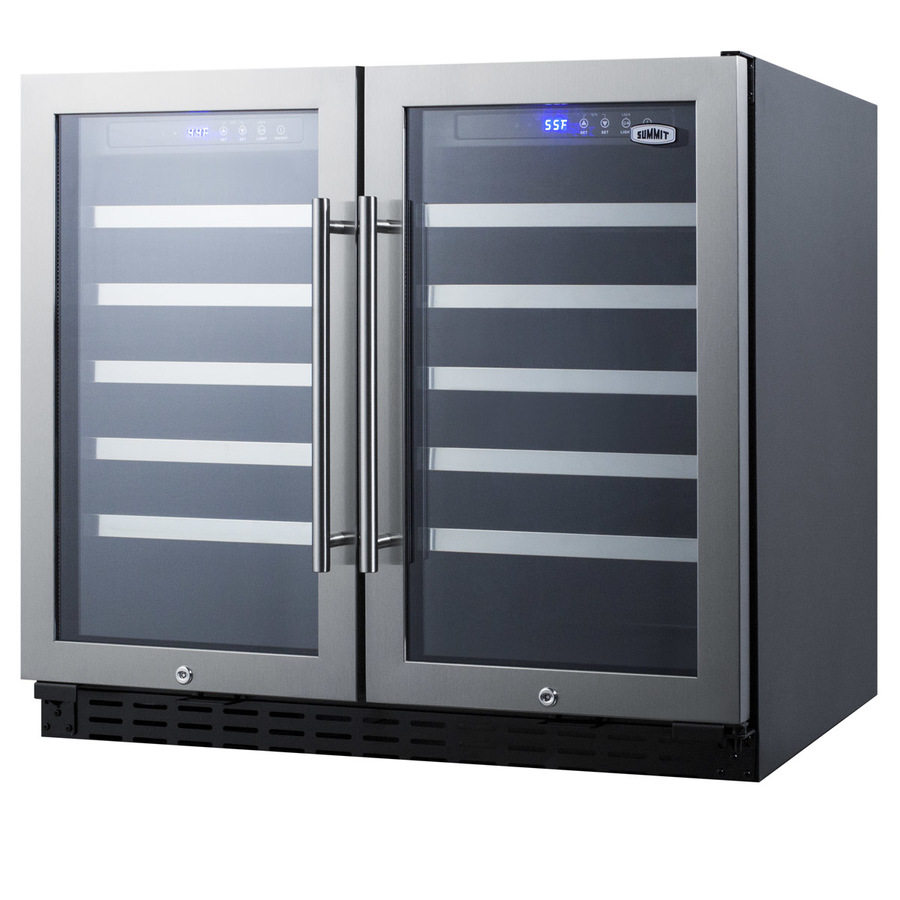

At just under 32" high and 36" wide, the SWC3668ADA wine cellar is designed for built-in installation under lower ADA compliant counters. The fully finished black cabinet also allows freestanding use. This unit includes two seamless stainless steel trimmed glass doors with a unique French door swing. Both include factory installed locks for added security and professional handles to finish the modern look.

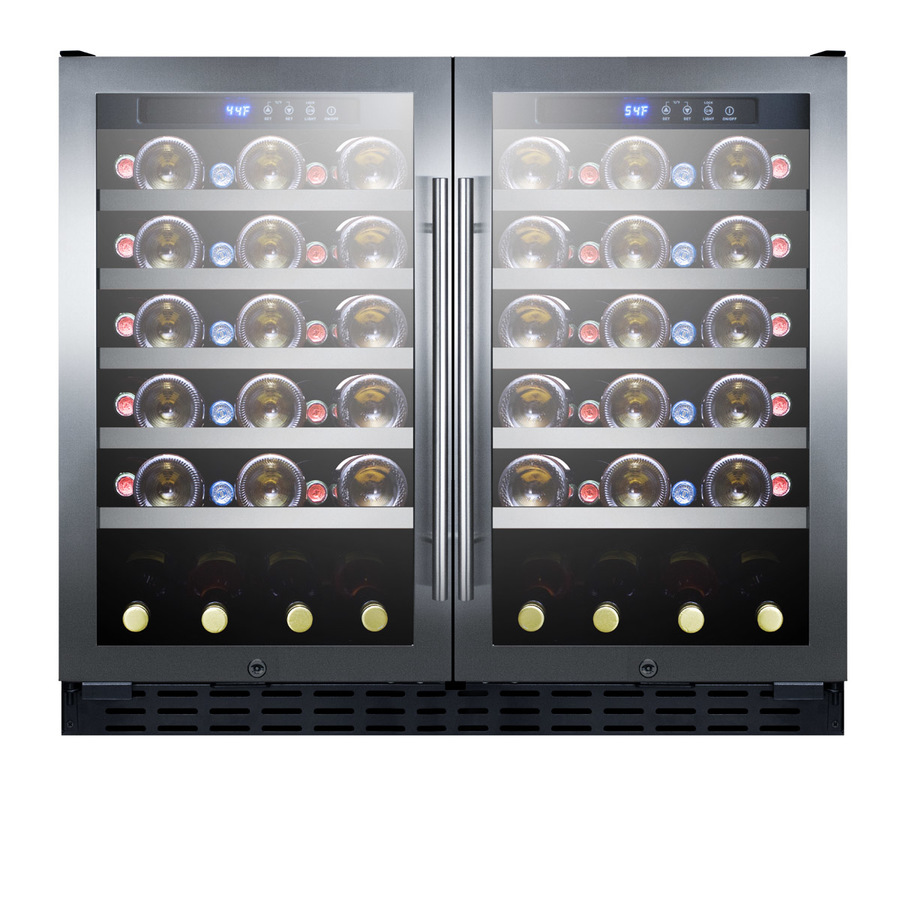

Two separate zones feature independent digital thermostats, letting you chill white and sparkling wine in one section while preserving reds under warmer temperatures in the other. Both zones include five wooden shelves in a jet black finish with stainless steel trim, as well as slotted floors to accommodate champagne bottles. The interior can store up to 68 standard 750ml Bordeaux bottles. Alternatively, you can fit up to 56 wider "Burgundy" style bottles (often used for Chardonnay and Pinot Noir). Recessed LED lighting offers an attractive view to let you display your wine collection in style.

With a professional look and innovative design, SUMMIT SWC3668ADA is a unique addition to any home.

FEATURES

ADA compliant height
Less than 32" high to fit under lower counters following ADA guidelines for accessibility
Built-in capable
Make the best use of space by installing this unit under the counter and flush with other cabinetry
Dual zone design
Two distinct temperature zones let you store white wine at colder temperature and red wine under warmer conditions
68 bottle capacity
Interior can hold 68 standard 750ml Bordeaux style bottles, or 56 wider Burgundy bottles
Recessed LED lighting
Gentle and energy efficient LED lighting offers an elegant view of your collection

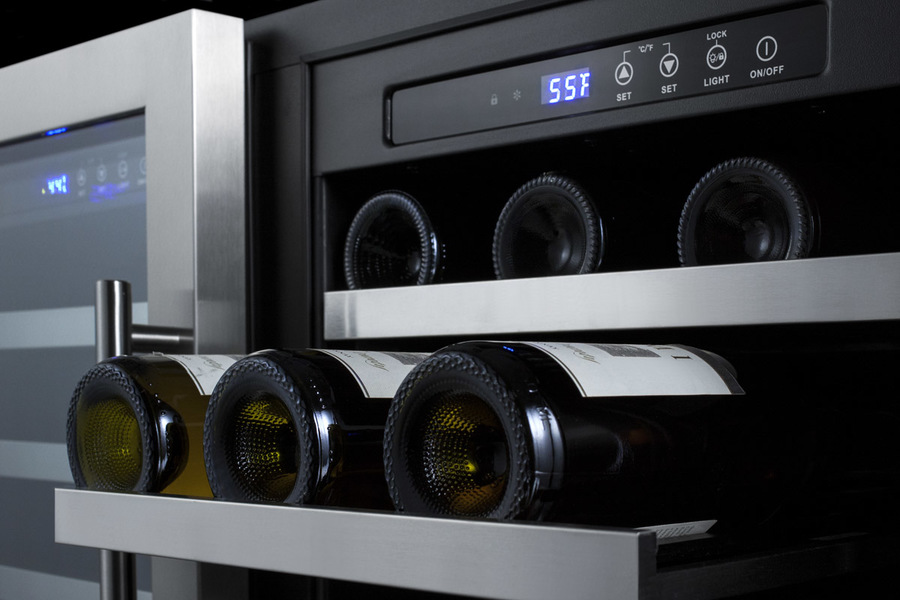

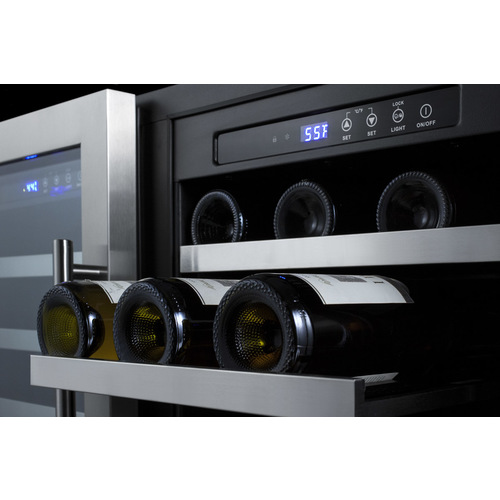

Digital thermostats
Each zone is equipped with electronic temperature controls for easy and intuitive temperature management
Wooden shelves
Stainless steel trimmed wooden shelves with a jet black finish for a modern look
Professional handles
Sleek stainless steel handles add an elegant touch to any setting
Glass doors
French door swing for a more dramatic presentation
Seamless stainless steel trim
Door trim is completely seamless for a more luxurious look
Factory installed locks
Keyed locks on both zones offer separate security for interior contents
Automatic defrost
Reduced user maintenance with automatic defrost
Fan-forced cooling
Internal fans ensure both interiors have a consistent temperature from top to bottom
Sealed back
Space-saving design that ensures easier cleanup
Fully finished cabinet
Allows the unit to be used freestanding
Commercially approved
ETL-S listed to ANSI-NSF Standard 7
100% CFC free
Environmentally friendly design without ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet 31.5" (80 cm)
Width 35.38" (90 cm)
Depth 23.5" (60 cm)
Depth with Handle 25.25" (64 cm)
Depth with door at 90° 39.75" (101 cm)
Bottles 68 bottles
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.25
Voltage/Frequency 115 V AC/60 Hz
Weight 151.0 lbs. (68 kg)
Shipping Weight 158.0 lbs. (72 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Wine Cellar
Number of Zones 2
Door Swing French
Adjustable Shelves Yes
Shelf Type Wood
Shelf Qty 10
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.06 oz.
High Side PSI 150.0
Low Side PSI 50.0
Interior Height 1 23.0" (58 cm)
Interior Width 1 14.0" (36 cm)
Interior Depth 1 18.0" (46 cm)
Compressor Step Height 5.0" (13 cm)
Compressor Step Width 14.0" (36 cm)
Compressor Step Depth 5.0" (13 cm)
Level Legs 4
Temperature Range 40 to 72ºF
Interior Height 2 23.0" (58 cm)
Interior Width 2 14.0" (36 cm)
Interior Depth 2 18.0" (46 cm)

AVAILABLE UPGRADES

Exterior
SSK
Stainless steel kickplate factory installed
Extra key
Extra keys available for purchase
Door
T4F Door Tint
Neutral door tint in light smoke finish for moderate energy savings
T3F Door Tint
Reflective door tint in light blue finish for medium energy savings
T2F Door Tint
Tinted door in reflective deep blue finish with high energy savings
T1SF Door Tint
Reflective door tint in dark smoke finish for maximum energy savings on full-size and two-door models

DOWNLOADS

Download
BROCHURE w/ DRAWINGS
SWC3668ADA.pdf
Download
TECHNICAL DRAWING (.dwg)
SWC3668ADA_WINE_CELLAR__A-C_2000_.dwg
Download
USE & CARE
SWC3668_manual.pdf


California residents:
click here for information on Proposition 65

Due to our commitment to continuous product improvement, all specifications are subject to change without notice
