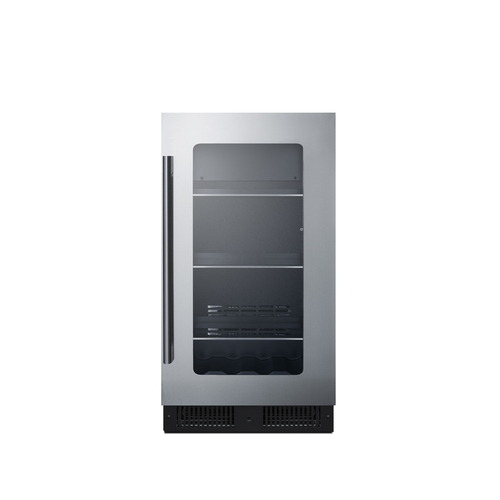

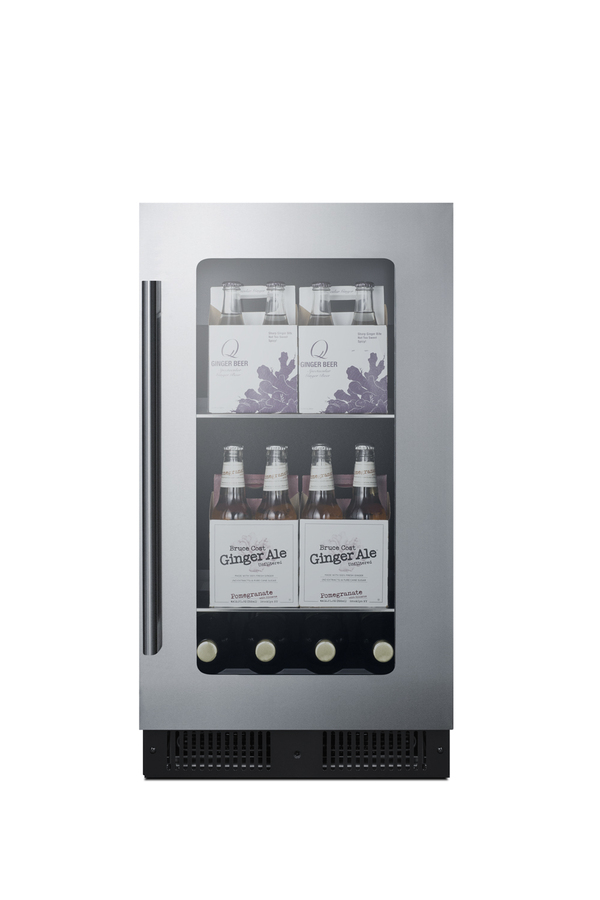

18" Wide Built-In Beverage Center

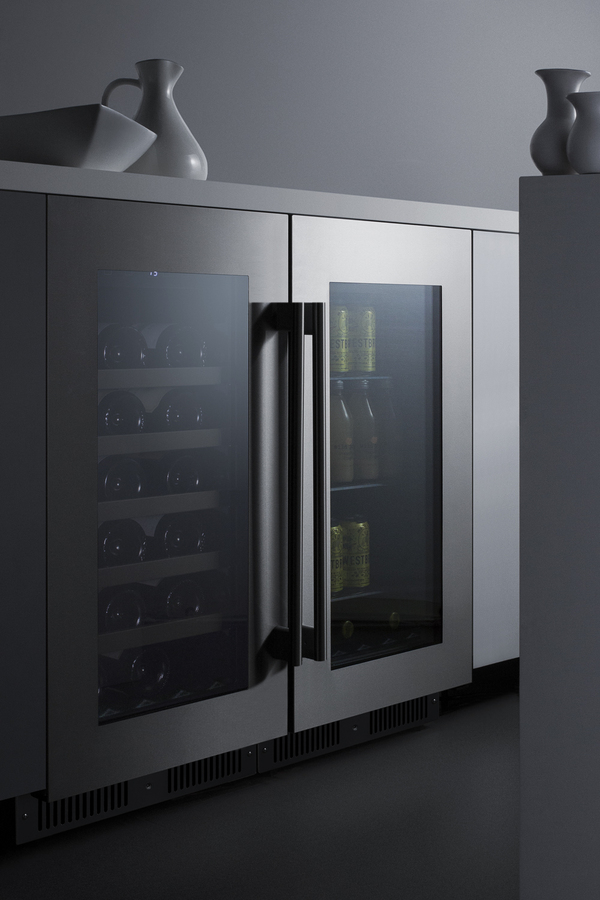

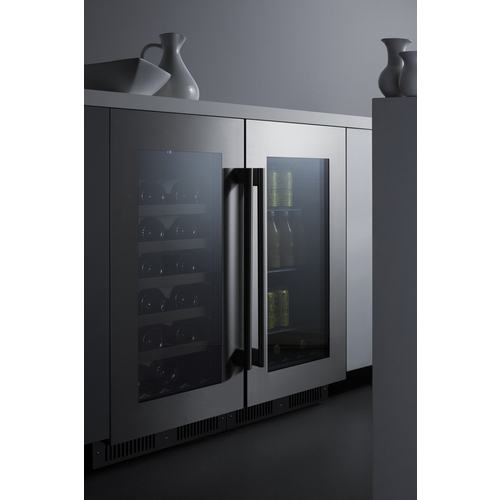

SKU: CL181WBV Matching winecellar

Tints
Available with an energy saving door tint to protect the interior from natural and artificial light. Choose from four tint finishes with varying levels of visibility.

All tints reject up to 99% of UV rays. Click here to view these options and learn more about their efficiency.
Delivery
This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.
Commercial home
This unit can be used for commercial or residential applications. It meets applicable U.S. Department of Energy (DOE) standards for both household and commercial energy usage. For information on its commercial sanitation listing, see Specifications.

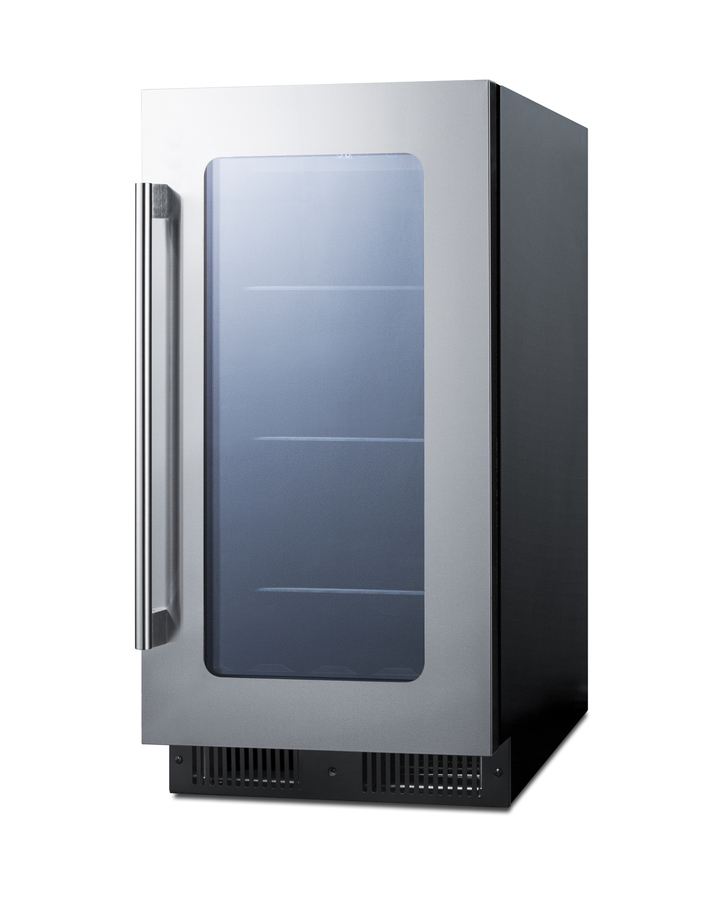

Seamless stainless steel door trim brings true elegance under the counter

34.0" H x 17.5" W x 23.5" D

(86cm H x 44cm W x 60cm D)

OVERVIEW

  • Flexible design allows built-in or freestanding use
  • Slim 18" width is perfect for home bars
  • White LED lighting presents an elegant look for the interior
  • Seamless stainless steel trim on glass door brings elevated style under the counter
  • Digital thermostat offers precise and convenient temperature control
  • Adjustable glass shelves ensure spill-proof storage

SPECIFICATIONS

Overview
Height of Cabinet 34.0" (86 cm)
Width 17.5" (44 cm)
Depth 23.5" (60 cm)
Depth with Handle 25.38" (64 cm)
Depth with door at 90° 39.63" (101 cm)
Capacity 2.9 cu.ft. (82 L)
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 255.0kWh/year
Amps 1.0
Voltage/Frequency 115 V AC/60 Hz
Weight 88.0 lbs. (40 kg)
Shipping Weight 91.0 lbs. (41 kg)
Estimated Time to Ship Next day shipping
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator Features
Sabbath Mode Yes
Door Swing Reversible
Reversible Yes
Shelf Type Glass
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 0.85oz.
High Side PSI 270.0
Low Side PSI 105.0
Interior Light Yes
Temperature Range 36 to 43ºF
Dimensions
Interior Height 23.0" (58 cm)
Interior Width 12.25" (31 cm)
Interior Depth 17.5" (44 cm)
Compressor Step Height 3.25" (8 cm)
Compressor Step Width 12.25" (31 cm)
Compressor Step Depth 5.25" (13 cm)

AVAILABLE UPGRADES

Door
T1S Door Tint
Reflective door tint in dark smoke finish for maximum energy savings
T4 Door Tint
Neutral door tint in light smoke finish for moderate energy savings
T3 Door Tint
Reflective door tint in light blue finish for medium energy savings
T2 Door Tint
Tinted door in reflective deep blue finish with high energy savings
T1 Door Tint
Tinted door in low-E mirror finish for maximum energy savings
Exterior
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD - Left hand door swing
Door reversal to left hand swing
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

WHERE TO BUY

Invalid Format

DESCRIPTION

The SUMMIT Classic Collection features deluxe undercounter appliances designed to bring modern luxury into the home.

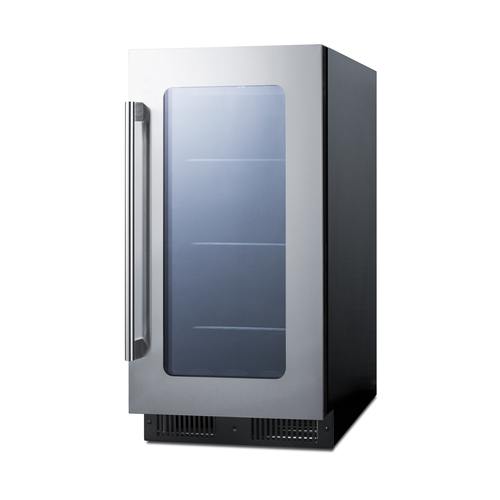

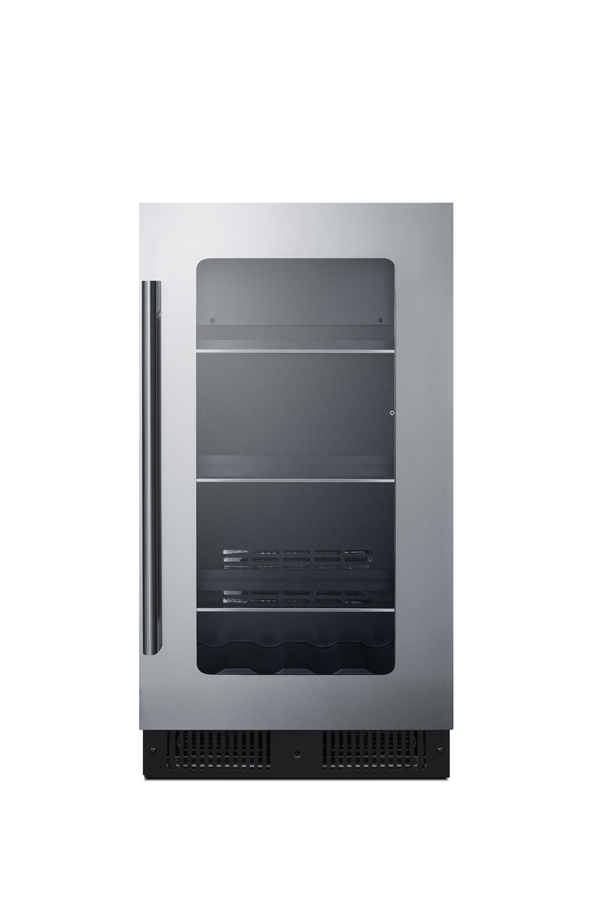

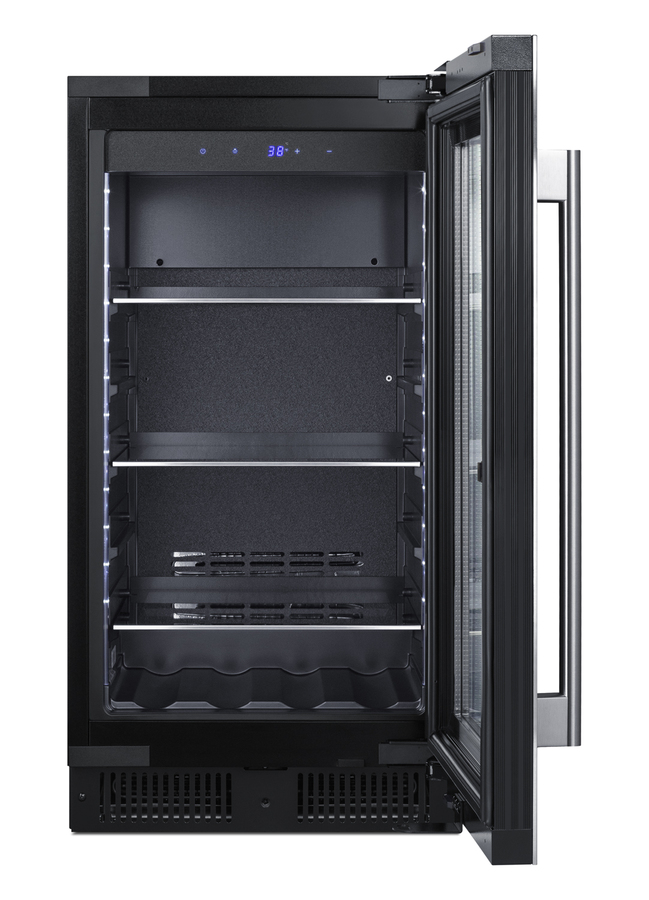

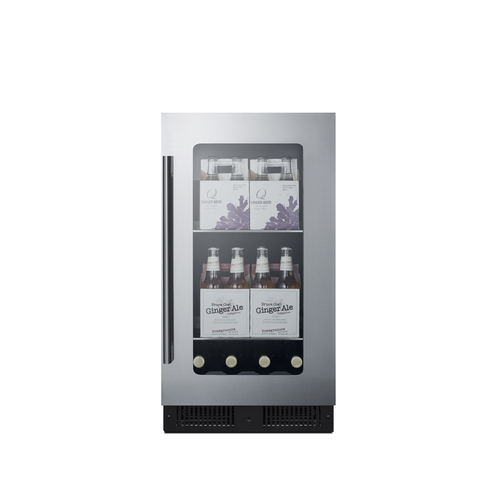

The CL181WBV is an 18" wide beverage center. The front breathing design allows built-in installation under counters, while the fully finished cabinet in a jet black finish also enables freestanding use. The seamless stainless steel door trim blends right into the softly tinted double pane tempered glass, with a professional stainless steel handle and designer kickplate completing the stunning look. Inside, white LED lighting located on the side walls complements the black interior for an attractive presentation.

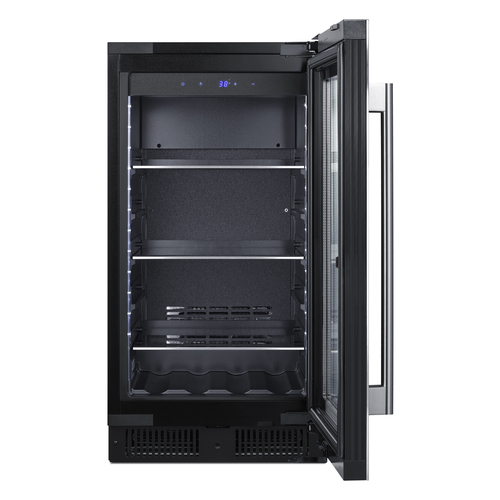

The CL181WBV includes three adjustable glass shelves for spill-proof storage. The floor is specially slotted to hold wine bottles in place. The interior control panel includes a digital thermostat for easy and intuitive operation, with a readout viewable in Celsius or Fahrenheit. Additional features include a user-reversible door, right angle plug for added space savings, sealed back design for easier cleanup, and a Sabbath mode setting. A built-in alarm audibly warns if the door is left ajar or if the unit exceeds recommended temperature.

Uniquely styled and fully featured, the CL181WBV brings true luxury to small kitchen spaces.

FEATURES

Built-in capable
Make the best use of space by installing your appliance under the counter
Double pane tempered glass door
Heat-safe glass ensures your items are stored safely
Seamless stainless steel trim
One-piece stainless steel door frame offers a luxurious look with no exposed seams or holes

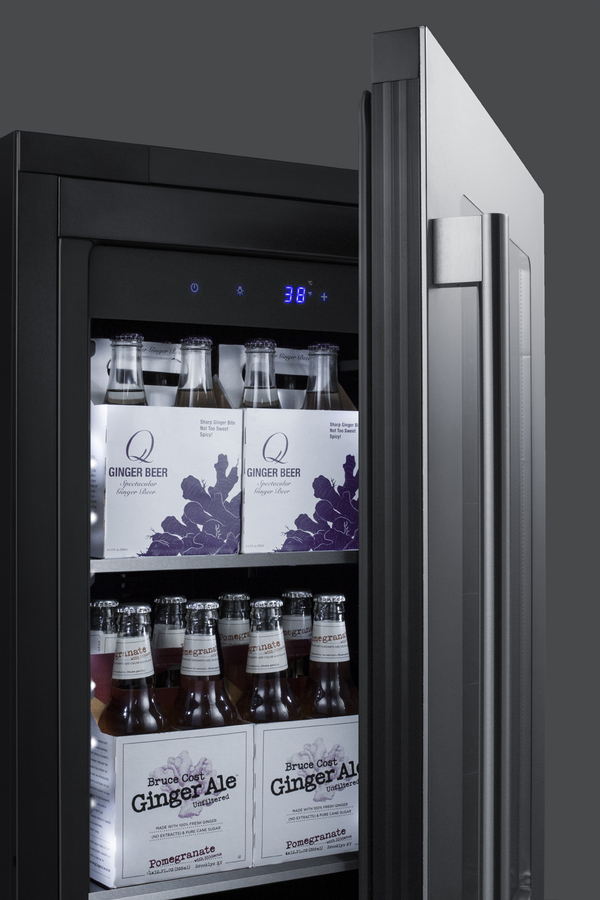

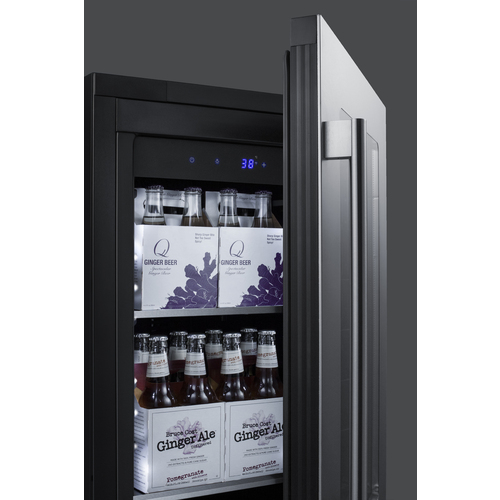

Digital thermostat
Electronic controls for precise temperature management
Digital display
Temperature readout can be shown in Celsius or Fahrenheit

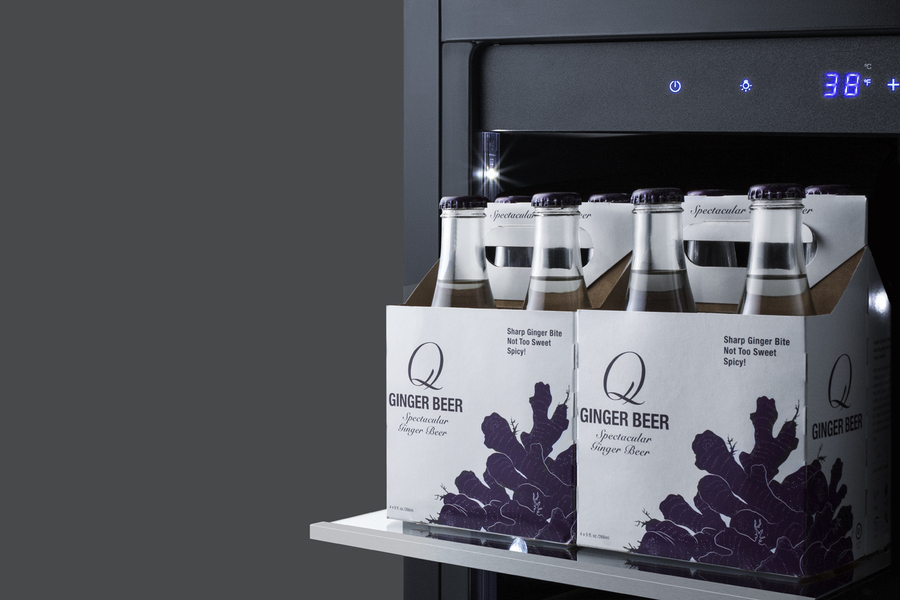

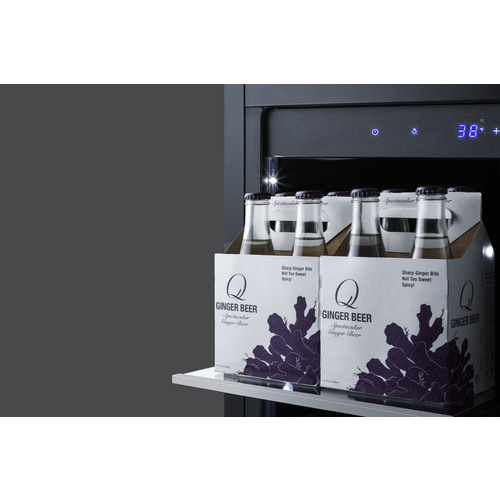

Adjustable glass shelves
Spill-proof glass shelves make it easy to store and display bottles and cans
Bottle slots
Floor is specially slotted to store wine and other bottles safely in place

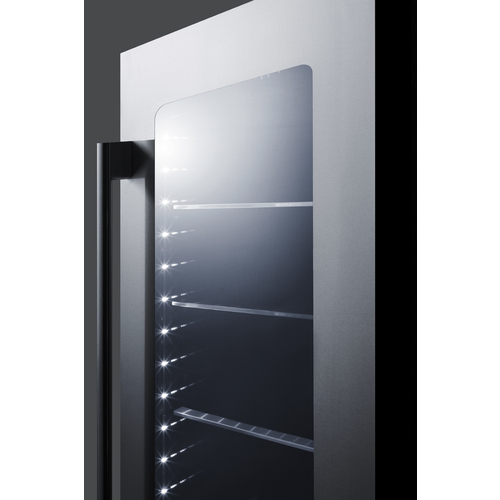

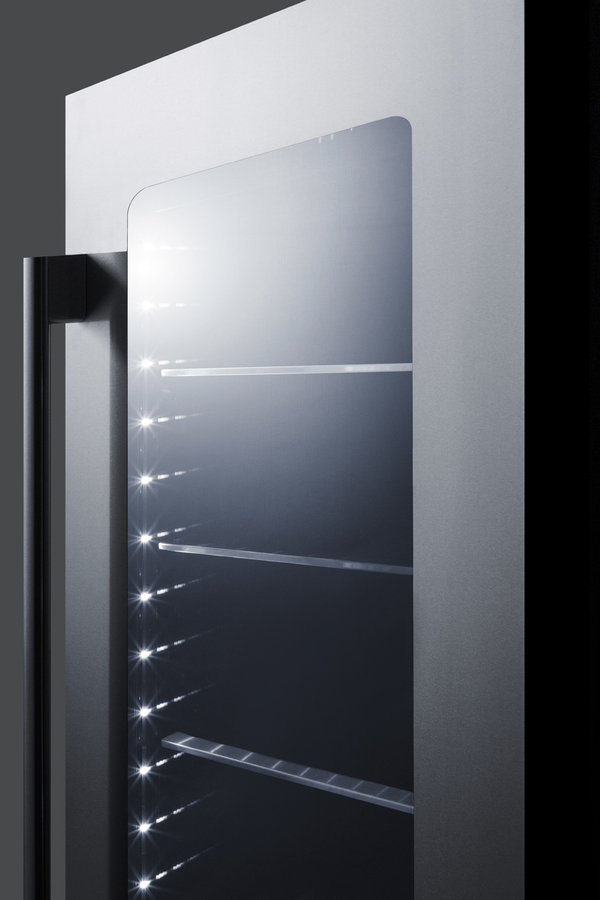

White LED lighting
Unique white lighting located inside the walls offers elegant illumination for the jet black interior
Professional handle
Vertically mounted handle in brushed stainless steel
Reversible door
User-reversible door swing allows for more flexibility in placing the unit
Stainless steel kickplate
Completes the professional look down to the toe kick
Sabbath Mode
Optional setting lets you disable the lighting and alarm for up to 96 hours
Temperature alarm
Audibly alerts if the interior temperature is too warm
Open door alarm
Audible alarm will sound if the door is left ajar for over 60 seconds
Fan-forced cooling
Internal fan ensures the interior is evenly cooled from top to bottom
Automatic defrost
Reduced maintenance and steady temperature performance
Sealed back
Space saving design with easier cleanability
Temperature Memory Function
Unit will retain its last settings when power is restored in the event of power loss
Right angle plug
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Fully finished black cabinet
Allows the unit to be used freestanding

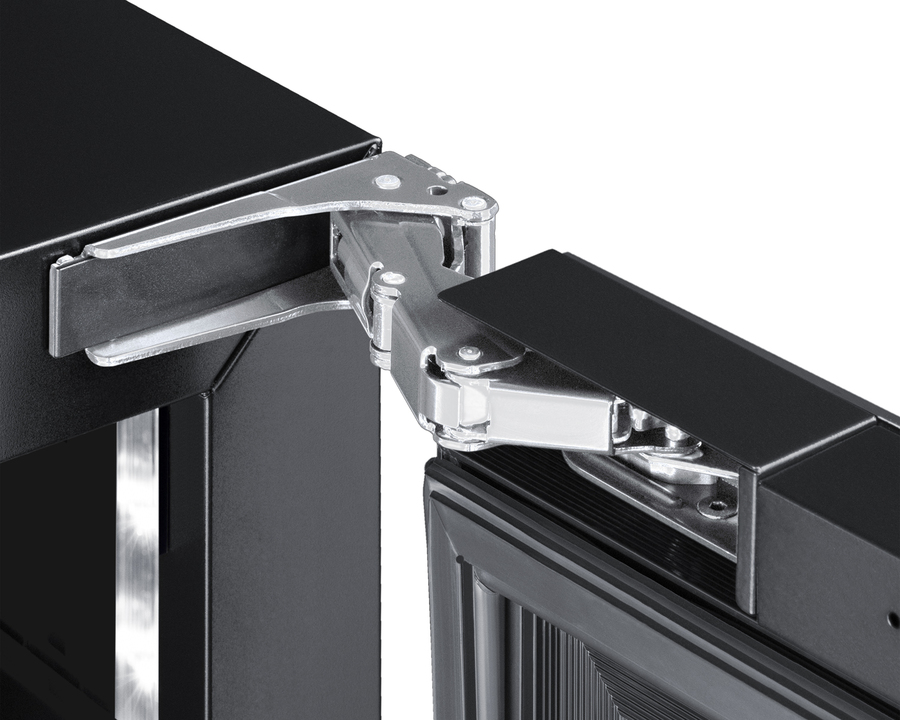

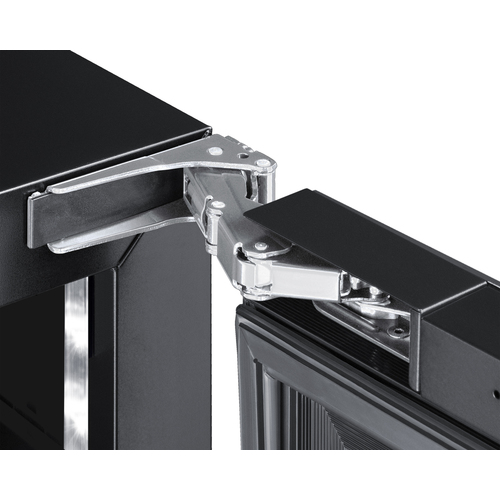

Integrated hinge
Top hinge adds no additional height or width when the door is opened
Commercially approved
ETL-S listed to NSF-7 standards
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet 34.0" (86 cm)
Width 17.5" (44 cm)
Depth 23.5" (60 cm)
Depth with Handle 25.38" (64 cm)
Depth with door at 90° 39.63" (101 cm)
Capacity 2.9 cu.ft. (82 L)
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 255.0kWh/year
Amps 1.0
Voltage/Frequency 115 V AC/60 Hz
Weight 88.0 lbs. (40 kg)
Shipping Weight 91.0 lbs. (41 kg)
Estimated Time to Ship Next day shipping
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator Features
Sabbath Mode Yes
Door Swing Reversible
Reversible Yes
Shelf Type Glass
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 0.85oz.
High Side PSI 270.0
Low Side PSI 105.0
Interior Light Yes
Temperature Range 36 to 43ºF
Dimensions
Interior Height 23.0" (58 cm)
Interior Width 12.25" (31 cm)
Interior Depth 17.5" (44 cm)
Compressor Step Height 3.25" (8 cm)
Compressor Step Width 12.25" (31 cm)
Compressor Step Depth 5.25" (13 cm)

AVAILABLE UPGRADES

Door
T1S Door Tint
Reflective door tint in dark smoke finish for maximum energy savings
T4 Door Tint
Neutral door tint in light smoke finish for moderate energy savings
T3 Door Tint
Reflective door tint in light blue finish for medium energy savings
T2 Door Tint
Tinted door in reflective deep blue finish with high energy savings
T1 Door Tint
Tinted door in low-E mirror finish for maximum energy savings
Exterior
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD - Left hand door swing
Door reversal to left hand swing

DOWNLOADS

Download
BROCHURE w/ DRAWINGS
CL181WBV.pdf
Download
TECHNICAL DRAWING (.dwg)
CL181WBV_BEVERAGE_REF__A-C_2000_.dwg
Download
MSDS INFORMATION
R600a_K.pdf
Energy Guide
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
