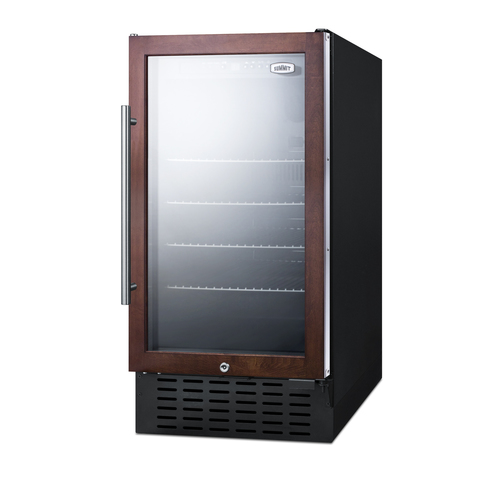

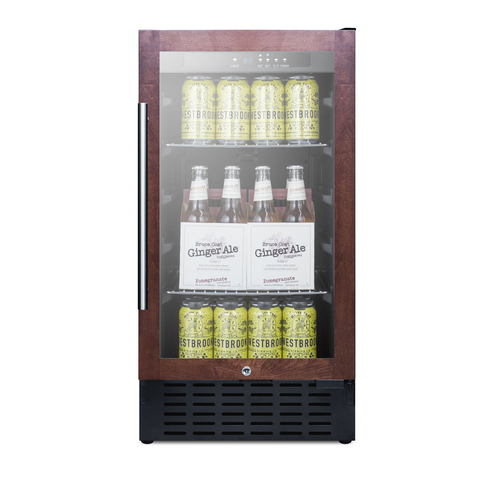

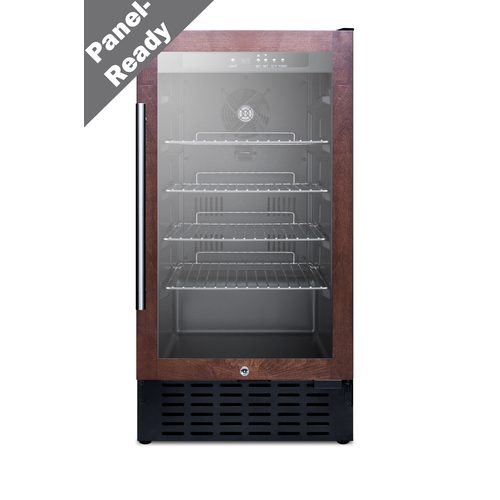

18" Wide Built-In Beverage Center (Panel Not Included)

SKU: SCR1841BPNR

Front-breathing design allows built-in installation under the counter in 18" wide spaces, with a panel-ready door trim for easy customization

Estimated Time to Ship:
Available with an energy saving door tint to protect the interior from natural and artificial light. Choose from four tint finishes with varying levels of visibility.

All tints reject up to 99% of UV rays. Click here to view these options and learn more about their efficiency.
This unit can be used for commercial or residential applications. It meets applicable U.S. Department of Energy (DOE) standards for both household and commercial energy usage. For information on its commercial sanitation listing, see Specifications.

34.25" H x 17.75" W x 23.5" D

(87cm H x 45cm W x 60cm D)

SPECIFICATIONS

Overview
Height of Cabinet 34.25" (87 cm)
Width 17.75" (45 cm)
Depth 23.5" (60 cm)
Depth with Handle 25.25" (64 cm)
Depth with door at 90° 39.75" (101 cm)
Capacity 2.7 cu.ft. (76 L)
Defrost Type Automatic
Door Glass/Panel-Ready Frame
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 284.0kWh/year
Amps 1.25
Voltage/Frequency 115 V AC/60 Hz
Weight 95.0 lbs. (43 kg)
Shipping Weight 105.0 lbs. (48 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101073651
Refrigerator Features
Door Swing RHD
Reversible Factory Reversible
Shelf Type Chrome
Shelf Qty 4
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.06oz.
High Side PSI 150.0
Low Side PSI 50.0
Level Legs Qty 2
Interior Light Yes
Dimensions
Interior Height 21.5" (55 cm)
Interior Width 12.75" (32 cm)
Interior Depth 16.75" (43 cm)
Compressor Step Height 4.75" (12 cm)
Compressor Step Width 12.75" (32 cm)
Compressor Step Depth 4.5" (11 cm)

AVAILABLE UPGRADES

Exterior
SSK
Stainless steel kickplate factory installed
LHD - Left hand door swing
Door reversal to left hand swing
Door
T1 Door Tint
Tinted door in low-E mirror finish for maximum energy savings
T1S Door Tint
Reflective door tint in dark smoke finish for maximum energy savings
T2 Door Tint
Tinted door in reflective deep blue finish with high energy savings
T3 Door Tint
Reflective door tint in light blue finish for medium energy savings
T4 Door Tint
Neutral door tint in light smoke finish for moderate energy savings
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

FEATURES

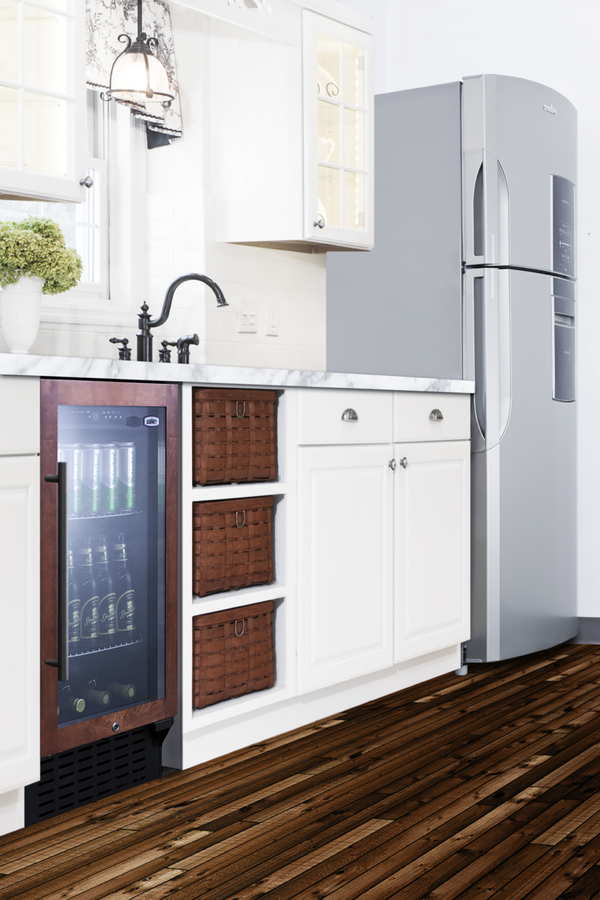

Built-in capable
Make the best use of space by installing your appliance under the counter

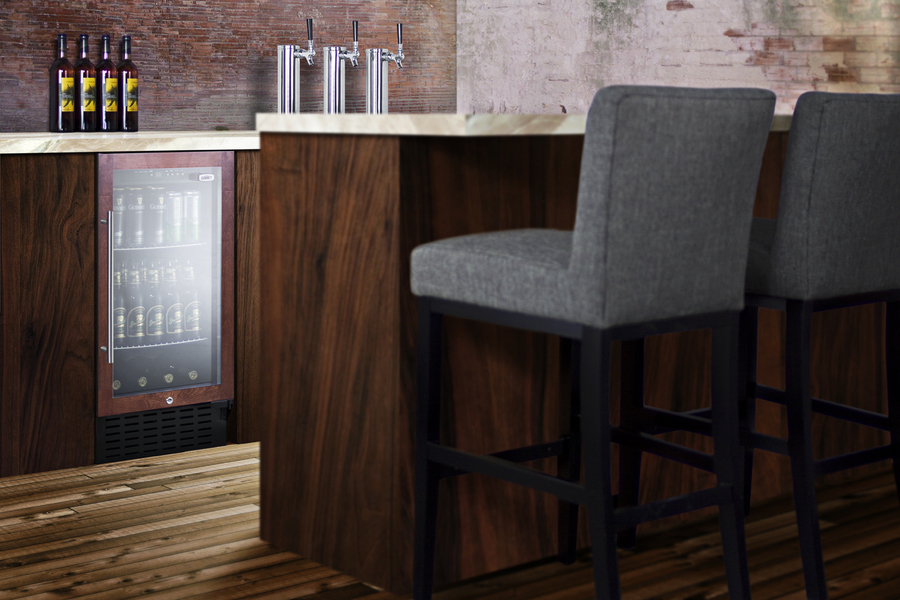

Commercially approved
ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments
Fully finished black cabinet
Allows the unit to be used freestanding

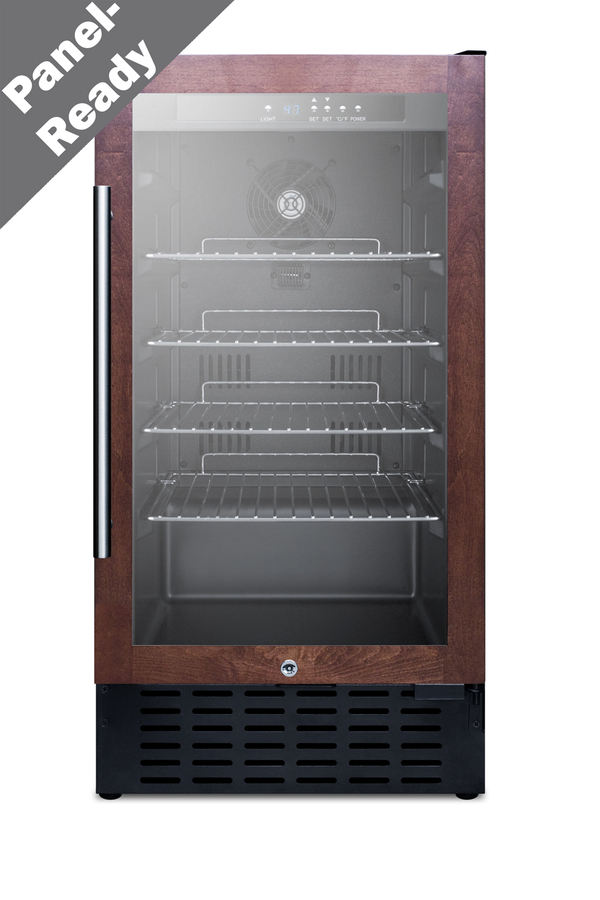

Panel-ready door trim
Door frame can be customized with a custom overlay panel (panel frame dimensions: 27 5/8" H x 17 3/8" W at 3/4" minimum thickness)
Glass door
Double pane tempered glass to provide an elegant display with added protection
Factory installed lock
Keyed security on the door

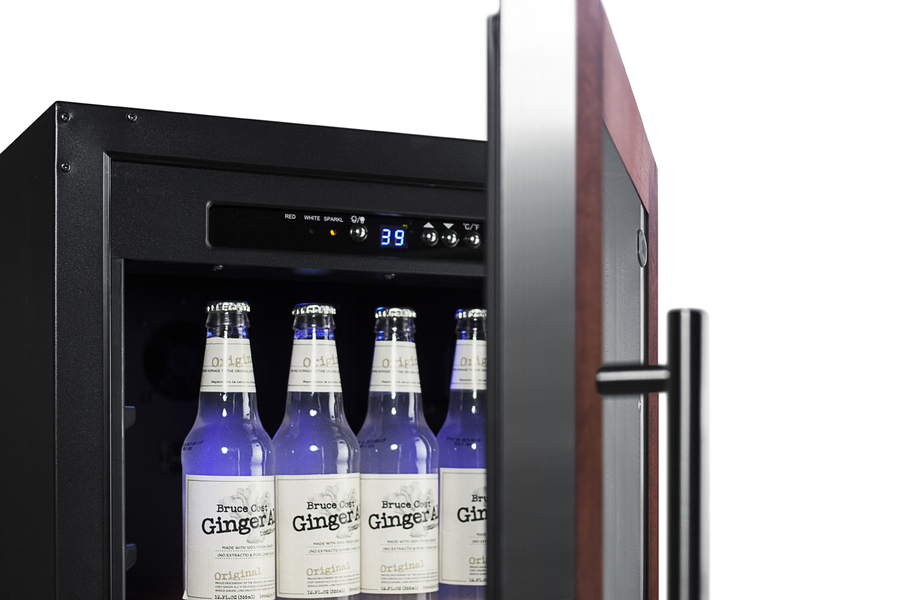

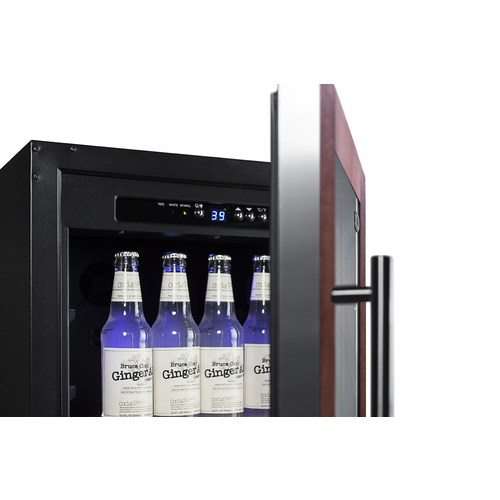

Digital thermostat
Electronic controls for precise temperature management.
Digital display
Temperature readout can be shown in Celsius or Fahrenheit
LED lighting
Gentle illumination with an on/off switch
Automatic defrost
Reduced maintenance with the convenience of auto defrost
Adjustable chrome shelves
Rearrange interior space to accommodate all sizes or remove shelves for simple cleanup
Professional handle
Stainless steel look for added elegance
Flush back
Space saving design
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals

DESCRIPTION

SUMMIT's selection of built-in undercounter beverage coolers combines user-friendly convenience with elegant style for an ideal fit in any setting.

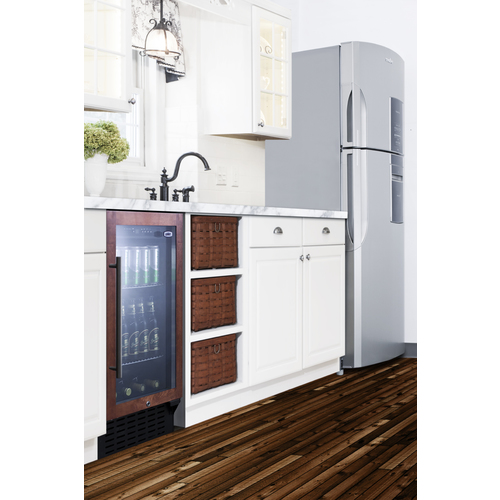

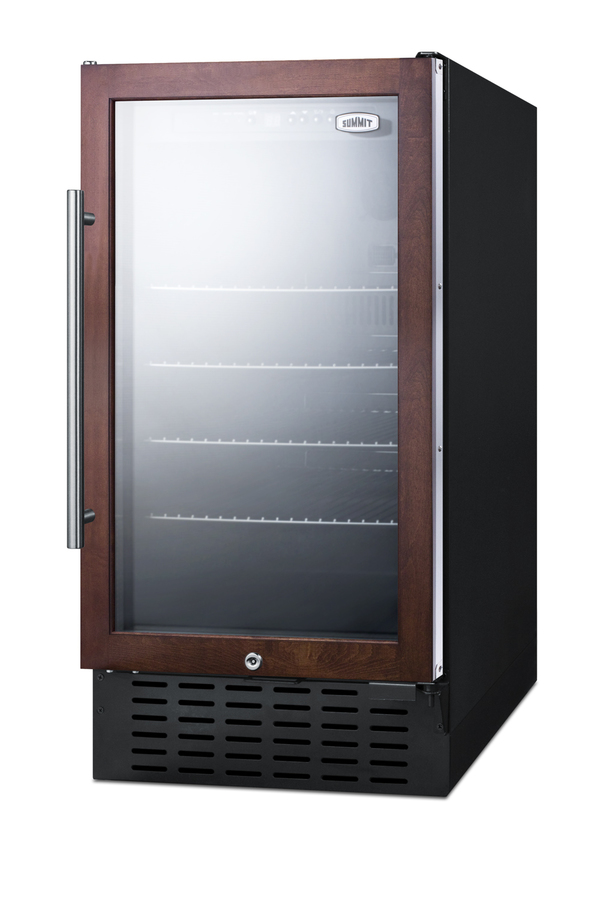

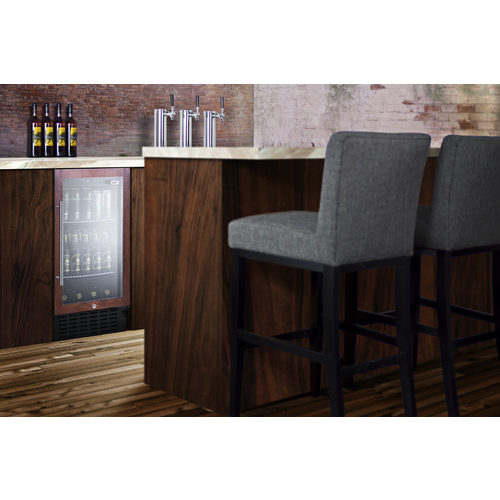

The SCR1841BPNR is an 18" wide all-refrigerator designed for use in residential settings. The front-breathing system allows built-in installation under counters, while the fully finished black cabinet also allows freestanding use. The  glass door features a panel-ready stainless steel door trim that lets you customize the look to best match adjacent cabinetry (panel dimensions: 27 5/8" H x 17 3/8" W at 3/4" minimum thickness). NOTE: this unit ships with a right hand door swing. For a left hand version, add option LHD.

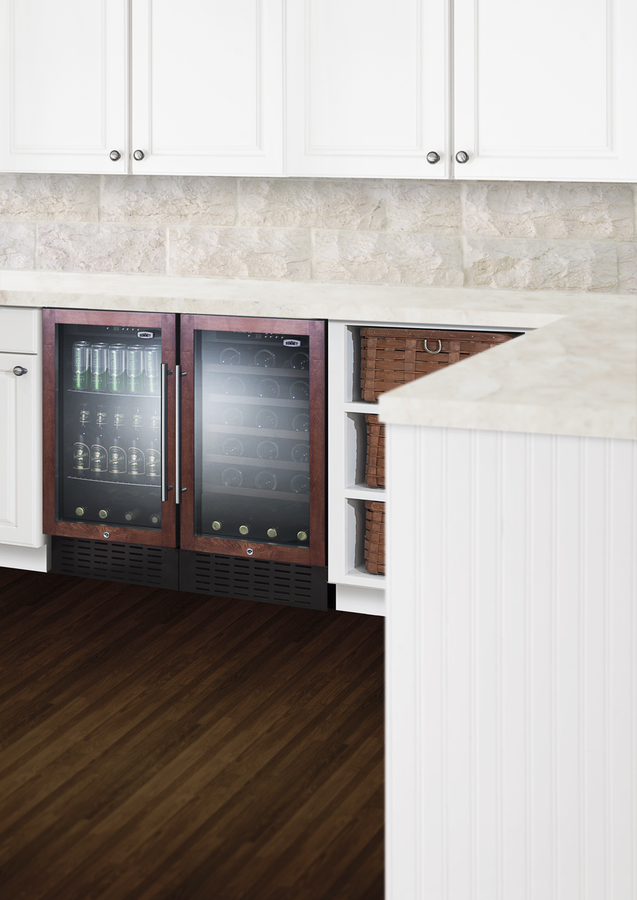

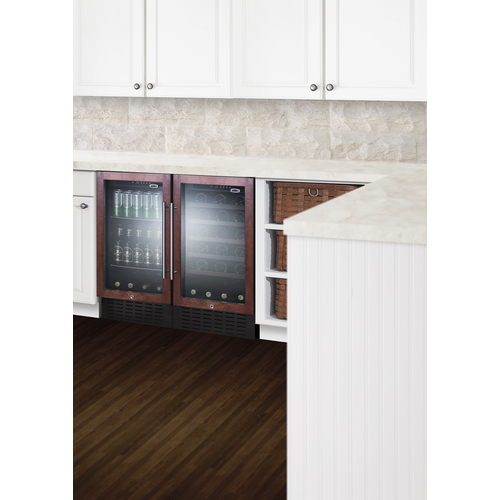

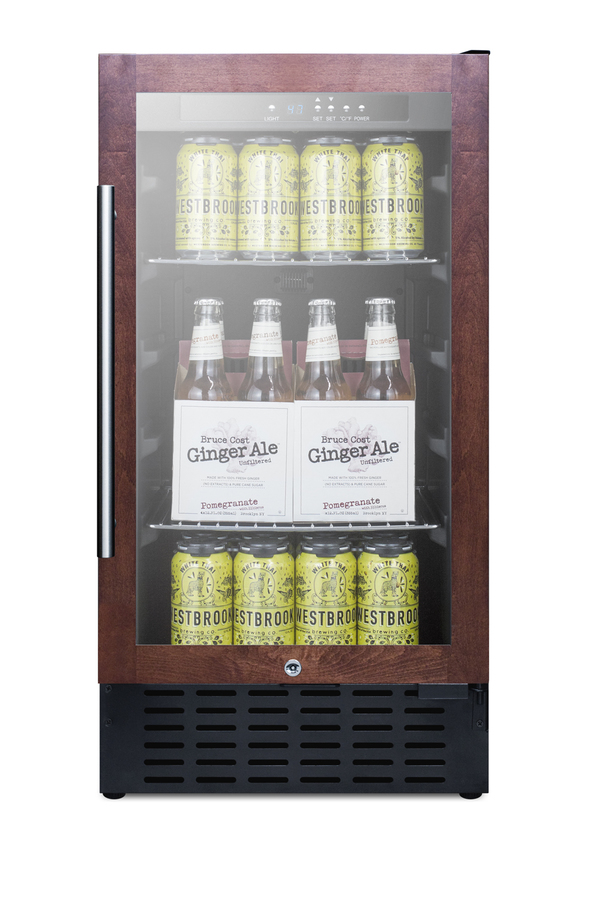

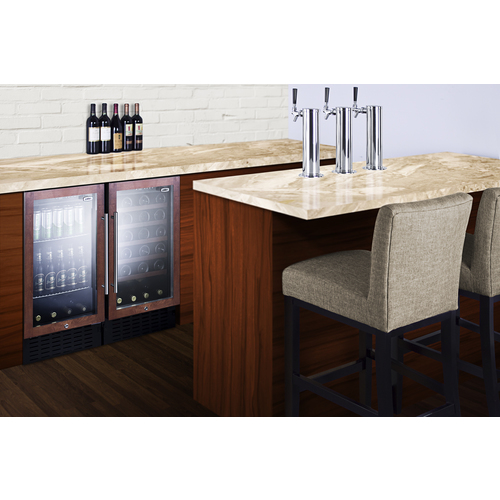

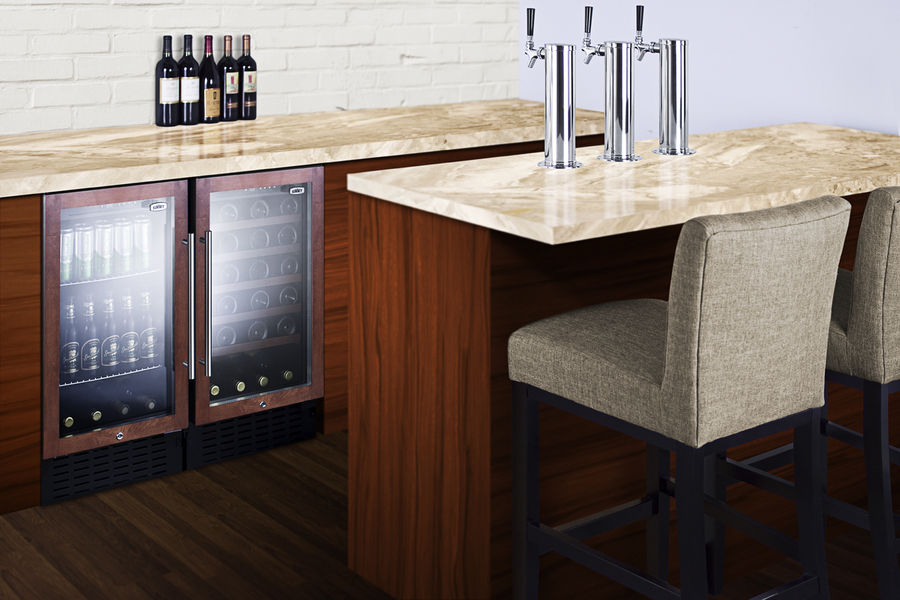

Items can be stored on four adjustable chromes shelves in the auto defrost interior, with attractive LED lighting providing an elegant display. The digital thermostat offers intuitive temperature management. The SCR1841BPNR is also available in a 32" height for use in ADA compliant settings (see the SCR1841BPNRADA) and can be paired with our matching wine cellar, model SWC1840BPNR.

Note: Panel is not included. The images provided are meant only to be suggestive of what the product with a wood panel installed could look like. Users must supply their own wood panel.

SPECIFICATIONS

Overview
Height of Cabinet 34.25" (87 cm)
Width 17.75" (45 cm)
Depth 23.5" (60 cm)
Depth with Handle 25.25" (64 cm)
Depth with door at 90° 39.75" (101 cm)
Capacity 2.7 cu.ft. (76 L)
Defrost Type Automatic
Door Glass/Panel-Ready Frame
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 284.0kWh/year
Amps 1.25
Voltage/Frequency 115 V AC/60 Hz
Weight 95.0 lbs. (43 kg)
Shipping Weight 105.0 lbs. (48 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101073651
Refrigerator Features
Door Swing RHD
Reversible Factory Reversible
Shelf Type Chrome
Shelf Qty 4
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.06oz.
High Side PSI 150.0
Low Side PSI 50.0
Level Legs Qty 2
Interior Light Yes
Dimensions
Interior Height 21.5" (55 cm)
Interior Width 12.75" (32 cm)
Interior Depth 16.75" (43 cm)
Compressor Step Height 4.75" (12 cm)
Compressor Step Width 12.75" (32 cm)
Compressor Step Depth 4.5" (11 cm)

AVAILABLE UPGRADES

Exterior
SSK
Stainless steel kickplate factory installed
LHD - Left hand door swing
Door reversal to left hand swing
Door
T1 Door Tint
Tinted door in low-E mirror finish for maximum energy savings
T1S Door Tint
Reflective door tint in dark smoke finish for maximum energy savings
T2 Door Tint
Tinted door in reflective deep blue finish with high energy savings
T3 Door Tint
Reflective door tint in light blue finish for medium energy savings
T4 Door Tint
Neutral door tint in light smoke finish for moderate energy savings
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
