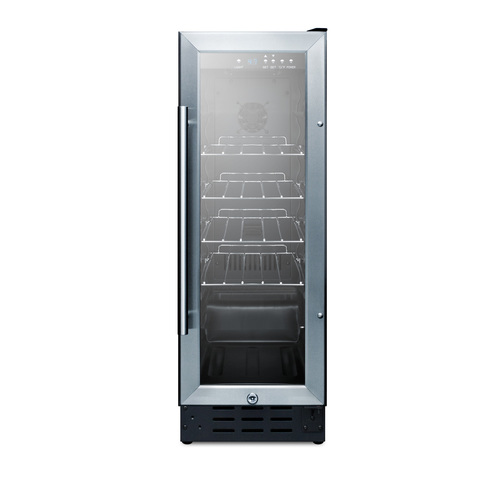

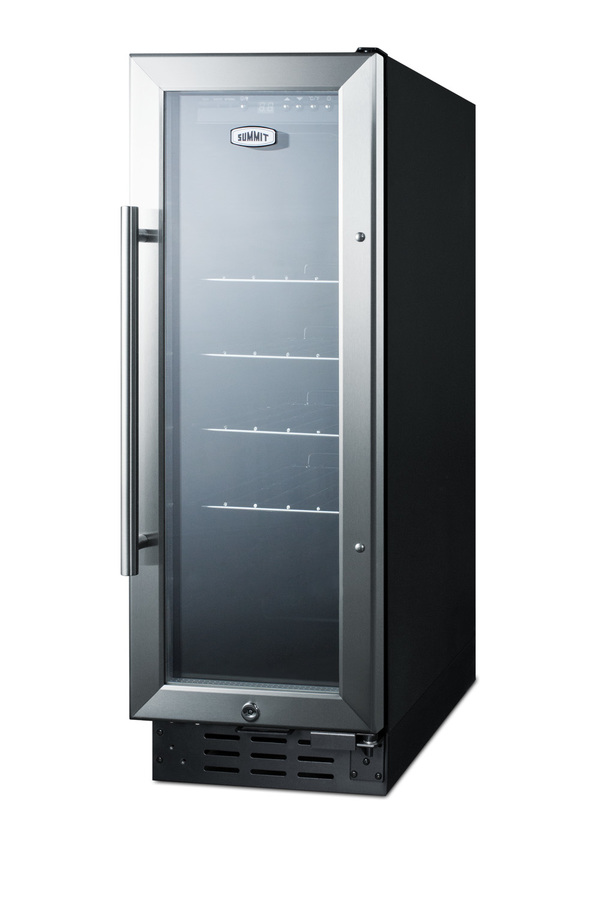

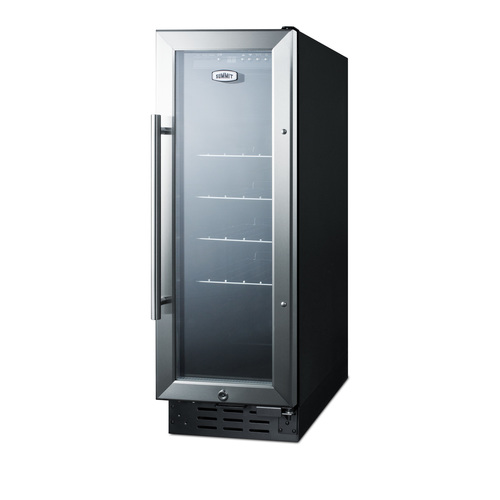

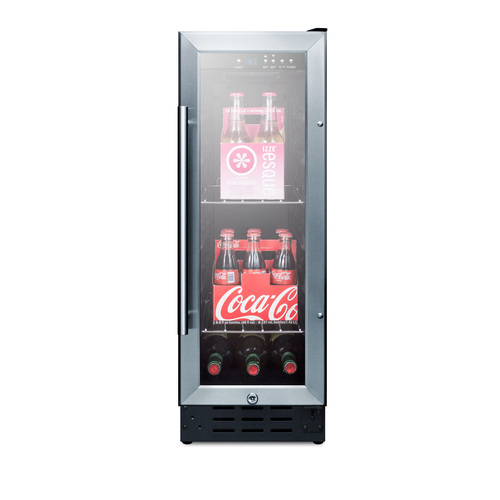

12" Wide Beverage Center

SKU: SCR1225B
Unique fit for built-in installation in 12" wide spaces
Estimated Time to Ship:

Next day shipping

Available with an energy saving door tint to protect the interior from natural and artificial light. Choose from four tint finishes with varying levels of visibility.

All tints reject up to 99% of UV rays. Click here to view these options and learn more about their efficiency.
This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.
This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.
34.38" H x 11.88" W x 22.38" D
(87cm H x 30cm W x 57cm D)

Overview
Height of Cabinet 34.38" (87 cm)
Width 11.88" (30 cm)
Depth 22.38" (57 cm)
Depth with Handle 24.13" (61 cm)
Depth with door at 90° 33.0" (84 cm)
Capacity 2.2 cu.ft. (62 L)
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.25
Voltage/Frequency 115 V AC/60 Hz
Weight 66.0 lbs. (30 kg)
Shipping Weight 99.0 lbs. (45 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101049762
Refrigerator Features
Door Swing RHD
Reversible Yes
Shelf Type Chrome
Shelf Qty 4
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 0.88oz.
High Side PSI 150.0
Low Side PSI 50.0
Level Legs Qty 4
Interior Light Yes
Dimensions
Interior Height 25.0" (64 cm)
Interior Width 9.13" (23 cm)
Interior Depth 17.0" (43 cm)
Compressor Step Height 3.75" (10 cm)
Compressor Step Width 9.13" (23 cm)
Compressor Step Depth 4.5" (11 cm)

Door
T4 Door Tint
Neutral door tint in light smoke finish for moderate energy savings
T3 Door Tint
Reflective door tint in light blue finish for medium energy savings
T2 Door Tint
Tinted door in reflective deep blue finish with high energy savings
T1S Door Tint
Reflective door tint in dark smoke finish for maximum energy savings
T1 Door Tint
Tinted door in low-E mirror finish for maximum energy savings
Exterior
LHD - Left hand door swing
Door reversal to left hand swing
Latch - Factory-installed door latch requires manual release to open unit
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.

Built-in capable

Make the best use of space by installing your appliance under the counter

Commercially approved

Meets UL Commercial Standard 471 and is ETL-S listed to NSF-7 commercial standards

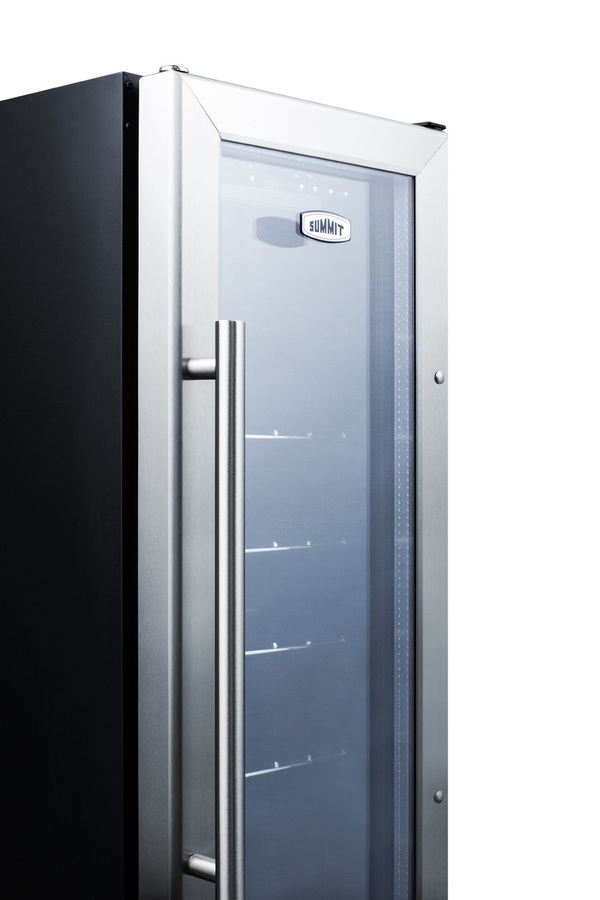

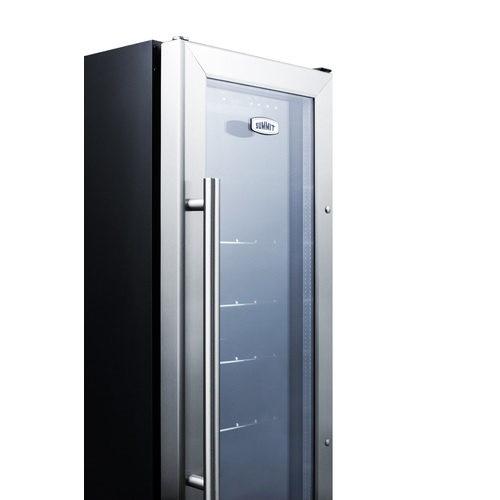

Glass door with stainless steel trim

Provides a full display of stored contents with a heat-safe triple pane tempered design

Factory installed lock

Keyed security on the door

Digital thermostat

Electronic controls for precise temperature management.

Digital display

Temperature readout can be shown in Celsius or Fahrenheit

LED lighting

Gentle illumination with an on/off switch

Automatic defrost

Reduced maintenance with the convenience of auto defrost

Adjustable chrome shelves

Slide-out shelves offer attractive and convenient storage for beverages

Reversible door

Keep your options flexible with a reversible door that is easy to switch when your arrangement changes

Professional handle

Stainless steel look for added elegance

Flush back

Space saving design with easier cleanability

Fully finished black cabinet

Allows the unit to be used freestanding

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

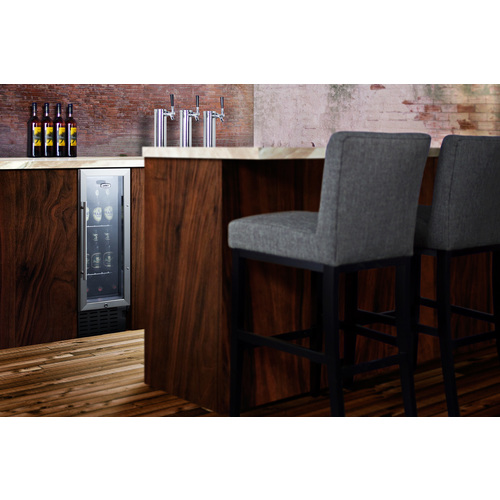

SUMMIT's collection of built-in beverage centers provides the perfect solution for storing drinks under the counter.

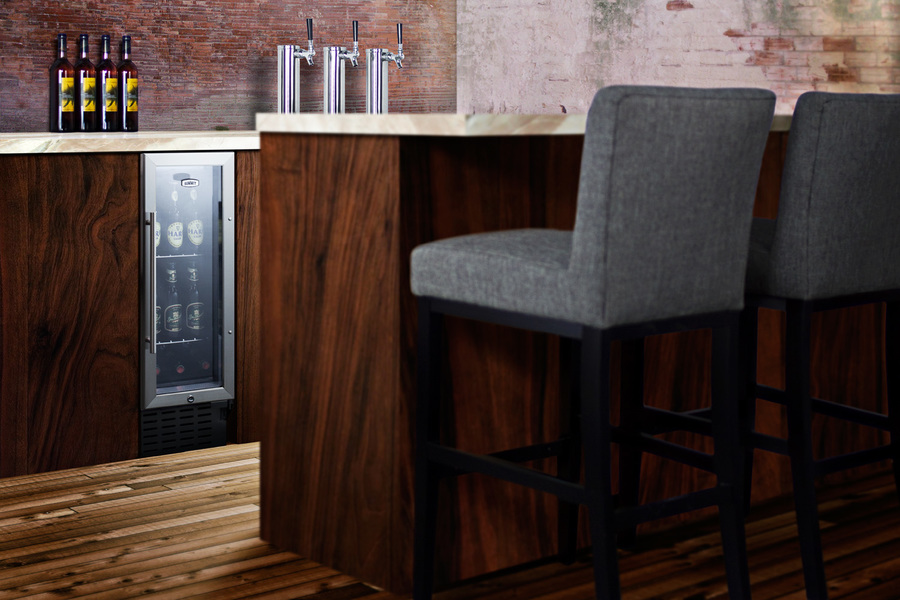

At just 12" wide, SUMMIT SCR1225B is perfectly sized for small spaces. The front-breathing design allows built-in installation under counters, while the fully finished black cabinet also allows freestanding use. The reversible triple pane glass door features stainless steel trim and a professional handle, with a factory installed lock to prevent unsupervised access.

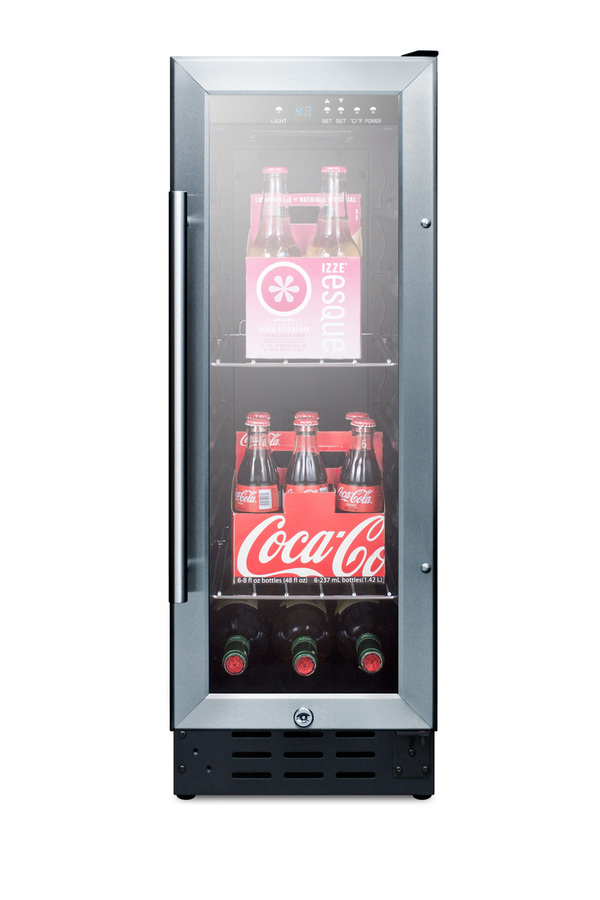

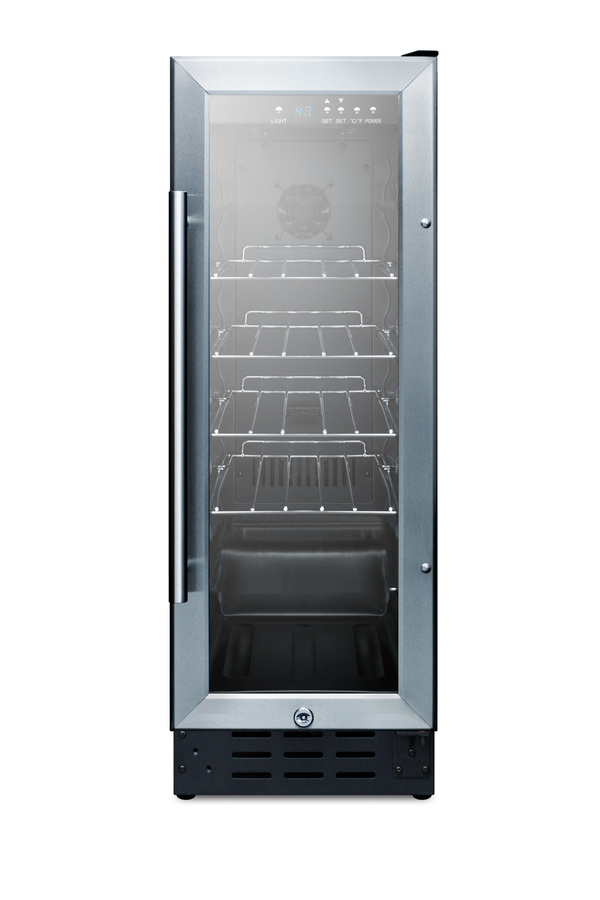

Inside, the SCR1225B includes four slide-out chrome shelves and a floor specially slotted to hold wine bottles. Recessed LED lighting offers an attractive and efficient display. The digital thermostat allows easy temperature management in Celsius or Fahrenheit.

With its slim fit and user-friendly features, the SCR1225B is perfect for a 12" cutout. This model is ETL-S listed to NSF-7 commercial standards and meets UL Commercial Standard 471. For a matching wine cellar, see the SWC1224B.

Download
BROCHURE w/ DRAWINGS
SCR1225B.pdf
Download
USE & CARE
SCR1225B_manual.pdf
Download
MSDS INFORMATION
R600a_K.pdf

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
