SCR1536BG
SHARE THIS PRODUCT
Pinterest E-mail a Friend Print

SPECIFICATIONS

Overview
Height of Cabinet 33.88" (86 cm)
Width 14.75" (37 cm)
Depth 22.75" (58 cm)
Depth with Handle 24.63" (63 cm)
Depth with door at 90° 36.25" (92 cm)
Capacity 2.45 cu.ft. (69 L)
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 245.0kWh/year
Amps 1.0
Voltage/Frequency 115 V AC/60 Hz
Weight 77.0 lbs. (35 kg)
Shipping Weight 95.0 lbs. (43 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator Features
Door Swing RHD
Reversible Yes
Shelf Type Chrome
Shelf Qty 3
Thermostat Type Digital
Refrigerant Type R600a
Refrigerant Amount 0.64oz.
High Side PSI 270.0
Low Side PSI 105.0
Level Legs Qty 4
Interior Light Yes
Dimensions
Interior Height 23.5" (60 cm)
Interior Width 10.25" (26 cm)
Interior Depth 16.5" (42 cm)
Compressor Step Height 3.75" (10 cm)
Compressor Step Width 10.25" (26 cm)
Compressor Step Depth 4.5" (11 cm)

AVAILABLE UPGRADES

Exterior
SSK
Stainless steel kickplate factory installed
Latch
Top-mounted door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD
Door reversal to left hand swing
Door
T1 Door Tint
Tinted door in low-E mirror finish for maximum energy savings
T1S Door Tint
Reflective door tint in dark smoke finish for maximum energy savings
T2 Door Tint
Tinted door in reflective deep blue finish with high energy savings
T3 Door Tint
Reflective door tint in light blue finish for medium energy savings
T4 Door Tint
Neutral door tint in light smoke finish for moderate energy savings
Lock
KEY
Extra keys available for purchase


California residents:
click here for information on Proposition 65

Due to our commitment to continuous product improvement, all specifications are subject to change without notice

SCR1536BG Matching winecellar 707049d756d9b66fe2b2c4a20bce90709109f84a04452ddde006c78e51d3a0da

Tints f38f71c7257ce8e8379d579d03d127066ebb465738d3759d49e5075b11ff9ae5
Available with an energy saving door tint to protect the interior from natural and artificial light. Choose from four tint finishes with varying levels of visibility.

All tints reject up to 99% of UV rays. Click here to view these options and learn more about their efficiency.
Delivery 9240a3e8870753a2ec143c34af2b405742ae73bfeb126dd29f201daa25ab8f11
This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.
Commercial home ea581a399e3ae77121f807aa081394156550222354be8f27504df77d2fff3a44
This unit can be used for commercial or residential applications. It meets applicable U.S. Department of Energy (DOE) standards for both household and commercial energy usage. For information on its commercial sanitation listing, see Specifications.

Built-in capable for 15" wide spaces

33.88" H x 14.75" W x 22.75" D

OVERVIEW

WHERE TO BUY

Invalid Format
SUMMIT offers a complete line of 15" wide appliances for built-in installation under residential or commercial counters.

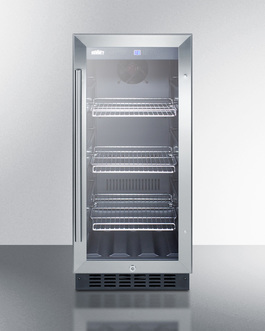

The SCR1536BG is a slim-fitting beverage refrigerator that can be used built-in or freestanding. It comes with a jet black cabinet and reversible stainless steel trimmed glass door. A factory installed lock offers convenient security, while a pro style handle completes the look.

Inside, the SCR1536BG includes three adjustable chrome shelves for flexible storage. LED lighting offers an attractive and efficient view. The interior control panel includes a digital thermostat for easy temperature control, with an external readout in Celsius or Fahrenheit. This unit utilizes automatic defrost for easy maintenance.

This 14 ¾" wide unit has a reversible glass door trimmed in stainless steel, offering an attractive view of stored bottles and cans. The door includes a factory installed lock and a professional handle with a stainless steel look. Inside, the digital thermostat provides easy temperature control, with an external readout in Celsius or Fahrenheit.

With its perfect size and user-friendly features, the SCR1536BG brings true convenience under the counter. This model meets UL-471 standards and is ETL-S listed to NSF-7 for commercial use. It also complies with residential energy standards.

Beverages can be stored on three adjustable chrome shelves in the auto defrost interior, fully lit by attractive LED lighting. The SCR1536BGL has a jet black exterior and flush design for an easy fit under the counter. To create a complete bar set, pair this model with our matching SWC1535B wine cellar. For residential use, see our solid door versions of this unit (FF1538B, SCR1536BSSTB, SCR1536BSSHV, and SCR1536BIF).

FEATURES

Right angle plug
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Commercially approved
ETL-S listed to NSF-7 Standards for use in commercial establishments
Built-in capable
Make the best use of space by installing your appliance under the counter
Fully finished black cabinet
Allows the unit to be used freestanding
Glass door with stainless steel trim
Provides a full display of stored contents with a heat-safe double tempered design
Factory installed lock
Keyed security on the door
Digital thermostat
Electronic controls for precise temperature management.
Digital display
Temperature readout can be shown in Celsius or Fahrenheit
LED lighting
Gentle illumination with an on/off switch
Automatic defrost
Reduced maintenance with the convenience of auto defrost
Adjustable chrome shelves
Slide-out shelves offer attractive and convenient storage for beverages
Reversible door
Keep your options flexible with a reversible door that is easy to switch when your arrangement changes
Professional handle
Stainless steel look for added elegance
Flush back
Space saving design
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals

DOWNLOADS

Download BROCHURE w/ DRAWINGS
SCR1536BG.pdf
Download TECHNICAL DRAWING (.dwg)
SCR1536BG_BEVERAGE_REF__A-C...
Download MSDS INFORMATION
R600a_K.pdf
Energy Guide
