15" Wide Built-In Beverage Center (Panel Not Included)

SKU: SCR1536BGPNR
Designed for built-in use in 15" wide spaces, with a panel-ready door trim for easy customization
Estimated Time to Ship:

5 to 7 days

Available with an energy saving door tint to protect the interior from natural and artificial light. Choose from four tint finishes with varying levels of visibility.

All tints reject up to 99% of UV rays. Click here to view these options and learn more about their efficiency.
This unit can be used for commercial or residential applications. It meets applicable U.S. Department of Energy (DOE) standards for both household and commercial energy usage. For information on its commercial sanitation listing, see Specifications.
33.88" H x 14.75" W x 22.75" D
(86cm H x 37cm W x 58cm D)

Overview
Height of Cabinet 33.88" (86 cm)
Width 14.75" (37 cm)
Depth 22.75" (58 cm)
Depth with door at 90° 36.25" (92 cm)
Capacity 2.45 cu.ft. (69 L)
Defrost Type Automatic
Door Glass/Panel-Ready Frame
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 245.0kWh/year
Amps 1.0
Voltage/Frequency 115 V AC/60 Hz
Weight 77.0 lbs. (35 kg)
Shipping Weight 80.0 lbs. (36 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101082868
Refrigerator Features
Sabbath Mode Yes
Door Swing RHD
Reversible Factory Reversible
Shelf Type Chrome
Shelf Qty 3
Thermostat Type Digital
Refrigerant Type R600a
Refrigerant Amount 0.64oz.
High Side PSI 270.0
Low Side PSI 105.0
Level Legs Qty 4
Interior Light Yes
Dimensions
Interior Height 23.5" (60 cm)
Interior Width 10.25" (26 cm)
Interior Depth 16.5" (42 cm)
Compressor Step Height 3.75" (10 cm)
Compressor Step Width 10.25" (26 cm)
Compressor Step Depth 4.5" (11 cm)

Exterior
Extra key for IF door
Extra key for select IF (panel-ready) units
SSK
Stainless steel kickplate factory installed
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD - Left hand door swing
Door reversal to left hand swing
Door
T1 Door Tint
Tinted door in low-E mirror finish for maximum energy savings
T1S Door Tint
Reflective door tint in dark smoke finish for maximum energy savings
T2 Door Tint
Tinted door in reflective deep blue finish with high energy savings
T3 Door Tint
Reflective door tint in light blue finish for medium energy savings
T4 Door Tint
Neutral door tint in light smoke finish for moderate energy savings

Commercially approved

ETL-S listed to NSF-7 Standards for use in commercial establishments

Built-in capable

Make the best use of space by installing your appliance under the counter

Fully finished black cabinet

Allows the unit to be used freestanding

Panel-ready door trim

Door frame can be customized with a custom overlay panel (panel frame dimensions: 14 9/16" W x 29 7/8" H at 3/4" minimum thickness)

Double pane tempered glass door

Provides a full display of stored contents with a heat-safe double tempered design

Factory installed lock

Keyed security on the door

Digital thermostat

Electronic controls for precise temperature management.

Digital display

Temperature readout can be shown in Celsius or Fahrenheit

LED lighting

Gentle illumination with an on/off switch

Automatic defrost

Reduced maintenance with the convenience of auto defrost

Adjustable chrome shelves

Slide-out shelves offer attractive and convenient storage for beverages

Factory-reversible door swing

Door ships with a right hand door swing. For a left hand version, add option "LHD"

Professional handle

Stainless steel look for added elegance

Sabbath mode setting

Optional setting lets you disable the lighting and alarm for up to 48 hours

Right angle plug

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Flush back

Space saving design

Matching wine cellar

For a complete set, pair this unit with the SWC1535BPNR wine cellar for true beverage storage convenience

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

SUMMIT offers a complete line of 15" wide appliances for built-in installation under residential or commercial counters.

The SCR1536BGPNR is a slim-fitting 14 3/4" wide beverage refrigerator that meets UL-471 standards and is ETL-S listed to NSF-7 for use in commercial settings but is also approved for residential use. The front-breathing design allows built-in installation under counters, while the fully finished black cabinet also allows you to use the unit freestanding. This model features a double pane tempered glass door with a panel-ready trim that lets you customize the look to best match adjacent cabinetry (panel dimensions: 14 9/16" W x 29 7/8" H at 3/4" minimum thickness). This unit ships with a right hand door swing, but can be ordered to open from the other side by adding option LHD.A  factory-installed lock offers convenient security as needed.

Inside, the SCR1536BGPNR includes three adjustable chrome shelves for flexible storage. LED lighting offers an attractive and efficient view. The interior control panel includes a digital thermostat for easy temperature control, with an external readout in Celsius or Fahrenheit. This unit utilizes automatic defrost for easy maintenance.

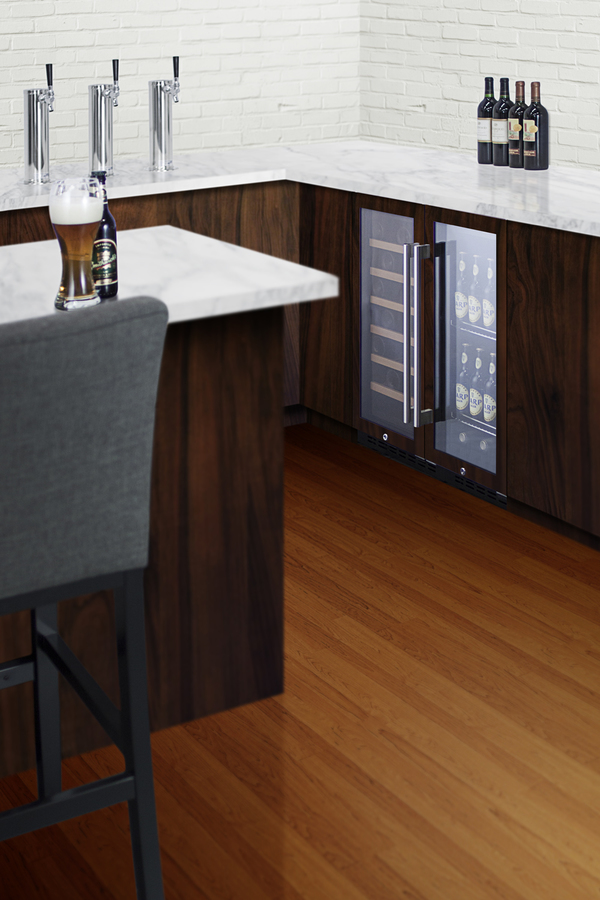

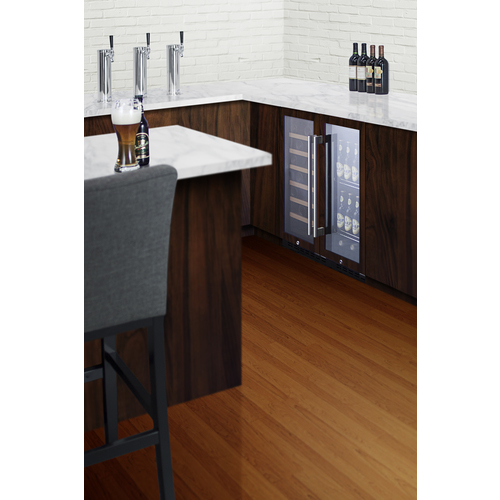

With its perfect size and user-friendly features, the SCR1536BGPNR brings true convenience under the counter. To create a complete bar set, pair this model with our matching SWC1535BPNR wine cellar.

Note: Panel is not included. The images provided are meant only to be suggestive of what the product with a wood panel installed could look like. Users must supply their own wood panel.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
