12" wide Built-In Wine Cellar

SKU: SWC1224B

Unique undercounter fit for 12" wide spaces

Estimated Time to Ship:

Next day shipping

Find a dealer

Available with an energy saving door tint to protect the interior from natural and artificial light. Choose from four tint finishes with varying levels of visibility.

All tints reject up to 99% of UV rays. Click here to view these options and learn more about their efficiency.

This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.

This unit can be used for commercial or residential applications. It meets applicable U.S. Department of Energy (DOE) standards for both household and commercial energy usage. For information on its commercial sanitation listing, see Specifications.

34.38" H x 11.88" W x 22.38" D
(87cm H x 30cm W x 57cm D)

Overview
Nominal Height	35.0" (89 cm)
Height of Cabinet	34.38" (87 cm)
Nominal Width	12.0" (30 cm)
Width	11.88" (30 cm)
Nominal Depth	23.0" (58 cm)
Depth	22.38" (57 cm)
Depth with Handle	24.13" (61 cm)
Depth with door at 90°	33.0" (84 cm)
Bottles	21 bottles
Defrost Type	Automatic
Door	Glass
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Amps	1.25
Voltage/Frequency	115 V AC/60 Hz
Weight	66.0 lbs. (30 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101059501
Wine Cellar
Number of Zones	1
Door Swing	RHD
Reversible	Yes
Adjustable Shelves	Yes
Shelf Type	Wood
Shelf Qty	6
Thermostat Type	Digital
Interior Light	Yes
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	0.88 oz.
High Side PSI	150.0
Low Side PSI	50.0
Interior Height 1	25.0" (64 cm)
Interior Width 1	9.13" (23 cm)
Interior Depth 1	17.0" (43 cm)
Compressor Step Height	3.75" (10 cm)
Compressor Step Width	9.13" (23 cm)
Compressor Step Depth	4.5" (11 cm)
Level Legs	4
Temperature Range	41 to 68ºF

Door

T4 Door Tint Neutral door tint in light smoke finish for moderate energy savings	T3 Door Tint Reflective door tint in light blue finish for medium energy savings
T2 Door Tint Tinted door in reflective deep blue finish with high energy savings	T1S Door Tint Reflective door tint in dark smoke finish for maximum energy savings
T1 Door Tint Tinted door in low-E mirror finish for maximum energy savings

Exterior

LHD - Left hand door swing Door reversal to left hand swing	Latch - Factory-installed door latch requires manual release to open unit Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles (NOTE: latch adds 1 1/2" of width to unit)

Built-in capable

Make the best use of space by installing your appliance under the counter

Commercially approved

Meets UL Commercial Standard 471 and is ETL-S listed to NSF-7 commercial standards

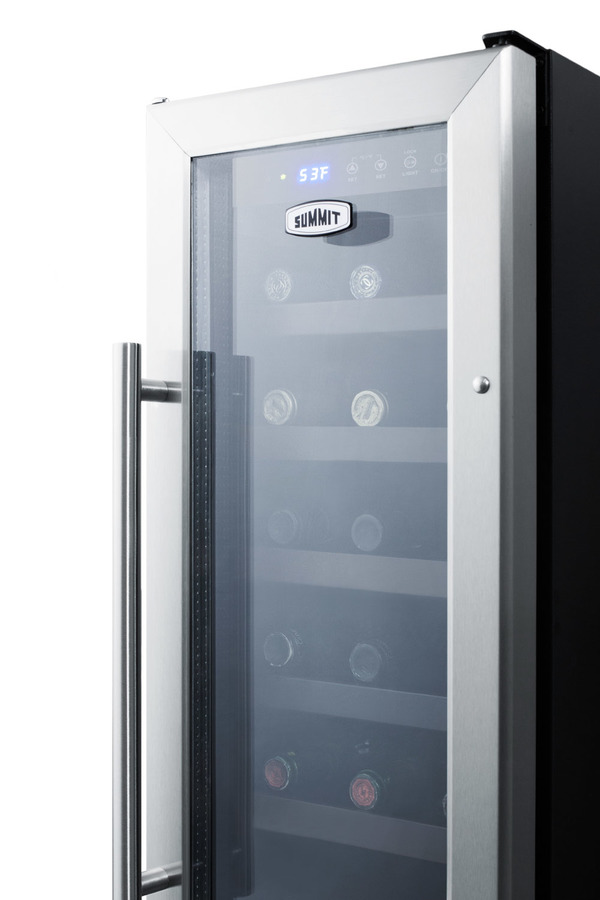

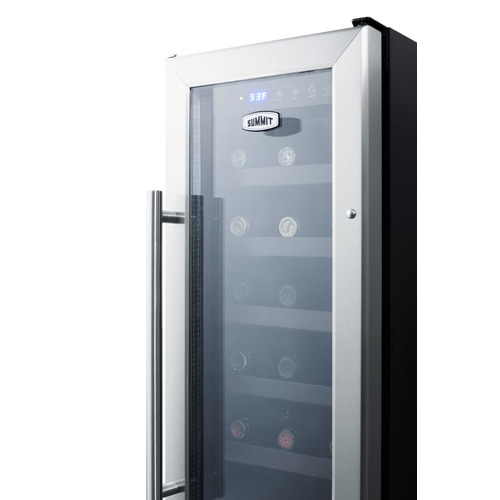

Glass door with stainless steel trim

Provides a full display of your stored collection with a heat-safe double tempered design

Factory installed lock

Keyed security on the wine cellar door

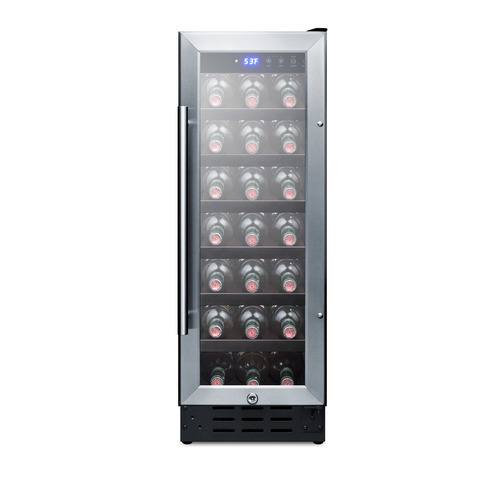

21 bottle capacity

Interior can hold 21 bottles in standard Bordeaux style or wider Burgundy style

Digital thermostat

Electronic controls for precise temperature management, with indicator lights for red, white, and sparkling wines

Digital display

Temperature readout can be shown in Celsius or Fahrenheit

Wooden shelves

Slide-out shelves offer the perfect storage for bottles

LED lighting

On/off button to illuminate your collection

Automatic defrost

Reduced maintenance and steady temperature performance

Professional handle

Stainless steel look for added elegance

Flush back

Space saving design with easier cleanability

Reversible door

Keep your options flexible with a reversible door that is easy to switch when your arrangement changes

Fully finished black cabinet

Allows the unit to be used freestanding

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

HTS CODE: 8418.50.0080

Upright coolers incorporating refrigerating equipment, each measuring not more than 77 cm/30.315" in width, not more than 78 cm/30.7" in depth and not more than 200 cm/78.75" in height, weighing not more than 127 kg/280 lb, with one swing-type transparent glass door

SUMMIT's collection of built-in wine cellars provides the perfect conditions for storing your collection under the counter.

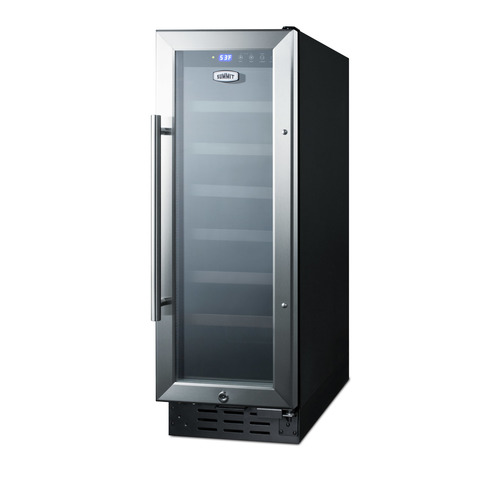

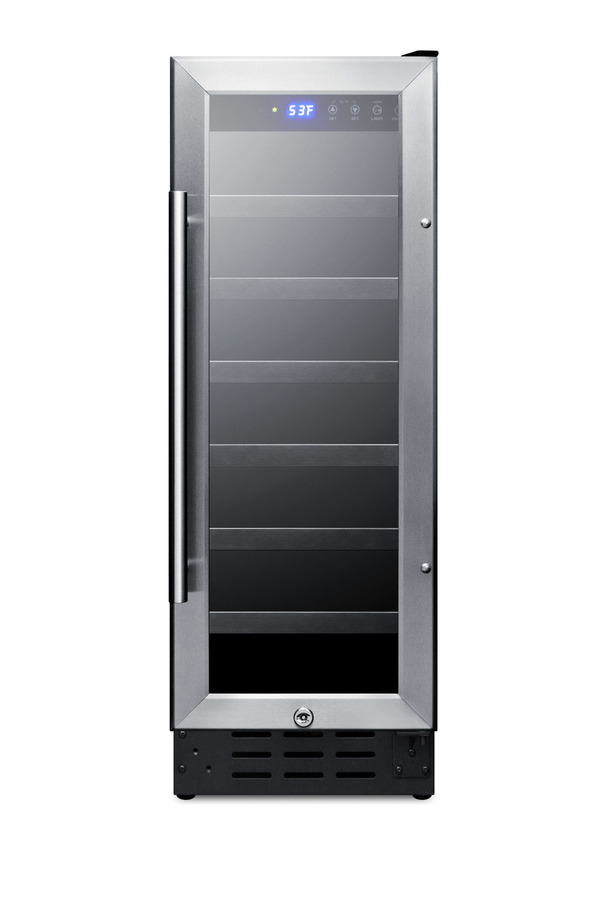

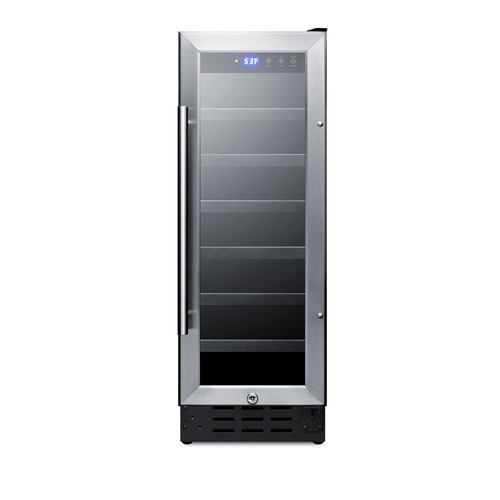

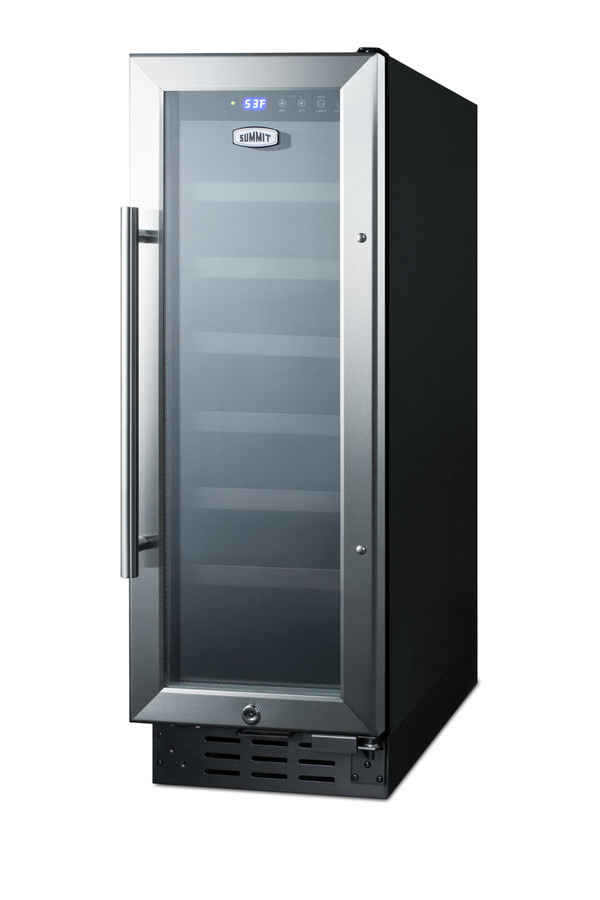

At just 12" wide, SUMMIT SWC1224B features a front-breathing design for built-in installation under counters, but also has a fully finished cabinet for alternate freestanding use. The interior can store up to 21 standard Bordeaux style or wider Burgundy style bottles. The reversible glass door features stainless steel trim and a professional handle, with a factory installed lock to prevent unsupervised access.

Inside, the SWC1224B includes six wooden shelves in a jet black finish and a floor specially slotted to hold bottles. Recessed LED lighting offers an attractive and efficient display. The digital thermostat allows easy temperature management in Celsius or Fahrenheit, with indicator lights to show the proper storage temperature for red, white, or sparkling wine.

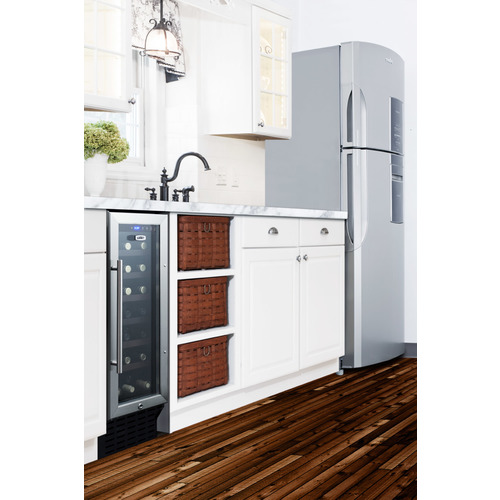

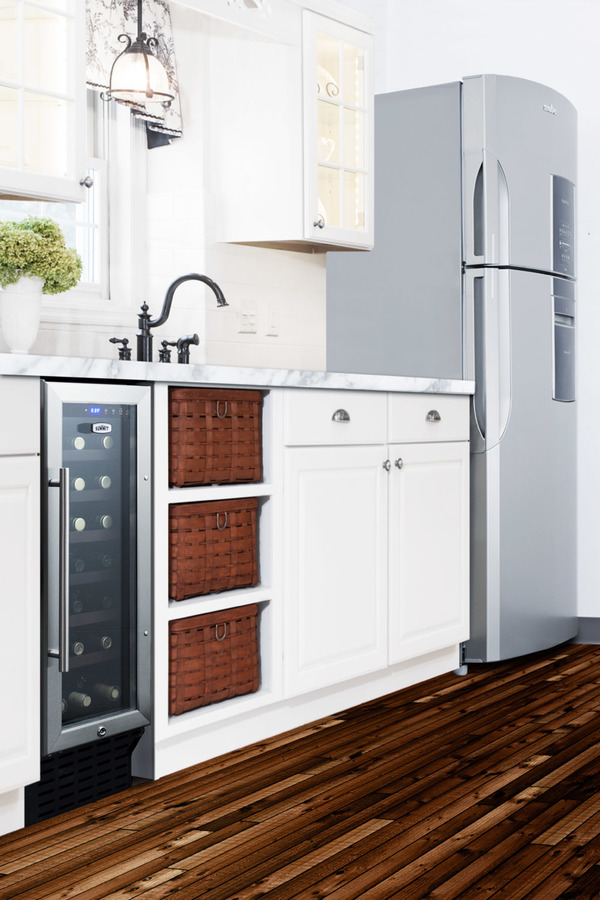

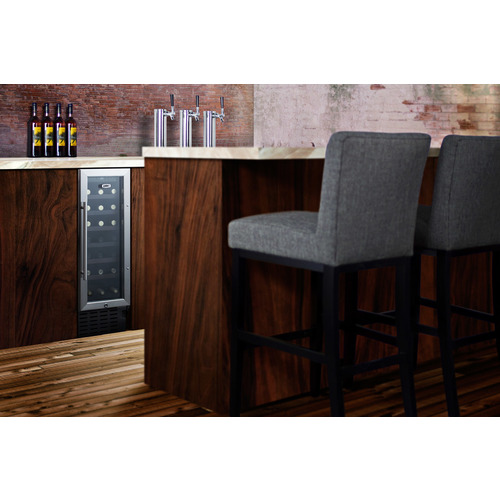

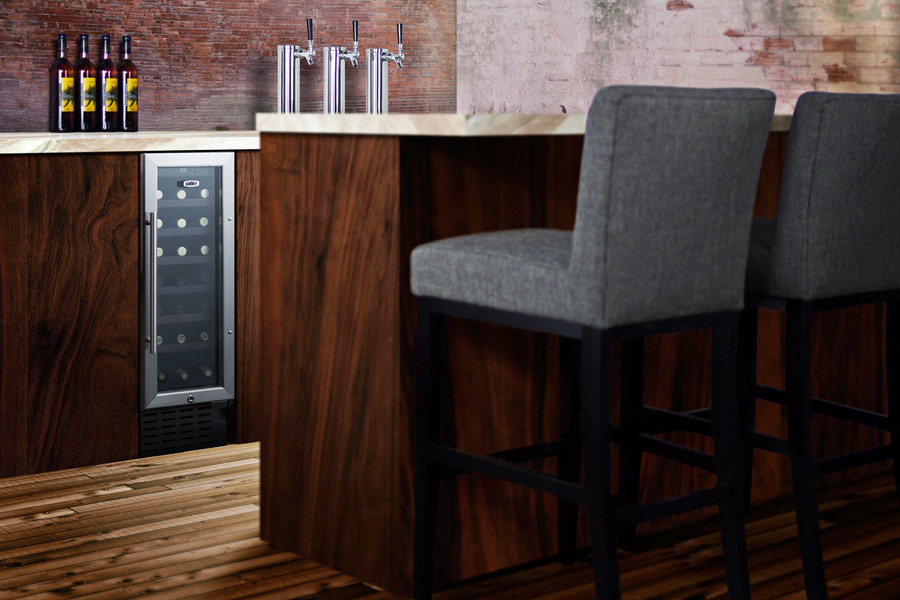

With its slim fit and user-friendly features, the SWC1224B is perfect for a 12" cutout in any wet bar or kitchen. This unit is ETL-S listed to NSF-7 standards and meets UL-471. For a matching beverage center, see the SCR1225B.

BROCHURE w/ DRAWINGS
SWC1224B.pdf

REVIT MODEL
QF_Summit_SWC1224B_12_Wide_Built_In_Undercounter.rfa

USE & CARE
SWC1224B_User_Manual-180611.pdf

SUPPORT
SWC1224_Shelving_Guide.pdf

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
