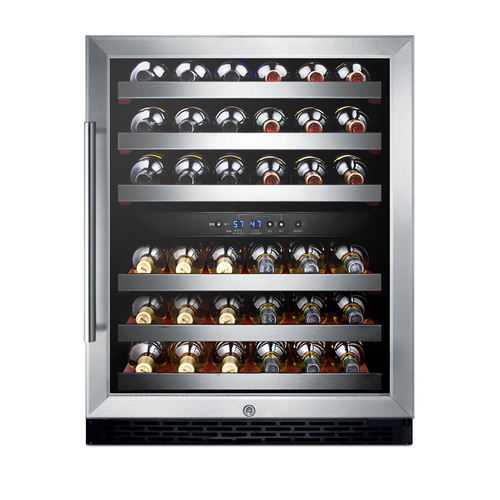

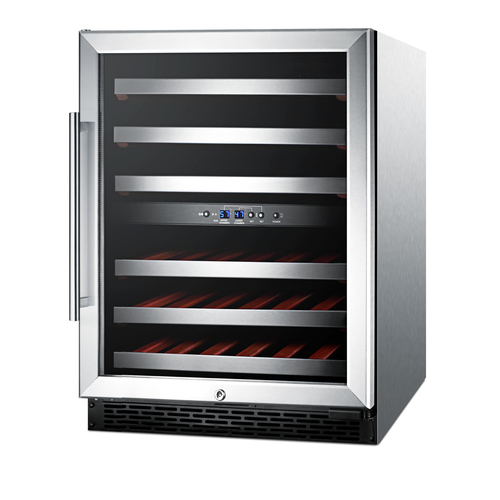

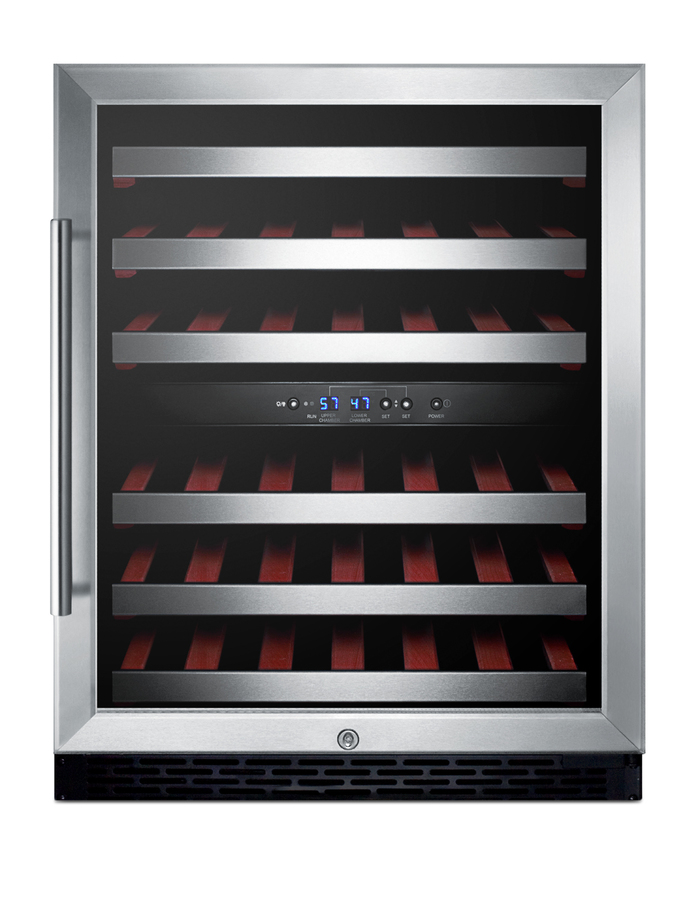

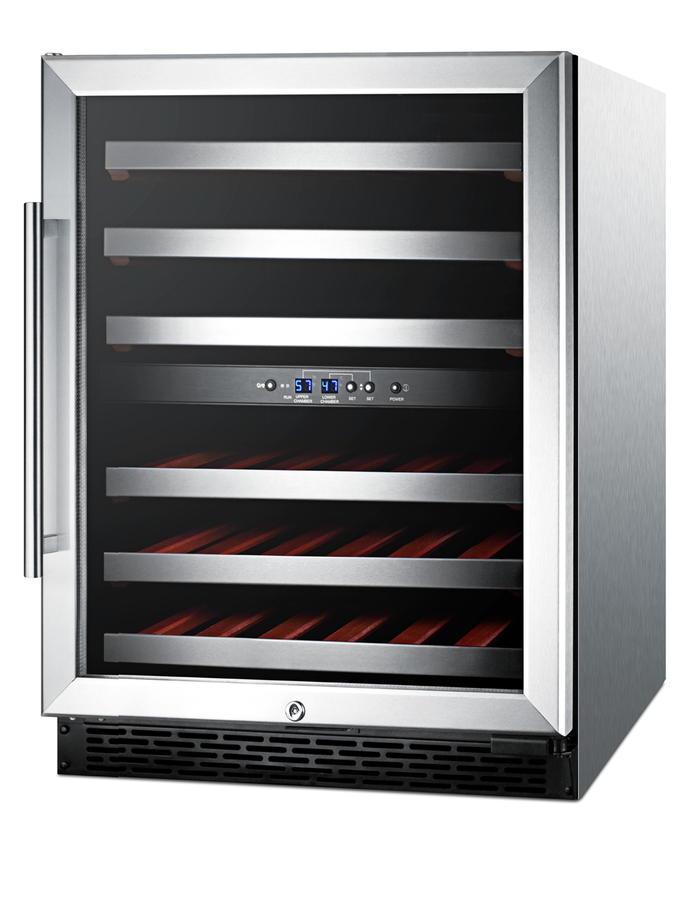

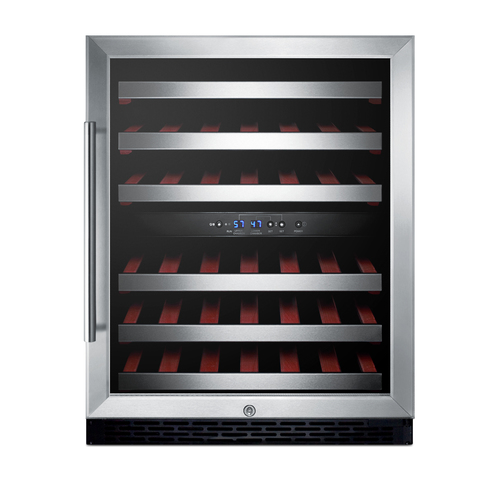

24" Wide Built-In Wine Cellar, ADA Compliant

SKU: SWC530BLBISTCSSADA

Versatile shelving holds 46 750ml Bordeaux bottles or 40 Burgundy bottles

Estimated Time to Ship: 2 to 4 days
Tints
Available with an energy saving door tint to protect the interior from natural and artificial light. Choose from four tint finishes with varying levels of visibility.

All tints reject up to 99% of UV rays. Click here to view these options and learn more about their efficiency.

32.0" H x 23.63" W x 23.38" D

(81cm H x 60cm W x 59cm D)

SPECIFICATIONS

Overview
Height of Cabinet 32.0" (81 cm)
Width 23.63" (60 cm)
Depth 23.38" (59 cm)
Depth with Handle 25.0" (64 cm)
Depth with door at 90° 45.5" (116 cm)
Bottles 46 bottles
Defrost Type Automatic
Door Glass
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 2.0
Voltage/Frequency 115 V AC/60 Hz
Weight 112.0 lbs. (51 kg)
Shipping Weight 117.0 lbs. (53 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Wine Cellar
Number of Zones 2
Door Swing RHD
Reversible Yes
Shelf Type Wood
Shelf Qty 6
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.23 oz.
High Side PSI 150.0
Low Side PSI 50.0
Level Legs 2

AVAILABLE UPGRADES

Door
T4 Door Tint
Neutral door tint in light smoke finish for moderate energy savings
T3 Door Tint
Reflective door tint in light blue finish for medium energy savings
T2 Door Tint
Tinted door in reflective deep blue finish with high energy savings
T1S Door Tint
Reflective door tint in dark smoke finish for maximum energy savings
T1 Door Tint
Tinted door in low-E mirror finish for maximum energy savings
Exterior
Extra key
Extra keys available for purchase
LHD - Left hand door swing
Door reversal to left hand swing
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

FEATURES

ADA Compliant
32" height fits under lower ADA compliant counters
Built-in capable
Make the best use of space by installing your appliance under the counter
Stainless steel cabinet
Fully wrapped in 304 grade stainless steel

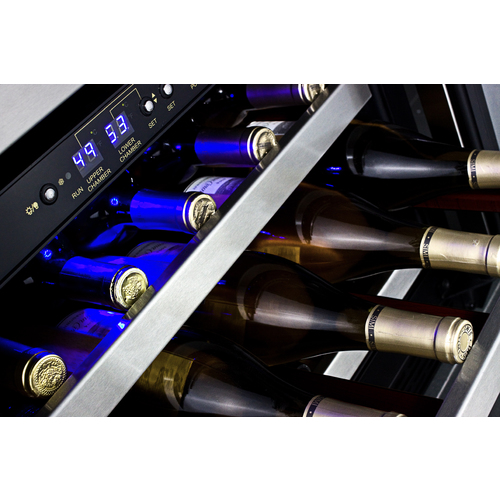

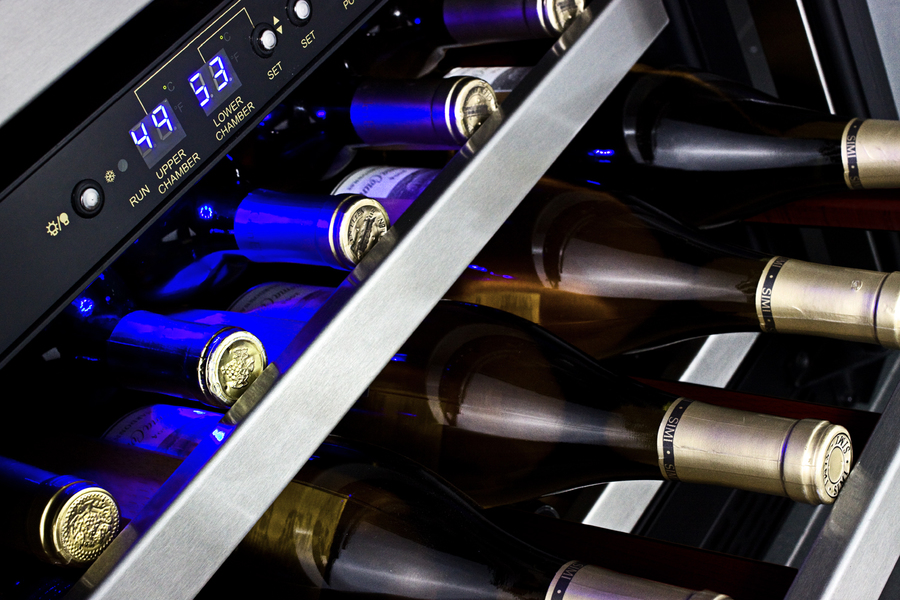

Digital thermostats
Set and adjust two temperature zones separately with easy-to-use digital controls and digital displays
Two temperature zones
Lower zone for reds has a temperature range of 10º C/50º F to 18º C/64º F; Upper zone stores whites and sparkling wine between 5º C/41º F to 10º C/50º F
Automatic defrost
Reduced maintenance with auto defrost system
Slide-out wooden shelving
Ideal for holding your bottles, with an elegant touch of stainless steel trim
Versatile shelving

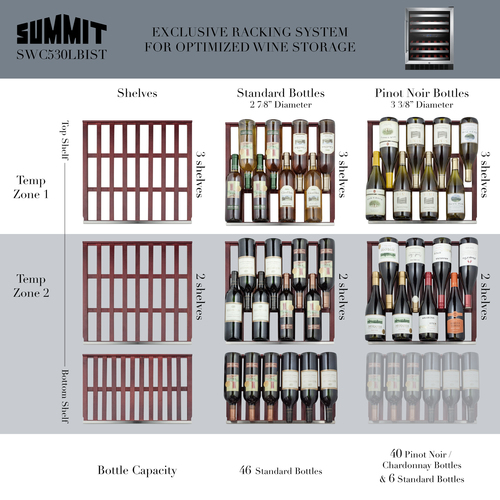

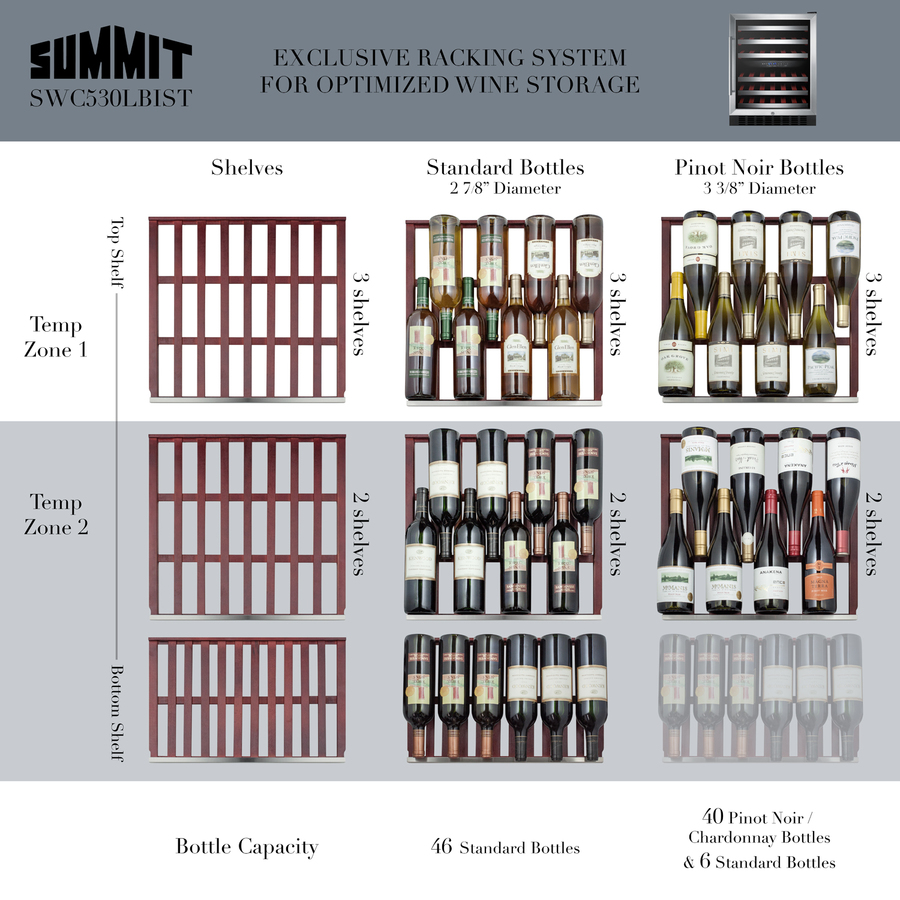

Interior can store both standard Bordeaux bottles and wider Burgundy type for Pinot Noir and Chardonnay; see your Shelving Guide for details
Stainless steel door frame
Classic trim for a refined look
Glass door
Provides a full display of your collection
Interior light
Illuminate your collection in style
Factory installed lock
Keyed lock for secure interior
Reversible door
User reversible door swing
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals

DESCRIPTION

Store your finest collection in the SWC530BLBISTCSSADA, an ADA compliant built-in wine cellar with advanced features and stunning design.

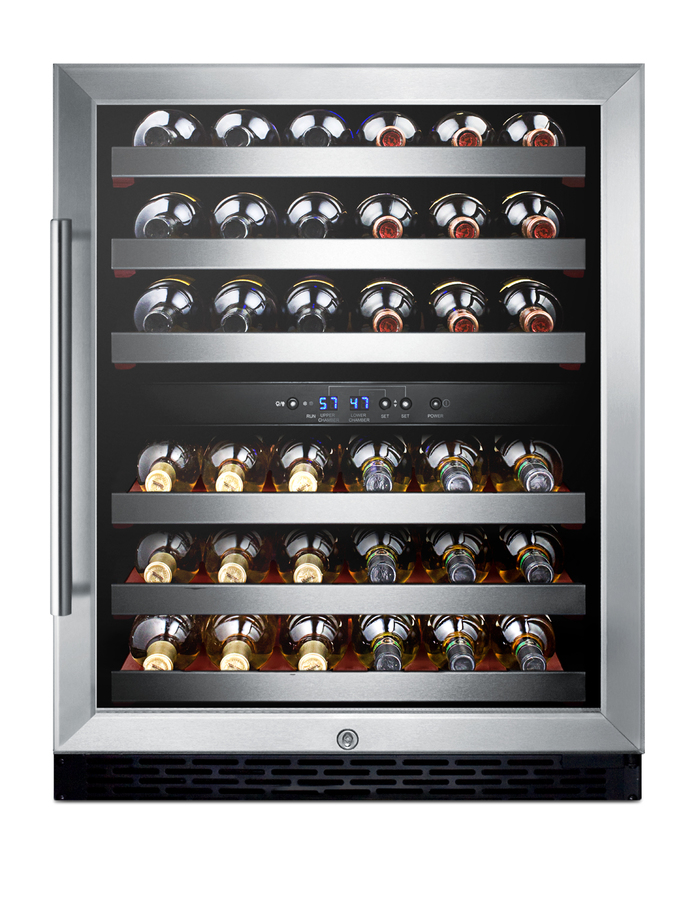

Two digital thermostats allow you to chill your white wine while separately preserving red at a warmer temperature. Slide-out wooden shelves with stainless steel trim let you store up to 46 standard 750ml sized Bordeaux bottles. Alternatively, you can store up to 40 bottles of the wider Pinot Noir or Chardonnay bottles, while still fitting an additional six Bordeaux bottles. Full automatic defrost, interior lighting, and SUMMIT's own "hidden" evaporator help to keep use and maintenance simple.

At 32" high, the SWC530BLBISTCSSADA can be used built-in or freestanding under lower ADA compliant counters. The cabinet is fully wrapped in stainless steel, with a reversible glass door to best display your collection. A professional stainless steel door handle completes the look.

SPECIFICATIONS

Overview
Height of Cabinet 32.0" (81 cm)
Width 23.63" (60 cm)
Depth 23.38" (59 cm)
Depth with Handle 25.0" (64 cm)
Depth with door at 90° 45.5" (116 cm)
Bottles 46 bottles
Defrost Type Automatic
Door Glass
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 2.0
Voltage/Frequency 115 V AC/60 Hz
Weight 112.0 lbs. (51 kg)
Shipping Weight 117.0 lbs. (53 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Wine Cellar
Number of Zones 2
Door Swing RHD
Reversible Yes
Shelf Type Wood
Shelf Qty 6
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.23 oz.
High Side PSI 150.0
Low Side PSI 50.0
Level Legs 2

AVAILABLE UPGRADES

Door
T4 Door Tint
Neutral door tint in light smoke finish for moderate energy savings
T3 Door Tint
Reflective door tint in light blue finish for medium energy savings
T2 Door Tint
Tinted door in reflective deep blue finish with high energy savings
T1S Door Tint
Reflective door tint in dark smoke finish for maximum energy savings
T1 Door Tint
Tinted door in low-E mirror finish for maximum energy savings
Exterior
Extra key
Extra keys available for purchase
LHD - Left hand door swing
Door reversal to left hand swing
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
