AL57G

Tints f38f71c7257ce8e8379d579d03d127066ebb465738d3759d49e5075b11ff9ae5
Available with an energy saving door tint to protect the interior from natural and artificial light. Choose from four tint finishes with varying levels of visibility.

All tints reject up to 99% of UV rays. Click here to view these options and learn more about their efficiency.
Commercial home ea581a399e3ae77121f807aa081394156550222354be8f27504df77d2fff3a44
This unit can be used for commercial or residential applications. It meets applicable U.S. Department of Energy (DOE) standards for both household and commercial energy usage. For information on its commercial sanitation listing, see Specifications.

Designed to fit under lower ADA compliant counters

32.0" H x 23.63" W x 22.63" D

(81cm H x 60cm W x 57cm D)

OVERVIEW

  • 32" height fits under lower ADA compliant counters
  • Flexible design allows built-in or freestanding use in 24" wide spaces
  • Stainless steel trimmed glass door provides an attractive view of the interior
  • Recessed LED lighting offers attractive presentation of stored products
  • Factory installed lock provides security you can count on
  • Easy temperature management with a digital thermostat
  • Commercially listed to NSF-7 standards

SPECIFICATIONS

Overview
Height of Cabinet 32.0" (81 cm)
Width 23.63" (60 cm)
Depth 22.63" (57 cm)
Depth with Handle 24.63" (63 cm)
Depth with door at 90° 45.0" (114 cm)
Capacity 5.0 cu.ft. (142 L)
Defrost Type Frost-Free
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 270.0kWh/year
Amps 1.0
Voltage/Frequency 115 V AC/60 Hz
Weight 95.0 lbs. (43 kg)
Shipping Weight 98.0 lbs. (44 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator Features
Sabbath Mode Yes
Door Swing RHD
Reversible Yes
Shelf Type Glass
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 0.99oz.
High Side PSI 270.0
Low Side PSI 105.0
Level Legs Qty 4
Interior Light Yes
Temperature Range 36 to 43ºF
Dimensions
Interior Height 25.0" (64 cm)
Interior Width 20.0" (51 cm)
Interior Depth 17.5" (44 cm)
Compressor Step Height 3.25" (8 cm)
Compressor Step Width 20.0" (51 cm)
Compressor Step Depth 5.25" (13 cm)

AVAILABLE UPGRADES

Door
T1S Door Tint
Reflective door tint in dark smoke finish for maximum energy savings
T4 Door Tint
Neutral door tint in light smoke finish for moderate energy savings
T3 Door Tint
Reflective door tint in light blue finish for medium energy savings
T2 Door Tint
Tinted door in reflective deep blue finish with high energy savings
T1 Door Tint
Tinted door in low-E mirror finish for maximum energy savings
Exterior
Extra key
Extra keys available for purchase
LHD - Left hand door swing
Door reversal to left hand swing
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.


California residents:
click here for information on Proposition 65

Due to our commitment to continuous product improvement, all specifications are subject to change without notice

WHERE TO BUY

Invalid Format

DESCRIPTION

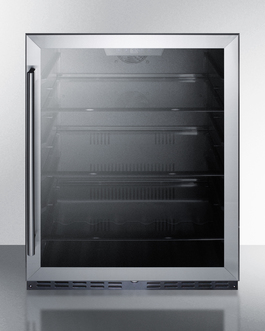

SUMMIT's ADA compliant line of built-in refrigerators brings quality and style to residential and commercial settings with space restraints.

Sized with a convenient 24" footprint, the AL57G is just 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished black cabinet allows freestanding use, while the front-breathing system also allows this unit to be built-in with minimum clearance. This unit has a user-reversible double pane tempered glass door with attractive stainless steel trim. A stainless steel handle completes the look and a factory installed lock in the kickplate offers additional security. The flush back design helps to make cleaning easier, while the right angle cord offers added space savings.

Inside, the AL57G utilizes frost-free operation with fan-forced cooling to ensure low maintenance and even temperature distribution. Recessed LED lighting offers an attractive yet efficient look. The digital thermostat makes it easy to manage the interior temperature. This unit includes adjustable glass shelves for flexible, spill-proof storage. The floor is specially slotted to hold bottles in place. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance.

The AL57G refrigerator is ETL-S listed to NSF-7 commercial standards but can also be used in the home. With its deluxe style and user-friendly features, this unit is the perfect choice for home or commercial kitchens.

FEATURES

ADA compliant design
32" height allows easy installation under lower ADA compliant counters
Built-in capable
Front-breathing design lets you make the best use of space by installing your appliance under the counter
Factory installed lock
Keyed lock for a secure interior
Double pane tempered glass door
Stainless steel trimmed glass door offers a heat-safe view of the interior
Professional handle
Stainless steel handle completes the look
Frost-free operation
No-frost operation for minimum user maintenance
Digital thermostat
Electronic controls located inside the unit for precise temperature management
Recessed LED light
Efficient and attractive presentation with LED lighting
Adjustable glass shelves
Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
Bottle slots
Floor is specially slotted to store wine and other bottles safely in place
Internal fan
Fan-forced cooling ensures the unit is evenly cooled from top to bottom
Reversible door
User-reversible door swing for added flexibility
Open door alarm
Audible alarm will sound if the door is left open longer than one minute
High temperature alarm
High temperature alarm sounds if the unit's interior goes out of the recommended range
Sabbath mode setting
Optional setting lets you disable the lighting and alarm for up to 96 hours
Temperature Memory Function
Unit will retain its last settings when power is restored in the event of power loss
Sealed back
Space-saving design that offers easier cleanability
Right angle plug
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Commercially approved
ETL-S listed to NSF-7 Standards for use in commercial establishments
Fully finished black cabinet
Allows the unit to be used freestanding
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet 32.0" (81 cm)
Width 23.63" (60 cm)
Depth 22.63" (57 cm)
Depth with Handle 24.63" (63 cm)
Depth with door at 90° 45.0" (114 cm)
Capacity 5.0 cu.ft. (142 L)
Defrost Type Frost-Free
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 270.0kWh/year
Amps 1.0
Voltage/Frequency 115 V AC/60 Hz
Weight 95.0 lbs. (43 kg)
Shipping Weight 98.0 lbs. (44 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator Features
Sabbath Mode Yes
Door Swing RHD
Reversible Yes
Shelf Type Glass
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 0.99oz.
High Side PSI 270.0
Low Side PSI 105.0
Level Legs Qty 4
Interior Light Yes
Temperature Range 36 to 43ºF
Dimensions
Interior Height 25.0" (64 cm)
Interior Width 20.0" (51 cm)
Interior Depth 17.5" (44 cm)
Compressor Step Height 3.25" (8 cm)
Compressor Step Width 20.0" (51 cm)
Compressor Step Depth 5.25" (13 cm)

AVAILABLE UPGRADES

Door
T1S Door Tint
Reflective door tint in dark smoke finish for maximum energy savings
T4 Door Tint
Neutral door tint in light smoke finish for moderate energy savings
T3 Door Tint
Reflective door tint in light blue finish for medium energy savings
T2 Door Tint
Tinted door in reflective deep blue finish with high energy savings
T1 Door Tint
Tinted door in low-E mirror finish for maximum energy savings
Exterior
Extra key
Extra keys available for purchase
LHD - Left hand door swing
Door reversal to left hand swing
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.

DOWNLOADS

Download
BROCHURE w/ DRAWINGS
AL57G.pdf
Download
TECHNICAL DRAWING (.dwg)
AL57G_REFRIGERATOR__A-C2000_.dwg
Download
MSDS INFORMATION
R600a_K.pdf
Energy Guide


California residents:
click here for information on Proposition 65

Due to our commitment to continuous product improvement, all specifications are subject to change without notice
