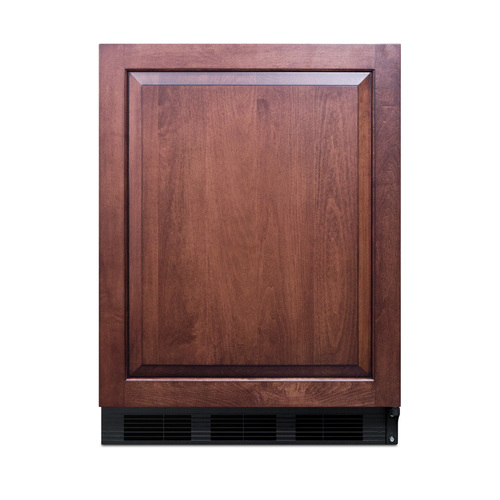

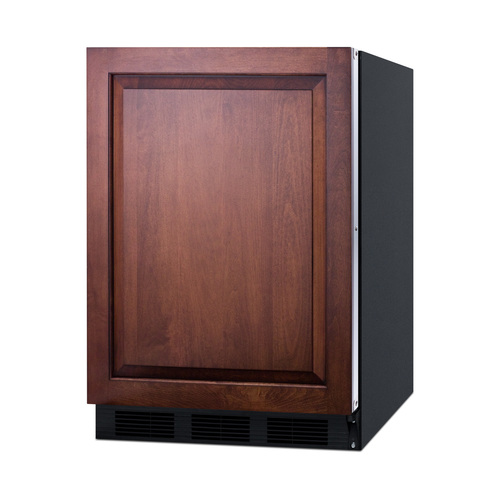

24" Wide Built-In All-Refrigerator, ADA Compliant (Panel Not Included)

SKU: AR5BIF
Made in Europe and sized for use under lower ADA compliant counters
Estimated Time to Ship:

3 to 5 days

32.25" H x 23.63" W x 23.0" D
(82cm H x 60cm W x 58cm D)

Overview
Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.25" (82 cm)
Width 23.63" (60 cm)
Depth 23.0" (58 cm)
Depth with door at 90° 45.38" (115 cm)
Capacity 5.5 cu.ft. (156 L)
Defrost Type Automatic
Door Panel-Ready
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Energy Usage/Year 307.0kWh/year
Amps 1.4
Voltage/Frequency 115 V AC/60 Hz
Weight 100.0 lbs. (45 kg)
Shipping Weight 121.0 lbs. (55 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101068787
Refrigerator Features
Door Swing RHD
Reversible Factory Reversible
Shelf Type Glass
Shelf Qty 3
Full Door Shelf Qty 3
Adjustable Shelves Yes
Wine Bottle Shelves Yes
Thermostat Type Dial
Fan Type Exterior
Refrigerant Type R600a
Refrigerant Amount 0.64oz.
High Side PSI 180.0
Low Side PSI 80.0
Interior Light Yes
Dimensions
Interior Height 26.25" (67 cm)
Interior Width 21.0" (53 cm)
Interior Depth 18.0" (46 cm)
Compressor Step Height 5.5" (14 cm)
Compressor Step Width 21.0" (53 cm)
Compressor Step Depth 6.0" (15 cm)

Exterior
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
DT - Digital thermostat
Install a digital thermostat with external readout for precise temperature management
Alarm/Thermometer - Factory-installed alarm with external temperature readout
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
SS Hinges
Stainless steel top and bottom hinges
LHD - Left hand door swing
Door reversal to left hand swing
SSK - Stainless steel kickplate
Stainless steel kickplate factory installed
HG - Hospital grade cord
Add a hospital grade cord equipped with green dot plug with the HG suffix
Interior
FCGP internal fan with gel packs
Internal fan with gel packs included for a stabilized interior
FC - Internal Fan
Internal fan for even temperature distribution throughout the unit interior

ADA compliant

32" height to fit under lower ADA compliant counters

Slim undercounter dimensions

Ideal 24" footprint offers full 5.5 cu.ft. storage capacity in a slim fit

Built-in capable

Front-breathing design lets you make the best use of space by installing your appliance under the counter

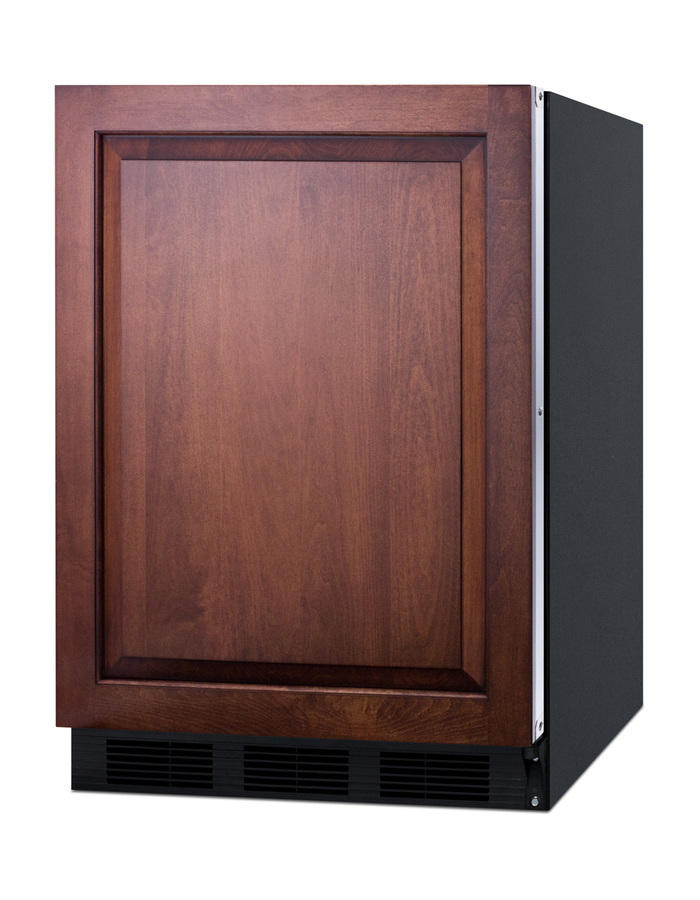

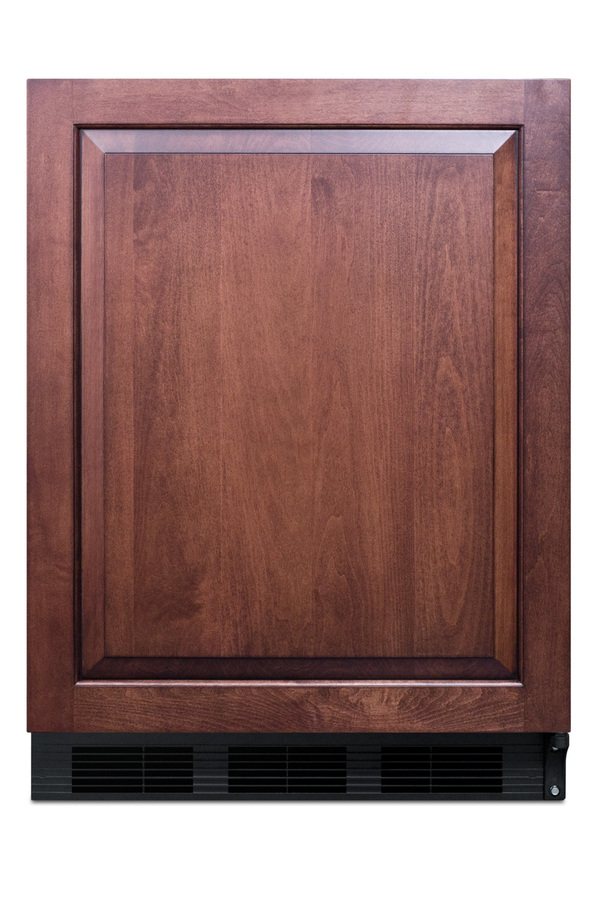

Panel-ready door

Integrated stainless steel door frame allows you to mount full overlay panels over the door to create a custom look that can blend into cabinetry with no exposed frame (panel size: 23 5/16" W x 28 1/4" H and at least 3/4" thick; maximum weight: 10 lbs.)

Automatic defrost

Reduced maintenance with auto defrost system

Adjustable glass shelves

Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up

Door shelves

Store tall bottles and condiments right on the door for convenient access

Wine shelf

Removable scalloped wine shelf is included to store champagne and wine bottles

Interior light

Automatically illuminates when you open the door

One piece interior liner

Easy clean-up with a seamless liner that won't hold a mess in hidden crevices

Hidden evaporator

Cold wall design with hidden evaporator creates a seamless, easy to clean interior

Adjustable thermostat

Simple, server & board-free operation with a dial thermostat located inside the unit for easy and intuitive temperature management

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Fully finished black cabinet

Allows the unit to be used freestanding

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

SUMMIT offers the industry’s largest selection of ADA compliant built-in undercounter refrigeration, with a range of choices to best meet the needs of any home or facility with height limitations.

Sized with a 24” footprint and 32” height, the AR5BIF is an all-refrigerator with a front-breathing system that allows built-in installation under lower ADA compliant counters. The fully finished cabinet also enables freestanding use. This model comes with a black cabinet finish. The door includes an integrated stainless steel frame designed to accept full overlay panels, allowing you to create a custom look that blends into your own cabinetry. Customers provide their own handle. Panels should be sized at 23 5/16" W x 28 1/4" H and at least 3/4" thick.

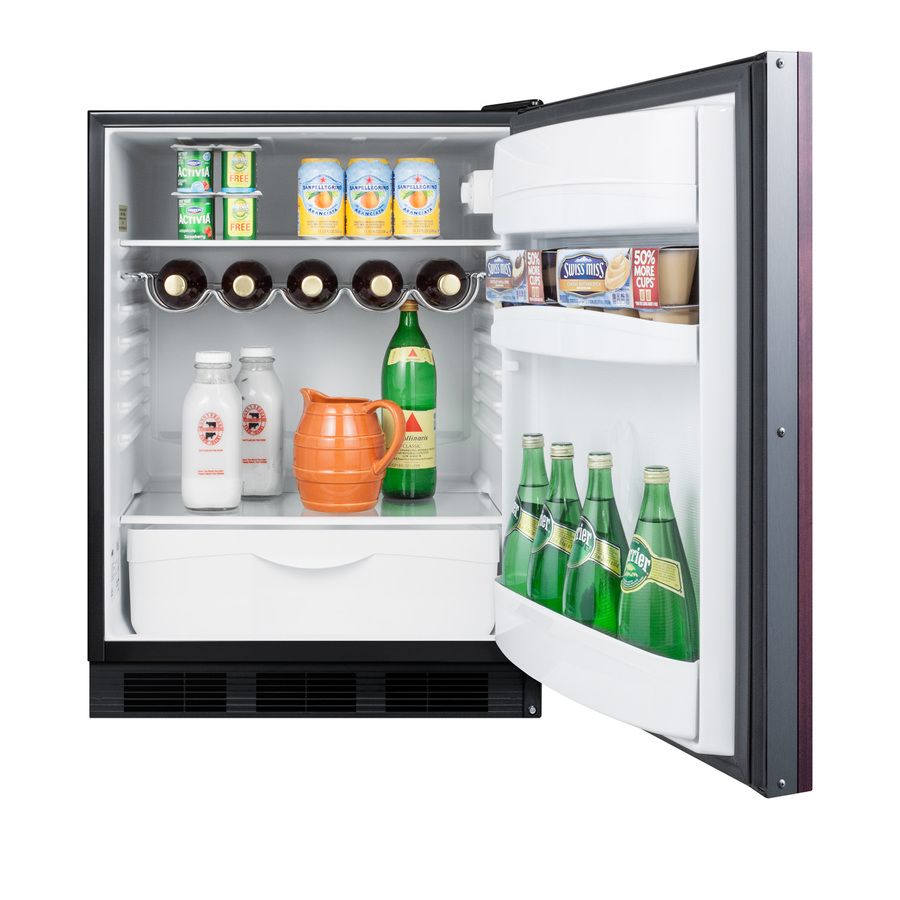

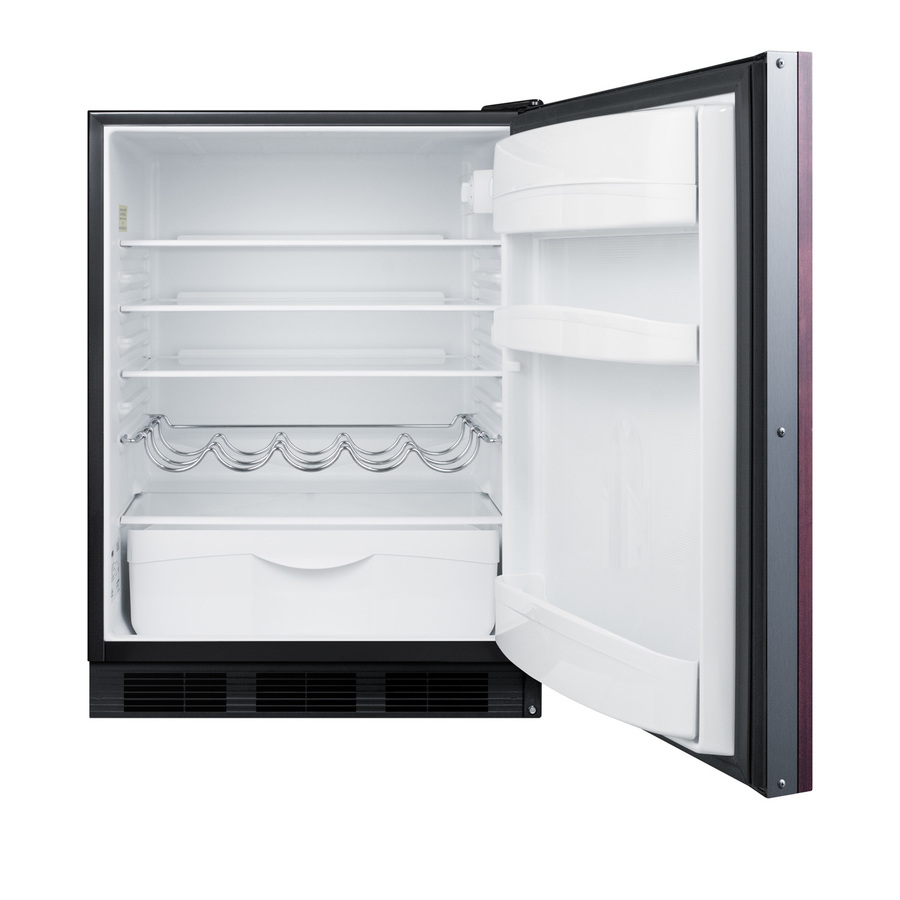

Inside, the AR5BIF utilizes automatic defrost operation to ensure minimum user maintenance. The 5.5 cu.ft. interior offers more storage space than most models in this size class. Adjustable glass shelves ensure spill-proof storage, with a removable scalloped wine shelf ideal for keeping bottles in place. The door includes three storage racks for condiments and tall bottles. The white interior offers easy visibility, with an automatic light included. The AR5BIF features Summit's intuitive dial thermostat for easy temperature management.

Designed and constructed in Europe, the AR5BIF brings reliable cold storage to any setting in need of a quality refrigerator in an ADA compliant height. Additional ADA compliant choices are available in a variety of sizes and styles. Browse our website for more options.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
