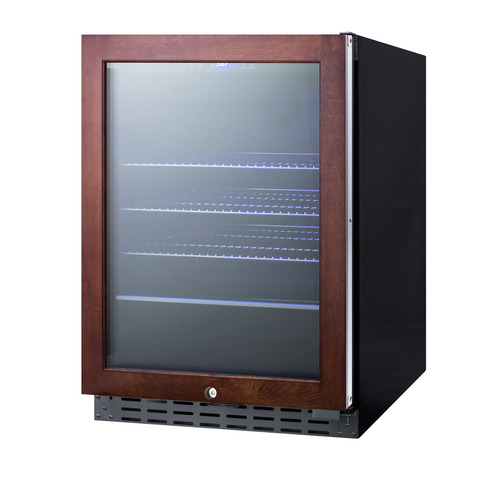

24" Wide Built-In Beverage Cooler, ADA Compliant

SKU: ALBV2466PNR
Commercially approved beverage cooler provides an elegant design in an ADA compliant height
Estimated Time to Ship:

3 to 5 days

Color: Panel-Ready

*Additional features may vary

Available with an energy saving door tint to protect the interior from natural and artificial light. Choose from four tint finishes with varying levels of visibility.

All tints reject up to 99% of UV rays. Click here to view these options and learn more about their efficiency.
This unit can be used for commercial or residential applications. It meets applicable U.S. Department of Energy (DOE) standards for both household and commercial energy usage. For information on its commercial sanitation listing, see Specifications.
31.63" H x 23.5" W x 23.38" D
(80cm H x 60cm W x 59cm D)

Overview
Height of Cabinet 31.63" (80 cm)
Width 23.5" (60 cm)
Depth 23.38" (59 cm)
Depth with door at 90° 45.75" (116 cm)
Capacity 4.2 cu.ft. (119 L)
Bottles 6 bottles
Defrost Type Automatic
Door Glass/Panel-Ready Frame
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 295.0kWh/year
Amps 1.25
Voltage/Frequency 115 V AC/60 Hz
Weight 112.0 lbs. (51 kg)
Shipping Weight 142.0 lbs. (64 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101067056
Refrigerator Features
Sabbath Mode Yes
Door Swing RHD
Reversible Factory Reversible
Height Adjustable No
Shelf Type Glass and Chrome
Shelf Qty 4
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.23oz.
High Side PSI 150.0
Low Side PSI 50.0
Level Legs Qty 2
Interior Light Yes
Temperature Range 34 to 65ºF
Sound Level 34.7 dB
Dimensions
Interior Height 23.5" (60 cm)
Interior Width 19.0" (48 cm)
Interior Depth 17.0" (43 cm)
Compressor Step Height 5.5" (14 cm)
Compressor Step Width 19.0" (48 cm)
Compressor Step Depth 5.0" (13 cm)

Door
T2 Door Tint
Tinted door in reflective deep blue finish with high energy savings
T3 Door Tint
Reflective door tint in light blue finish for medium energy savings
T4 Door Tint
Neutral door tint in light smoke finish for moderate energy savings
T1 Door Tint
Tinted door in low-E mirror finish for maximum energy savings
T1S Door Tint
Reflective door tint in dark smoke finish for maximum energy savings
Exterior
LHD - Left hand door swing
Door reversal to left hand swing
Latch - Factory-installed door latch requires manual release to open unit
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
Extra key for IF door
Extra key for select IF (panel-ready) units

ADA compliant

32” height allows for installation within ADA-compliant spaces

Commercially approved

ETL-S listed to NSF-7 commercial standards

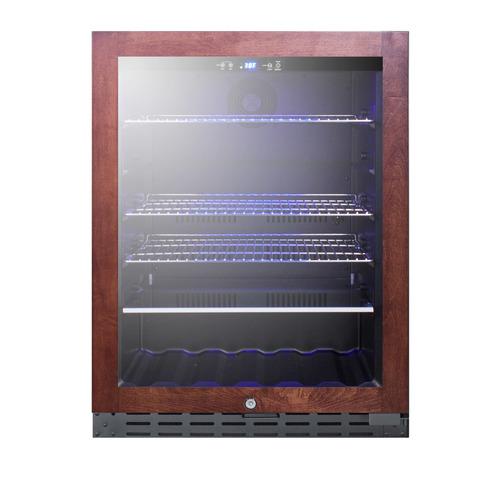

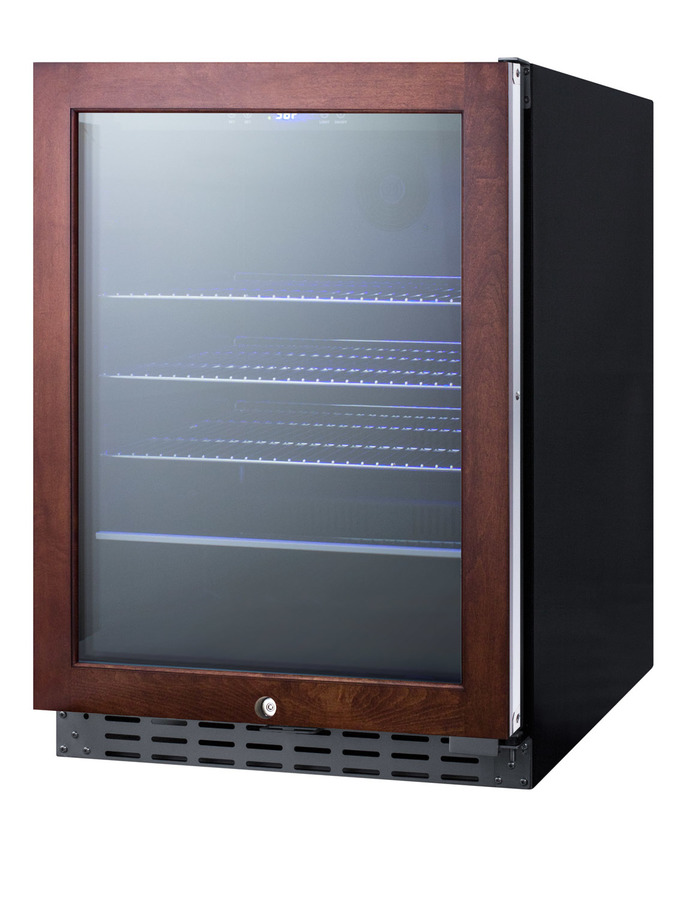

Panel-ready door trim

Door frame can be customized with an overlay panel to best match your own cabinetry style (panel size: 27 5/8" H x 23" W at 3/4" thick)

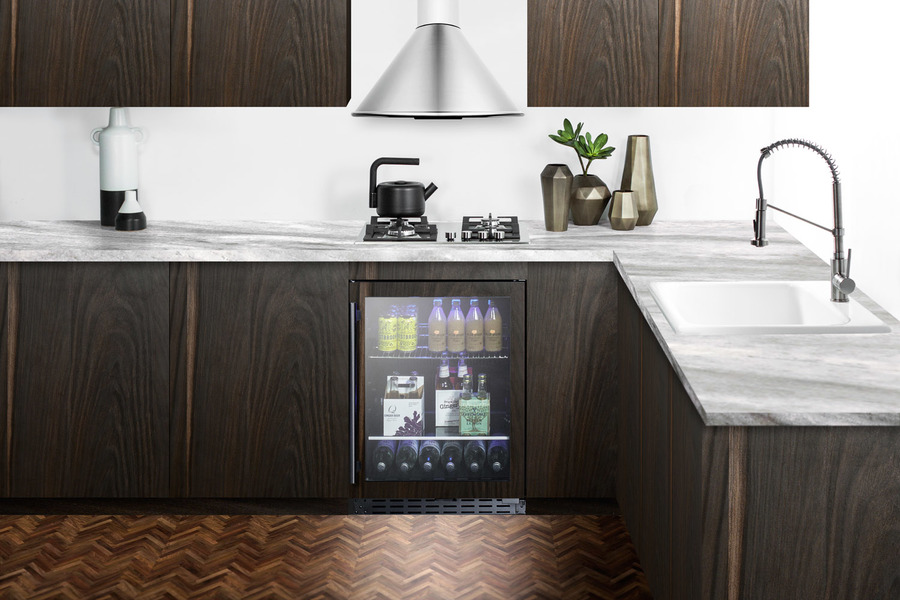

Built-in capable

Front-breathing design allows the unit to be built-in under counters

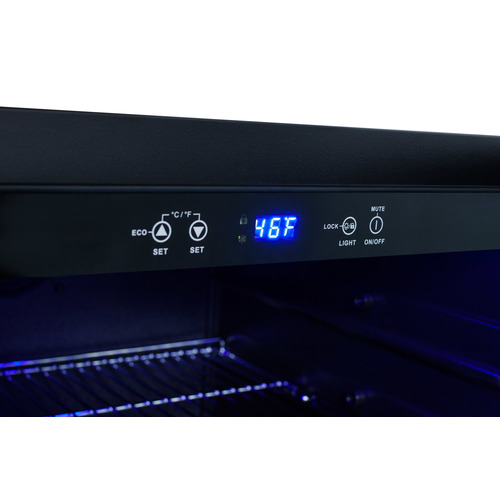

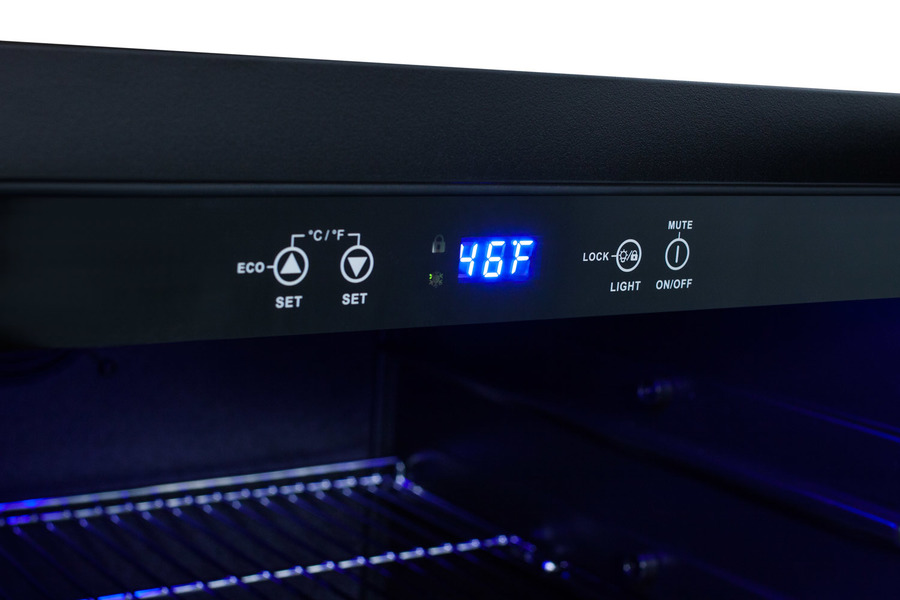

Digital control panel

Makes for easy temperature reading/management with electronic controls inside

Double pane tempered glass door

Provides a full display of the interior, with two levels of glass for added protection

Factory installed lock

Keyed lock for secure interior, with two keys included

Adjustable shelving

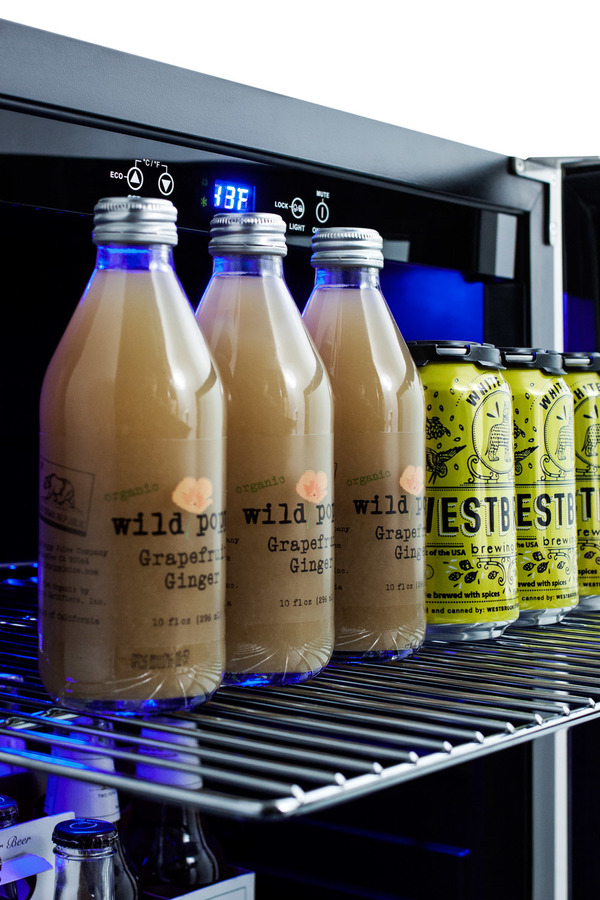

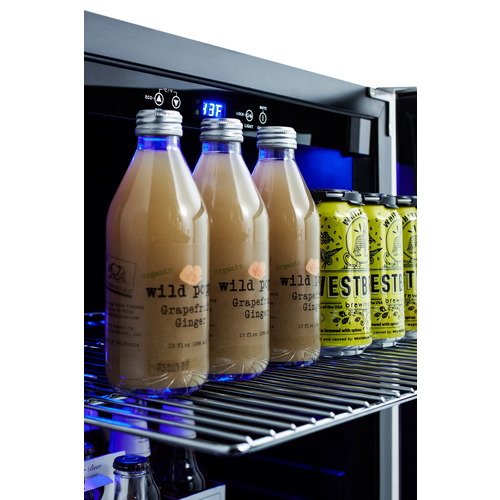

Four shelves (3 wire, 1 glass) provide space and flexibility when organizing the interior’s contents

Brake system shelving

Provides added safety when loading and unloading the unit's 4 shelves

Slotted floor

Allows for easy storage of wine bottles

Dual-purpose functionality

Versatile design allows unit to serve as a cooler or refrigerator

Automatic defrost

Reduced maintenance with auto defrost system

Interior lighting

Soft LED lighting allows for easy viewing of interior contents while maintaining an elegant feel

Temperature alarm

Alarm sounds if temperature goes out of recommended range after 2 hours

Sabbath mode

Optional feature disables alarms, interior light, and displays for up to 96 hours

Factory-reversible door swing

Unit ships with a right hand door swing. For a left hand door swing, order with option "LHD"

Fully finished black cabinet

Allows unit to be used freestanding

Matching wine cellar available

Pairs perfectly with the ALWC532PNR

100% CFC free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

With a dual-purpose design, the ALBV2466PNR can serve as a beverage cooler or refrigerator offering unmatched versatility for residential or commercial use.

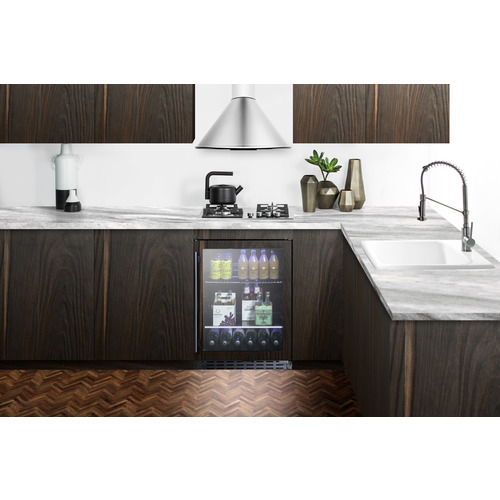

The ALBV2466PNR is ETL-S listed to NSF-7 commercial standards and also meets residential standards. The front-breathing design allows built-in installation, while the fully finished black cabinet also enables freestanding use. Sized just under 32 inches high and 24 inches wide, this unit makes an ideal fit under lower ADA compliant counters.The double pane tempered glass door features a seamless stainless steel trim designed to accept overlay panels, allowing you to match the refrigerator to your own cabinetry. Users provide their own handle to complete the custom look. A temperature alarm provides added security should the temperature go beyond the setpoint. The optional Sabbath Mode can be used to disable certain electrical features during periods of religious observance. The automatic defrost system keeps the unit running efficiently with little user maintenance.

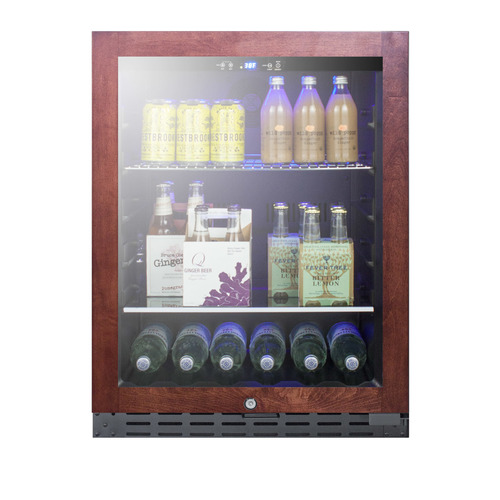

Inside, the ALBV2466PNR has a digital control panel which allows you to manage the unit’s temperature with ease. An adjustable temperature range between 34 and 65ºF allows for a variety of beverage storage options. Three pull-out wire shelves provide maximum storage capacity, while the fourth glass shelf allows for contents to be stood upright for added storage flexibility. The shelving brake system keeps the unit contents safe during loading and unloading, and the slotted floor ensures easy and safe storage of wine bottles. The soft LED lighting in a gentle blue hue offers an attractive and efficient presentation.

With its advanced user features and versatile design, the ALBV2466PNR is an excellent addition to any ADA compliant setting looking for a beverage cooler with a modern, elegant look. This unit can be paired with the ALWC532PNR wine cellar for a matching set.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
