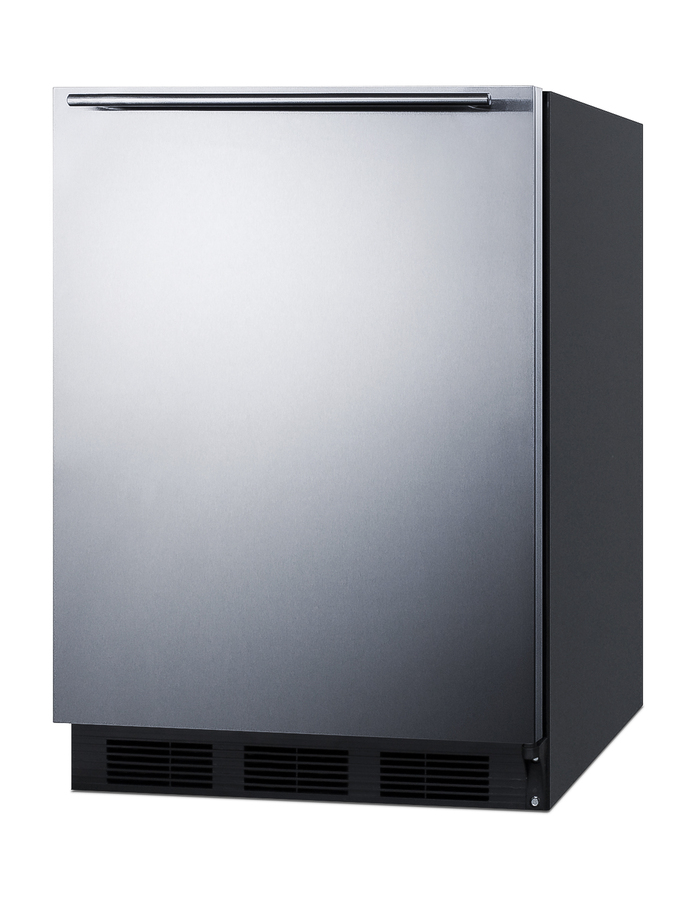

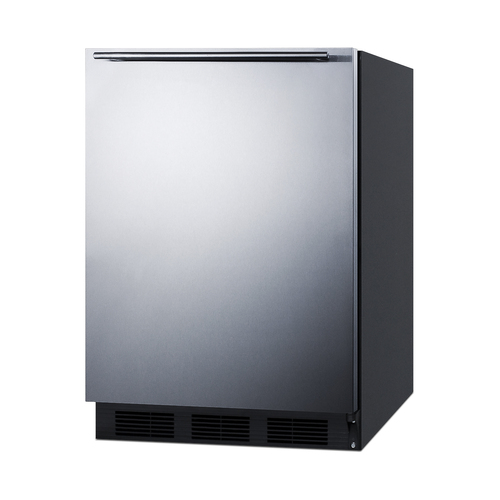

24" Wide Built-In All-Refrigerator, ADA Compliant

SKU: AR5BS
Made in Europe and sized for use under lower ADA compliant counters
Estimated Time to Ship:

3 to 5 days

Add a naturally antimicrobial copper handle for added protection against germs and bacteria.
32.25" H x 23.63" W x 23.0" D
(82cm H x 60cm W x 58cm D)

Overview
Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.25" (82 cm)
Width 23.63" (60 cm)
Depth 23.0" (58 cm)
Depth with door at 90° 45.38" (115 cm)
Capacity 5.5 cu.ft. (156 L)
Defrost Type Automatic
Door Stainless Steel
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Energy Usage/Year 307.0kWh/year
Amps 1.4
Voltage/Frequency 115 V AC/60 Hz
Weight 100.0 lbs. (45 kg)
Shipping Weight 115.0 lbs. (52 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101068268
Refrigerator Features
Door Swing RHD
Reversible Yes
Shelf Type Glass
Shelf Qty 3
Full Door Shelf Qty 3
Adjustable Shelves Yes
Wine Bottle Shelves Yes
Thermostat Type Dial
Fan Type Exterior
Refrigerant Type R600a
Refrigerant Amount 0.64oz.
High Side PSI 180.0
Low Side PSI 80.0
Interior Light Yes
Dimensions
Interior Height 26.25" (67 cm)
Interior Width 21.0" (53 cm)
Interior Depth 18.0" (46 cm)
Compressor Step Height 5.5" (14 cm)
Compressor Step Width 21.0" (53 cm)
Compressor Step Depth 6.0" (15 cm)

Exterior
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
HG - Hospital grade cord
Add a hospital grade cord equipped with green dot plug with the HG suffix
SSK - Stainless steel kickplate
Stainless steel kickplate factory installed
Latch - Factory-installed door latch requires manual release to open unit
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD - Left hand door swing
Door reversal to left hand swing
SCD - Self-closing door
Protect interior contents and reduce energy waste with the Self Closing Door Option
SS Hinges
Stainless steel top and bottom hinges
Alarm/Thermometer
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
DT - Digital thermostat
Install a digital thermostat with external readout for precise temperature management
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
Interior
FC - Internal Fan
Internal fan for even temperature distribution throughout the unit interior
FCGP internal fan with gel packs
Internal fan with gel packs included for a stabilized interior
Lock
AC Keypad - AC powered keypad lock
Keypad door lock powered by appliance power cord for keyless security
KEYPAD - Battery-powered keypad door lock
Battery-powered keypad door lock installed for keyless security
Handle
TBC Copper Towel Bar Handle Upgrade
Change this handle to a 12" vertically mounted towel bar style handle made from pure copper for antimicrobial protection

ADA compliant

32" height to fit under lower ADA compliant counters

Slim undercounter dimensions

Ideal 24" footprint offers full 5.5 cu.ft. storage capacity in a slim fit

Built-in capable

Make the best use of space by installing your appliance under the counter and flush with other cabinets

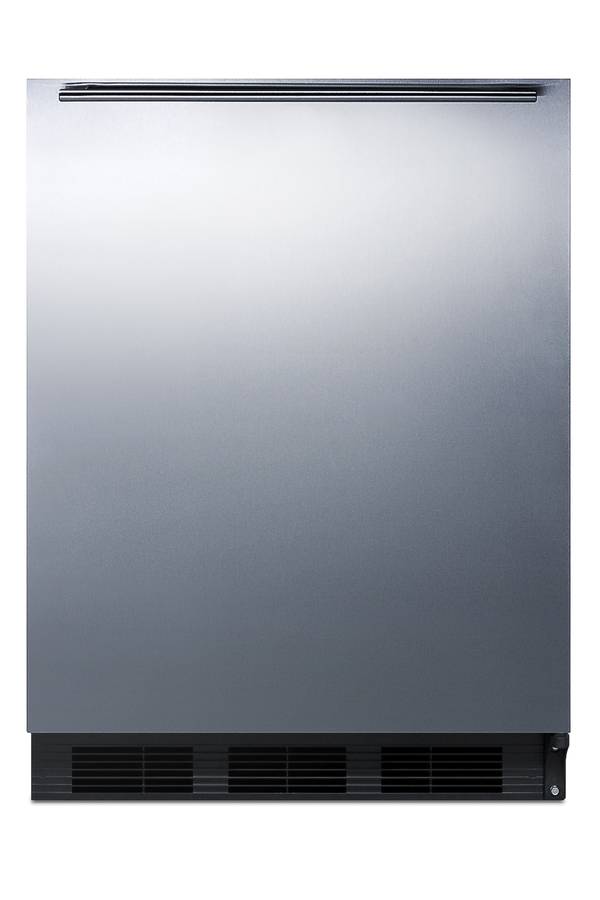

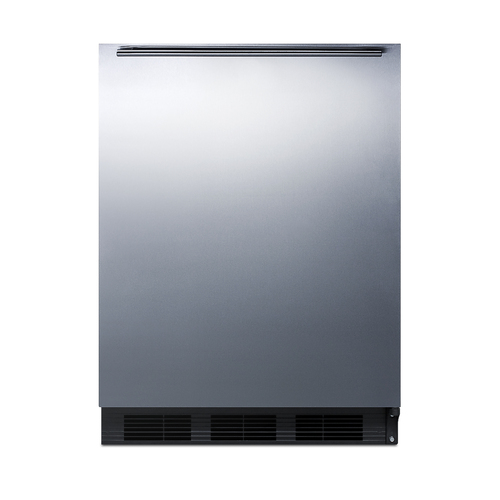

Stainless steel wrapped door

Durable design with lasting elegance

Professional towel bar style handle

Brushed stainless steel handle is mounted horizontally for an attractive look

Automatic defrost

Reduced maintenance with auto defrost system

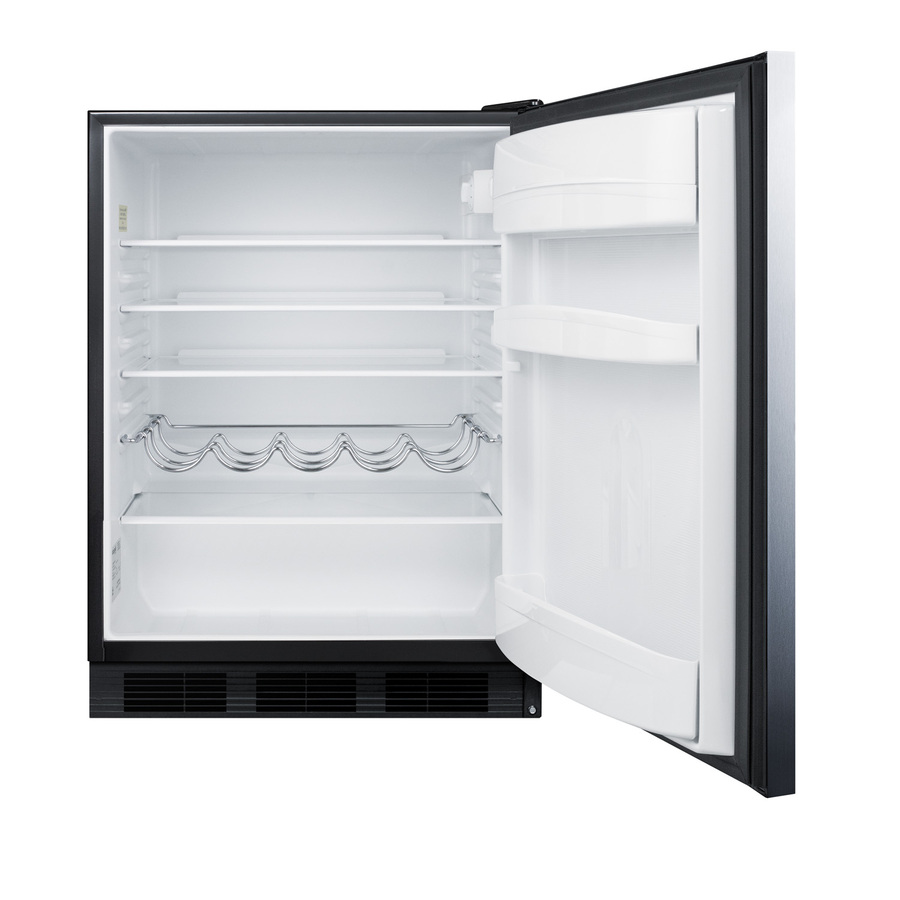

Adjustable glass shelves

Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up

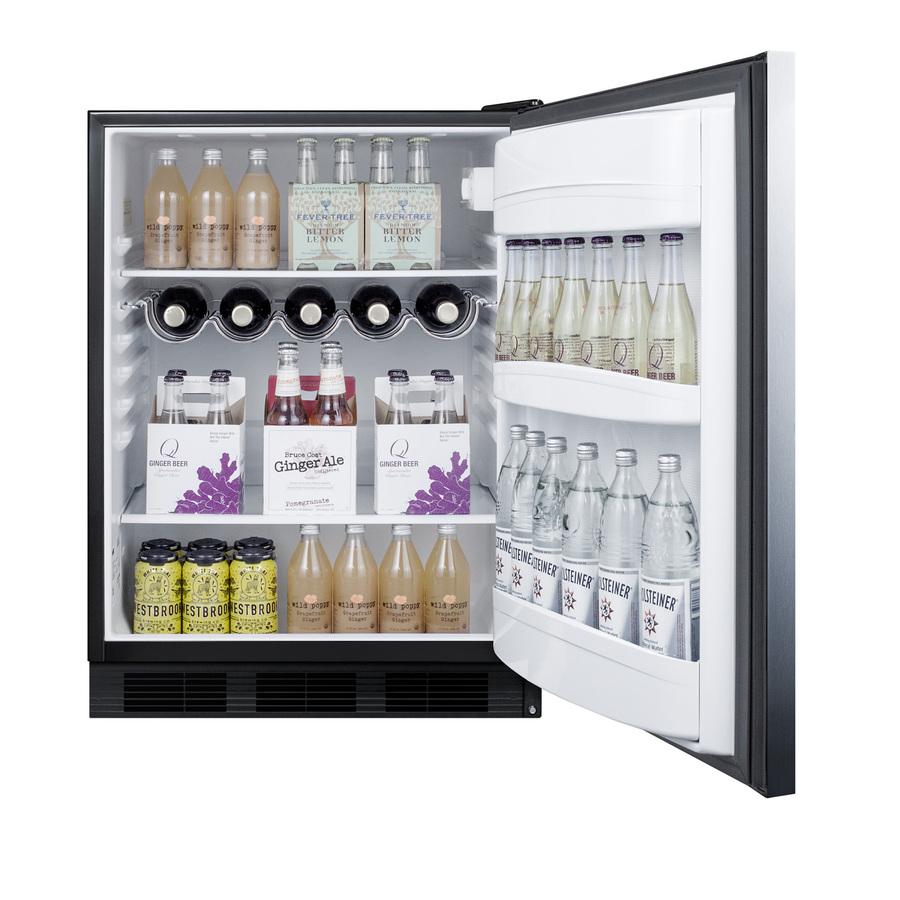

Door shelves

Store tall bottles and condiments right on the door for convenient access

Wine shelf

Removable scalloped wine shelf is included to store champagne and wine bottles

Interior light

Automatically illuminates when you open the door

One piece interior liner

Easy clean-up with a seamless liner that won't hold a mess in hidden crevices

Hidden evaporator

Cold wall design with hidden evaporator creates a seamless, easy to clean interior

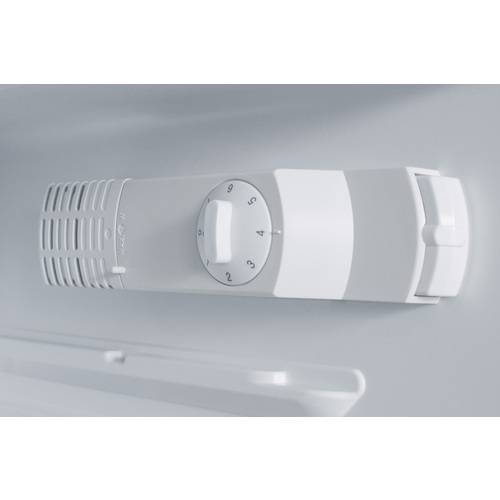

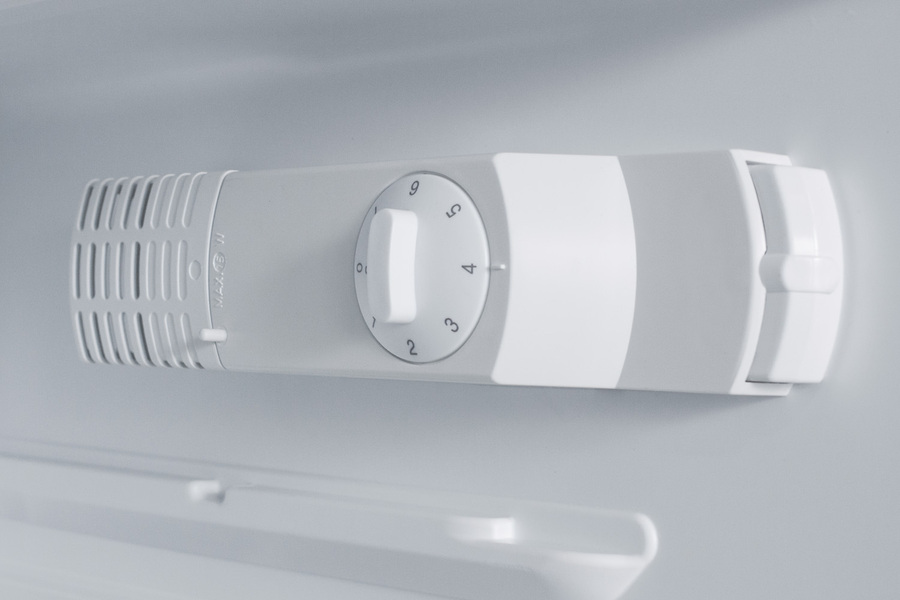

Adjustable dial thermostat

Simple, server & board-free operation with a dial thermostat located inside the unit for easy and intuitive temperature management

Reversible door

User-reversible door swing for added flexibility

Fully finished black cabinet

Allows the unit to be used freestanding

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

SUMMIT offers the industry’s largest selection of ADA compliant built-in undercounter refrigeration, with a range of choices to best meet the needs of any home or facility with height limitations.

Sized with a 24” footprint and 32” height, the AR5BS is an all-refrigerator with a front-breathing system that allows built-in installation under lower ADA compliant counters. The fully finished cabinet also enables freestanding use. This model comes with a black cabinet finish and reversible stainless steel wrapped door. It includes a curved towel bar style handle mounted horizontally for a modern look.

Inside, the AR5BS utilizes automatic defrost operation to ensure minimum user maintenance. The 5.5 cu.ft. interior offers more storage space than most models in this size class. Adjustable glass shelves ensure spill-proof storage, with a removable scalloped wine shelf ideal for keeping bottles in place. The door includes three storage racks for condiments and tall bottles. The white interior offers easy visibility, with an automatic light included. The AR5BS features Summit's intuitive dial thermostat for easy temperature management.

Designed and constructed in Europe, the AR5BS brings reliable cold storage to any setting in need of a quality refrigerator in an ADA compliant height. For a panel-ready version of this unit, see the AR5IF.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
