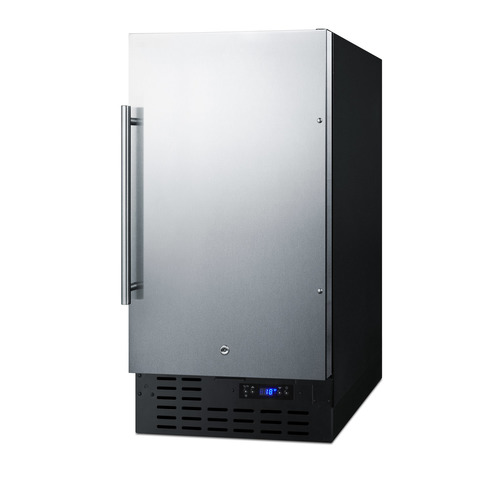

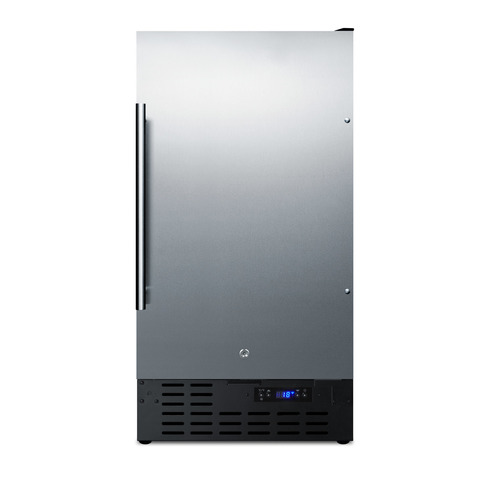

18" 8 lb. Drain-Free Icemaker, ADA Compliant

SKU: BIM18SSADA Matching refrigerator

No drain required for more flexibility in placing the icemaker

31.38" H x 17.75" W x 24.0" D

(80cm H x 45cm W x 61cm D)

OVERVIEW

  • 32" height for installation under lower ADA compliant counters
  • Produces and stores up to 8 lbs. of crescent ice cubes in a removable bin
  • Uniquely sized just under 18 inches wide
  • No drain required for operation
  • Flexible design allows built-in or freestanding use
  • Fully frost-free for low maintenance operation

SPECIFICATIONS

Overview
Height of Cabinet 31.38" (80 cm)
Width 17.75" (45 cm)
Depth 24.0" (61 cm)
Depth with Handle 25.75" (65 cm)
Depth with door at 90° 40.0" (102 cm)
Capacity 2.7 cu.ft. (76 L)
Defrost Type Frost-Free
Door Stainless Steel
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.1
Voltage/Frequency 115 V AC/60 Hz
Weight 82.0 lbs. (37 kg)
Shipping Weight 85.0 lbs. (39 kg)
Estimated Time to Ship 5 to 7 days
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Icemaker
Door Swing RHD
Reversible Yes
Daily Ice Production 8.0 lbs. (4 kg)
Ice Storage Capacity 8.0 lbs. (4 kg)
Ice Shape Crescent
Number of Ice Cube Sizes 1
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R134a
Refrigerant Amount 3.9 oz.
High Side PSI 270.0
Low Side PSI 103.0
Interior Height 23.5" (60 cm)
Interior Width 12.75" (32 cm)
Interior Depth 16.75" (43 cm)
Compressor Step Height 4.5" (11 cm)
Compressor Step Width 12.75" (32 cm)
Compressor Step Depth 4.5" (11 cm)
Level Legs 4
Temperature Range -22 to 14ºF

AVAILABLE UPGRADES

Exterior
SSK
Stainless steel kickplate factory installed
Extra key
Extra keys available for purchase
LHD - Left hand door swing
Door reversal to left hand swing
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

WHERE TO BUY

Invalid Format

DESCRIPTION

Summit brings convenient luxury under the counter with built-in icemakers uniquely sized for use in ADA compliant settings.

Sized just under 18 inches wide and 32 inches high, the BIM18SSADA is ideal for installation under lower counters following ADA compliant guidelines. The 304 grade stainless steel wrapped door is user-reversible to best fit your setting. We include a pro style handle and front-mounted keyed lock for optional security. No drain or pump is required for use, offering more flexibility in where you place the unit.

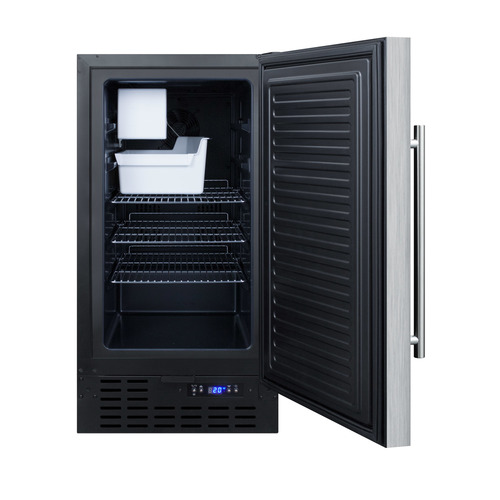

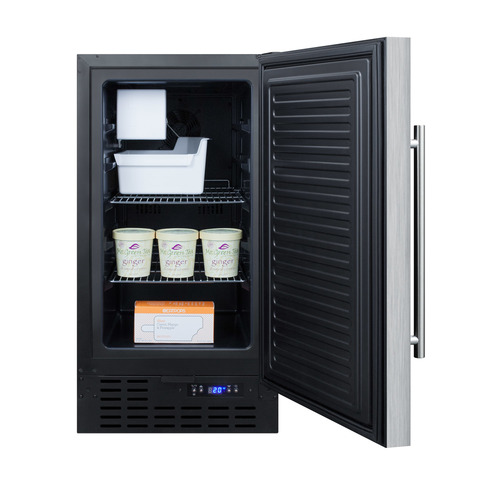

Inside, the BIM18SSADA can produce and hold 8 lbs. of crescent-shaped ice cubes in the removable bucket. Additional chrome shelves allow you to store other frozen items as needed. This unit utilizes frost-free operation to help reduce user maintenance.

With its ideal size and user-friendly design, the BIM18SSADA is a great solution to keeping a steady supply of ice on hand in ADA compliant kitchen spaces. Matching 18 inch wide refrigerators, beverage centers, and wine cellars are also available. Browse our website to explore our complete selection.

FEATURES

ADA compliant
Sized just under 32" high for installation under lower ADA compliant counters
Built-in capable
Make the best use of space by installing your appliance under the counter
No pump or drain required
Convenient design allows more flexibility in positioning the unit
Ice production
Makes and stores up to 8 lbs. of crescent cubes
Stainless steel door
Fully wrapped in stainless steel for a professional look
Factory installed lock
Keyed lock for a secure interior (2 keys included)
Removable bin
Bucket can be removed for fast and easy cleaning
Digital thermostat
Electronic controls for precise temperature management.
Digital display
Temperature readout can be shown in Celsius or Fahrenheit
Frost-free operation
Eliminates the need to manually defrost the interior
Extra shelves
Adjustable chrome shelves included to accommodate additional items
Reversible door
User-reversible door swing for added flexibility
Professional handle
Stainless steel handle completes the professional look
Flush back
Space saving design with easier cleanability
Fully finished black cabinet
Allows the unit to be used freestanding
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet 31.38" (80 cm)
Width 17.75" (45 cm)
Depth 24.0" (61 cm)
Depth with Handle 25.75" (65 cm)
Depth with door at 90° 40.0" (102 cm)
Capacity 2.7 cu.ft. (76 L)
Defrost Type Frost-Free
Door Stainless Steel
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.1
Voltage/Frequency 115 V AC/60 Hz
Weight 82.0 lbs. (37 kg)
Shipping Weight 85.0 lbs. (39 kg)
Estimated Time to Ship 5 to 7 days
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Icemaker
Door Swing RHD
Reversible Yes
Daily Ice Production 8.0 lbs. (4 kg)
Ice Storage Capacity 8.0 lbs. (4 kg)
Ice Shape Crescent
Number of Ice Cube Sizes 1
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R134a
Refrigerant Amount 3.9 oz.
High Side PSI 270.0
Low Side PSI 103.0
Interior Height 23.5" (60 cm)
Interior Width 12.75" (32 cm)
Interior Depth 16.75" (43 cm)
Compressor Step Height 4.5" (11 cm)
Compressor Step Width 12.75" (32 cm)
Compressor Step Depth 4.5" (11 cm)
Level Legs 4
Temperature Range -22 to 14ºF

AVAILABLE UPGRADES

Exterior
SSK
Stainless steel kickplate factory installed
Extra key
Extra keys available for purchase
LHD - Left hand door swing
Door reversal to left hand swing
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.

DOWNLOADS

Download
BROCHURE w/ DRAWINGS
BIM18SSADA.pdf
Download
TECHNICAL DRAWING (.dwg)
SCFF1842ADA_FREEZER__A-C_2000_.dwg
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
