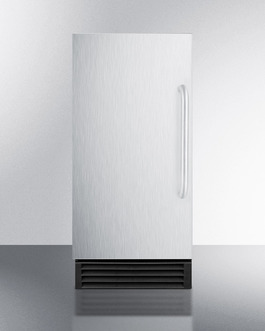

Built-In 50 lb. Clear Icemaker, ADA Compliant

SKU: BIM44GADA

Includes an internal pump for more flexibility

Estimated Time to Ship:

2 to 4 days

Find a dealer

Height:
Standard ADA

Application:
Indoor Outdoor

Icemaker Type:
Internal Pump No-Drain

Color: Stainless Steel/Black

*Additional features may vary

This unit can be used for commercial or residential applications. It meets applicable U.S. Department of Energy (DOE) standards for both household and commercial energy usage. For information on its commercial sanitation listing, see Specifications.

32.56" H x 14.5" W x 23.5" D
(83cm H x 37cm W x 60cm D)

Overview
Nominal Height	32.0" (81 cm)
Height of Cabinet	32.38" (82 cm)
Height to Hinge Cap	32.56" (83 cm)
Nominal Width	15.0" (38 cm)
Width	14.5" (37 cm)
Nominal Depth	24.0" (61 cm)
Depth	23.5" (60 cm)
Depth with Handle	25.0" (64 cm)
Depth with door at 90°	36.75" (93 cm)
Defrost Type	Automatic
Door	Stainless Steel
Cabinet	Black
US Electrical Safety	UL
Canadian Electrical Safety	ULC
Sanitation	NSF
Amps	4.8
Voltage/Frequency	115 V AC/60 Hz
Weight	100.0 lbs. (45 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101021959
Icemaker
Door Swing	LHD
Reversible	Yes
Drain Required	Yes
Daily Ice Production	50.0 lbs. (23 kg)
Ice Storage Capacity	25.0 lbs. (11 kg)
Ice Shape	Cube
Size of Cube	7/8" x 7/8" x 7/8"
Number of Ice Cube Sizes	1
Fan Type	Exterior
Refrigerant Type	R134a
Refrigerant Amount	3.88 oz.
High Side PSI	350.0
Low Side PSI	130.0
Interior Height	18.5" (47 cm)
Interior Width	12.0" (30 cm)
Interior Depth	16.0" (41 cm)

Exterior

Latch - Factory-installed door latch requires manual release to open unit Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles (NOTE: latch adds 1 1/2" of width to unit)

Lock

L-SideLock Add a single keyed lock located on the door's side (NOTE: side lock adds 1" to overall unit width and comes in white)

ADA compliant

32 3/8" height fits under lower ADA compliant counters (note: if installing under a counter, you must add a notch for the hinge that reaches 32 9/16")

ENERGY STAR certified commercial performance

Efficient performance for commercial use

Commercially approved

NSF listed for use in commercial establishments

Built-in pump

Internal pump allows more flexibility in placing the unit

Automatic defrost

Simplify appliance care by letting your icemaker defrost itself

Reversible door

Keep your options flexible with a reversible door that is easy to switch when your arrangement changes; Unit ships LHD but can be reversed in our factory or by the user

Built-in capable

Make the best use of space by installing your icemaker under the counter

Stainless steel door

Professional styling with lasting durability

Professional towel bar handle

A curved handle in brushed stainless steel offers an easy grip

Fully finished black cabinet

Allows the icemaker to be used as a freestanding model

Insulated storage bin

Ice stays solid longer in this cold-protected bin

Clear ice cube production

Clear cubes offer the perfect cooling of your beverages; NOTE: ice is produced in sheets and can easily be broken into cubes using the provided scoop

Ice scoop

Included for your convenience

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

Lead-free certified

Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard

SUMMIT BIM44GADA is an auto defrost clear icemaker designed for use under ADA compliant counters.

Automatic defrost makes maintenance simple and stress-free, while the BIM44GADA's front-breathing cooling system and fully finished sides allow built-in or freestanding use in 15" wide cutouts. This unit is 32 3/8" high to fit under counters following ADA guidelines and now comes equipped with an internal pump for versatile installation. Note: the hinge cover reaches 32 9/16", so if installing under a counter, we recommend notching out added space.

The BIM44GADA  can make up to 50 pounds of clear cube-shaped ice, with an adjustable bin capacity that can temporarily hold up to 25 pounds. The ice is produced in sheets and can be easily broken into cubes using the provided scoop.

The BIM44GADA has a jet black cabinet with user-reversible stainless steel door (LHD is default door swing; specify upon ordering for RHD). A curved towel bar handle is included.

This unit is NSF listed for use in commercial establishments and is ENERGY STAR certified for commercial use.

BROCHURE w/ DRAWINGS
BIM44GADA.pdf

TECHNICAL DRAWING (.dwg)
BIM44GADA_BIM44GCSSADA_BIM47OSADA.dwg

ASSEMBLY DRAWING
BIM44GADA_BIM44GCSSADA_BIM47OSADA-Assembly.pdf

REVIT MODEL
QF_Summit_BIM44GADA_ADA_Compliant_Ice_Maker.rfa

USE & CARE
BIM47OS_BIM44G_Series_Use_and_Care.pdf

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
