18" Wide Clear Outdoor Icemaker, ADA Compliant (Panel Not Included)

SKU: BIM182OSADAIFLHD
Unique 18" width lets you complete any outdoor kitchen with a large supply of long-lasting clear ice cubes
Estimated Time to Ship:

3 to 5 days

Door Swing:
RHD LHD
Application:
Indoor Outdoor
Color: Panel-Ready

*Additional features may vary

This unit can be used for commercial or residential applications. It meets applicable U.S. Department of Energy (DOE) standards for both household and commercial energy usage. For information on its commercial sanitation listing, see Specifications.

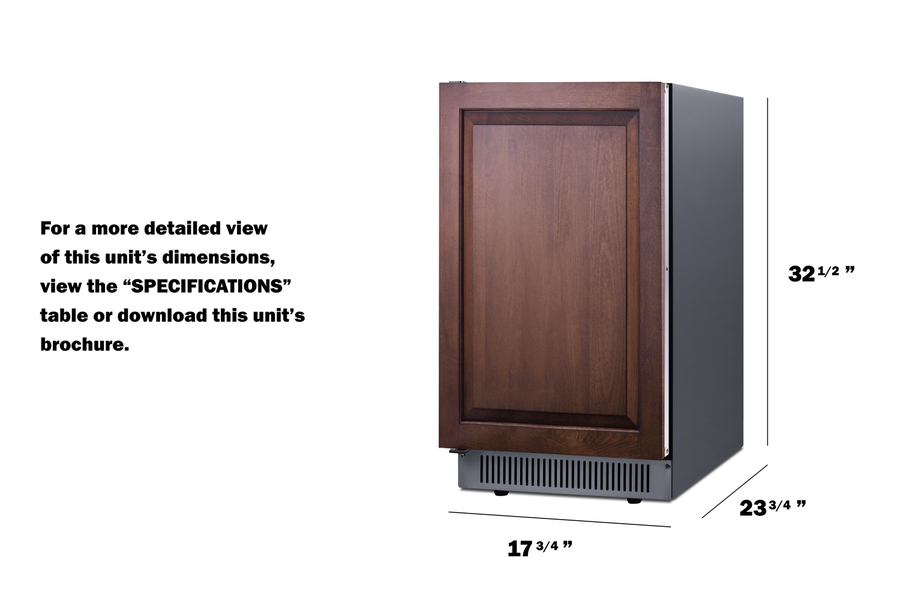

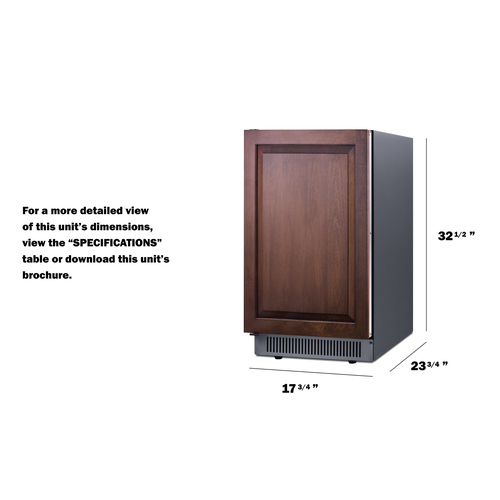

32.5" H x 17.75" W x 23.75" D
(83cm H x 45cm W x 60cm D)

Overview
Height of Cabinet 32.5" (83 cm)
Width 17.75" (45 cm)
Depth 23.75" (60 cm)
Depth with door at 90° 41.0" (104 cm)
Defrost Type Automatic
Door Panel-Ready
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 11.8
Voltage/Frequency 115 V AC/60 Hz
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101150741
Icemaker
Door Swing LHD
Height Adjustable Yes
Drain Required Yes
Daily Ice Production 60.0 lbs. (27 kg)
Ice Storage Capacity 33.0 lbs. (15 kg)
Ice Shape Cube
Size of Cube .87" x .87" . 87"
Number of Ice Cube Sizes 3
Interior Light Yes
Refrigerant Type R290
Refrigerant Amount 1.37 oz.
High Side PSI 330.0
Low Side PSI 160.0
Interior Height 18.75" (48 cm)
Interior Width 14.75" (37 cm)
Interior Depth 16.75" (43 cm)
Level Legs 4

18" Wide Clear Icemaker

Built-in undercounter icemaker ideal for installation in outdoor kitchens

Weatherproof design

Durable stainless steel construction for safe installation in outdoor spaces

ADA-compliant

32.5" height allows easy installation under lower ADA compliant counters

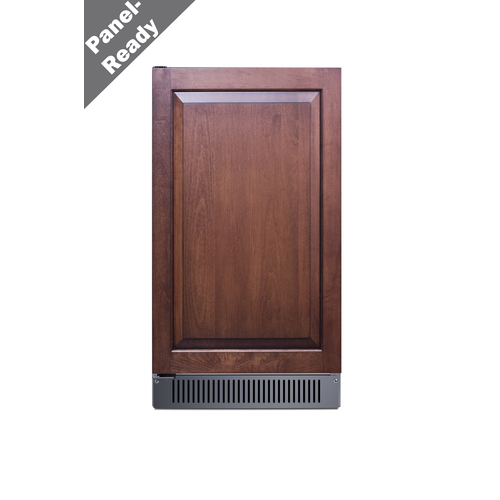

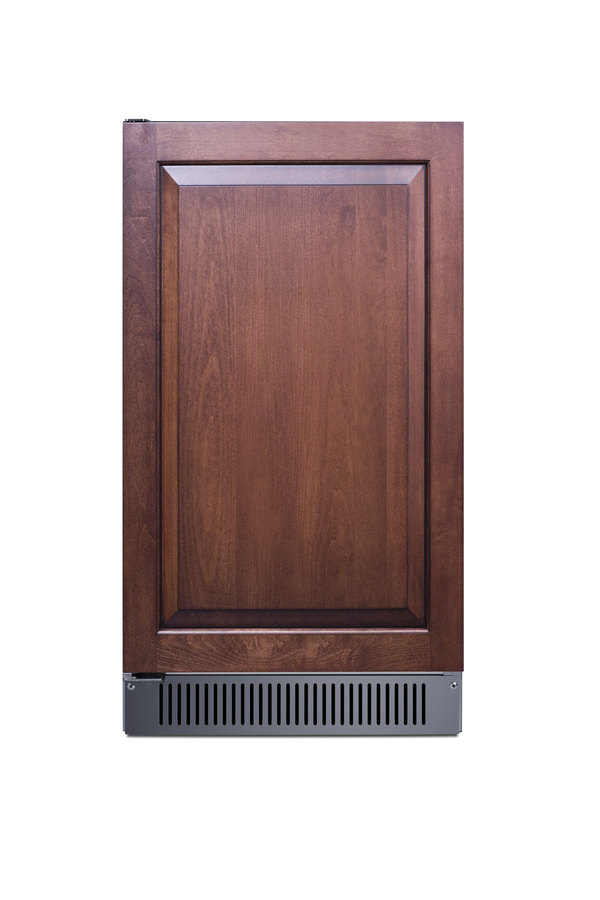

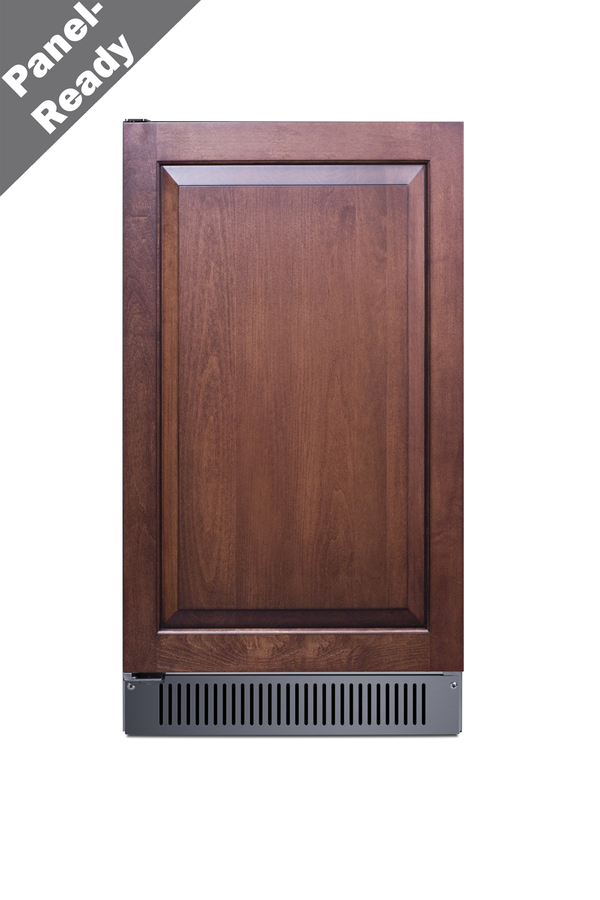

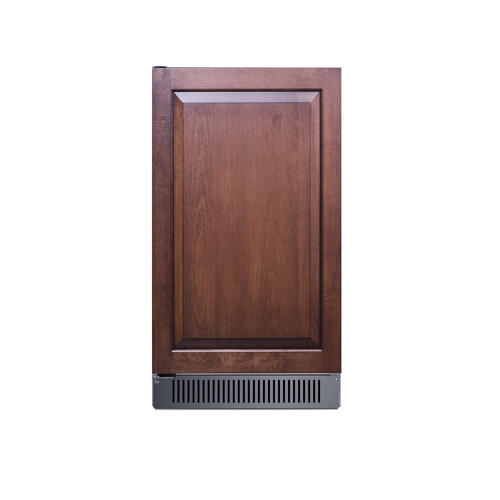

Panel-ready door

Integrated stainless steel door frame allows you to mount full overlay panels over the door to create a custom look that can blend into cabinetry with no exposed frame (panel size: (recommended panel dimensions: 28 1/16" H x 17 11/16" W at 3/4" thickness)

Built-in capable

Make the best use of space by installing your icemaker under the counter

60 lb. production capacity

Can make up to 60 lbs. of clear ice cubes in a day cycle and store up to 33 lbs. per day

Height adjustable

This unit can be raised to 34.75", with a taller kickplate included for a seamless aesthetic

Built-in pump

Internal pump affords more flexibility in placing the unit

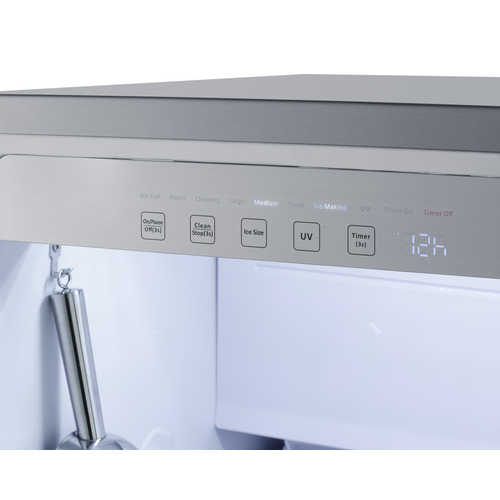

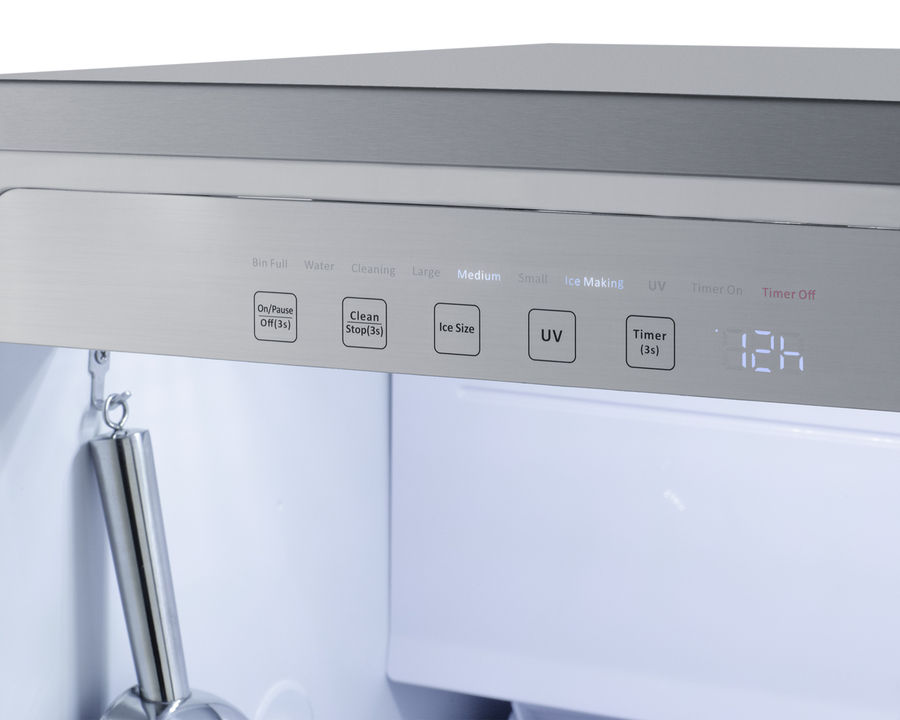

Touch control panel

Provides easy operation of the unit with indicator lights for each stage of the production process

Ice selection

Unit allows users to choose from small, medium, or large clear ice cubes

Automatic defrost

Reduced maintenance with auto defrost system

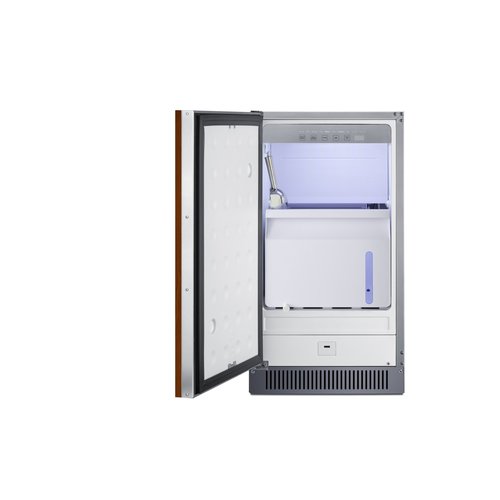

Interior light

LED lighting automatically illuminates when the door is opened

Interior UV light

Full illumination of the interior, with UV lighting to help kill germs and ensure safer, cleaner clear ice cubes

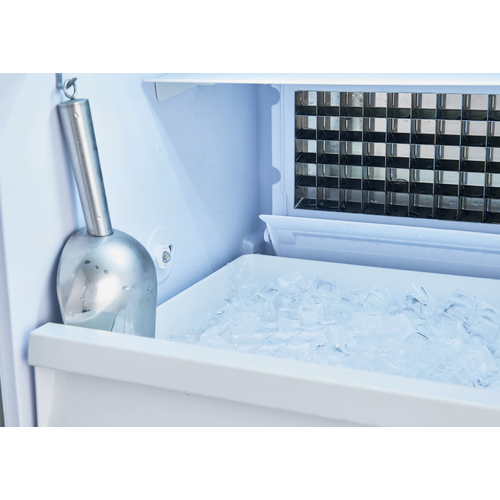

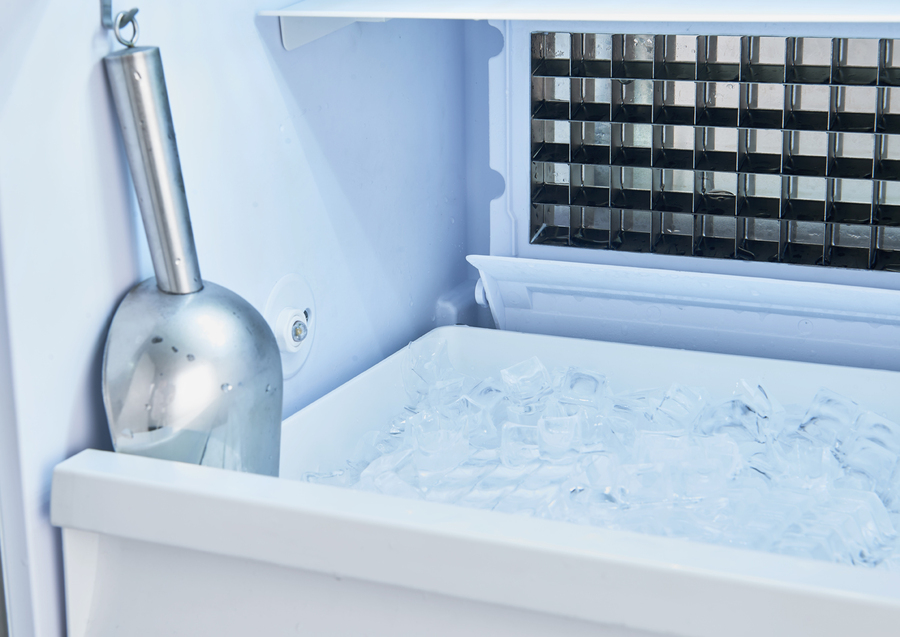

Ice scoop included

Interior wall includes brackets to hang for easy storage

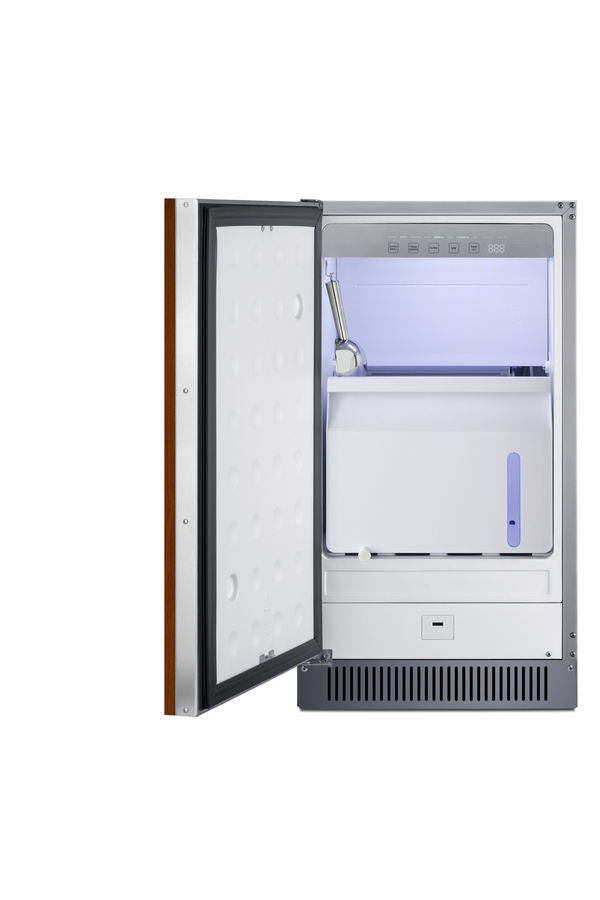

Removable bin

Users can remove the ice bucket for fast and easy cleaning

Insulated storage bin

Ice stays solid longer in this cold-protected bin

Fully finished stainless steel cabinet

Allows the unit to be used freestanding

Sealed back

Space-saving design with easier cleanability

Right angle plug

Flat design offers added space savings by requiring no extra depth to plug the unit in

CARB compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

Lead-free certified

Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard

Summit lets you transform your outdoor space into luxury kitchens with weatherproof appliances designed to maximize your entertaining., including uniquely sized 18 inch wide built-in clear icemakers.

Sized just under 18 inches wide and 32.5 inches high, model BIM182OSADAIFLHD features weatherproof construction for safe installation in outdoor kitchens. The front-breathing design allows for built-in installation underneath ADA-compliant counters. The height can also be raised up to 34.75 inches to accommodate more standard counters. We include a  stainless steel kickplate extender to fill the gap. The door includes an integrated stainless steel frame that allows it to accept overlay panels, creating a custom look to match or complement the rest of you cabinetry (recommended panel dimensions: 28 1/16" H x 17 11/16" W at 3/4" thickness). This unit features a sealed back for protection from the elements and right angle cord for added space savings.

Inside, the BIM182OSADAIFLHD can produce 60 lbs. of clear ice cubes ice daily. The intuitive control panel ensures ease of use. An indicator light alerts users to each step in the production process and when the bin is full. The interior features UV lighting for easy visibility and added protection against bacteria. The automatic defrost system minimizes user maintenance. This model has an internal pump and ships with the drain hose, water hose, a removable ice bucket, and ice scoop. The interior wall includes a hook to hang the scoop for added convenience.

With its unique size, user-friendly design, and large capacity, the BIM182OSADAIFLHD is a great way to complete any outdoor kitchen with style and convenience.

In addition to this icemaker, Summit manufactures drain-free choices, as well as traditional 15 inch wide icemakers and a full assortment of matching 18 inch wide refrigerators, beverage centers, and wine cellars. Browse the complete lineup to complete any residential or commercial undercounter space.

Download
BROCHURE w/ DRAWINGS
BIM182OSADAIFLHD.pdf
Download
TECHNICAL DRAWING (.dwg)
BIM182ADAIF.dwg
Download
ASSEMBLY DRAWING
BIM182ADAIF-Assembly.pdf

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
