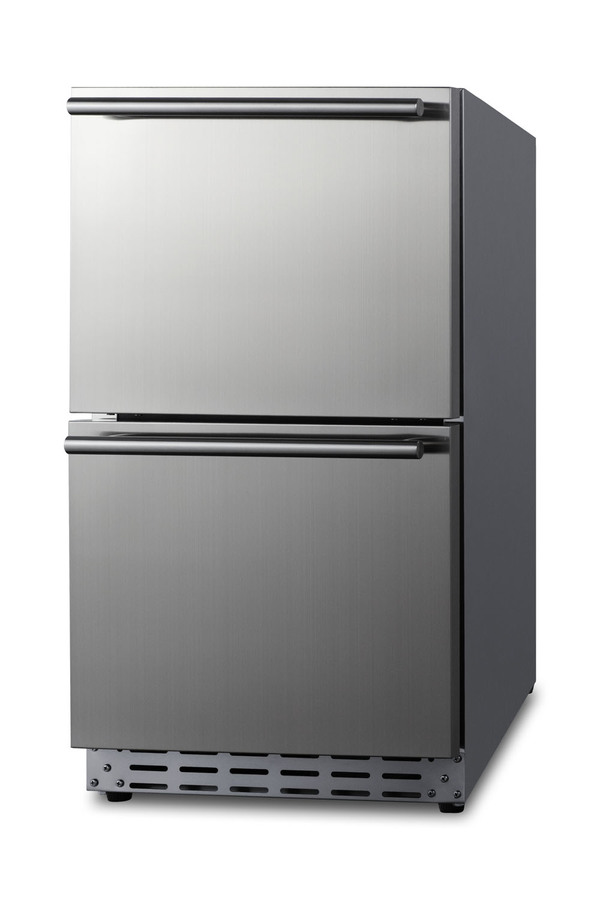

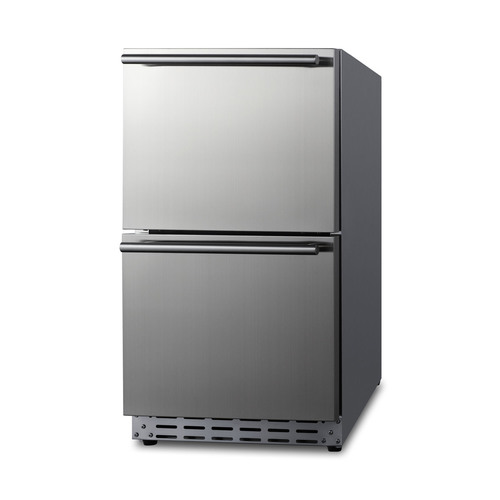

18" Wide 2-Drawer All-Refrigerator, ADA Compliant (Panels Not Included)

SKU: ADRD18PNR
Panel-ready drawers allow you to customize the front to achieve the perfect style for every indoor or outdoor kitchen space
Estimated Time to Ship:

Next day shipping

*Additional features may vary

This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.
This unit can be used for commercial or residential applications. It meets applicable U.S. Department of Energy (DOE) standards for both household and commercial energy usage. For information on its commercial sanitation listing, see Specifications.
31.5" H x 17.75" W x 23.25" D
(80cm H x 45cm W x 59cm D)

Overview
Height of Cabinet 31.5" (80 cm)
Width 17.75" (45 cm)
Depth 23.25" (59 cm)
Depth with Handle 25.0" (64 cm)
Depth with door at 90° 37.0" (94 cm)
Capacity 3.4 cu.ft. (96 L)
Defrost Type Frost-Free
Door Stainless Steel/Panel-Ready
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 259.0kWh/year
Amps 1.25
Voltage/Frequency 115 V AC/60 Hz
Weight 100.0 lbs. (45 kg)
Shipping Weight 117.5 lbs. (53 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101088709
Refrigerator Features
Sabbath Mode Yes
Door Swing Drawer
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.23oz.
High Side PSI 150.0
Low Side PSI 50.0
Level Legs Qty 4
Interior Light Yes
Interior Drawers Yes
Interior Drawers Qty 2
Temperature Range 34 to 65°F
Drawer Dimensions
Interior Height 1 8.75" (22 cm)
Interior Width 1 12.75" (32 cm)
Interior Depth 1 17.5" (44 cm)
Interior Height 2 10.5" (27 cm)
Interior Width 2 12.75" (32 cm)
Interior Depth 2 17.5" (44 cm)
Dimensions
Compressor Step Height 5.75" (15 cm)
Compressor Step Width 12.75" (32 cm)
Compressor Step Depth 4.75" (12 cm)

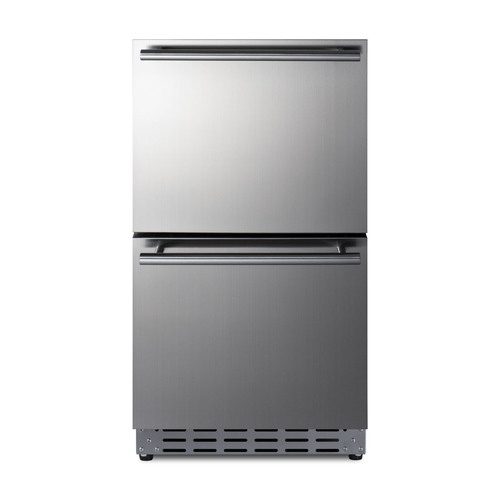

18" wide drawer refrigerator

Two-drawer design in a unique 18" width ideal for undercounter spaces

Commercially approved

ETL-S listed to NSF-7 standards for commercial use

ADA compliant

32” height allows for installation under lower ADA compliant counters

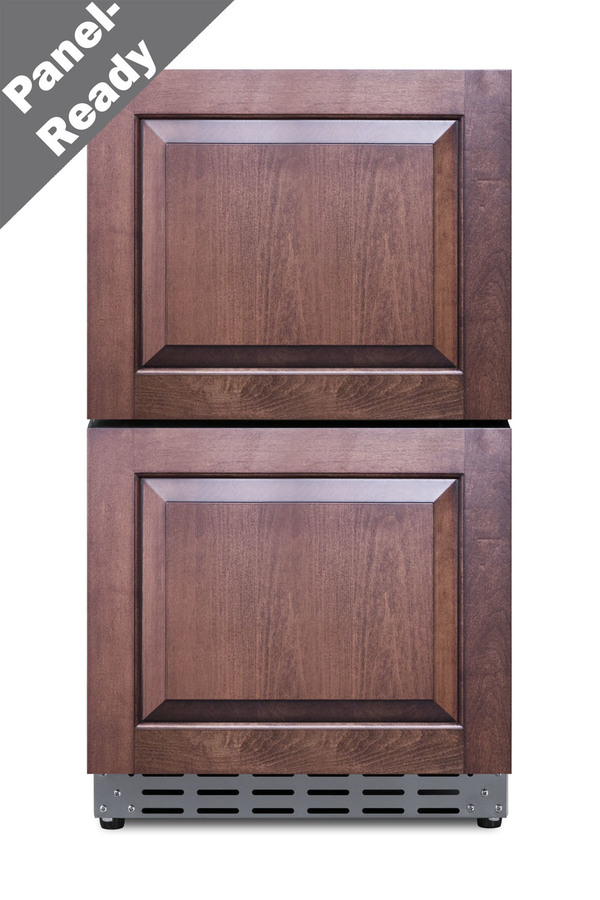

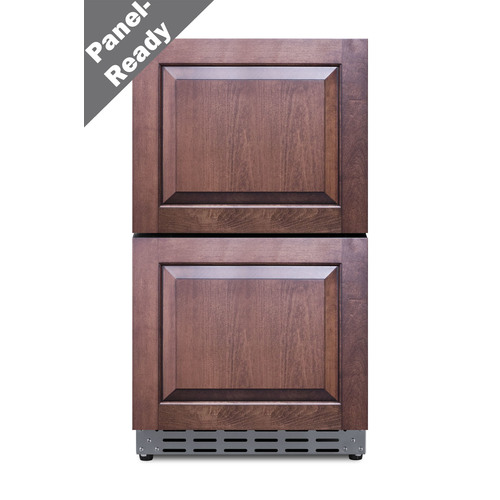

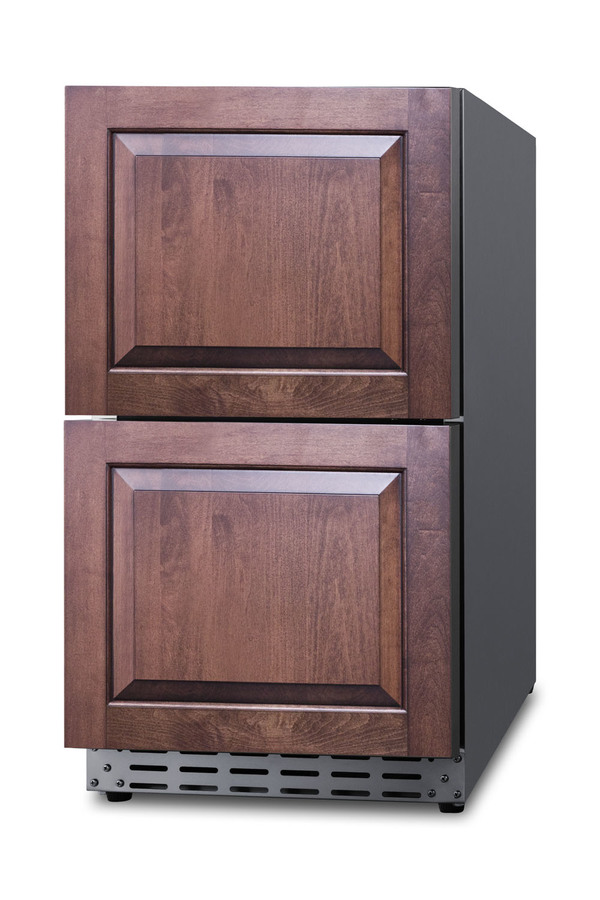

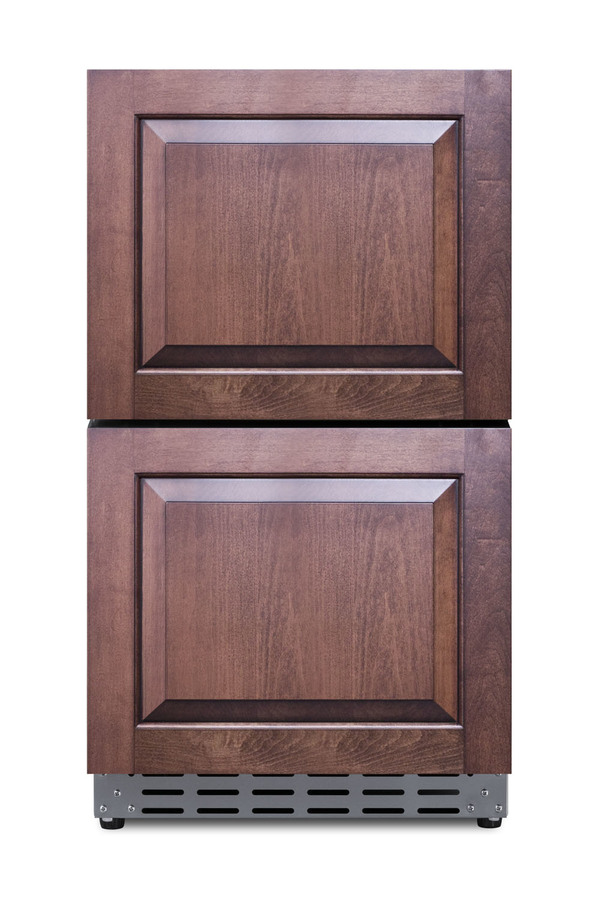

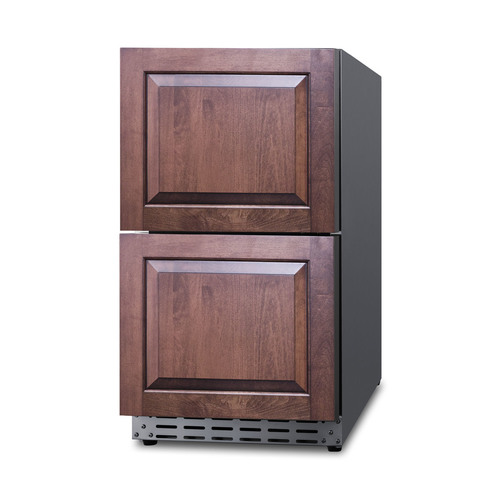

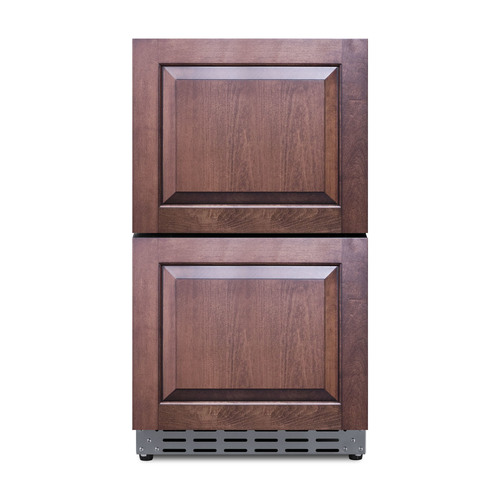

Panel-ready drawer fronts

Drawers can be customized with overlay panels sized (at 14" H x 17.7" W at 3/4" thick) to match or accent existing cabinetry

Built-in capable

Front-breathing design allows the unit to be built-in under counters

Stainless steel construction

Complete 304 grade stainless steel inside and out to ensure lasting durability with a luxurious look

Indoor/Outdoor compatible

Durable, weatherproof construction designed to hold up to the elements

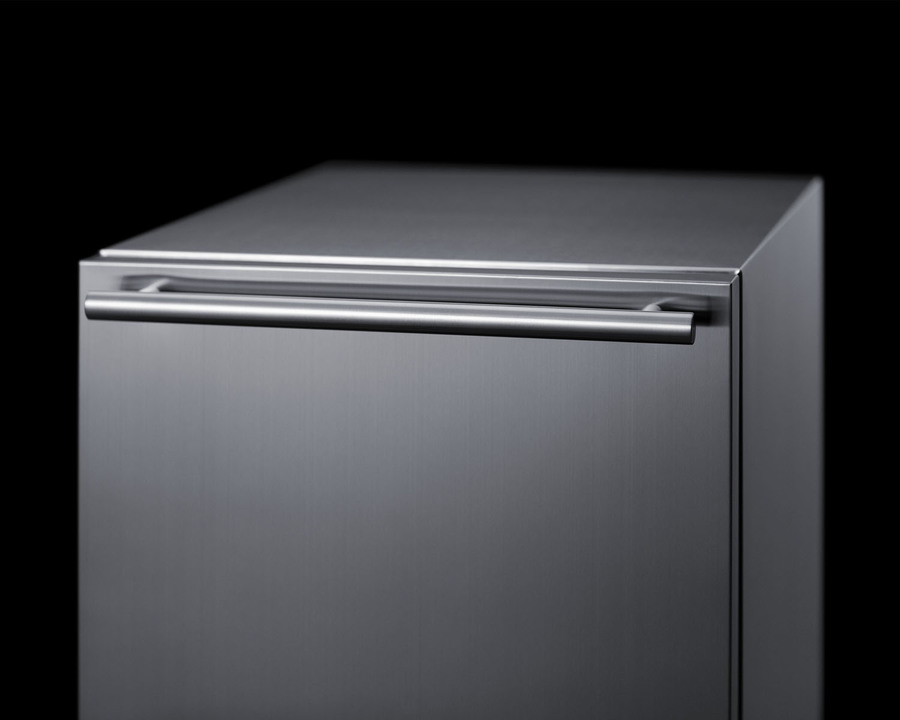

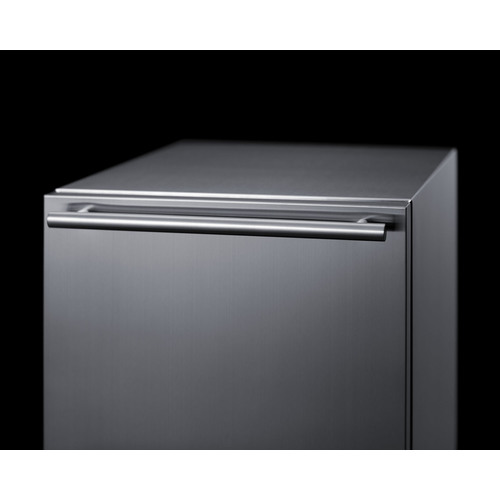

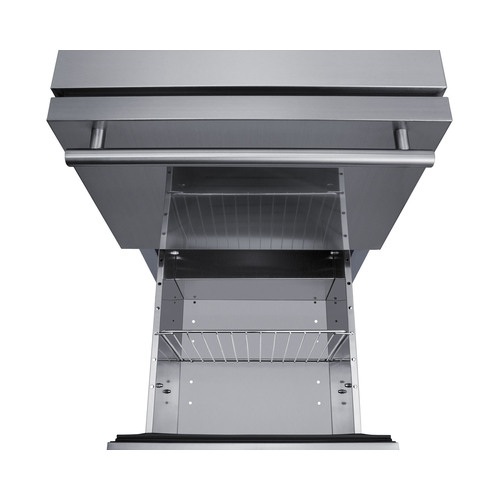

Professional handles

Stainless steel handles add style to any setting

Frost-free

No-frost operation for minimal user maintenance

Interior lighting

Soft LED lighting makes for easy viewing of each drawer’s contents

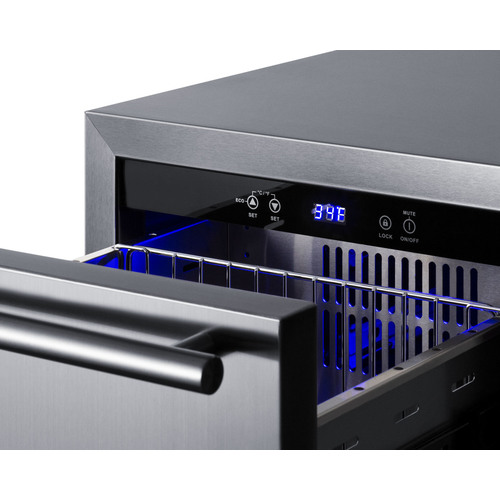

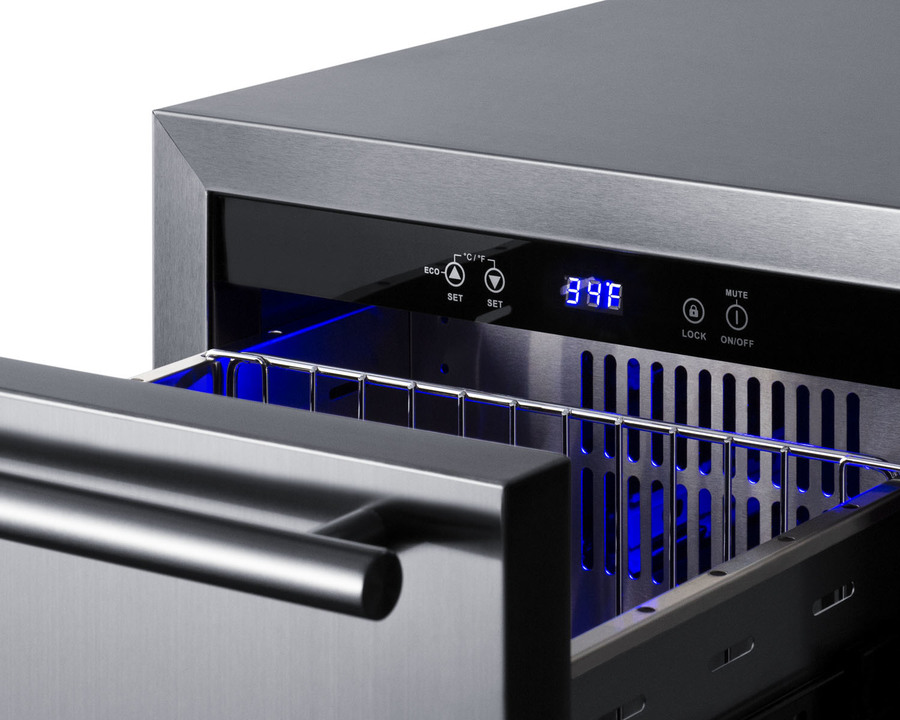

Digital thermostat

Electronic controls for seamless temperature management, with readout in either Celsius or Fahrenheit

Digital display

Large display allows for easy readability and unit control

Temperature alarm

Alarm alerts you if the unit’s temperature goes beyond recommended high and low temperature ranges

Open drawer alarm

Audible alarm sounds if the drawers are left open for more than five minutes

Sabbath mode

Optional feature disables alarms, interior light, and displays for up to 96 hours

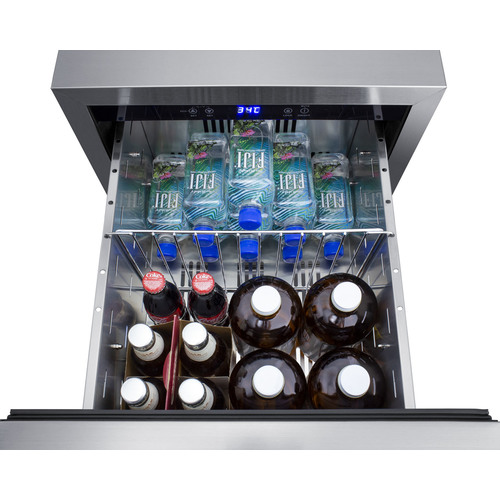

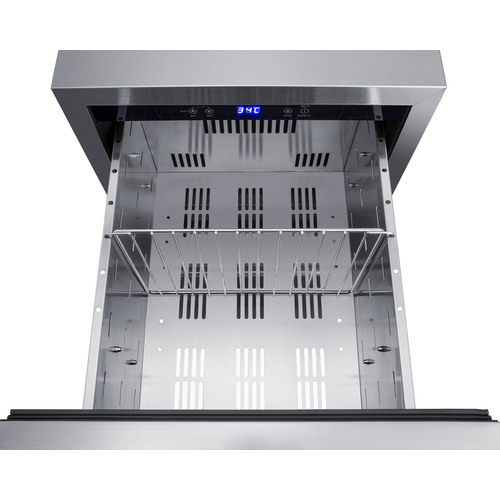

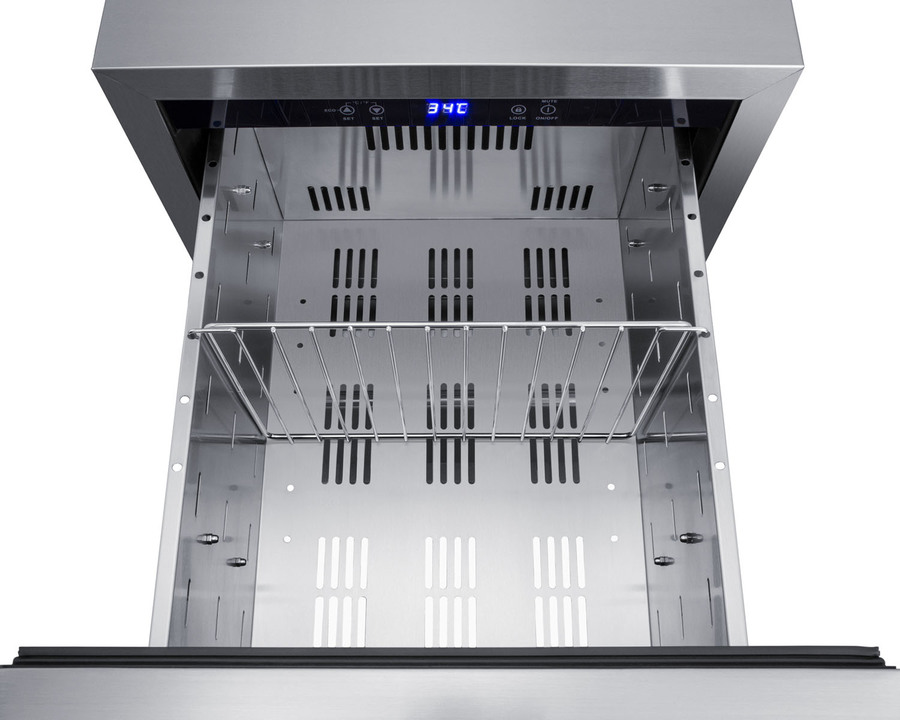

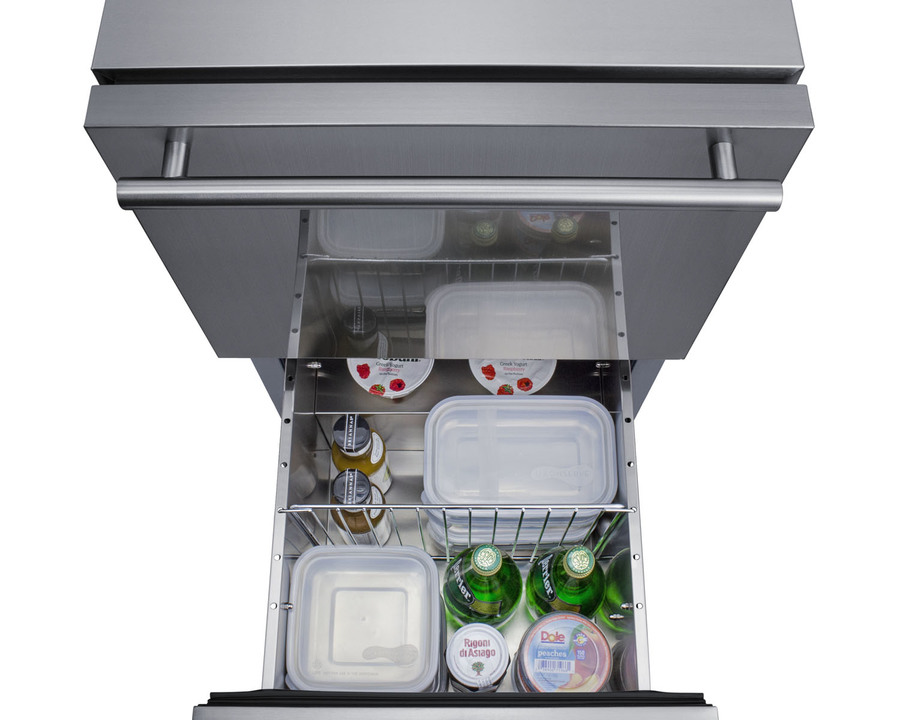

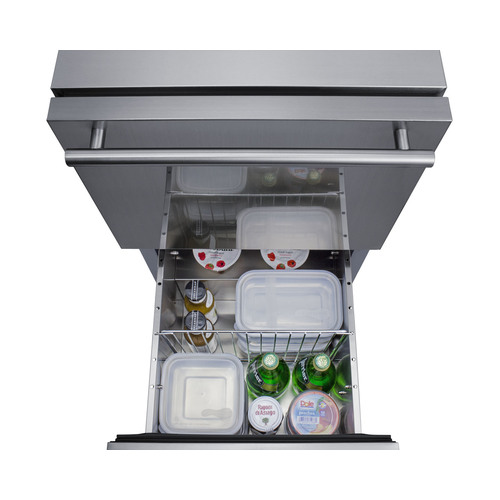

Drawer dividers

Each drawer includes an adjustable divider to allow easier organization of your storage

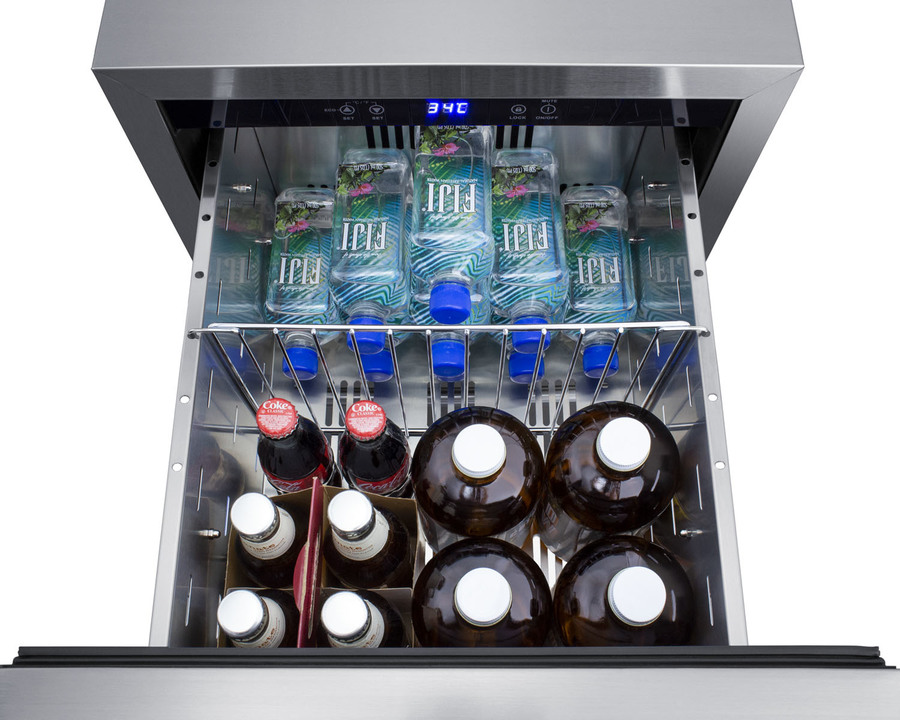

Holds tall bottles

Lower drawer has a 10.5" height to accommodate taller bottles as needed

Right-angle plug

Space-saving plug allows unit to sit flush against the wall

Sealed back

Ensures easier cleanup and a better fit with no exposed coils in the rear

Fan-forced cooling

Provides for efficient, even cooling of the entire unit

Soft-close drawers

Anti-slam drawers allow you to gently push to close

Anti-tip bracket

Included bracket recommended for installation to help prevent tipping for added safety

Fully finished cabinet

Allows the unit to be used freestanding

100% CFC free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit manufactures an extensive selection of drawer refrigeration for versatile installation indoor or outdoor kitchen spaces, with customizable designs that allow easy integration into any cabinet style.

The ADRD18PNR is a two-drawer all-refrigerator sized just under 32 inches high for installation under lower ADA compliant counters. The front-breathing design and finished 304 grade stainless steel cabinet allow for built-in or freestanding use. The drawer front are specially designed to accept user-provided overlay panels, allowing you to create a custom look that blends into existing cabinetry (panel dimensions: 17.7" W x 14" H  at 3/4" thick). The drawers are fully finished in stainless steel. We include two sleek handles for optional use. Soft close glides allow you to gently close each drawer with a light touch. The stainless steel kickplate and stylish handles complete the look. This unit features a right angle cord and sealed rear for added space spacings.

Frost-free operation ensures minimum user maintenance inside the 3.4 cu ft. interior. Each drawer includes a divider to make it easier to separate and organize your storage, with attractive and efficient LED lighting to illuminate the interior. Intuitive digital controls display a temperature readout switchable from Fahrenheit to Celsius to best suit your preference. High/low temperature alarms audibly warn if the interior goes out of the recommended range. Additional features include an open drawer alarm, child lock to secure the controls, sabbath mode for optional observance, and eco-mode for energy savings.

Model ADRD18PNR is ETL-S listed to NSF-7 commercial standards and also meets DOE guidelines for residential use. This unit is also approved for use in outdoor kitchens. Additional 18" wide options are available in front-opening styles as refrigerators, freezers, icemakers, beverage centers, and wine cellars. Browse the complete Summit lineup for more options.

Download
BROCHURE w/ DRAWINGS
ADRD18PNR.pdf
Download
TECHNICAL DRAWING (.dwg)
ADRD18.dwg
Download
ASSEMBLY DRAWING
ADRD18-ASSEMBLY.pdf
Download
3D DRAWING
ADRD18NoCord.obj
Download
3D DRAWING
ADRD18.dwg
Download
3D DRAWING
ADRD18.3ds
Energy Guide

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
