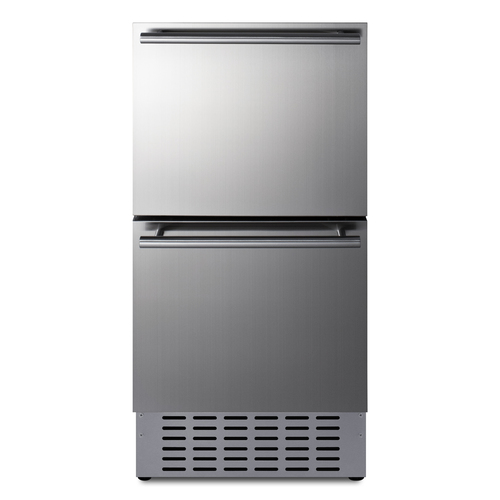

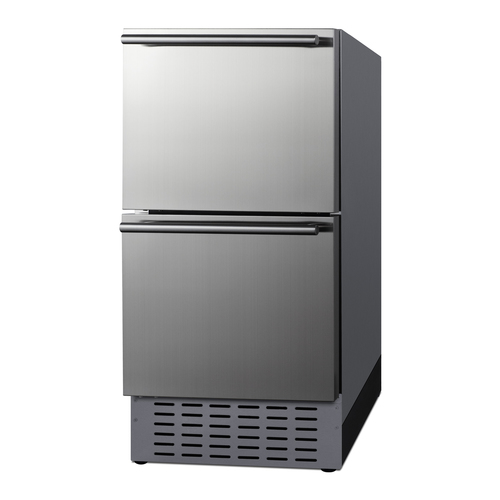

18" Wide 2-Drawer All-Refrigerator
2 to 4 days
(87cm H x 45cm W x 59cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 34.25" (87 cm) |
| Width | 17.75" (45 cm) |
| Depth | 23.25" (59 cm) |
| Depth with Handle | 25.0" (64 cm) |
| Depth with door at 90° | 37.0" (94 cm) |
| Capacity | 3.4 cu.ft. (96 L) |
| Defrost Type | Frost-Free |
| Door | Stainless Steel/Panel-Ready |
| Cabinet | Stainless Steel |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 259.0kWh/year |
| Amps | 1.25 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 100.0 lbs. (45 kg) |
| Shipping Weight | 117.5 lbs. (53 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101088914 |
|
Refrigerator Features
|
|
| Sabbath Mode | Yes |
| Door Swing | Drawer |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.23oz. |
| High Side PSI | 150.0 |
| Low Side PSI | 50.0 |
| Level Legs Qty | 4 |
| Interior Light | Yes |
| Interior Drawers | Yes |
| Interior Drawers Qty | 2 |
| Temperature Range | 34 to 65°F |
| Sound Level | 34.3 dB |
|
Drawer Dimensions
|
|
| Interior Height 1 | 8.75" (22 cm) |
| Interior Width 1 | 12.75" (32 cm) |
| Interior Depth 1 | 17.5" (44 cm) |
| Interior Height 2 | 10.5" (27 cm) |
| Interior Width 2 | 12.75" (32 cm) |
| Interior Depth 2 | 17.5" (44 cm) |
|
Dimensions
|
|
| Compressor Step Height | 5.75" (15 cm) |
| Compressor Step Width | 12.75" (32 cm) |
| Compressor Step Depth | 4.75" (12 cm) |
FEATURES
Two-drawer design in a unique 18" width ideal for undercounter spaces
ETL-S listed to NSF-7 standards for commercial use

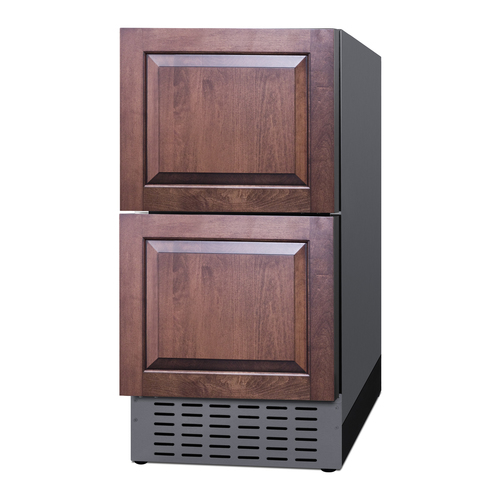

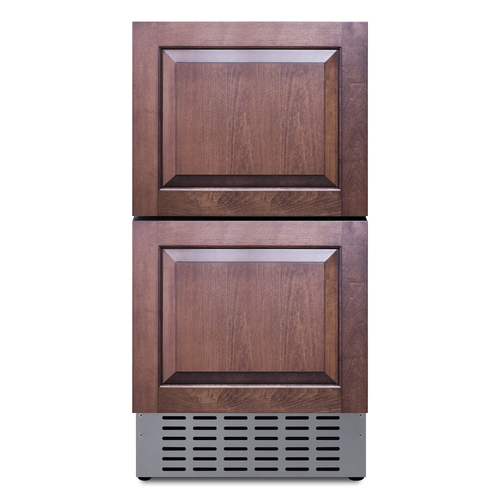

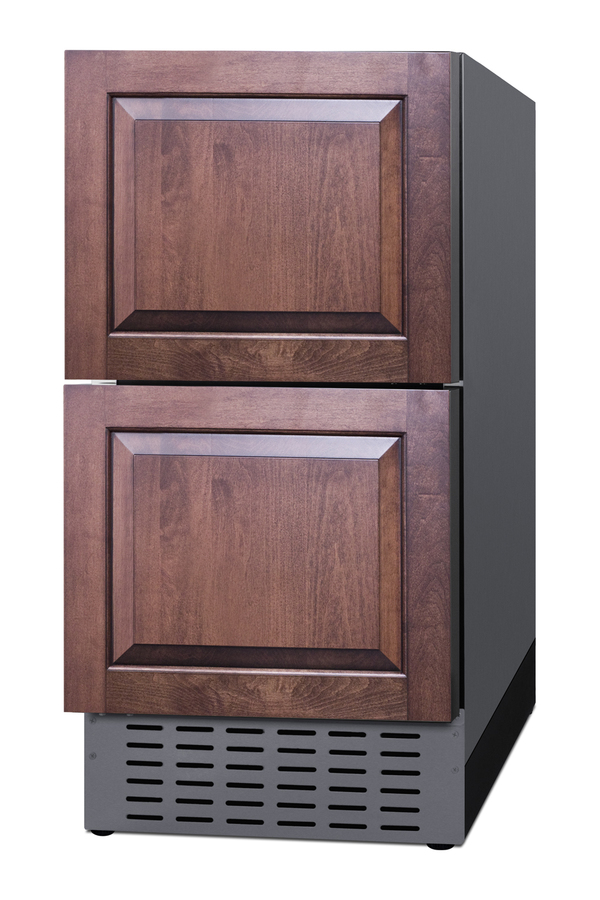

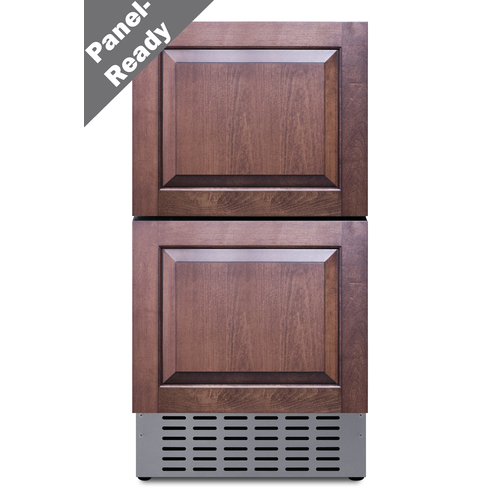

Drawers can be customized with overlay panels sized (at 14" H x 17.7" W at 3/4" thick) to match or accent existing cabinetry
Front-breathing design allows the unit to be built-in under counters
Complete 304 grade stainless steel inside and out to ensure lasting durability with a luxurious look
Durable, weatherproof construction designed to hold up to the elements

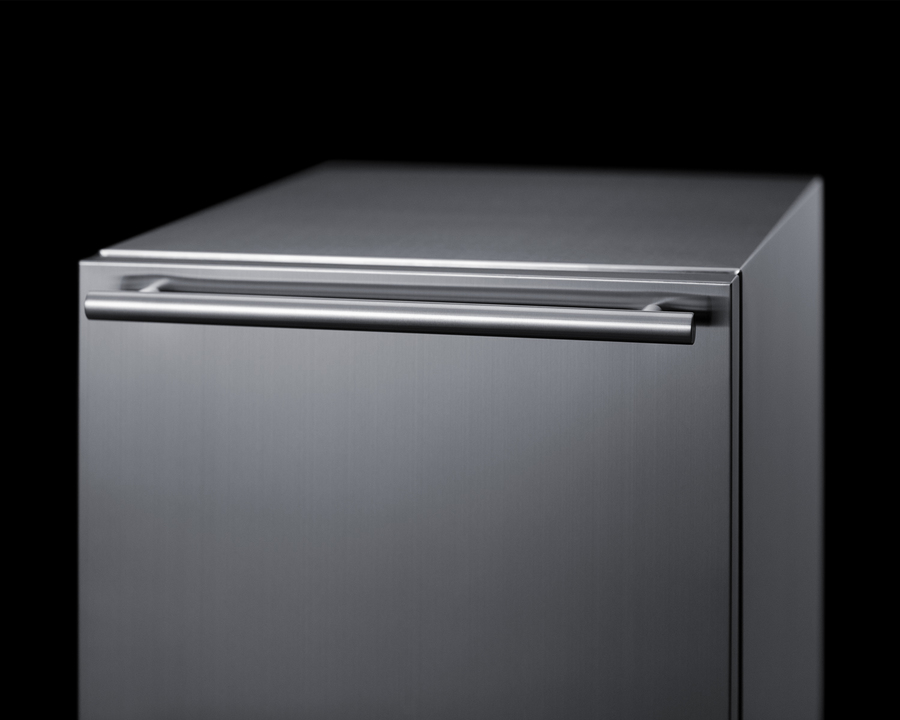

Stainless steel handles add style to any setting
No-frost operation for minimal user maintenance
Soft LED lighting makes for easy viewing of each drawer’s contents

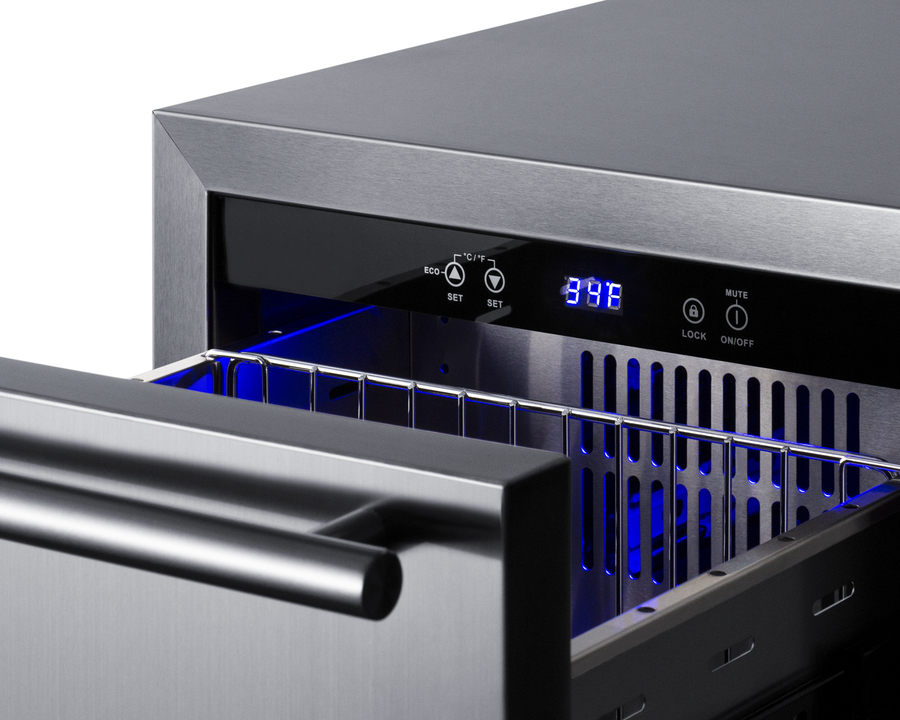

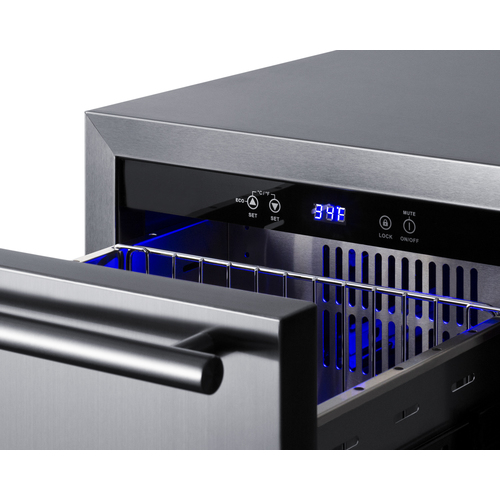

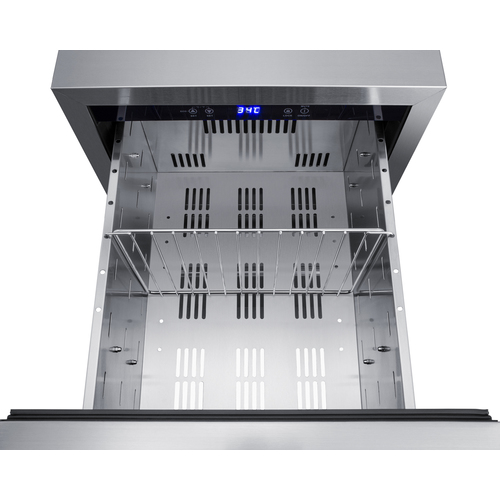

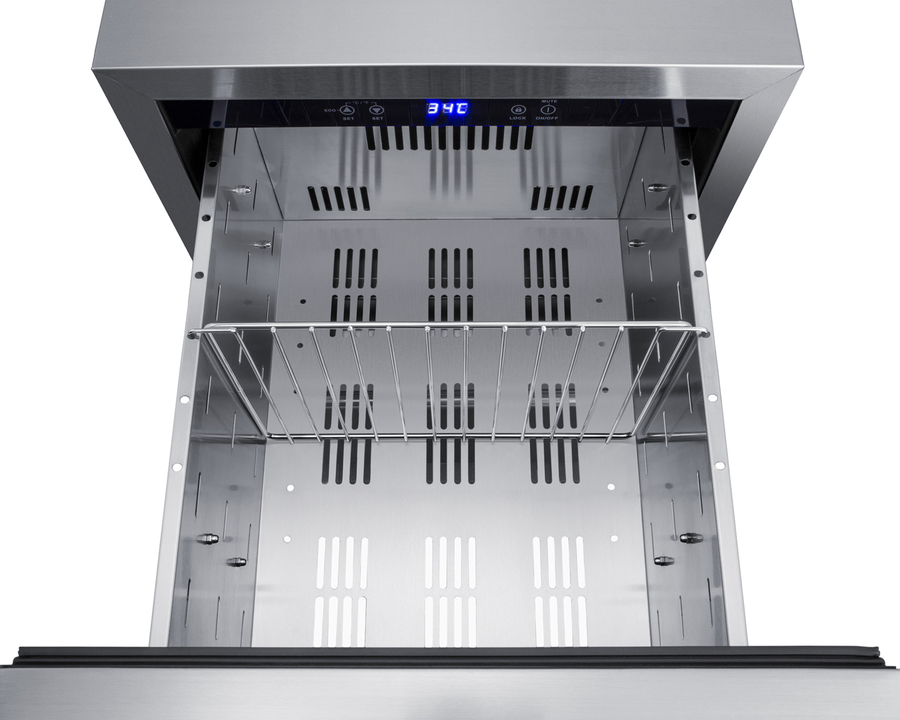

Electronic controls for seamless temperature management, with readout in either Celsius or Fahrenheit
Large display allows for easy readability and unit control
Alarm alerts you if the unit’s temperature goes beyond recommended high and low temperature ranges
Audible alarm sounds if the drawers are left open for more than five minutes
Optional feature disables alarms, interior light, and displays for up to 96 hours

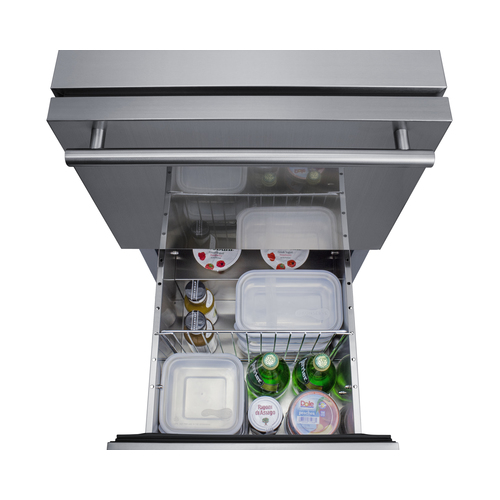

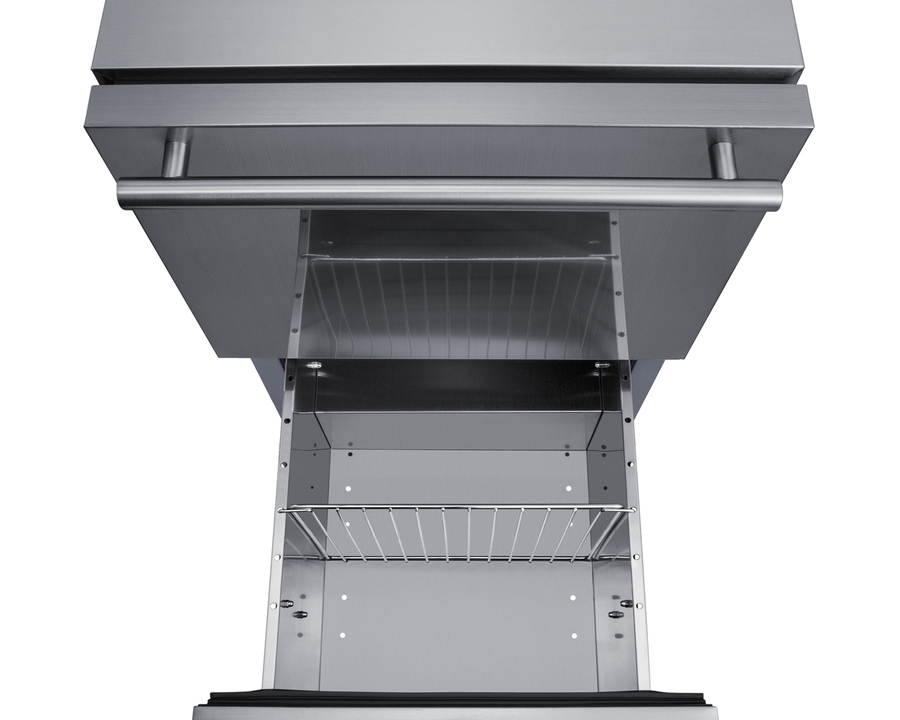

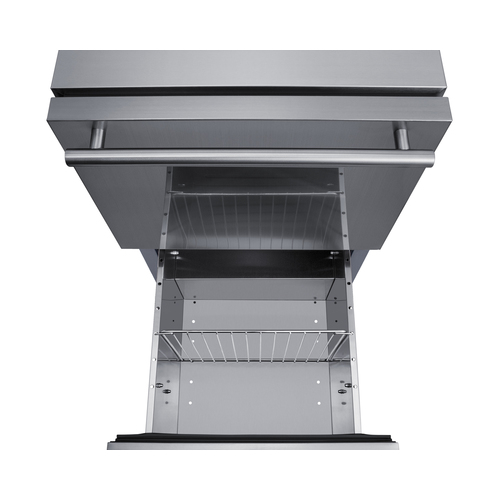

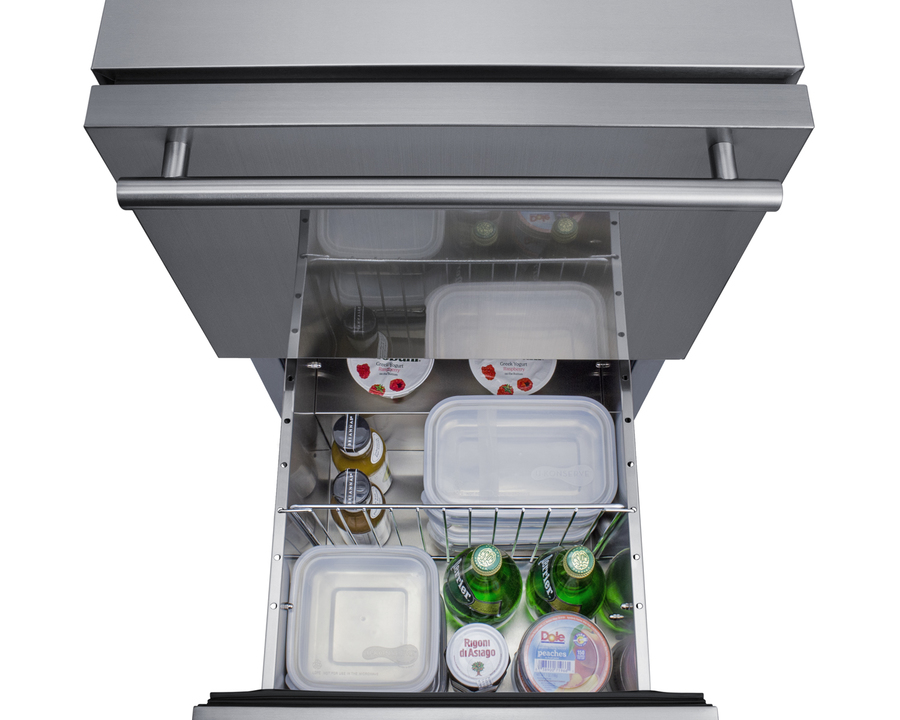

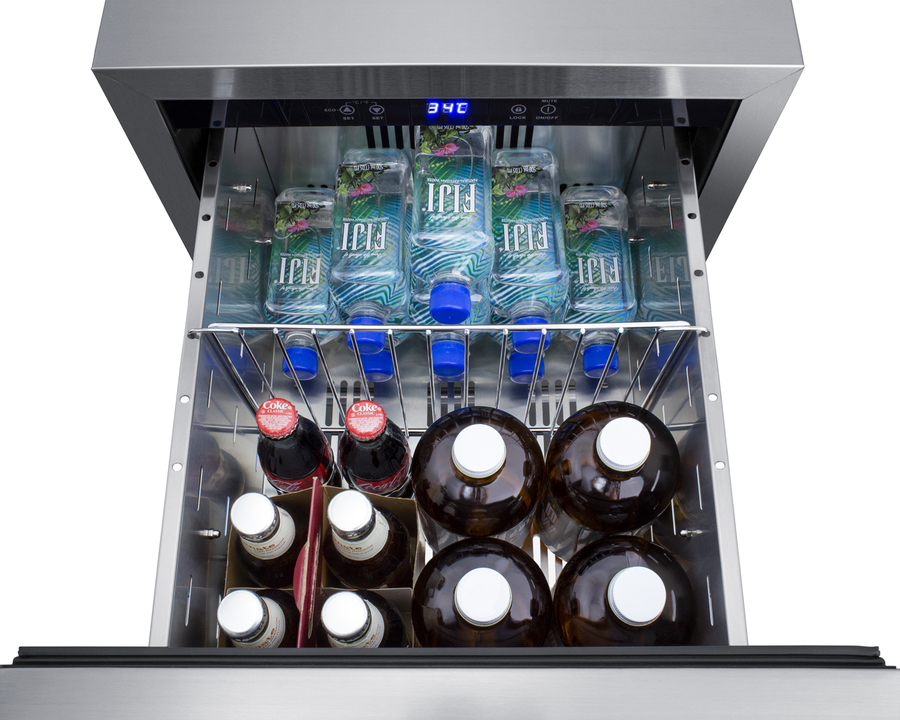

Each drawer includes an adjustable divider to allow easier organization of your storage

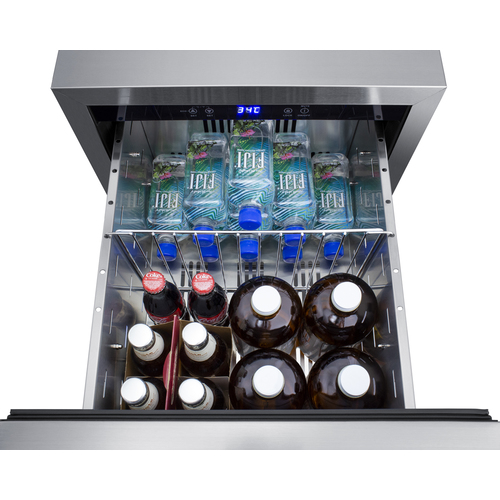

Lower drawer has a 10.5" height to accommodate taller bottles as needed
Space-saving plug allows unit to sit flush against the wall
Ensures easier cleanup and a better fit with no exposed coils in the rear
Provides for efficient, even cooling of the entire unit
Anti-slam drawers allow you to gently push to close
Included bracket recommended for installation to help prevent tipping for added safety
Allows the unit to be used freestanding
Environmentally friendly design with no ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DESCRIPTION
Summit manufactures the industry's largest selection of 18 inch wide refrigeration for under the counter, with a variety of versatile choices for indoor or outdoor kitchens. The ADRD18H34 is a two-drawer all-refrigerator sized just under 18 inches wide. The front-breathing design and finished 304 grade stainless steel cabinet allow for built-in or freestanding use. Complete stainless steel construction inside and out offers durability in a professional look. Soft close glides allow you to gently close each drawer with a light touch. The drawers can also be customized with overlay panels to match or accent existing cabinetry design. The stainless steel kickplate and stylish handles complete the look. This unit features a right angle cord and sealed rear for added space spacings. Frost-free operation ensures minimum user maintenance inside the 3.4 cu ft. interior. Each drawer includes a divider to make it easier to separate and organize your storage, with attractive and efficient LED lighting to illuminate the interior. Intuitive digital controls display a temperature readout switchable from Fahrenheit to Celsius to best suit your preference. High/low temperature alarms audibly warn if the interior goes out of the recommended range. Additional features include an open drawer alarm, child lock to secure the controls, sabbath mode for optional observance, and eco-mode for energy savings. Model ADRD18H34 is ETL-S listed to NSF-7 commercial standards and also meets DOE guidelines for residential use. For a 32" high ADA compliant version, see the ADRD18. This unit is also approved for use in outdoor kitchens. Additional 18" wide options are available in front-opening styles as refrigerators, freezers, icemakers, beverage centers, and wine cellars. Browse the complete Summit lineup for more options.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
