24" Wide Built-In All-Refrigerator, ADA Compliant

SKU: AL54CSS
Designed to fit under lower ADA compliant counters
Estimated Time to Ship:

3 to 5 days

Door Swing:
RHD LHD
Color: Stainless Steel

*Additional features may vary

This unit can be used for commercial or residential applications. It meets applicable U.S. Department of Energy (DOE) standards for both household and commercial energy usage. For information on its commercial sanitation listing, see Specifications.
Add a naturally antimicrobial copper handle for added protection against germs and bacteria.
This item can be ordered in one of our new vibrant door finishes: cobalt blue, lavender purple, emerald green, or saffron gold. Click the icon to explore our new palette!
32.0" H x 23.63" W x 22.63" D
(81cm H x 60cm W x 57cm D)

Overview
Height of Cabinet 32.0" (81 cm)
Width 23.63" (60 cm)
Depth 22.63" (57 cm)
Depth with Handle 24.63" (63 cm)
Depth with door at 90° 45.0" (114 cm)
Capacity 4.8 cu.ft. (136 L)
Defrost Type Frost-Free
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 270.0kWh/year
Amps 1.0
Voltage/Frequency 115 V AC/60 Hz
Weight 95.0 lbs. (43 kg)
Shipping Weight 133.0 lbs. (60 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101053929
Refrigerator Features
Sabbath Mode Yes
Door Swing RHD
Reversible Yes
Shelf Type Glass
Shelf Qty 3
Full Door Shelf Qty 2
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 0.99oz.
High Side PSI 270.0
Low Side PSI 105.0
Level Legs Qty 4
Interior Light Yes
Temperature Range 36 to 43ºF
Sound Level 33.3dB
Dimensions
Interior Height 25.0" (64 cm)
Interior Width 20.0" (51 cm)
Interior Depth 17.5" (44 cm)
Compressor Step Height 3.25" (8 cm)
Compressor Step Width 20.0" (51 cm)
Compressor Step Depth 5.25" (13 cm)

Exterior
Latch - Factory-installed door latch requires manual release to open unit
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD - Left hand door swing
Door reversal to left hand swing
SSK - Stainless steel kickplate
Stainless steel kickplate factory installed
Handle
TBC Copper Towel Bar Handle Upgrade
Change this handle to a 12" vertically mounted towel bar style handle made from pure copper for antimicrobial protection
Door
CDG-Emerald green door
Emerald green door wrap with horizontally mounted stainless steel handle and matching kickplate
CDY-Saffron gold door wrap
Saffron gold door wrap with horizontally mounted stainless steel handle and matching kickplate
CDB-Cobalt blue door wrap
Cobalt blue door wrap with horizontally mounted stainless steel handle and matching kickplate
CDP-Lavender purple door wrap
Lavender purple door wrap with horizontally mounted stainless steel handle and matching kickplate

ADA compliant design

32" height allows easy installation under lower ADA compliant counters

Built-in capable

Front-breathing design lets you make the best use of space by installing your appliance under the counter

Stainless steel exterior

Stainless steel door and wrapped stainless steel cabinet offer an attractive look with lasting durability

Factory installed lock

Keyed lock for a secure interior

Professional handle

Includes a full-length pro handle in chrome

Frost-free operation

No-frost operation for minimum user maintenance

Digital thermostat

Electronic controls located inside the unit for precise temperature management

Recessed LED light

Efficient and attractive presentation with LED lighting

Adjustable glass shelves

Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup

Door storage

Two door racks offer convenient storage for condiments and bottles

Bottle slots

Floor is specially slotted to store wine and other bottles safely in place

Internal fan

Fan-forced cooling ensures the unit is evenly cooled from top to bottom

Reversible door

User-reversible door swing for added flexibility

Open door alarm

Audible alarm will sound if the door is left open longer than one minute

High temperature alarm

High temperature alarm sounds if the unit's interior goes out of the recommended range

Sabbath mode setting

Optional setting lets you disable the lighting and alarm for up to 48 hours

Temperature Memory Function

Unit will retain its last settings when power is restored in the event of power loss

Sealed back

Space-saving design that offers easier cleanability

Right angle plug

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Commercially approved

ETL-S listed to NSF-7 Standards for use in commercial establishments

Fully finished cabinet

Allows the unit to be used freestanding

Matching freezer

Pair with the ALFZ53CSS frost-free freezer to create a complete refrigerator/freezer set under the counter

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

SUMMIT's AL54 series features built-in undercounter all-refrigerators designed for installation under lower ADA compliant counters, with advanced features for usesr convenience.

Sized with a convenient 24" footprint, the AL54CSS is just 32" high to fit under lower counters complying with ADA guidelines for accessibility. The stainless steel wrapped cabinet allows freestanding use, while the front-breathing system also allows this unit to be built-in with minimum clearance. The reversible stainless steel door includes a pro style handle and a factory installed lock for added safety. This unit has a flush back for easy cleaning and a right angle cord.

Inside, the AL54CSS utilizes frost-free operation with fan-forced cooling to ensure low maintenance and even temperature distribution. Recessed LED lighting offers an attractive yet efficient look. The digital thermostat makes it easy to manage the interior temperature. This unit includes adjustable glass shelves for flexible, spill-proof storage and two large door racks ideal for keeping condiments in easy reach. The floor is specially slotted to hold bottles in place. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance.

The AL54CSS refrigerator is ETL-S listed to NSF-7 commercial standards but can also be used in the home. With its deluxe style and user-friendly features, this unit is the perfect choice for home or commercial kitchens and can be paired with the matching ALFZ53CSS for a complete undercounter set. Additional styles are available.

Download
BROCHURE w/ DRAWINGS
AL54CSS.pdf
Download
TECHNICAL DRAWING (.dwg)
AL54_REFRIGERATOR__A-C2000_.dwg
Download
MSDS INFORMATION
R600a_K.pdf
Energy Guide

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

YOU MIGHT NEED

TD24SD Accessory Front

TD24

2.0" H x 23.25" W x 21.88" D
24" wide slide-out drawer kit sized for easy installation on refrigerators that have a gap between the counter and ap...
CWC5ADA Accessory Front

CWC5ADA

34.0" H x 21.5" W x 24.0" D
Fully assembled casework trash cabinet in ADA compliant height and black finish with garbage and recycling bins included
CWR4ADA Accessory Front

CWR4ADA

34.0" H x 26.0" W x 24.0" D
Fully assembled casework cabinet in ADA compliant height and black finish designed to accept an appliance sized under...
PF1Kit Accessory

PF1Kit

Power failure alarm designed to be used on virtually any 115/120V appliance
Key Accessory

Key

Extra key for selected models

SIMILAR PRODUCTS

AL55CSS Refrigerator Front
FOR COMMERCIAL OR HOME USE

AL55CSS

31.63" H x 23.5" W x 23.38" D
Built-in undercounter ADA compliant all-refrigerator with stainless steel door and cabinet, door storage, lock, and d...
AL54B Refrigerator Front

AL54B

32.0" H x 23.63" W x 22.63" D
24 in. wide built-in undercounter ADA compliant all-refrigerator with cobalt blue door, stainless steel handle and ki...
AR5BS Refrigerator Front

AR5BS

32.25" H x 23.63" W x 23.0" D
24 inch wide ADA compliant built-in undercounter all-refrigerator for residential use, auto defrost with stainless st...
AR5BIF Refrigerator Front

AR5BIF

32.25" H x 23.63" W x 23.0" D
24 inch wide ADA compliant built-in undercounter all-refrigerator for residential use, auto defrost with panel-ready ...

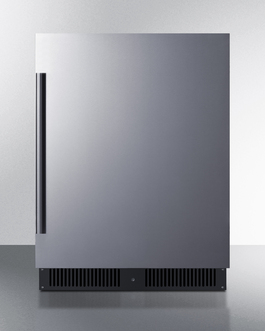

ALFZ53CSS Freezer Front
