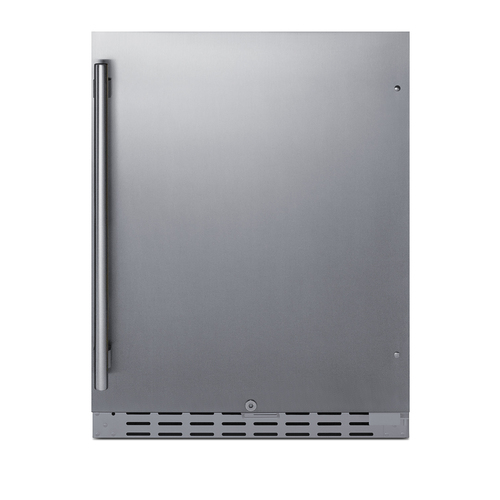

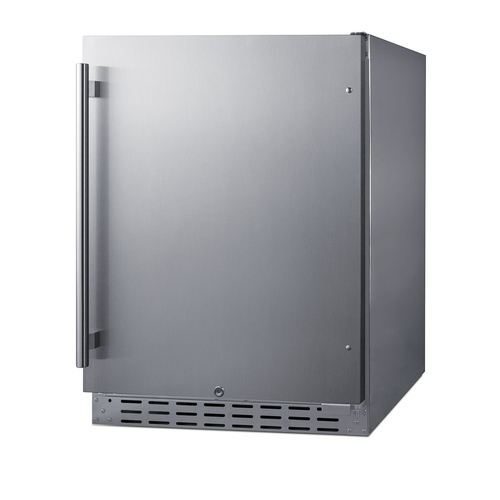

24" Wide Built-In All-Refrigerator, ADA Compliant

SKU: AL55CSS

Commercial home
This unit can be used for commercial or residential applications. It meets applicable U.S. Department of Energy (DOE) standards for both household and commercial energy usage. For information on its commercial sanitation listing, see Specifications.
Copper handle
Add a naturally antimicrobial copper handle for added protection against germs and bacteria.

ADA compliant all-refrigerator in an elegant design

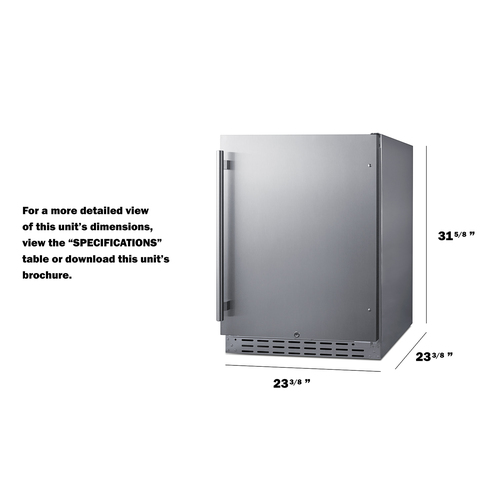

31.63" H x 23.5" W x 23.38" D

(80cm H x 60cm W x 59cm D)

OVERVIEW

  • 32" height fits under lower ADA compliant counters
  • Flexible design allows built-in or freestanding use in 24" wide spaces
  • Stainless steel exterior offers an elegant look
  • White interior makes cleaning and viewing interior easy
  • Dimmable LED lighting for easy viewing of unit interior
  • Factory installed lock provides unit security
  • Easy temperature management with a digital thermostat
  • Commercially listed to NSF-7 standards

SPECIFICATIONS

Overview
Height of Cabinet 31.63" (80 cm)
Width 23.5" (60 cm)
Depth 23.38" (59 cm)
Depth with Handle 25.38" (64 cm)
Depth with door at 90° 45.0" (114 cm)
Capacity 4.2 cu.ft. (119 L)
Defrost Type Automatic
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 250.0kWh/year
Amps 1.0
Voltage/Frequency 115 V AC/60 Hz
Weight 115.0 lbs. (52 kg)
Shipping Weight 128.0 lbs. (58 kg)
Estimated Time to Ship 1 to 2 days
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator Features
Sabbath Mode Yes
Door Swing RHD
Reversible Yes
Shelf Type Glass
Shelf Qty 3
Full Door Shelf Qty 2
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.23oz.
High Side PSI 150.0
Low Side PSI 50.0
Level Legs Qty 4
Interior Light Yes
Temperature Range 36 to 46ºF
Dimensions
Interior Height 23.5" (60 cm)
Interior Width 19.0" (48 cm)
Interior Depth 17.25" (44 cm)
Compressor Step Height 5.5" (14 cm)
Compressor Step Width 19.0" (48 cm)
Compressor Step Depth 5.0" (13 cm)

AVAILABLE UPGRADES

Exterior
Extra key
Extra keys available for purchase
LHD - Left hand door swing
Door reversal to left hand swing
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
Handle
CP Full-Length Copper Pipe Handle
Factory-installed full-length handle made from pure copper for antimicrobial protection
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

WHERE TO BUY

Invalid Format

DESCRIPTION

SUMMIT features built-in undercounter all-refrigerators designed for installation under lower ADA compliant counters, with advanced features for user convenience.

The AL55CSS refrigerator is ETL-S listed to NSF-7 commercial standards and also meets residential standards. The front-breathing design allows built-in installation, while the stainless steel wrapped cabinet also enables freestanding use. Sized just under 32 inches high and 24 inches wide, this unit makes an ideal fit under lower ADA compliant counters. The user-reversible door comes in a stainless steel finish with warm undertones and vertical grain, and a pro style handle provides a professional, elegant look for any setting. A temperature alarm offers added security should the temperature go beyond the setpoint, and the optional Sabbath Mode can be used to disable certain electrical features during periods of religious observance. The automatic defrost system keeps the unit running efficiently with little user maintenance, and the internal fan ensures the unit is evenly cooled.

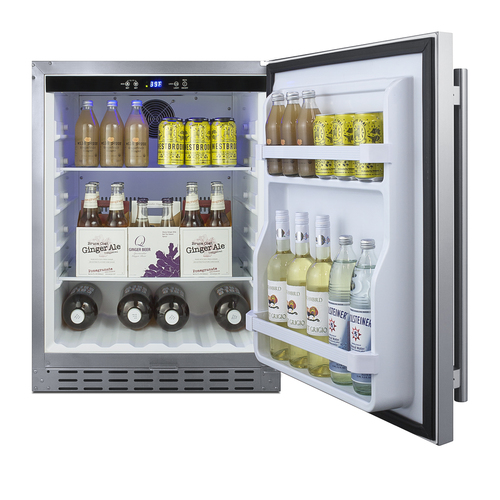

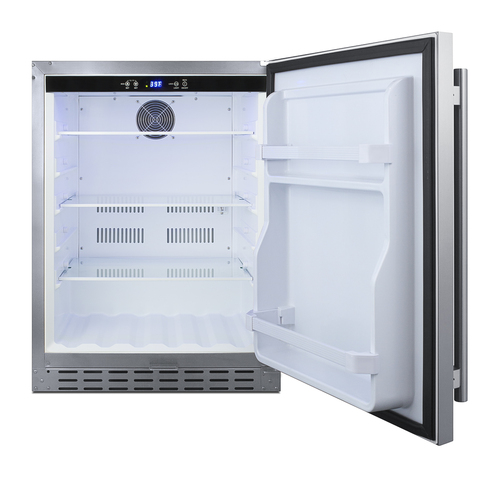

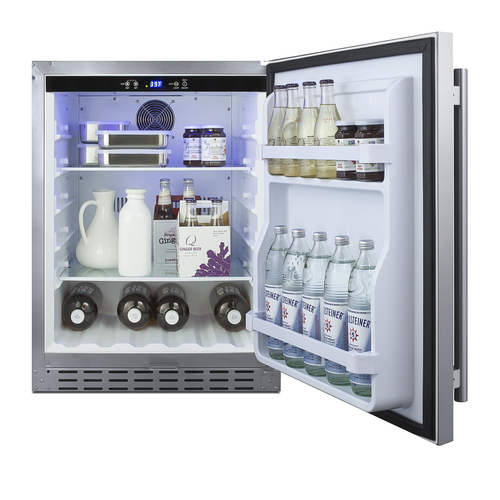

Inside, the AL55CSS has a digital control panel which allows you to manage the unit’s temperature with ease. An adjustable temperature range between 36 and 46ºF ensures contents are kept cold. Three easy-glide glass shelves that extend 50% provide flexible storage, and the shelving brake system keeps unit contents safe when loading and unloading. Two door racks are ideal for keeping condiments within easy reach, while the slotted floor ensures easy storage of bottles. The dimmable soft LED lighting in a gentle blue hue with three brightness settings offers an attractive and efficient presentation inside the white interior.

With its advanced user features and versatile design, the AL55CSS is an excellent addition to any ADA compliant setting looking for a refrigerator with a modern, elegant look.

FEATURES

ADA compliant
32” height allows for installation within ADA-compliant spaces
Commercially approved
ETL-S listed to NSF-7 commercial standards
Built-in capable
Front-breathing design allows the unit to be built-in under counters

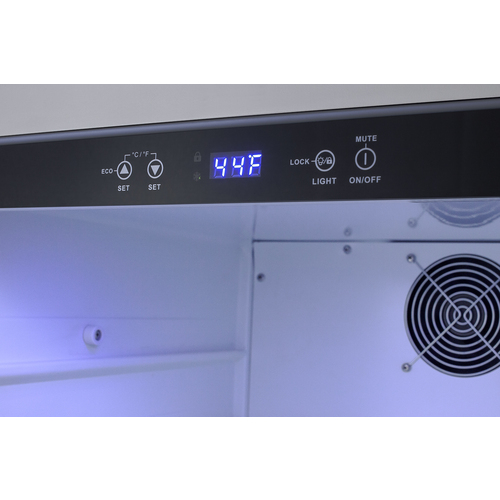

Digital control panel
Makes for easy temperature reading/management with electronic controls inside
Factory installed lock
Keyed lock for secure interior, with two keys included
Stainless steel exterior
Cabinet and door feature stainless steel construction for a luxurious look built to last
White interior
Classic interior allows for easy cleaning and viewing of products
Adjustable shelving

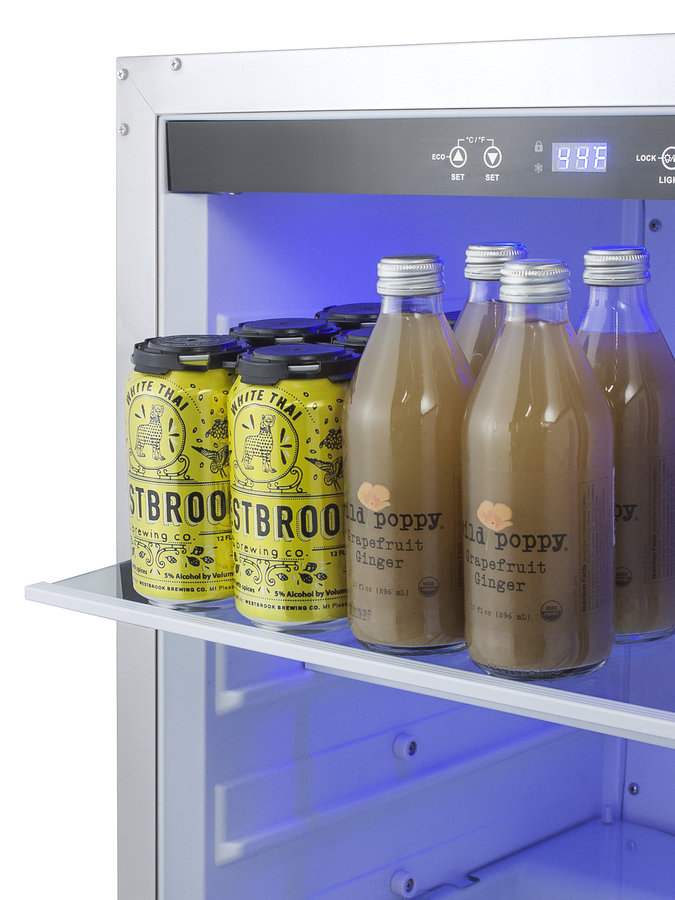

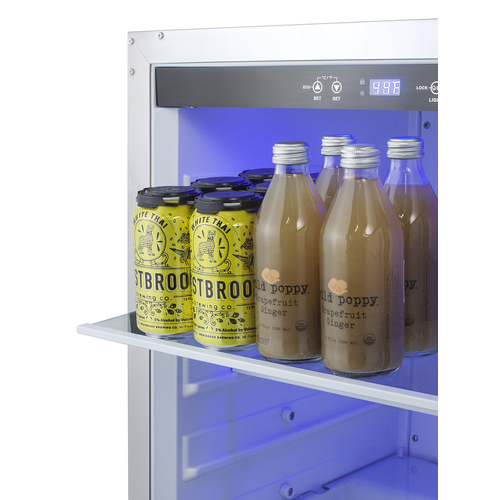

Three easy-glide shelves that extend 50% give space and flexibility when organizing the interior’s contents
Brake shelving system
Provides added safety when loading and unloading the unit's 3 shelves
Slotted floor
Allows for easy storage of bottles
Automatic defrost
Reduced maintenance with auto defrost system
Internal fan
Fan-forced cooling ensures the unit is evenly cooled from top to bottom
Interior lighting
Dimmable LED lighting (with 3 brightness settings) in a blue hue allows for easy viewing of contents while maintaining an elegant feel

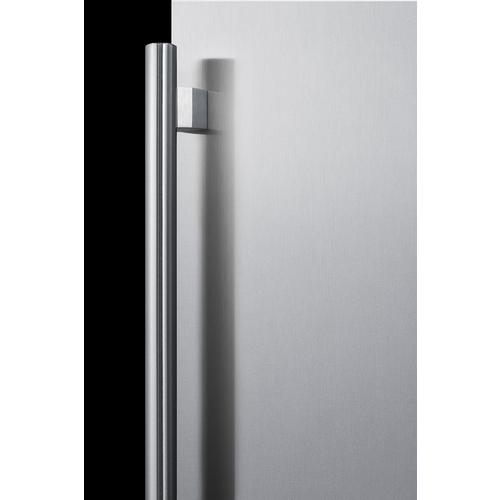

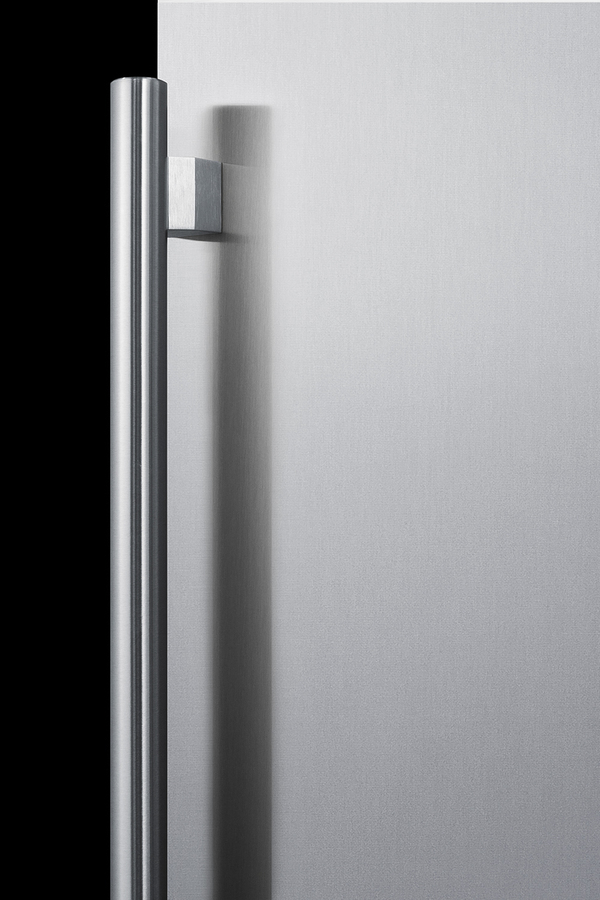

Professional handle
Stainless steel handle adds style to any setting
Temperature alarm
Alarm sounds if temperature goes out of recommended range after 2 hours
Sabbath mode
Optional feature disables alarms, interior light, and displays for up to 96 hours
Reversible door
User-reversible door swing makes it easy to best accommodate your setting
Integrated hinge
Flat stainless steel hinge ensures no added height is needed when installing under a counter
Fully finished cabinet
Allows unit to be used freestanding
100% CFC free
Environmentally friendly design with no ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet 31.63" (80 cm)
Width 23.5" (60 cm)
Depth 23.38" (59 cm)
Depth with Handle 25.38" (64 cm)
Depth with door at 90° 45.0" (114 cm)
Capacity 4.2 cu.ft. (119 L)
Defrost Type Automatic
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 250.0kWh/year
Amps 1.0
Voltage/Frequency 115 V AC/60 Hz
Weight 115.0 lbs. (52 kg)
Shipping Weight 128.0 lbs. (58 kg)
Estimated Time to Ship 1 to 2 days
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator Features
Sabbath Mode Yes
Door Swing RHD
Reversible Yes
Shelf Type Glass
Shelf Qty 3
Full Door Shelf Qty 2
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.23oz.
High Side PSI 150.0
Low Side PSI 50.0
Level Legs Qty 4
Interior Light Yes
Temperature Range 36 to 46ºF
Dimensions
Interior Height 23.5" (60 cm)
Interior Width 19.0" (48 cm)
Interior Depth 17.25" (44 cm)
Compressor Step Height 5.5" (14 cm)
Compressor Step Width 19.0" (48 cm)
Compressor Step Depth 5.0" (13 cm)

AVAILABLE UPGRADES

Exterior
Extra key
Extra keys available for purchase
LHD - Left hand door swing
Door reversal to left hand swing
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
Handle
CP Full-Length Copper Pipe Handle
Factory-installed full-length handle made from pure copper for antimicrobial protection

DOWNLOADS

Download
BROCHURE w/ DRAWINGS
AL55CSS.pdf
Download
TECHNICAL DRAWING (.dwg)
AL55_REFRIGERATOR__A-C-2018_.dwg
Download
MSDS INFORMATION
R600a_K.pdf
Energy Guide
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
