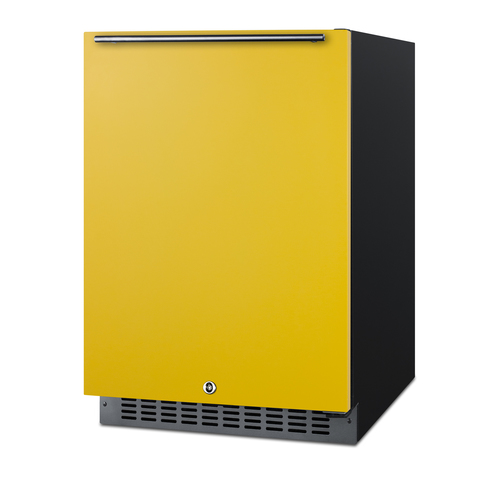

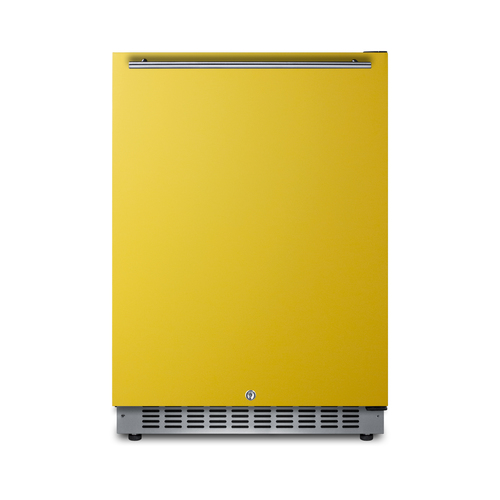

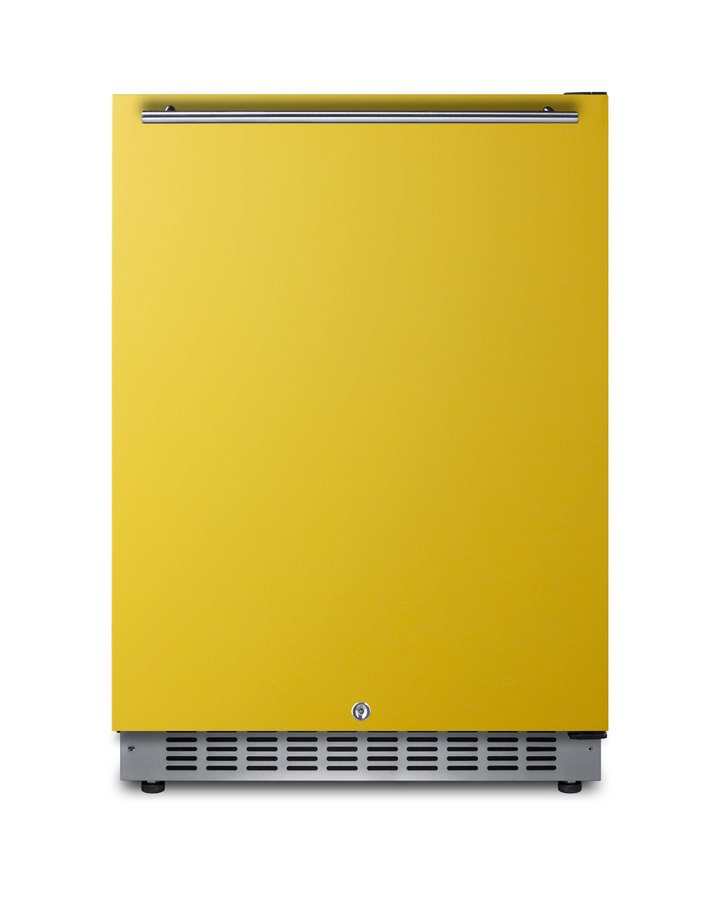

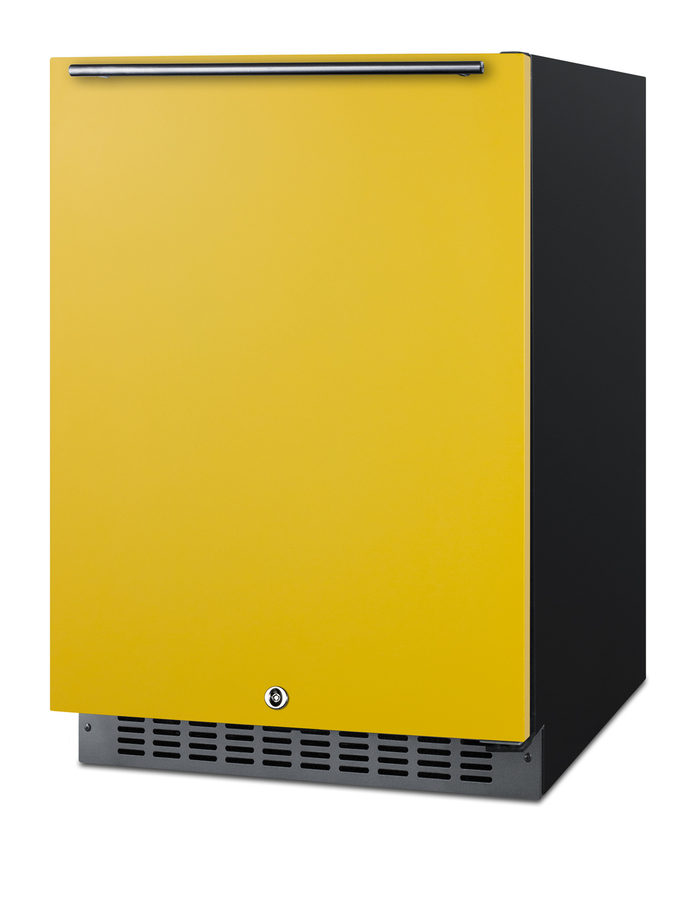

24" Wide Built-In All-Refrigerator, ADA Compliant

SKU: AL54Y
Saffron gold finish adds a bright touch to the kitchen
Estimated Time to Ship:

3 to 5 days

Door Swing:
RHD LHD
Color: Yellow

*Additional features may vary

32.0" H x 23.63" W x 22.63" D
(81cm H x 60cm W x 57cm D)

Overview
Height of Cabinet 32.0" (81 cm)
Width 23.63" (60 cm)
Depth 22.63" (57 cm)
Depth with Handle 24.13" (61 cm)
Depth with door at 90° 45.0" (114 cm)
Capacity 4.8 cu.ft. (136 L)
Defrost Type Frost-Free
Door Yellow
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Energy Usage/Year 270.0kWh/year
Amps 1.0
Voltage/Frequency 115 V AC/60 Hz
Weight 110.0 lbs. (50 kg)
Shipping Weight 122.0 lbs. (55 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101087603
Refrigerator Features
Sabbath Mode Yes
Door Swing RHD
Reversible Yes
Shelf Type Glass
Shelf Qty 3
Full Door Shelf Qty 2
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 0.99oz.
High Side PSI 270.0
Low Side PSI 105.0
Level Legs Qty 4
Interior Light Yes
Temperature Range 36 to 43ºF
Sound Level 33.3 dB
Dimensions
Interior Height 25.0" (64 cm)
Interior Width 20.0" (51 cm)
Interior Depth 17.5" (44 cm)
Compressor Step Height 3.25" (8 cm)
Compressor Step Width 20.0" (51 cm)
Compressor Step Depth 5.25" (13 cm)

Exterior
Latch - Factory-installed door latch requires manual release to open unit
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD - Left hand door swing
Door reversal to left hand swing

ADA compliant design

32" height allows easy installation under lower ADA compliant counters

Built-in capable

Front-breathing design lets you make the best use of space by installing your appliance under the counter

Saffron gold door

Bright yellow door finish with a slight gloss to elevate your undercounter space

Professional handle

Brushed stainless steel handle with a thin 14mm diameter is mounted horizontally across the door for a sleek look

Factory installed lock

Keyed lock offers added security

Frost-free operation

No-frost operation for minimum user maintenance

Digital thermostat

Electronic controls located inside the unit for precise temperature management

Recessed LED light

Efficient and attractive presentation with LED lighting

Adjustable glass shelves

Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup

Door storage

Two door racks offer convenient storage for condiments and bottles

Bottle slots

Floor is specially slotted to store wine and other bottles safely in place

Internal fan

Fan-forced cooling ensures the unit is evenly cooled from top to bottom

Open door alarm

Audible alarm will sound if the door is left open longer than one minute

High temperature alarm

High temperature alarm sounds if the unit's interior goes out of the recommended range

Sabbath mode setting

Optional setting lets you disable the lighting and alarm for up to 48 hours

Temperature Memory Function

Unit will retain its last settings when power is restored in the event of power loss

Sealed back

Space-saving design with no exposed coils for easier cleanability

Right angle plug

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Stainless steel kickplate

Added touch of style to complement the handle and complete the look

Fully finished black cabinet

Allows the unit to be used freestanding

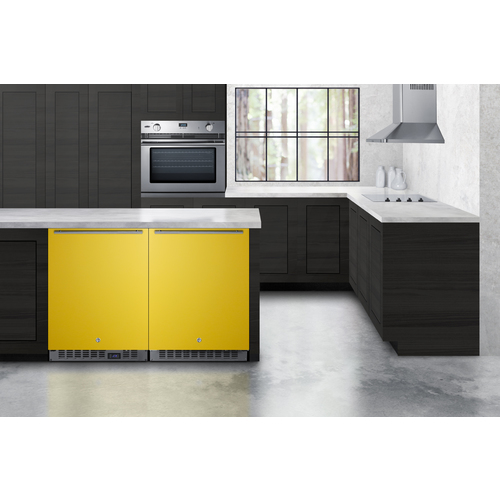

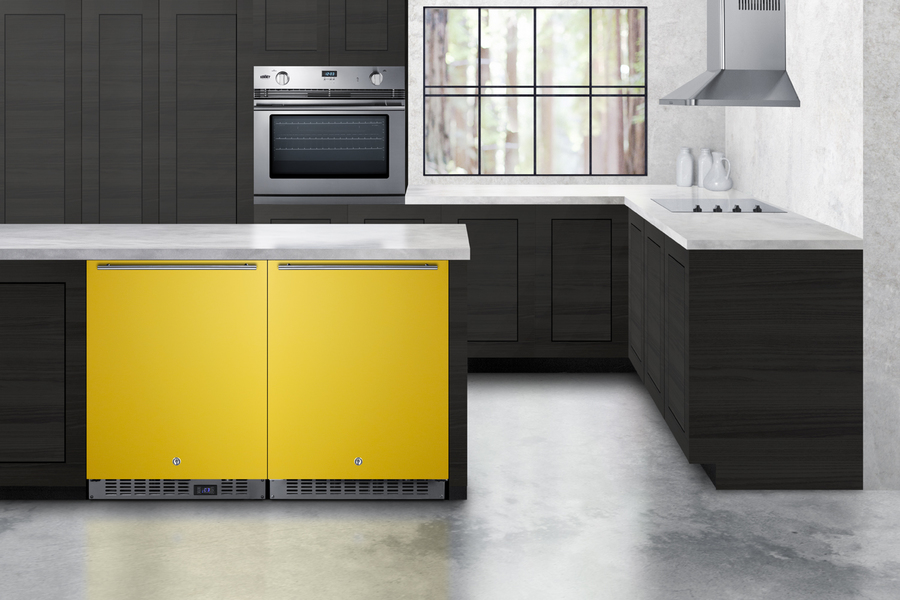

Matching freezer available

Pair with the ALFZ53Y frost-free freezer to create the perfect set

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Make a statement under the counter with Summit's exclusive collection of boldly colored refrigerators and matching freezers.

Model AL54Y is a 24" wide refrigerator sized at just 32" high for easy installation under lower ADA compliant counters. The front-breathing cooling system allows built-in use, while the fully finished black cabinet also enables freestanding applications. The door comes in a bright saffron gold hue, with a sleek horizontally mounted stainless steel handle and matching stainless steel kickplate to complete the unique look.

Inside, the AL54Y utilizes frost-free operation with fan-forced cooling to ensure low maintenance and even temperature distribution. Recessed LED lighting offers an attractive yet efficient look. The digital thermostat makes it easy to manage the interior temperature. This unit includes adjustable glass shelves for flexible, spill-proof storage and two large door racks ideal for keeping condiments in easy reach. The floor is specially slotted to hold bottles in place. An open door alarm and high temperature alarm audibly warn if stored items are being exposed. An optional Sabbath mode setting lets you disable some of the electrical elements during periods of observance.

Additional features include a factory-installed lock for optional security, user-reversible door swing to best fit your space, right angle plug to save on depth, and sealed rear to ensure easier cleaning. The AL54Y can be paired with the ALFZ53B frost-free freezer to create a matching undercounter ADA compliant set. Additional colors are available, including cobalt blue, emerald green, and lavender. Browse the full Summit selection to find the perfect addition to your kitchen.

Download
BROCHURE w/ DRAWINGS
AL54Y.pdf
Download
TECHNICAL DRAWING (.dwg)
AL54SSHH__w-COLOR_.dwg
Download
MSDS INFORMATION
R600a_K.pdf
Energy Guide

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
