24" Wide Electric Wall Oven, 115V
Next day shipping; multi-piece orders may extend lead time. Call 718-893-3900 ext. 507 to discuss
(89cm H x 61cm W x 62cm D)
SPECIFICATIONS
Overview
|
|
---|---|
Height of Cabinet | 35.0" (89 cm) |
Width | 24.0" (61 cm) |
Depth | 24.5" (62 cm) |
Depth with Handle | 25.75" (65 cm) |
Depth with door at 90° | 42.13" (107 cm) |
Capacity | 2.92 cu.ft. (83 L) |
Door | White |
US Electrical Safety | CSA |
Amps | 14.6 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 135.0 lbs. (61 kg) |
Parts & Labor Warranty | 1 Year |
UPC | 761101103693 |
Electric Walloven
|
|
Controls | Dial |
Oven Light | Yes |
Cooking Timer | Yes |
Digital Clock | Yes |
Cleaning Type | Manual |
Oven Rack Qty | 2 |
Oven Window | Yes |
Interior Height | 14.0" (36 cm) |
Interior Width | 18.75" (48 cm) |
Interior Depth | 18.5" (47 cm) |
Cutout Height | 34.18" (87 cm) |
Cutout Width | 22.38" (57 cm) |
Cutout Depth | 23.0" (58 cm) |
Power Source | 115V (cord included) |
FEATURES
Electric wall oven sized for 34 1/8" H x 22 3/8" W cutouts with a power cord and plug included
Designed and constructed domestically
Designed for installation in kitchens with a 115V/60Hz/20 amp connection

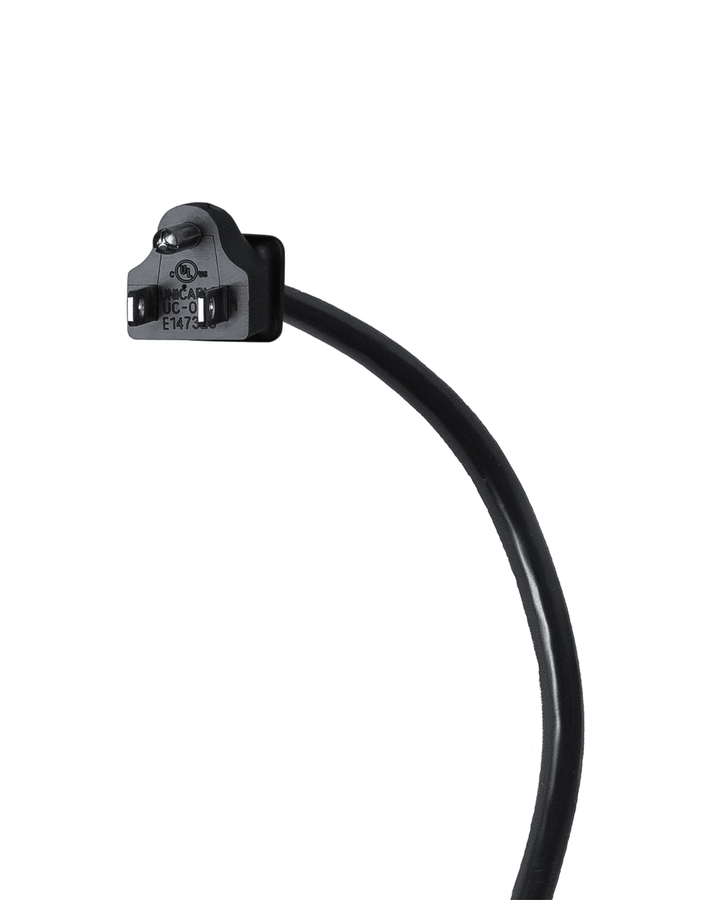

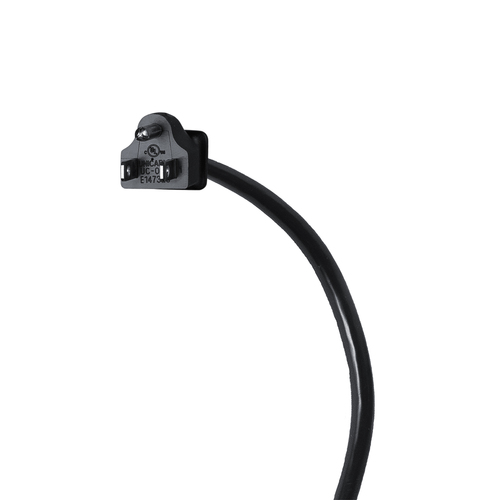

Ships with a pre-installed cord and standard NEMA 5-15 3-prong plug for easy installation (20 amp circuit required)
Sized to fit 34 1/8" H x 22 3/8" W cabinet cutouts, a popular replacement size rarely offered by other manufacturers
2.92 cu.ft. interior allows you to prepare large meals
Classic design to suit any kitchen
Bottom drop-down compartment is ideal for storing cookware, helping to free up space in your small kitchen

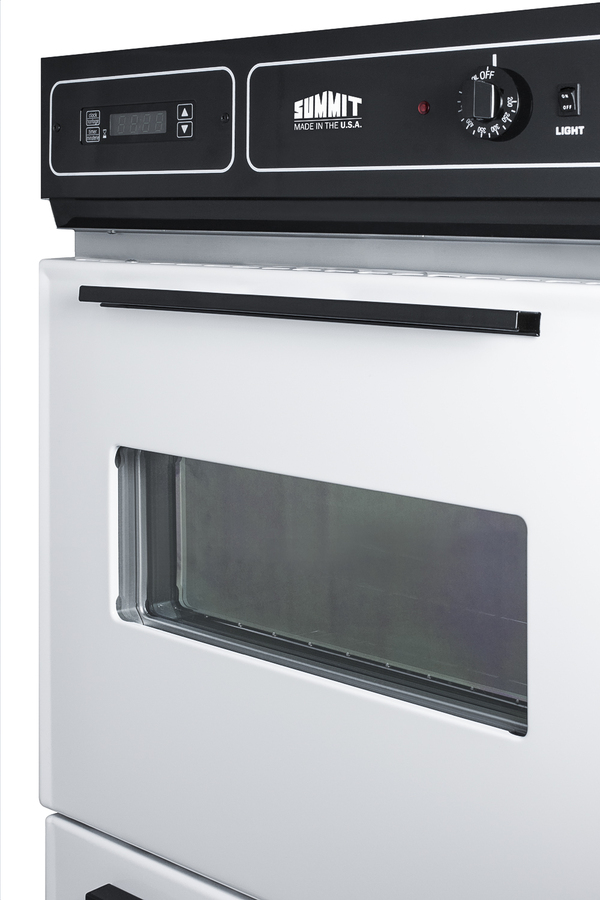

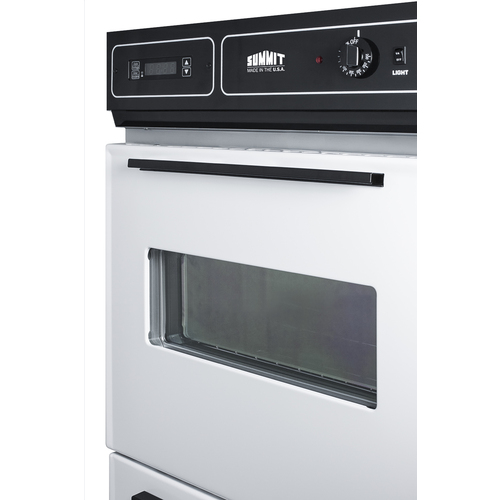

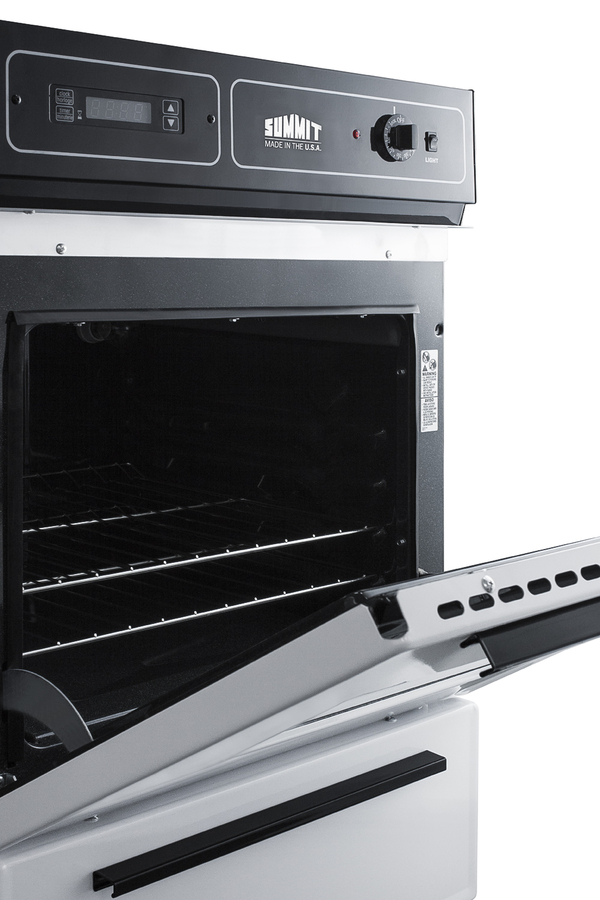

Door includes a window and exterior on/off rocker light switch, making it easier to monitor your cooking without opening the door

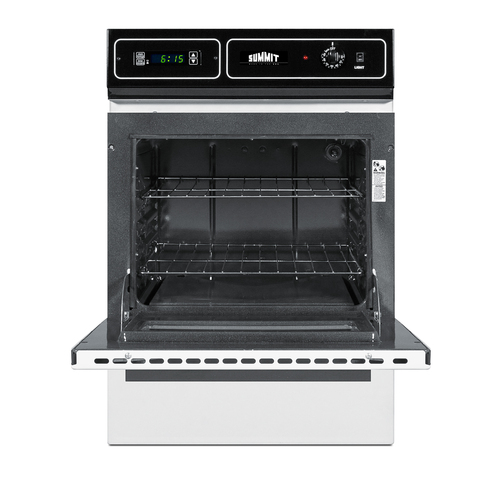

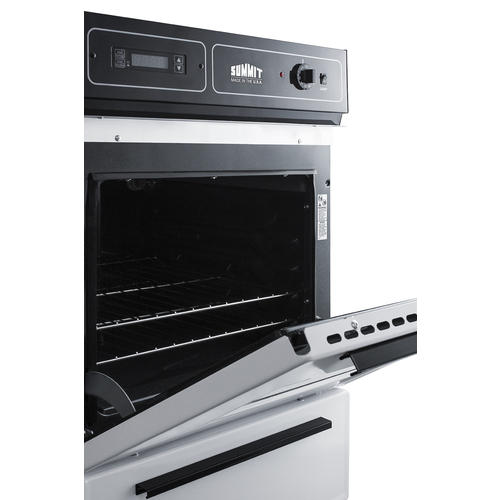

Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes
Upper heating element is located inside the oven so there is no need to transfer dishes to another compartment for broiling
Allows for easier cleaning as needed
Interior oven is constructed from porcelain for lasting durability that holds up to daily cooking

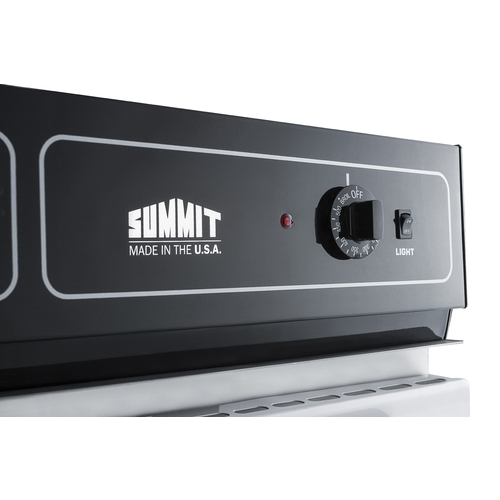

Basic knob controls for simple and intuitive cooking
Added convenience with an easy display
Two-piece porcelain broiler tray with grease well
Add TKW700 accessory to raise the exterior height to fit 39" high openings
DESCRIPTION

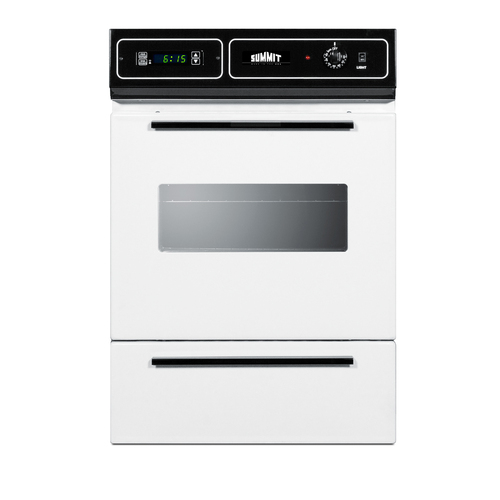

Summit brings endless possibility to small kitchen spaces with one of the industry's only 24 inch wall ovens designed to work with 110-120V connections. Made in the USA, the WEM715KW is an electric wall oven specially sized to fit common 34 1/8" H x 22 3/8" W cutouts. It includes a pre-installed cord with a standard 3-prong NEMA 5-15 plug for easy installation in 115V connections (20 amp circuit required). This unit features a white oven door and drop-down lower compartment for cookware storage. The oven includes a window and interior light with an on/off rocker switch, allowing you to view your cooking progress as needed. The exterior includes a digital clock with timer to help you keep track of your cooking. Inside, this wall oven offers nearly 3 cu.ft. of capacity to accommodate large meals. Solid porcelain construction ensures lasting durability that holds up to everyday use. We include two adjustable slide-out oven racks with brakes, as well as a two-piece broiler tray with grease well. The oven features a bake and broil setting, easily managed with one push-to-turn dial control. Summit's American-made wall ovens have an industry exclusive height to fit cutouts commonly once commonly served by discontinued models from Caloric, Slattery, and older makes, including Magic Chef. To fit other cutouts up to 39" high, add the TKW700 trim kit accessory. Additional finishes are available, as well as standard gas and 220V options and a full suite of 115V electric and induction cooktops. Browse the full Summit website to explore your options.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
