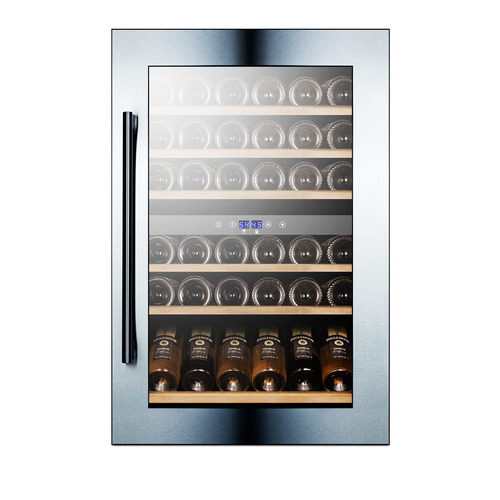

VC60D

Seamless stainless steel trimmed glass doors for a sleek, elegant look

34.88" H x 23.25" W x 22.38" D

(89cm H x 59cm W x 57cm D)

OVERVIEW

  • Dual zone design lets you store red and white wine in separate compartments under the appropriate temperature conditions
  • Double pane tempered glass door protects your collection from harmful light
  • Digital controls offer easy and intuitive temperature management

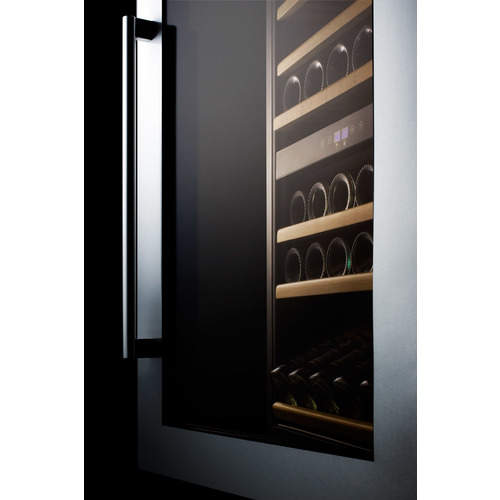

  • Seamless stainless steel trimmed glass door for true luxury
  • Recessed LED lighting provides an elegant display
  • Tilted wine rack stores bottles at an angle to best display labels

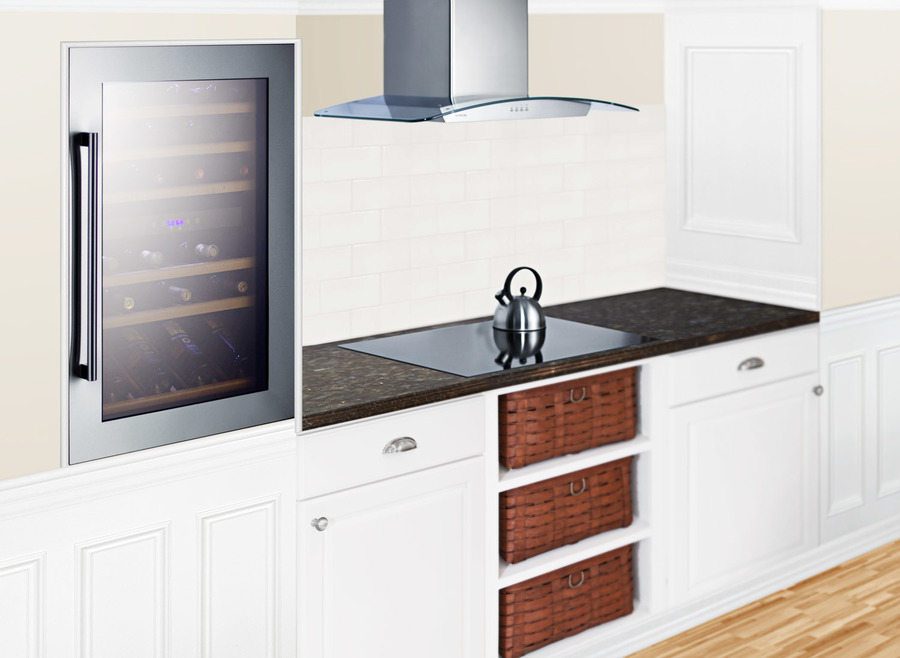

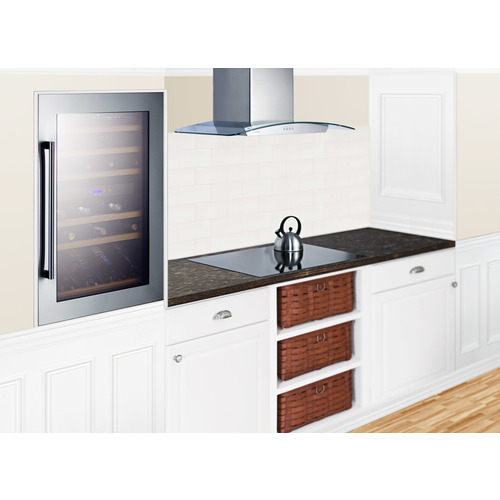

  • Designed for fully integrated installation

SPECIFICATIONS

Overview
Height of Cabinet 34.88" (89 cm)
Width 23.25" (59 cm)
Depth 22.38" (57 cm)
Depth with Handle 25.13" (64 cm)
Depth with door at 90° 45.0" (114 cm)
Bottles 51 bottles
Defrost Type Automatic
Door Glass
Cabinet Unfinished
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 2.0
Voltage/Frequency 115 V AC/60 Hz
Weight 110.0 lbs. (50 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Wine Cellar
Number of Zones 2
Door Swing RHD
Reversible Yes
Shelf Type Wood
Shelf Qty 6
Thermostat Type Digital
Interior Light Yes
Fan Type Interior
Refrigerant Type R134a
Refrigerant Amount 2.05 oz.
High Side PSI 270.0
Low Side PSI 105.0
Interior Height 1 10.0" (25 cm)
Interior Width 1 18.25" (46 cm)
Interior Depth 1 16.75" (43 cm)
Compressor Step Height 7.5" (19 cm)
Compressor Step Width 18.25" (46 cm)
Compressor Step Depth 4.5" (11 cm)
Interior Height 2 19.0" (48 cm)
Interior Width 2 18.25" (46 cm)
Interior Depth 2 15.0" (38 cm)

AVAILABLE UPGRADES

Exterior
LHD
Door reversal to left hand swing


California residents:
click here for information on Proposition 65

Due to our commitment to continuous product improvement, all specifications are subject to change without notice

WHERE TO BUY

Invalid Format

DESCRIPTION

SUMMIT introduces fully integrated wine cellars for optimum storage and professional elegance.

The VC60D is a dual zone wine cellar designed to store bottles under the ideal conditions. The door features a slightly tinted double pane tempered glass construction to protect your collection from UV light, with seamless stainless steel trim for a sleek, professional look. This unit includes a stylish stainless steel handle. The door swing is user reversible, offering more flexibility when positioning the unit.

Inside, the VC60D features two distinct zones for storing reds and whites at the proper temperature. A digital thermostat offers easy temperature management, with an alarm that sounds when either interior temperature has drifted out of range. Five standard wooden shelves hold bottles in classic style, while the bottom shelf comes in a unique tilt design that lets you best display the labels for maximum effect. This unit can store up to 51 Bordeaux or 36 Burgundy style bottles, depending on exact bottle size and storage configuration. Recessed LED lighting provides an elegant view of the interior, with an optional setting of display or functional mode. Additional features include an open door alarm and Sabbath Mode setting for religious observance. The VC60D is auto defrost, with fan-forced cooling that ensures the interior temperature is evenly distributed and a condensation collection system that helps to maintain the correct level of humidity inside.

With a stunning look and versatile design, the VC60D adds a great touch to any room. This unit is designed for fully integrated installation (cutout dimensions: 34" H x 21 3/4" W x 21" D).

FEATURES

Dual zone design
Lower zone is ideal for storing red and blush wine between 55 and 72ºF, while the upper compartment is better suited for cooler blushes and whites at 41 to 55ºF
Digital thermostat
Electronic controls ensure easy and intuitive temperature management, with a readout in Celsius or Fahrenheit
Dynamic compressor cooling
Ensures evenly cooled interior for proper storage
Reversible door
User-reversible door swing in double pane tempered glass for best protection from UV light
Slide-out wooden shelves
Store bottles safely in classic style
Tilted wine rack
Unique design lets you stand bottles at an angle to display the label
Open door alarm
Sounds after door is left open for over a minute to best prevent accidents
Interior light
Can be set for showcase mode, remaining on until manually turned off, or functional model (turning on when the door is opened and off when it is closed)
Temperature alarm
Alarm sounds off when unit's interior rises or falls out of the set range
Sabbath Mode
Optional setting lets you disable the lighting and alarms for 96 hours
Built-in installation
Designed for fully integrated installation (cutout dimensions: 33 1/2" H x 21 3/4" W x 22" D; see user manual for additional information about providing proper ventilation and spacing for this unit))
Humidity improvement
Proper humidity levels are maintained inside due to a specially designed condensation collection system
100% CFC free
Environmentally friendly design without ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet 34.88" (89 cm)
Width 23.25" (59 cm)
Depth 22.38" (57 cm)
Depth with Handle 25.13" (64 cm)
Depth with door at 90° 45.0" (114 cm)
Bottles 51 bottles
Defrost Type Automatic
Door Glass
Cabinet Unfinished
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 2.0
Voltage/Frequency 115 V AC/60 Hz
Weight 110.0 lbs. (50 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Wine Cellar
Number of Zones 2
Door Swing RHD
Reversible Yes
Shelf Type Wood
Shelf Qty 6
Thermostat Type Digital
Interior Light Yes
Fan Type Interior
Refrigerant Type R134a
Refrigerant Amount 2.05 oz.
High Side PSI 270.0
Low Side PSI 105.0
Interior Height 1 10.0" (25 cm)
Interior Width 1 18.25" (46 cm)
Interior Depth 1 16.75" (43 cm)
Compressor Step Height 7.5" (19 cm)
Compressor Step Width 18.25" (46 cm)
Compressor Step Depth 4.5" (11 cm)
Interior Height 2 19.0" (48 cm)
Interior Width 2 18.25" (46 cm)
Interior Depth 2 15.0" (38 cm)

AVAILABLE UPGRADES

Exterior
LHD
Door reversal to left hand swing

DOWNLOADS

Download
BROCHURE w/ DRAWINGS
VC60D.pdf
Download
TECHNICAL DRAWING (.dwg)
VC60D_WINE_CELLAR__A-C_2010_.dwg


California residents:
click here for information on Proposition 65

Due to our commitment to continuous product improvement, all specifications are subject to change without notice
