30" Wide Over-the-Range Microwave

Includes a versatile ventilation system for ducted or ductless operation
Estimated Time to Ship:

Next day shipping

This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.
16.88" H x 29.88" W x 15.5" D
(43cm H x 76cm W x 39cm D)

Height of Cabinet 16.88" (43 cm)
Width 29.88" (76 cm)
Depth 15.5" (39 cm)
Depth with Handle 17.75" (45 cm)
Depth with door at 90° 39.13" (99 cm)
Capacity 1.6 cu.ft. (45 L)
Door Stainless Steel
Cabinet Black/SS
US Electrical Safety UL
Canadian Electrical Safety ULC
Amps 12.0
Voltage/Frequency 115 V AC/60 Hz
Weight 55.0 lbs. (25 kg)
Shipping Weight 65.0 lbs. (29 kg)
Parts & Labor Warranty 90 Days
UPC 761101056692
Wattage 1000.0
Controls Digital
Digital Display Yes
Turntable Yes
Turntable Diameter 12.0" (30 cm)
Specialized Cooking Buttons Yes
Interior Height 9.75" (25 cm)
Interior Width 21.0" (53 cm)
Interior Depth 13.75" (35 cm)

Range hood function

Under-cabinet ventilation with a high/low setting

Versatile ventilation options

This unit can be set up with a vertical duct, horizontal duct, or for recirculating operation

Charcoal filter included

Single charcoal filter is included to accommodate ductless (recirculating) setups

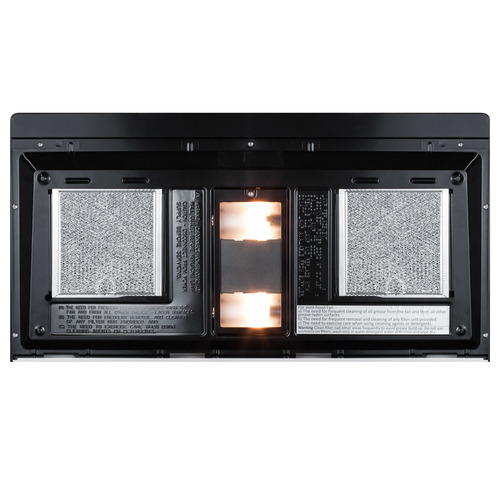

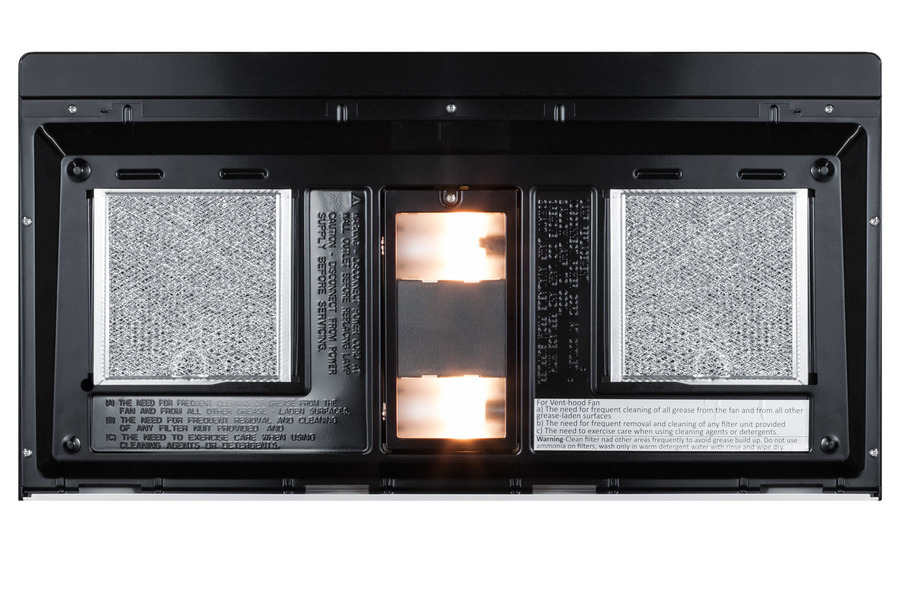

Removable cassette filters

Two removable aluminum filters help to absorb odors

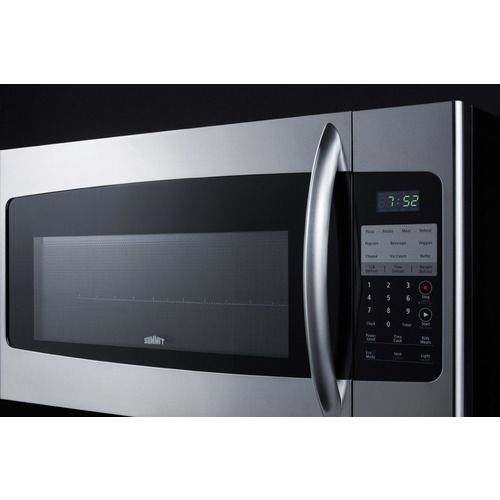

One-touch cooking options

Touch controls for easy heating of pizza, potatoes, meat, beverages, veggies, butter, cheese, and ice cream

Kids Meals heating option

Designed for easy reheating of common children's meals, with settings specifically designed for hot dogs, nuggets, and french fries

Popcorn setting

One-touch option is ideal for the perfect bag of popcorn

Glass turntable with on/off mode

Unit includes a removable glass turntable and a setting to operate the microwave with the turntable function on or off

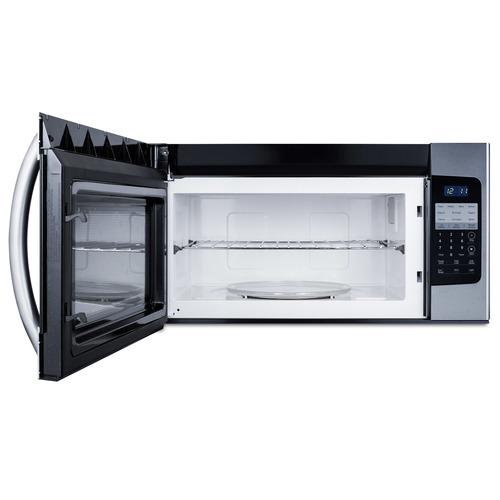

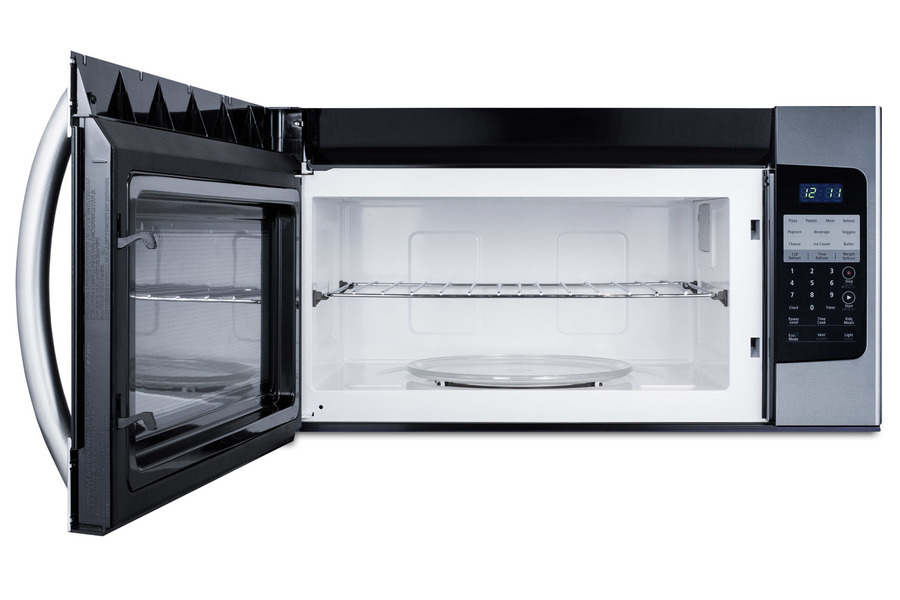

Removable shelf

Chrome shelf included to help maximize the interior capacity

Interior light

Microwave light automatically illuminates when the door is opened

Pro style handle

Easy-to-grab stainless steel handle adds a modern touch

Under cabinet lighting

Range hood includes two bulbs for convenient illumination of the cooking zone with a high and low setting

Multi-stage cooking

Allows you to program two cooking settings with different power levels for best results with certain recipes

Multiple power levels

Choose from 6 power levels to ensure the optimum level of heating for your food

Add 30 seconds option

Push the start button to add 30 seconds to cooking time

Defrost settings

Separate options allow you to set the defrost by time or weight, with a 1 lb. option included for one-touch defrosting of larger dishes

Kitchen timer

Microwave includes timer setting (up to 99 minutes) with an audible warning

Child lock

Optional setting can be activated to prevent unsupervised operation

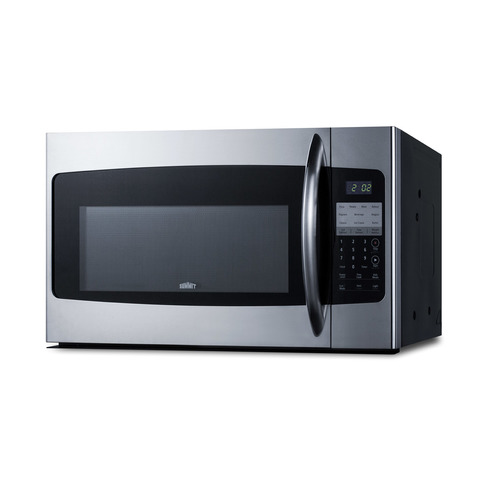

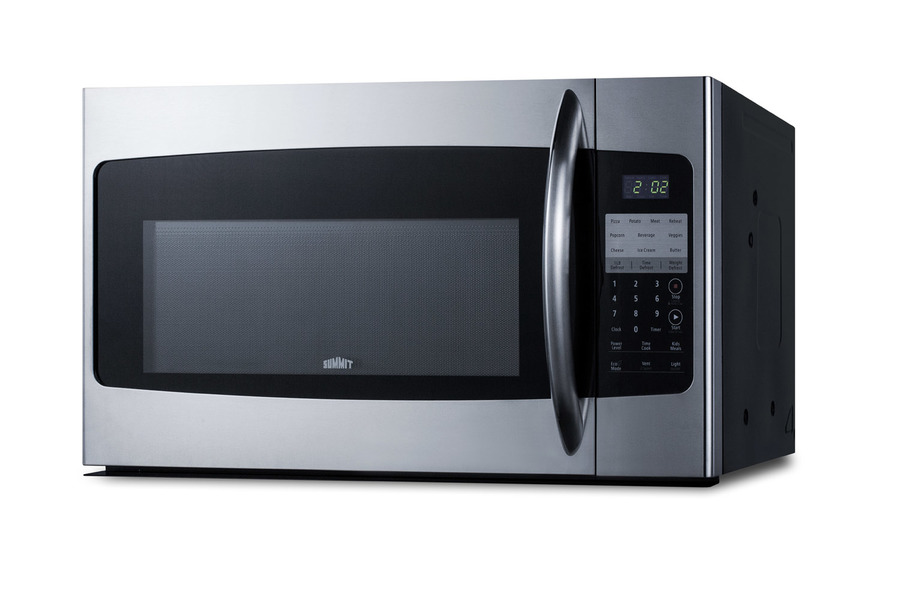

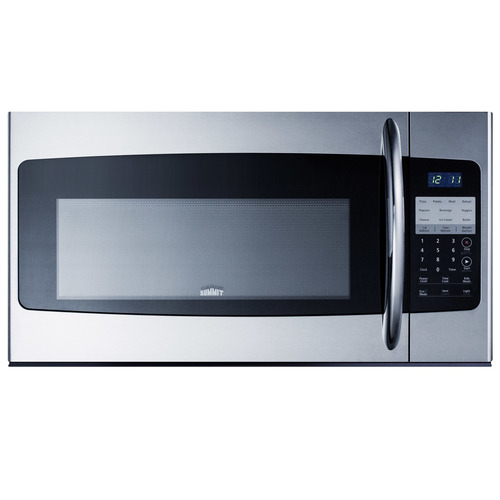

SUMMIT OTRSS301 is an over-the-range microwave with a user-friendly design for residential kitchens.

Sized at 30" wide, the OTRSS301 offers a generous 1.6 cu.ft. interior capacity, with a removable shelf included to make the best use of space. Intuitive touch controls provide a variety of one-touch cooking options, including settings for popcorn, beverages, butter, pizza, ice cream, common kids' meals, and more. Multiple power levels and multi-stage cooking allow you to achieve the perfect heating conditions for a variety of dishes. Defrost settings offer the choice of heating by time or weight.

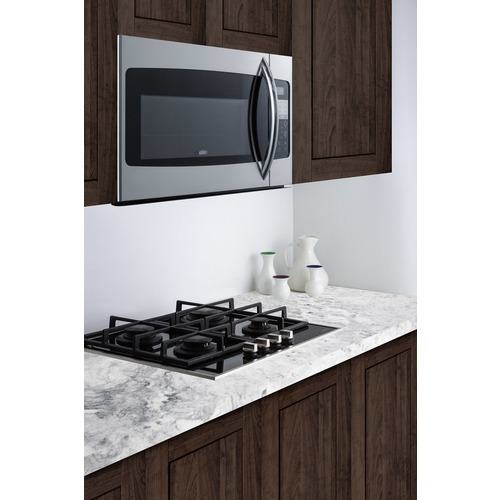

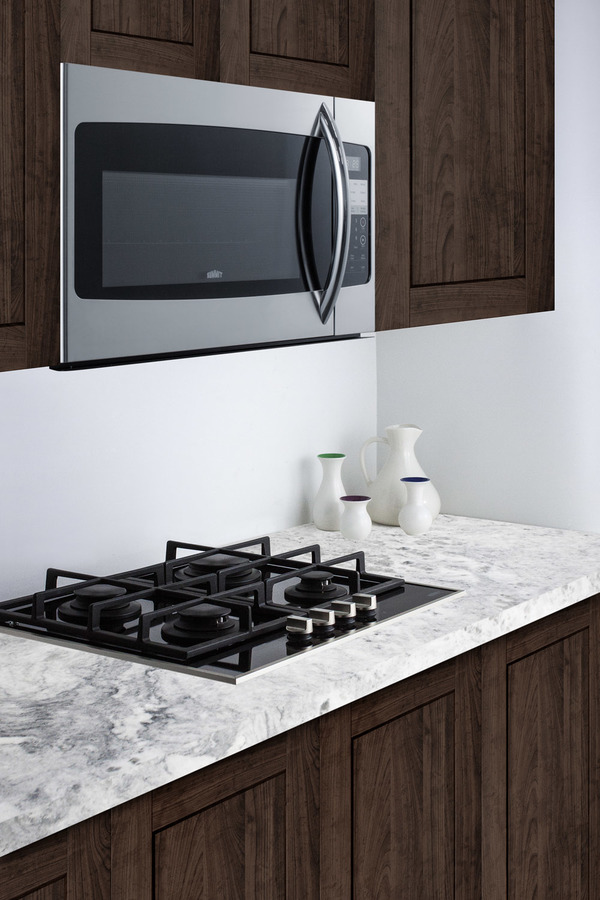

This unit is equipped with a versatile ventilation system that can be set up with a vertical duct, horizontal duct, or for recirculating (ductless) operation with a charcoal filter included. The range hood includes two lights under the cabinet for added convenience over your range or cooktop.  We include a mounting plate, exhaust adapter for top or rear-venting, and the hardware required for installation, along with a top cabinet and rear wall template. NOTE: This unit features a top vented system that must be clear for adequate ventilation. The depth from rear to the vented area is 14 1/8".

The OTRSS301 features a stainless steel finish complete with a pro style easy-grip handle. With its professional look and advanced controls, this is a great choice for completing any kitchen space.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to
Note: Nickel is a component of stainless steel.

A.B. 1200 Disclosure:

The state of California requires manufacturers of cookware disclose any chemicals on the designated Candidate Chemicals list that may come into contact with food. Learn more
