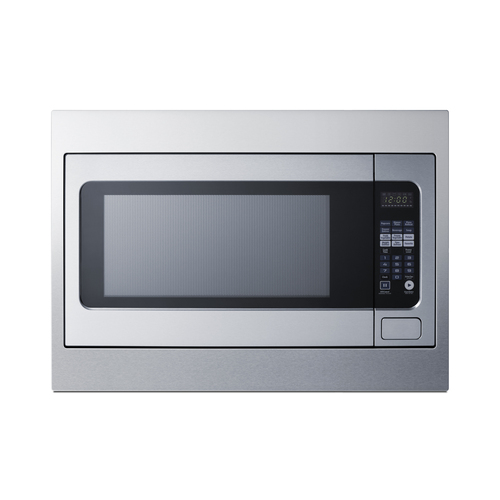

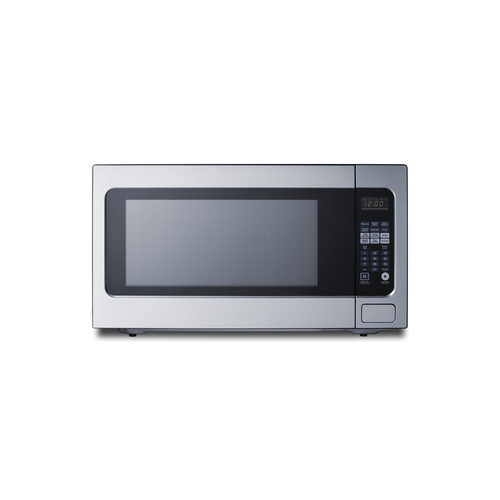

27" Wide Built-In Microwave (Trim Kit Included)

1200W built-in microwave with trim kit designed to fit 27" wide cutouts
Out of Stock; ETA:


*Additional features may vary

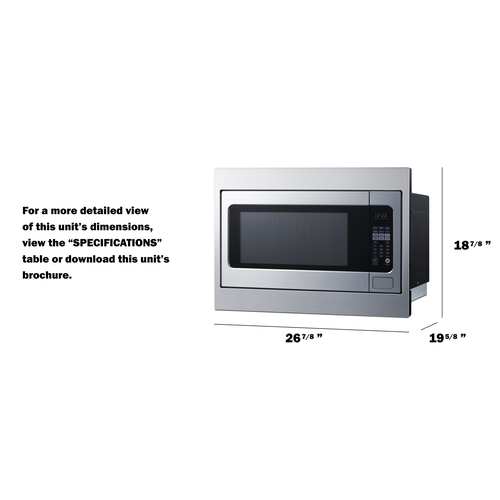

18.88" H x 26.88" W x 19.63" D
(48cm H x 68cm W x 50cm D)

Height of Cabinet 18.88" (48 cm)
Width 26.88" (68 cm)
Depth 19.63" (50 cm)
Depth with door at 90° 39.88" (101 cm)
Capacity 2.2
Door Stainless Steel
Cabinet Black
US Electrical Safety UL
Canadian Electrical Safety ULC
Voltage/Frequency 115 V AC/60 Hz
Parts & Labor Warranty 1 Year
UPC 761101146676
Type Built-In
Wattage 1200.0
Controls Digital
Digital Display Yes
Turntable Yes
Turntable Diameter 16.5" (42 cm)
Specialized Cooking Buttons Yes
Cutout Height 17.13" (44 cm)
Cutout Width 25.5" (65 cm)
Cutout Depth 22.75" (58 cm)
Interior Height 10.0" (25 cm)
Interior Width 16.88" (43 cm)
Interior Depth 17.0" (43 cm)


Pre-order today for summer delivery

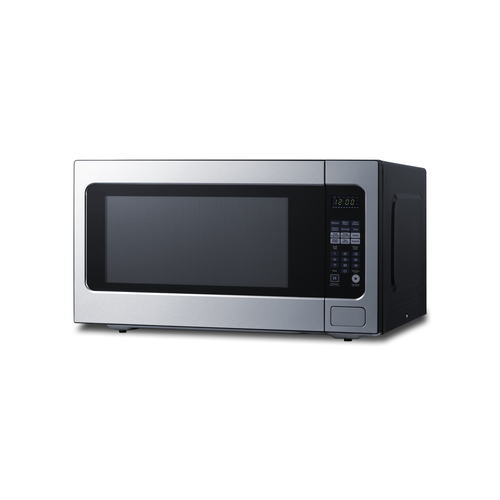

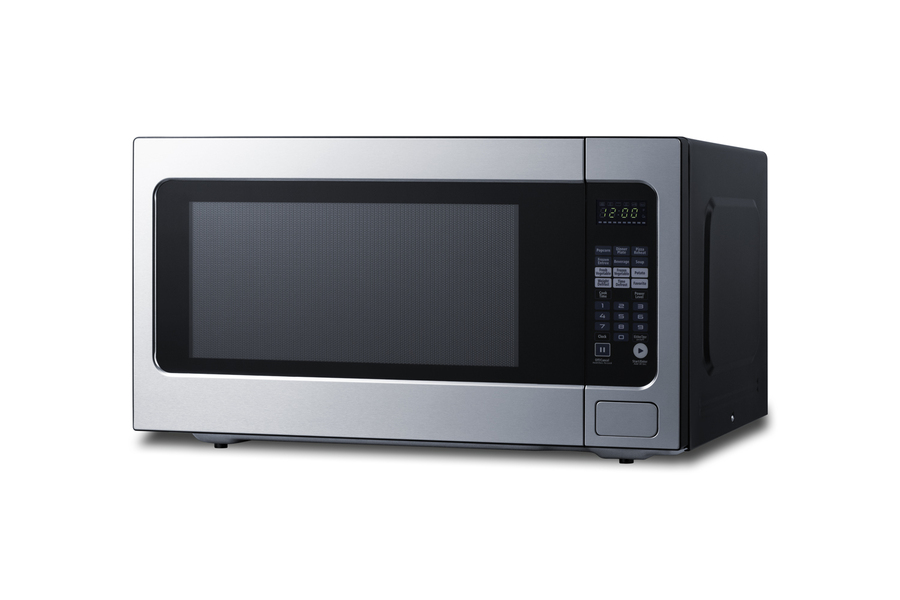

Built-In Microwave Oven

Built-in microwave oven that ships with a trim kit designed to allow installation in 27" wide cabinet openings

Fits 27" wide spaces

Designed for 17 1/8" H x 25 1/2" W x 22 3/4" D cutouts, with a trim kit that covers spaces up to 26 7/8" W; Note: actual microwave is sized at 13 1/2" H x 24 3/8" W x 19 5/8" D

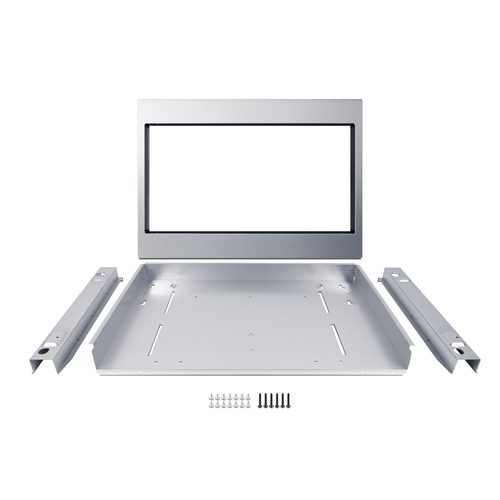

Built-in trim kit included

Ships with our TKSM27 accessory, complete with bottom duct (microwave base), rails, trim kit frame, and all the necessary screws for installation

Large capacity

Full 2.2 cu.ft of interior cooking space to fit large dishes

1200W operation

Powerful performance ideal for larger meals

Stainless steel frame

Included with the microwave to help fit the overall unit into standard 27" wide spaces, with a horizontal grain to match other fixtures

Stainless steel front

Brushed stainless steel trim in a horizontal grain to match many existing designs

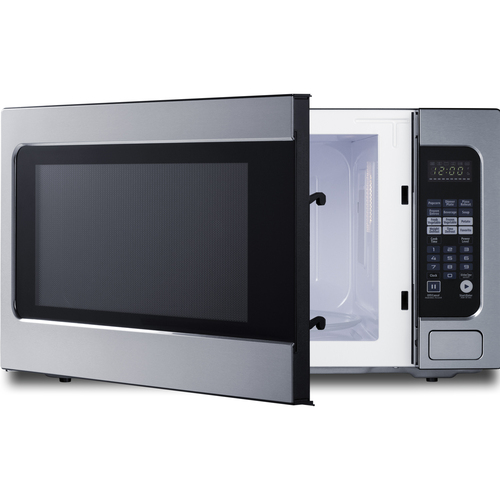

Door window

Large window design makes it easy to view your cooking without opening the door

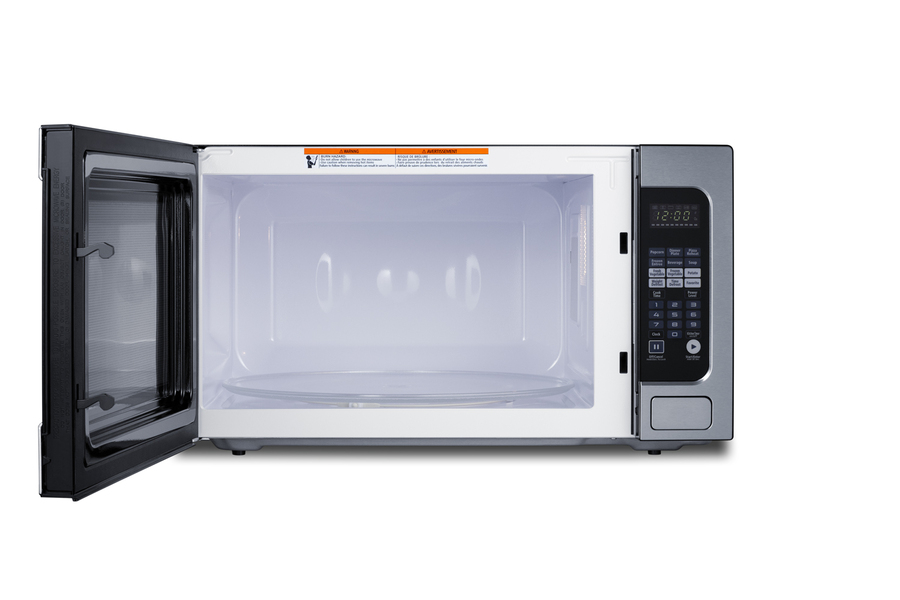

Large glass turntable

Interior includes sizable glass disc that rotates to ensure even heating

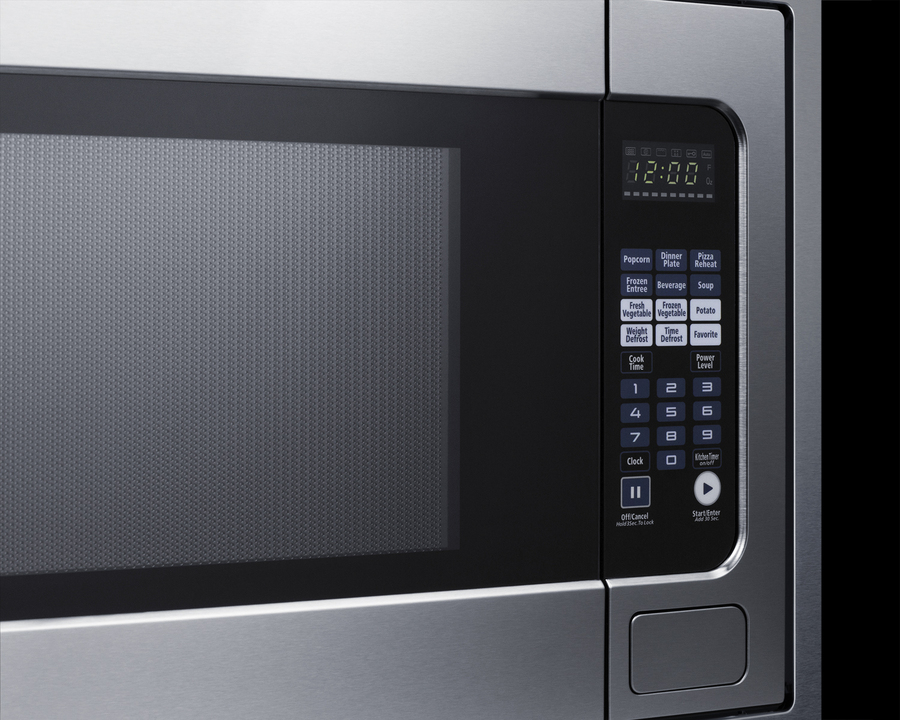

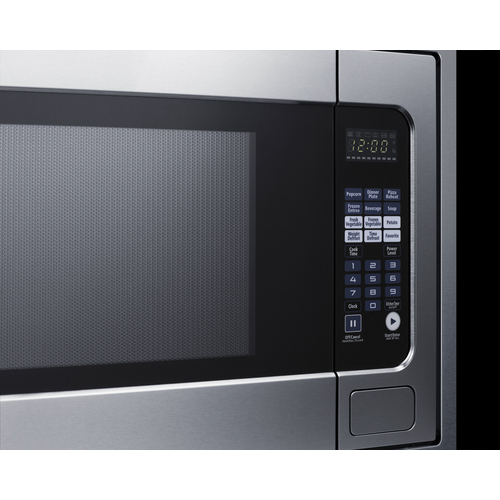

Digital control panel

Front located controls with easy-to-identify settings for a variety of cooking activities

Multistage Cooking

Program up to 2 cooking sequences to achieve the proper heating results

Specialty 1-touch cooking options

Pre-programmed settings for potatoes, pizza, beverages, popcorn, frozen dinners, and reheating

+30 Seconds Function

One-touch setting lets you add 30 seconds of full power heating

Defrost funtions

Defrost by weight or time for decreased cook time

Sensor cook function

Automatically sets the appropriate cooking time by sensing the moisture level of the food being cooked

Memory function

Microwave can conveniently save up to 3 cooking procedures

Child lock

Activate this setting to disable the control panel


Allows you to set a cooking timer as needed


Unit conveniently displays time

End of cycle buzzer

An audible signal lets you know when the time is up

FCC Approved

This unit complies with part 18 of the FCC rules

Summit's selection of built-in microwaves offers seamless solutions to complete any kitchen space.

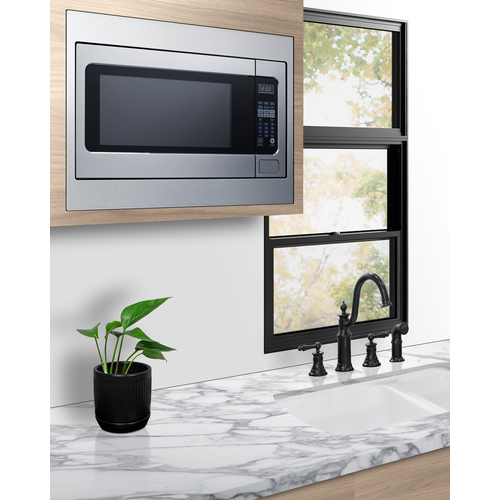

Model SMBI27TK27 is a 1200W microwave designed for built-in installation. It ships with a complete trim kit (accessory TKS27) that includes a 26 7/8" wide stainless steel frame, bottom duct, rails, and the screws needed for setup. It can be installed above or below the counter and over a wall oven for added kitchen convenience. The dimensions of the actual microwave are 13.5" H x 24.38" W x 19.63" D. The cutout dimensions of the cabinet should be 17 to 17.125" H x 25.5" W x 22.75" D. For more information, download the installation instructions below.

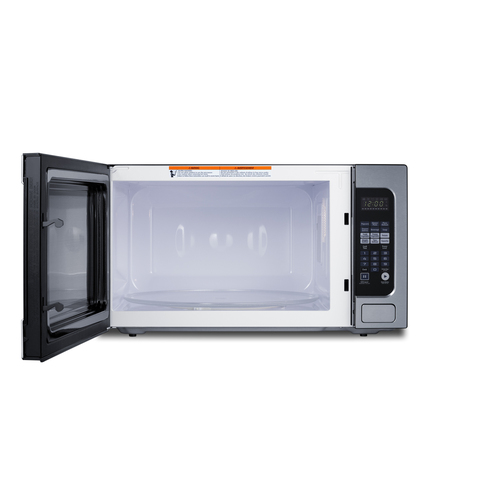

Inside, this microwave offers a full 2.2 cu.ft of cooking space in a clean white interior with a large glass turntable, which can be removed for easier cleanup. Our SMBI27TK27 features digital controls that offer a variety of cooking functions, including popcorn, reheating, defrosting, melting, and softening butter. Additional settings let you auto-defrost, cook by weight, or add 30 seconds for fast reheating. Multi-stage cooking enables you to combine different functions.

With an attractive, low profile design and complete cooking convenience, the SMBI27TK27 is the ideal built-in microwave oven for kitchens with large capacity needs. For this unit with a 30" trim kit, see model SMBI27TK30. Additional sizes, as well as drawer and over-the-range microwaves, are also available. Browse the Summit line to explore our complete collection.


Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to
Note: Nickel is a component of stainless steel.

A.B. 1200 Disclosure:

The state of California requires manufacturers of cookware to disclose any chemicals on the designated Candidate Chemicals list that may come into contact with food. Learn more
