24" Wide 115V Speed Oven

SKU: CMV115
Combines the functions of a microwave, convection oven, and grill for full cooking power in 115V applications
Estimated Time to Ship:

Next day shipping

*Additional features may vary

This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.
17.75" H x 23.5" W x 22.25" D
(45cm H x 60cm W x 57cm D)

Overview
Height of Cabinet 17.75" (45 cm)
Width 23.5" (60 cm)
Depth 22.25" (57 cm)
Depth with Handle 24.25" (62 cm)
Depth with door at 90° 35.75" (91 cm)
Capacity 1.55 cu.ft. (44 L)
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety UL
Canadian Electrical Safety ULC
Amps 20.0
Voltage/Frequency 115 V AC/60 Hz
Weight 82.0 lbs. (37 kg)
Parts & Labor Warranty 1 Year
UPC 761101108117
Speed Oven
Controls Digital
Cooking Timer Yes
Digital Clock Yes
Oven Temperature Range 100 to 450ºF
Oven Cleaning Type Manual
Oven Rack Qty 1
Interior Height 9.75" (25 cm)
Interior Width 16.5" (42 cm)
Interior Depth 16.5" (42 cm)
Cutout Height 17.75" (45 cm)
Cutout Width 22.31" (57 cm)
Cutout Depth 22.0" (56 cm)
Power Source 115V with cord and NEMA 5-15 plug
Number of Cooking Settings 12
Microwave Function Yes
Wattage 1000W
Convection Yes
Broiler Yes
Turntable Diameter 14.25" (36 cm)
Child Lock Yes
Window Yes
Interior Light Yes

24" Wide 115V Speed Oven

Built-in 115V speed oven designed for installation under the counter or in wall openings

Designed for built-in installation

Sized to fit 17 3/4" H x 22 5/16" W x 22" D wall cavities and under counter openings

110-120V operation

Designed for installation in kitchens with a 115V/60Hz/20 amp connection

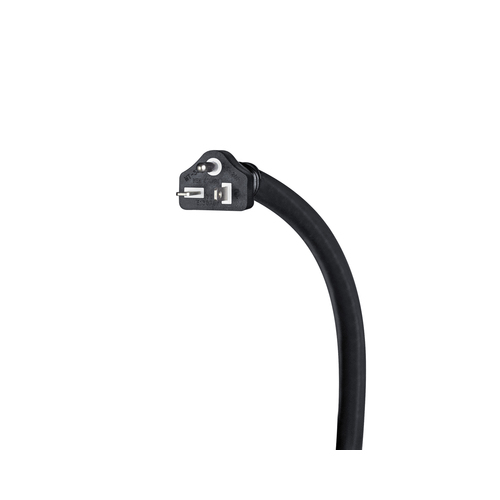

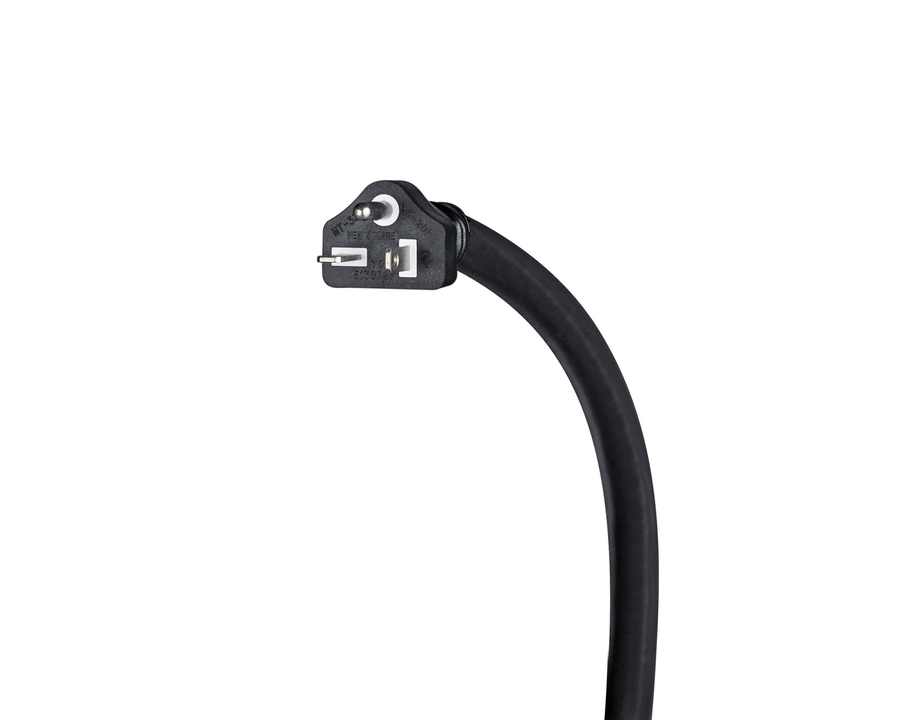

Power cord included

Ships with a pre-installed cord and standard NEMA 5-20-prong plug for easy installation

Large capacity

1.55 cu.ft. interior offers spacious cooking space for medium to large dishes

Stainless steel construction

Interior and exterior manifold and door trim are constructed from stainless steel for professional elegance and long-lasting durability

Professional handle

Robust handle in brushed stainless steel offers an attractive look that matches many popular styles of kitchen cabinetry

Oven window

Double pane glass door with a tint lets you monitor your cooking

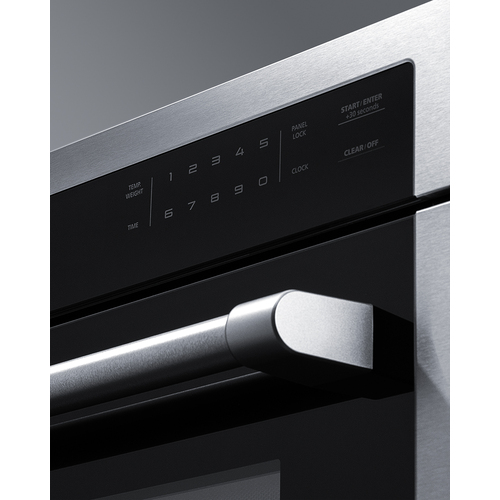

Digital touch controls

Intuitive touch controls for easy operation

Convection function

Convection fan improves air circulation and ensure fast, even heating throughout the entire oven interior

Microwave fucntion

Can be used for standard microwave cooking with options that allow 220W, 400W, 600W, 800W, and 1000W heating

Defrost function

Defrost by weight or time for decreased cook time

Broiler function

High/low broil setting perfect for toasting food, baking cheese-covered dishes such as lasagna, grilling meat, or baking certain pies

Preheat function

Ensure more efficient cooking with the rapid preheat function that sends an audible alert when the temperature has been reached

Sensor cook function

Automatically sets the appropriate cooking time by sensing the moisture level of the food being cooked

+30 seconds function

One-touch setting lets you add 30 seconds of full power heating

Specialty 1-touch cooking options

Pre-programmed settings for pizza, beverages, popcorn, frozen dinners, and reheating

Multi-stage cooking

Allows you to set two power levels on a microwave setting for versatile heating as needed

Panel lock

Safety "Stop" button lets you lock the control panel to prevent children from accidentally activating the unit

Digital clock with timer

Centered display shows a digital readout of the time or timer countdown

Metal turntable

Removable metal turntable for even heating when using the microwave function

Ceramic baking tray

Includes a removable round tray for easy baking

End of cycle buzzer

Oven will audibly beep when cooking function has finished

UL listed for the USA and Canada

Approved for residential installation in American or Canadian kitchens

FCC Approved

This unit complies with part 18 of the FCC rules

Summit helps enhance smaller kitchen functionality with fully featured speed ovens.

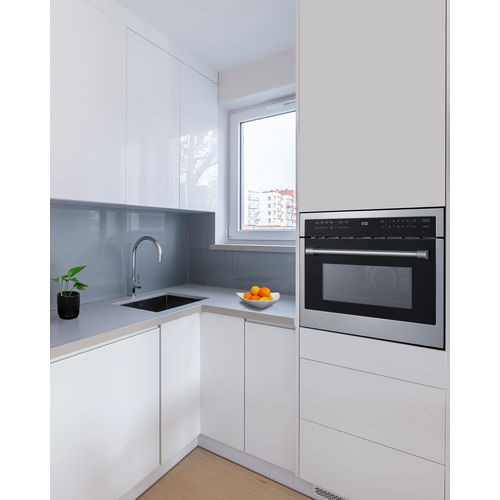

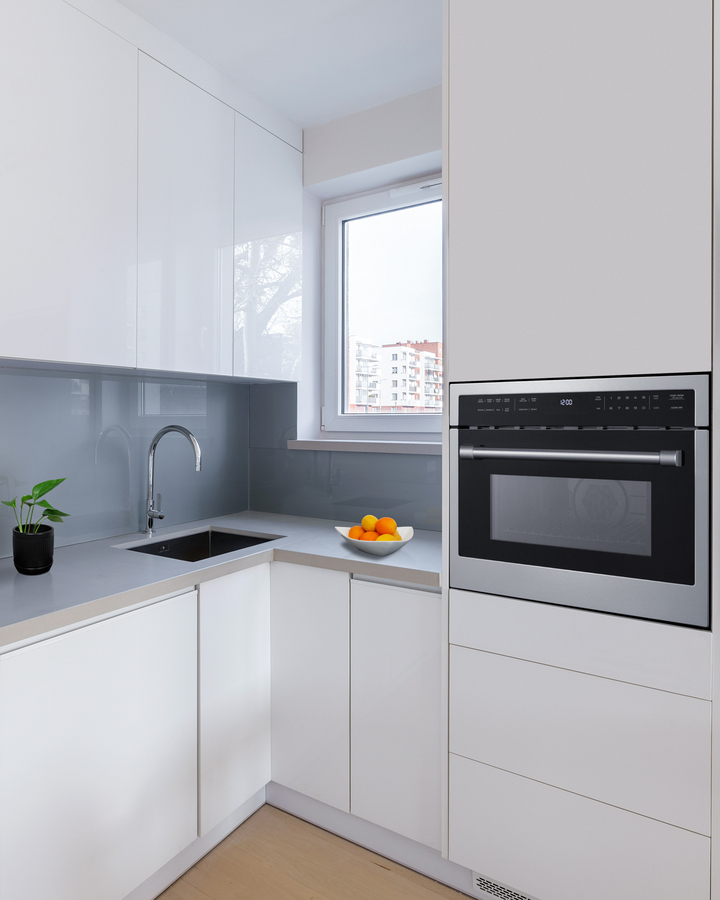

Designed for built-in installation, the CMV115 meets all of your cooking needs in just 24" of width. This unit can be installed in 17 3/4" H x 22 5/16" W x 22" D wall cavities and under counter openings to maximize kitchen space. It includes a pre-installed cord with a  3-prong NEMA 5-20 plug for easy installation in 115V connections.

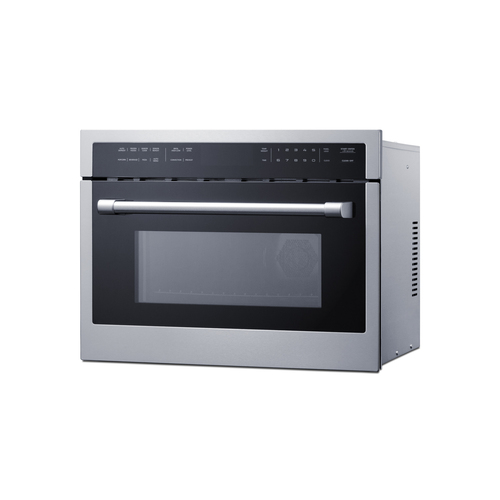

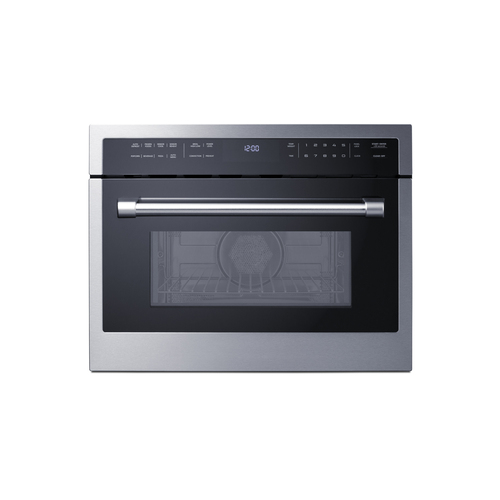

The CMV115's exterior features sleek stainless steel with a horizontal grain and a modern design with a matching handle. The double-pane tempered glass door comes with an attractive tint and jet black trim to match the digital touch control panel.

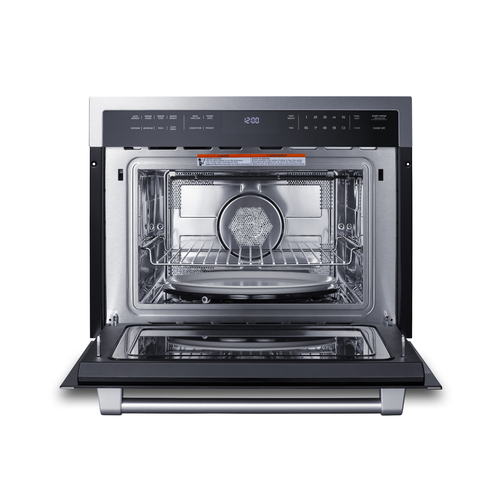

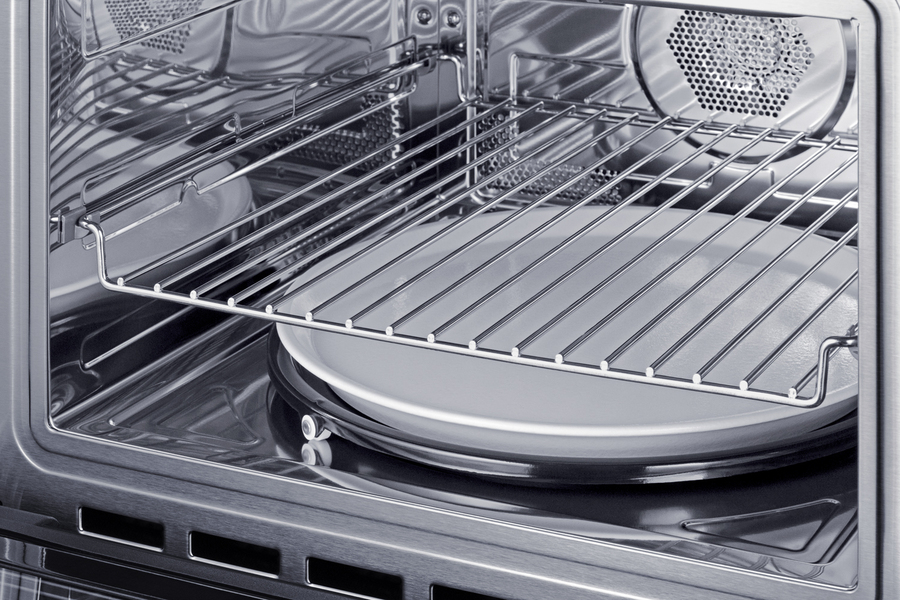

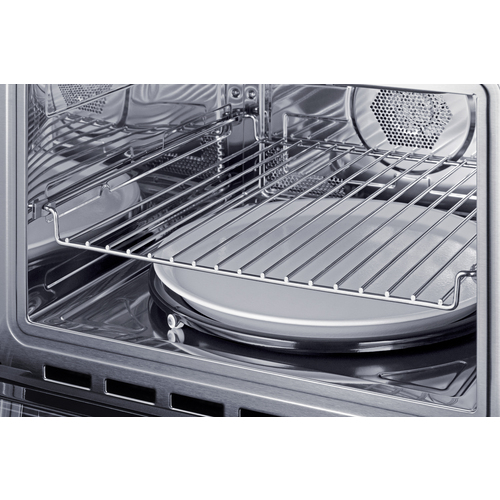

Inside, this speed oven offers a generous 1.55 cu.ft. capacity. The interior walls are constructed from stainless steel to ensure easier cleaning and lasting durability. We include an adjustable wire oven rack, ceramic round baking tray, and removable metal turntable for easy microwave use.

Enjoy uncomplicated cooking to achieve the exact taste, texture, and, more importantly, temperature you want for your dishes. Settings include bake, high/low broil, and convection heating.  The rapid preheat function saves cooking time and features an audible alert when the set temperature has been reached. The microwave functionality includes a +30 seconds button, as well as one-touch settings for popcorn, beverages, frozen foods, and pizza, as well as sensor heating and auto defrost by time or weight. 10 power settings let you find the right level of heat for every dish. Multi-stage cooking allows you to set two power levels when needed.

With its ideal size, modern style, and advanced technology, the CMV115 is the perfect solution for bringing full-service cooking convenience to apartments, senior living facilities, mobile homes, and other kitchens with space and power limitations.

For a 240V version, see model CMV24. In addition to our innovative speed ovens, we offer built-in, drawer-style, and countertop microwaves in an array of finishes. Visit summitappliance.com to explore all of our convenient cooking solutions.

Download
BROCHURE w/ DRAWINGS
CMV115.pdf
Download
TECHNICAL DRAWING (.dwg)
CMV115.dwg
Download
ASSEMBLY DRAWING
CMV115-Assembly.pdf

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

A.B. 1200 Disclosure:

The state of California requires manufacturers of cookware to disclose any chemicals on the designated Candidate Chemicals list that may come into contact with food. Learn more
