COVID-19 VACCINE COLD STORAGE SOLUTIONS

24" Wide Built-In Wine Cellar, ADA Compliant

SKU: SWC6GBLBIHVADA
ETL-S listed to NSF-7 standards for use in commercial settings
Estimated Time to Ship:

3 to 5 days

Available with an energy saving door tint to protect the interior from natural and artificial light. Choose from four tint finishes with varying levels of visibility.

All tints reject up to 99% of UV rays. Click here to view these options and learn more about their efficiency.
This unit can be used for commercial or residential applications. It meets applicable U.S. Department of Energy (DOE) standards for both household and commercial energy usage. For information on its commercial sanitation listing, see Specifications.
32.25" H x 23.63" W x 23.5" D
(82cm H x 60cm W x 60cm D)

Overview
Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.25" (82 cm)
Width 23.63" (60 cm)
Depth 23.5" (60 cm)
Capacity 5.5 cu.ft. (156 L)
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety UL
Canadian Electrical Safety ULC
Sanitation ETL-S
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Weight 115.0 lbs. (52 kg)
Shipping Weight 120.0 lbs. (54 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101040486
Wine Cellar
Number of Zones 1
Door Swing RHD
Reversible Factory Reversible
Adjustable Shelves Yes
Shelf Type Scalloped
Shelf Qty 4
Thermostat Type Dial
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 0.67 oz.
High Side PSI 124.0
Low Side PSI 30.0
Interior Height 1 26.0" (66 cm)
Interior Width 1 20.75" (53 cm)
Interior Depth 1 17.5" (44 cm)
Compressor Step Height 6.0" (15 cm)
Compressor Step Width 20.75" (53 cm)
Compressor Step Depth 5.0" (13 cm)
Condensor Location Rear of Unit

Exterior
SSK
Stainless steel kickplate factory installed
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD - Left hand door swing
Door reversal to left hand swing
SCD - Self-closing door
Protect interior contents and reduce energy waste with the Self Closing Door Option
SS Hinges
Stainless steel top and bottom hinges
Extra key
Extra keys available for purchase
Alarm/Thermometer
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
DT - Digital thermostat
Install a digital thermostat with external readout for precise temperature management
Door
T1 Door Tint
Tinted door in low-E mirror finish for maximum energy savings
T1S Door Tint
Reflective door tint in dark smoke finish for maximum energy savings
T2 Door Tint
Tinted door in reflective deep blue finish with high energy savings
T3 Door Tint
Reflective door tint in light blue finish for medium energy savings
T4 Door Tint
Neutral door tint in light smoke finish for moderate energy savings
Handle
SH
Add a full door-length handle with curved towel bar design in brushed stainless steel

Commercially approved

ETL-S listed to NSF-7 for use in foodservice establishments

ADA compliant

32" high to fit under lower ADA compliant counters

Built-in capable

Make the best use of space by installing your appliance under the counter and flush with other cabinets

Fully finished black cabinet

Allows the unit to be used freestanding

Double pane tempered glass door

Display your collection behind a solid glass door trimmed in elegant brushed aluminum for a refined touch

Professional handle

Vertically mounted thin handle (14mm) in brushed stainless steel matches many popular styles of cabinetry

Factory installed lock

Keyed lock for secure interior, conveniently located at the top of the door

Scalloped steel shelving

Curved shelves designed for the ideal storage of wine bottles

Half-sized wire shelf

Sits on top of the compressor and features wire slots ideal for holding bottles on their sides

Automatic defrost

Reduced maintenance with auto defrost system

Internal fan

Fan-forced cooling helps to maintain a more evenly cooled interior

Hidden evaporator

SUMMIT's original "hidden" evaporator is concealed in the wall so it never touches your fingers or food

Adjustable thermostat

Dial thermostat accommodates white wine temperature. If using this model for red wine storage, add a DT digital thermostat upon ordering

Interior light

Illuminate your collection with an interior light controlled by a rocker on/off switch

100% CFC Free

Environmentally friendly design

Temperature range

5ºC to 10ºC/41ºF to 50ºF; To reach warmer temperatures, order with our red wine thermostat option (10ºC to 18ºC/50ºF to 64ºF range)

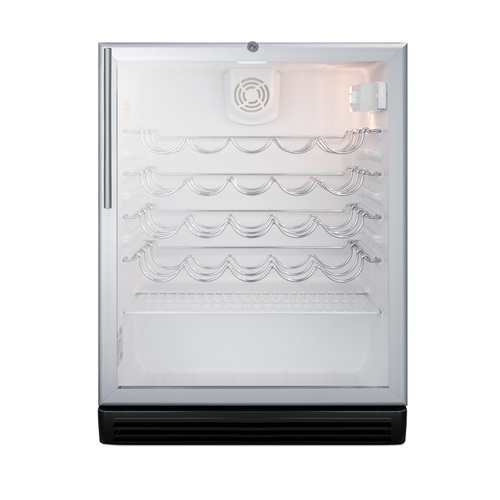

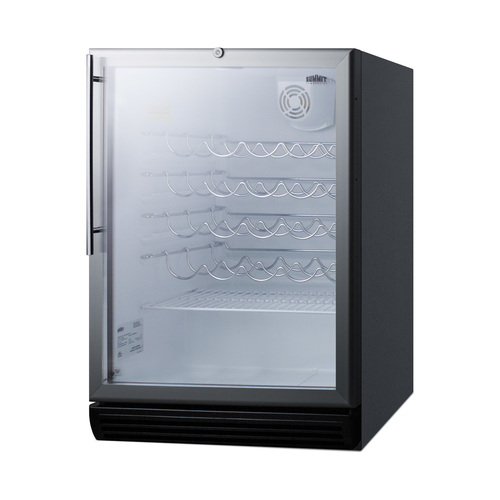

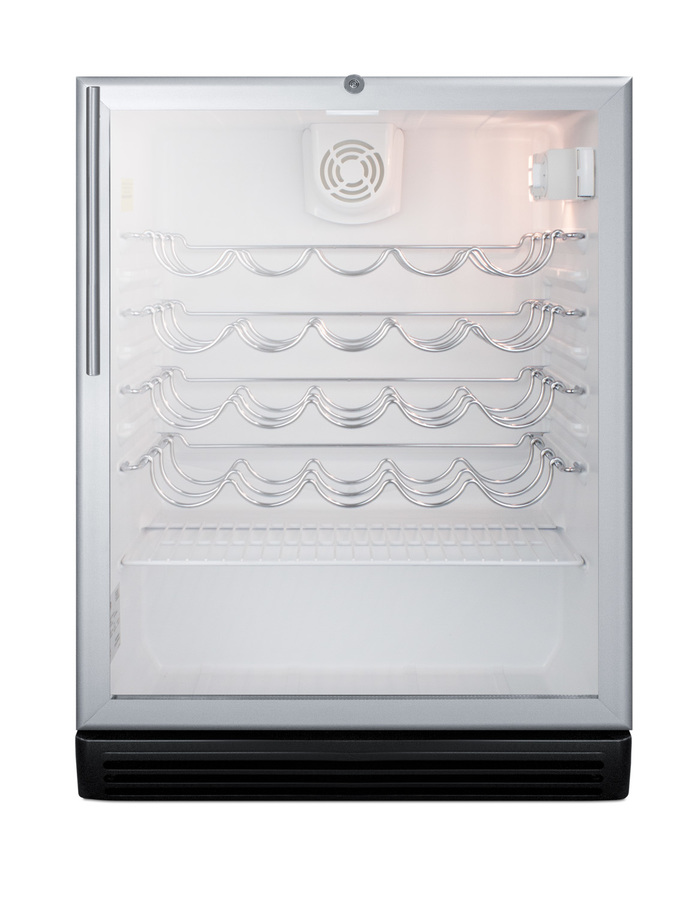

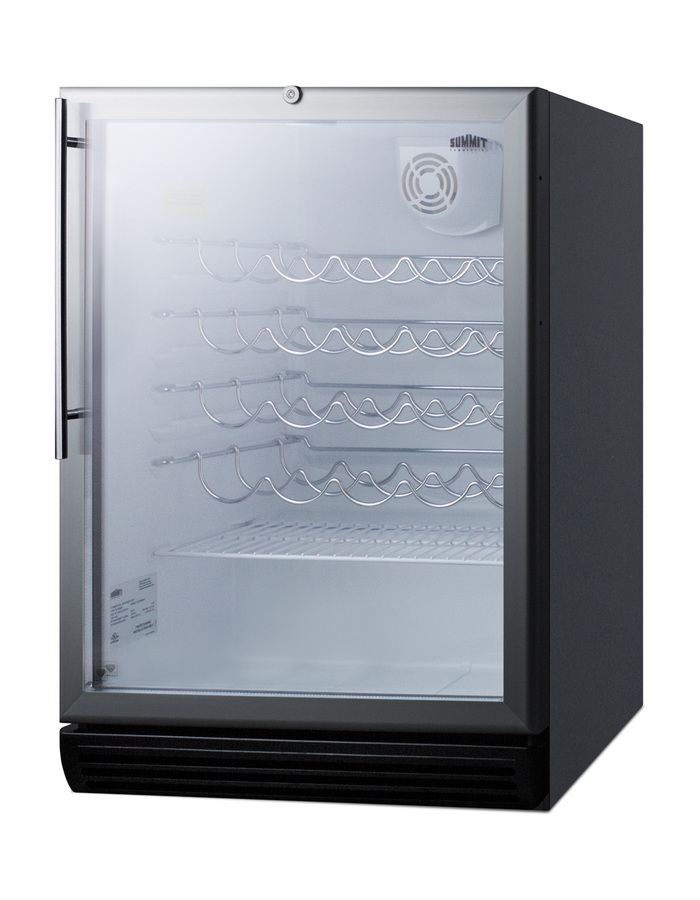

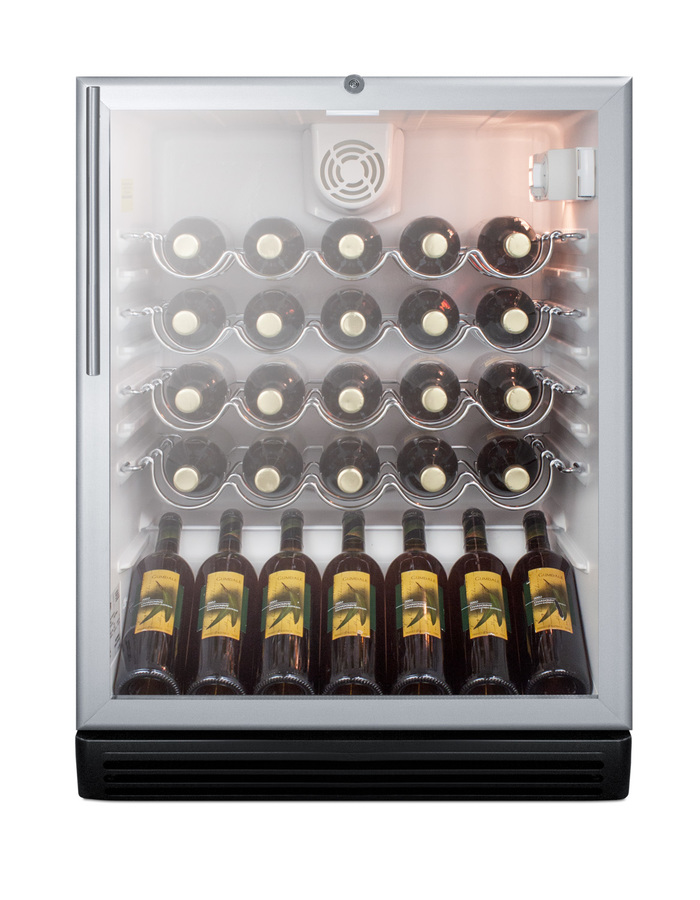

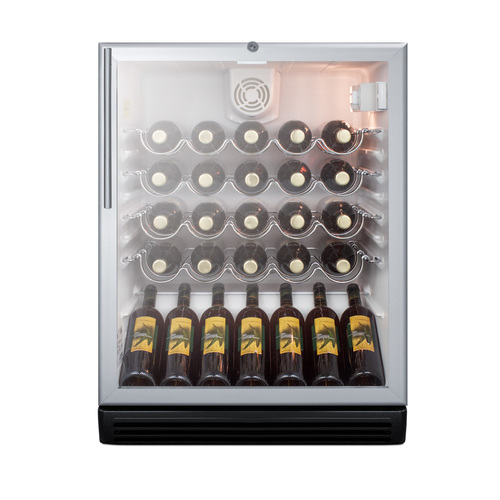

SUMMIT SWC6GBIADA series features European designed, commercially approved wine cellars capable of built-in use under lower ADA compliant counters.

The SWC6GBLBIHVADA is conveniently sized at just 24" wide, with a front-breathing design for built-in installation under counters. The fully finished jet black cabinet also allows freestanding use. This unit features a double pane tempered glass door for reliable storage. We include a professional style handle in brushed stainless steel to complete the professional look. The lock is located towards the top of the door for easier access.

Inside, the SWC6GBLBIHVADA includes adjustable scalloped shelves perfectly designed to hold bottles in place. The white interior helps to improve visibility, letting your collection stand out clearly. This unit includes an interior light with an on/off rocker switch located behind the adjustable dial thermostat.

The SWC6GBLBIHVADA is made in Europe and is ETL-S listed to NSF-7 standards for commercial use. Additional handle styles and door tint options are available.

NOTE: These models are designed primarily for white wine storage but can be upgraded with a digital thermostat to accommodate red wine temperatures.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
