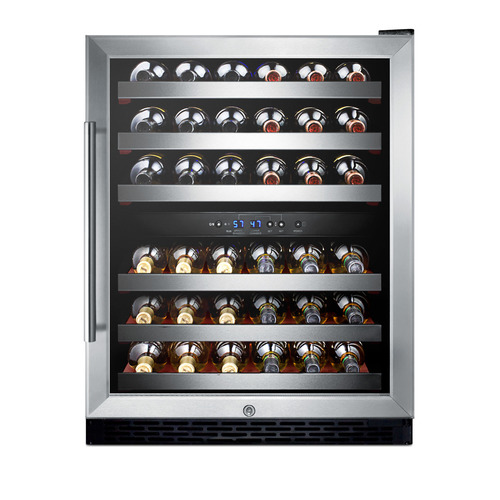

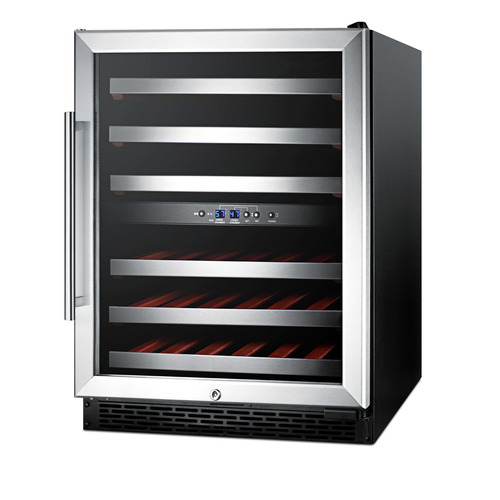

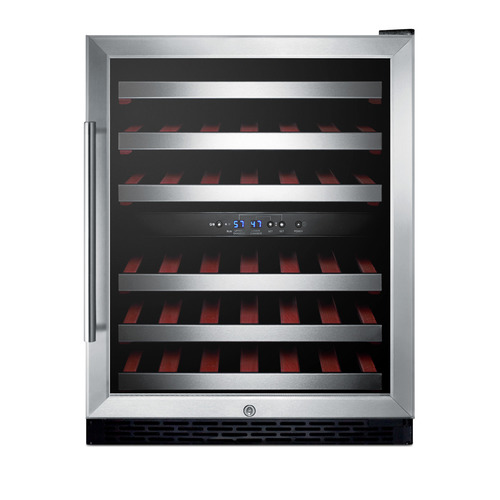

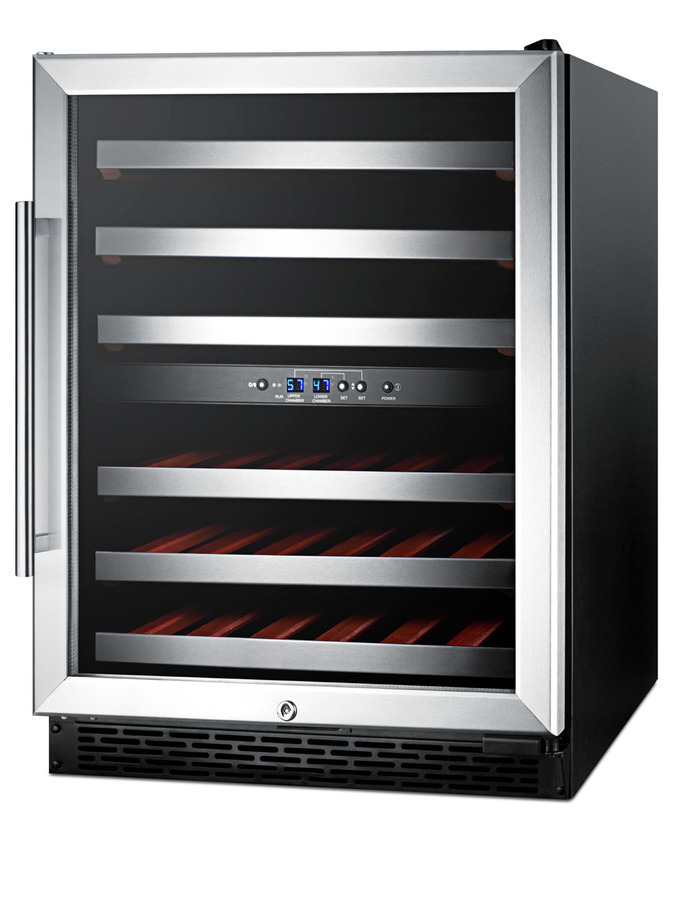

24" Wide Built-In Wine Cellar, ADA Compliant

SKU: SWC530BLBISTADA

Tints
Available with an energy saving door tint to protect the interior from natural and artificial light. Choose from four tint finishes with varying levels of visibility.

All tints reject up to 99% of UV rays. Click here to view these options and learn more about their efficiency.

Versatile shelving holds 46 750ml Bordeaux bottles or 40 Burgundy bottles

32.0" H x 23.63" W x 23.38" D

(81cm H x 60cm W x 59cm D)

OVERVIEW

  • Chill white and sparkling wine while preserving red in two distinct temperature zones
  • Easy temperature management with a digital thermostat
  • 32" height fits under lower ADA compliant counters
  • Flexible design allows built-in or freestanding use in any 24" space
  • Factory installed lock provides security you can count on
  • Slide-out wooden shelves with elegant stainless steel trim

SPECIFICATIONS

Overview
Height of Cabinet 32.0" (81 cm)
Width 23.63" (60 cm)
Depth 23.38" (59 cm)
Depth with Handle 25.0" (64 cm)
Depth with door at 90° 45.5" (116 cm)
Bottles 46 bottles
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 2.0
Voltage/Frequency 115 V AC/60 Hz
Weight 112.0 lbs. (51 kg)
Shipping Weight 117.0 lbs. (53 kg)
Estimated Time to Ship 2 to 4 days
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Wine Cellar
Number of Zones 2
Door Swing RHD
Reversible Yes
Shelf Type Wood
Shelf Qty 6
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.23 oz.
High Side PSI 150.0
Low Side PSI 50.0
Level Legs 2

AVAILABLE UPGRADES

Exterior
LHD - Left hand door swing
Door reversal to left hand swing
Extra key
Extra keys available for purchase
Door
T1 Door Tint
Tinted door in low-E mirror finish for maximum energy savings
T1S Door Tint
Reflective door tint in dark smoke finish for maximum energy savings
T2 Door Tint
Tinted door in reflective deep blue finish with high energy savings
T3 Door Tint
Reflective door tint in light blue finish for medium energy savings
T4 Door Tint
Neutral door tint in light smoke finish for moderate energy savings
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

WHERE TO BUY

Invalid Format

DESCRIPTION

Store your finest collection in the SWC530BLBISTADA, an ADA compliant built-in wine cellar with advanced features and stunning design.

Two digital thermostats allow you to chill your white wine while separately preserving red at a warmer temperature. Slide-out wooden shelves with stainless steel trim let you store up to 46 standard 750ml sized Bordeaux bottles. Alternatively, you can store up to 40 bottles of the wider Pinot Noir or Chardonnay bottles, while still fitting an additional six Bordeaux bottles. Full automatic defrost, interior lighting, and SUMMIT's own "hidden" evaporator help to keep use and maintenance simple.

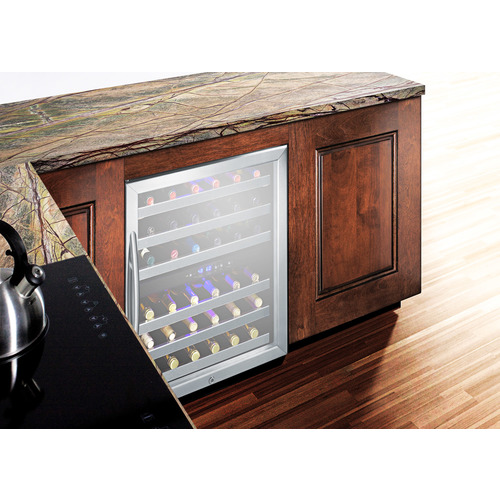

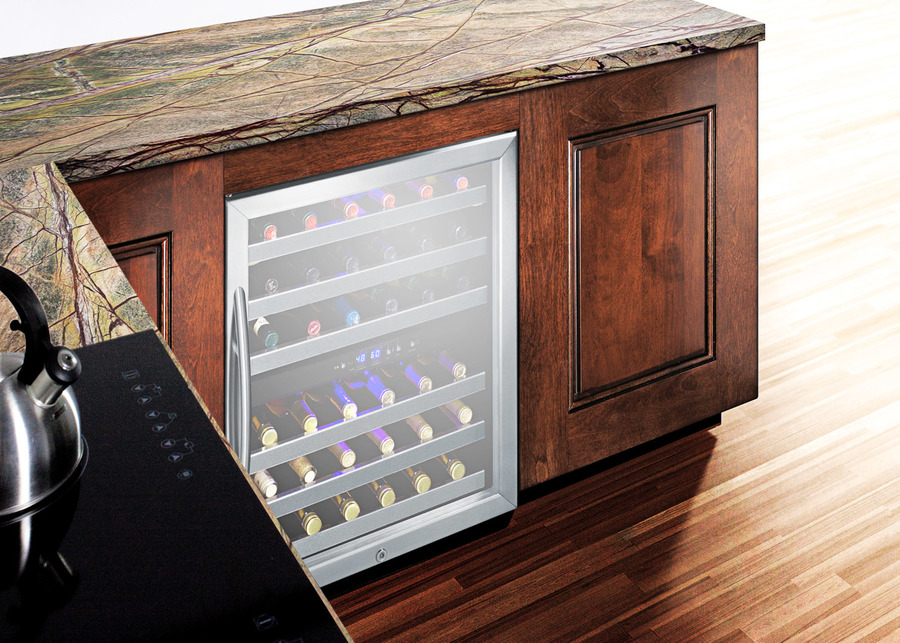

At 32" high, the SWC530BLBISTADA is designed to fit under lower ADA compliant counters. The exterior has a sleek black finish and reversible glass door to best display your collection. A professional stainless steel door handle completes the look. Fully front breathing with a flush back, this model can function as a freestanding or built-in unit in any home with a taste for modern luxury.

FEATURES

Built-in capable
Make the best use of space by installing your appliance under the counter
ADA Compliant
32" height fits under lower ADA compliant counters
Fully finished black cabinet
Allows the unit to be used freestanding

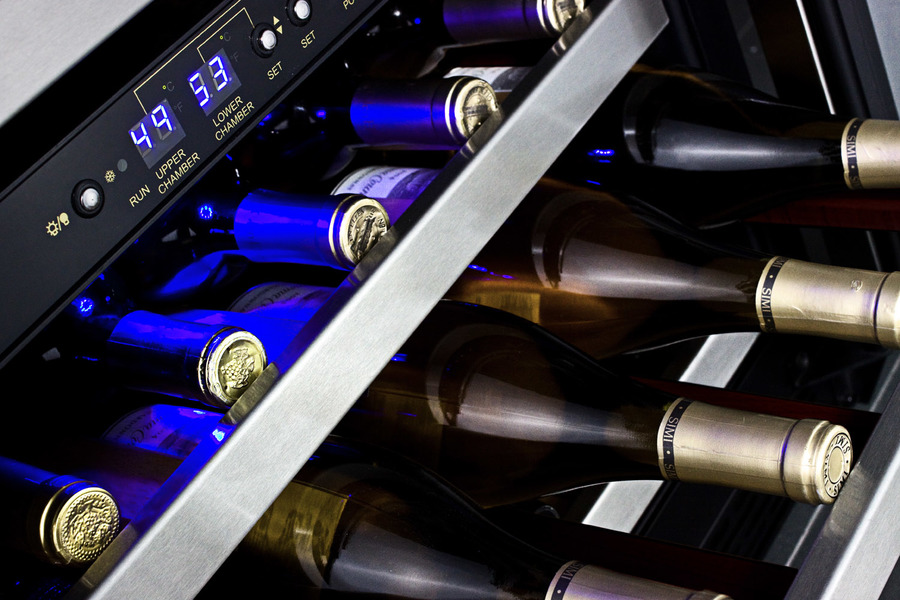

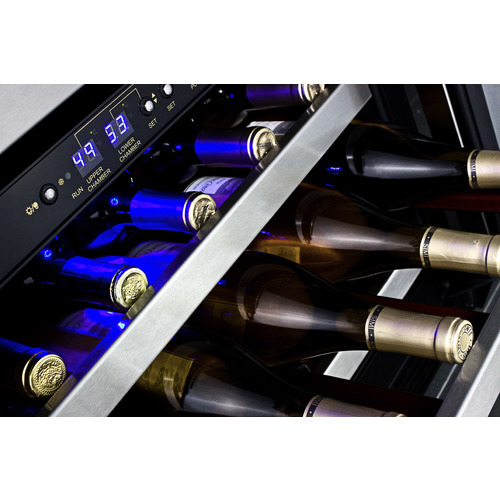

Digital thermostats
Set and adjust two temperature zones separately with easy-to-use digital controls and digital displays
Two temperature zones
Lower zone for reds has a temperature range of 10º C/50º F to 18º C/64º F; Upper zone stores whites and sparkling wine between 5º C/41º F to 10º C/50º F
Automatic defrost
Reduced maintenance with auto defrost system
Slide-out wooden shelving
Ideal for holding your bottles, with an elegant touch of stainless steel trim
Versatile shelving

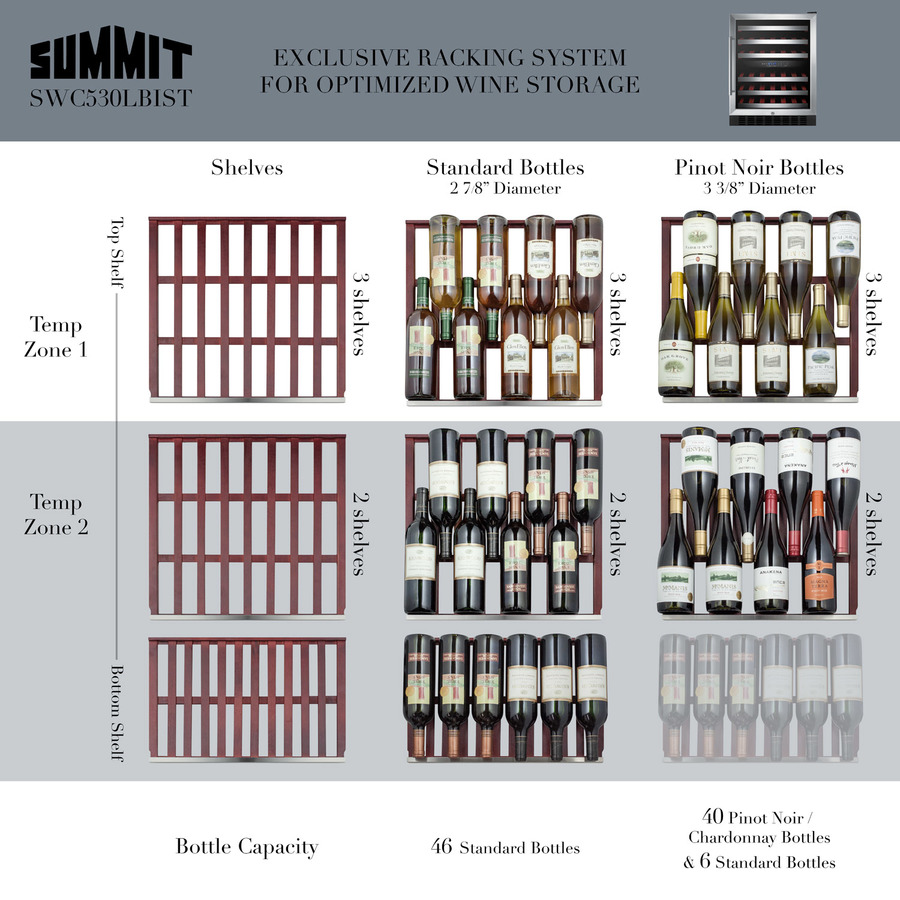

Interior can store both standard Bordeaux bottles and wider Burgundy type for Pinot Noir and Chardonnay; see your Shelving Guide for details
Stainless steel door frame
Classic trim for a refined look
Glass door
Provides a full display of your collection
Interior light
Illuminate your collection in style
Factory installed lock
Keyed lock for secure interior
Reversible door
User reversible door swing
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet 32.0" (81 cm)
Width 23.63" (60 cm)
Depth 23.38" (59 cm)
Depth with Handle 25.0" (64 cm)
Depth with door at 90° 45.5" (116 cm)
Bottles 46 bottles
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 2.0
Voltage/Frequency 115 V AC/60 Hz
Weight 112.0 lbs. (51 kg)
Shipping Weight 117.0 lbs. (53 kg)
Estimated Time to Ship 2 to 4 days
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Wine Cellar
Number of Zones 2
Door Swing RHD
Reversible Yes
Shelf Type Wood
Shelf Qty 6
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.23 oz.
High Side PSI 150.0
Low Side PSI 50.0
Level Legs 2

AVAILABLE UPGRADES

Exterior
LHD - Left hand door swing
Door reversal to left hand swing
Extra key
Extra keys available for purchase
Door
T1 Door Tint
Tinted door in low-E mirror finish for maximum energy savings
T1S Door Tint
Reflective door tint in dark smoke finish for maximum energy savings
T2 Door Tint
Tinted door in reflective deep blue finish with high energy savings
T3 Door Tint
Reflective door tint in light blue finish for medium energy savings
T4 Door Tint
Neutral door tint in light smoke finish for moderate energy savings
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
