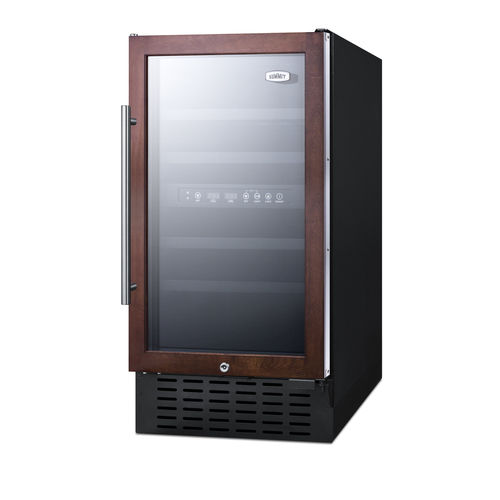

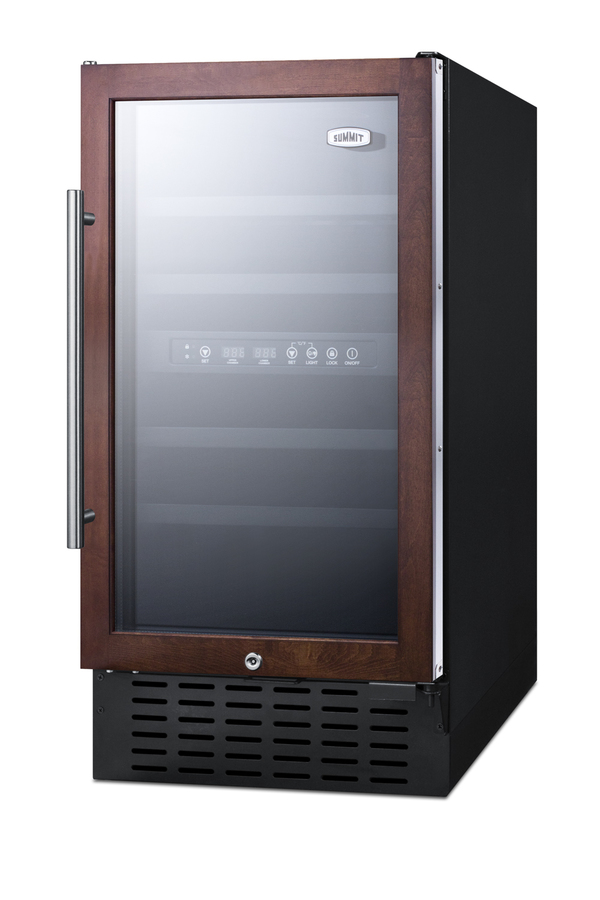

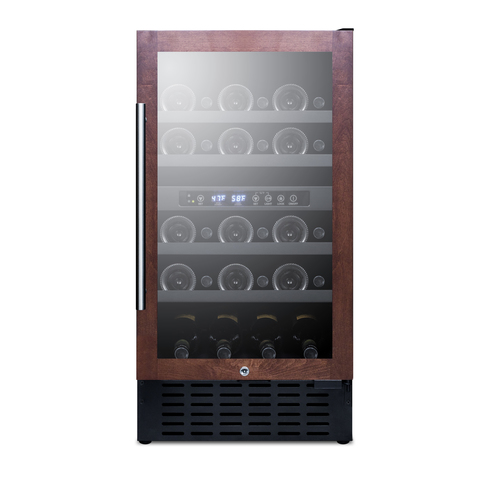

18" Wide Built-In Wine Cellar (Panel Not Included)

SKU: SWC182ZPNR
Two temperature zones for versatile storage in a uniquely slim 18" width, with panel-ready door trim for easy customization
Estimated Time to Ship:

3 to 5 days

Available with an energy saving door tint to protect the interior from natural and artificial light. Choose from four tint finishes with varying levels of visibility.

All tints reject up to 99% of UV rays. Click here to view these options and learn more about their efficiency.
This unit can be used for commercial or residential applications. It meets applicable U.S. Department of Energy (DOE) standards for both household and commercial energy usage. For information on its commercial sanitation listing, see Specifications.
34.25" H x 17.75" W x 23.5" D
(87cm H x 45cm W x 60cm D)

Overview
Height of Cabinet 34.25" (87 cm)
Width 17.75" (45 cm)
Depth 23.5" (60 cm)
Depth with door at 90° 39.75" (101 cm)
Capacity 3.3 cu.ft. (93 L)
Bottles 28 bottles
Defrost Type Automatic
Door Glass/Panel-Ready Frame
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.25
Voltage/Frequency 115 V AC/60 Hz
Weight 95.0 lbs. (43 kg)
Shipping Weight 98.0 lbs. (44 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101073736
Wine Cellar
Number of Zones 2
Door Swing RHD
Reversible Factory Reversible
Shelf Type Wood
Shelf Qty 4
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.23 oz.
High Side PSI 150.0
Low Side PSI 50.0
Interior Height 1 10.63" (27 cm)
Interior Width 1 14.25" (36 cm)
Interior Depth 1 18.0" (46 cm)
Compressor Step Height 5.25" (13 cm)
Compressor Step Width 14.25" (36 cm)
Compressor Step Depth 5.0" (13 cm)
Level Legs 4
Temperature Range 41º to 64ºF
Interior Height 2 12.25" (31 cm)
Interior Width 2 14.25" (36 cm)
Interior Depth 2 18.0" (46 cm)

Exterior
SSK - Stainless steel kickplate
Stainless steel kickplate factory installed
LHD - Left hand door swing
Door reversal to left hand swing
Door
T4 Door Tint
Neutral door tint in light smoke finish for moderate energy savings
T3 Door Tint
Reflective door tint in light blue finish for medium energy savings
T2 Door Tint
Tinted door in reflective deep blue finish with high energy savings
T1S Door Tint
Reflective door tint in dark smoke finish for maximum energy savings
T1 Door Tint
Tinted door in low-E mirror finish for maximum energy savings

Commercially Approved

ETL-S listed to NSF-7 Standards and meets UL-471 for use in commercial establishments

Dual zone storage

Keep white wine in the upper compartment stored between 41 and 50ºF and red wine at a warmer 50 to 64ºF range in the lower chamber

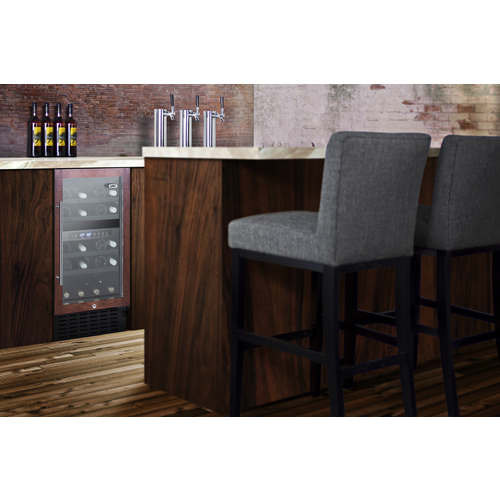

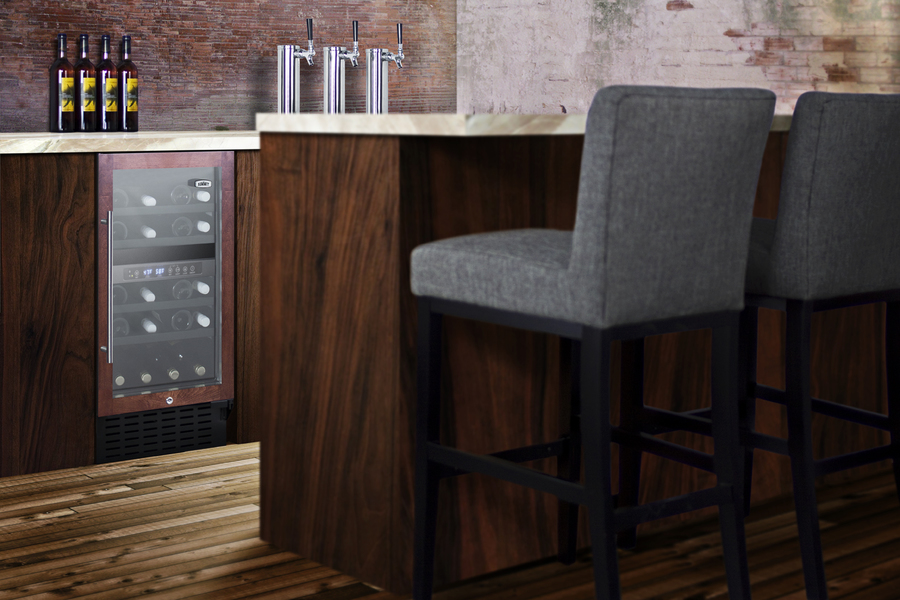

Built-in capable

Make the best use of space by installing your appliance under the counter

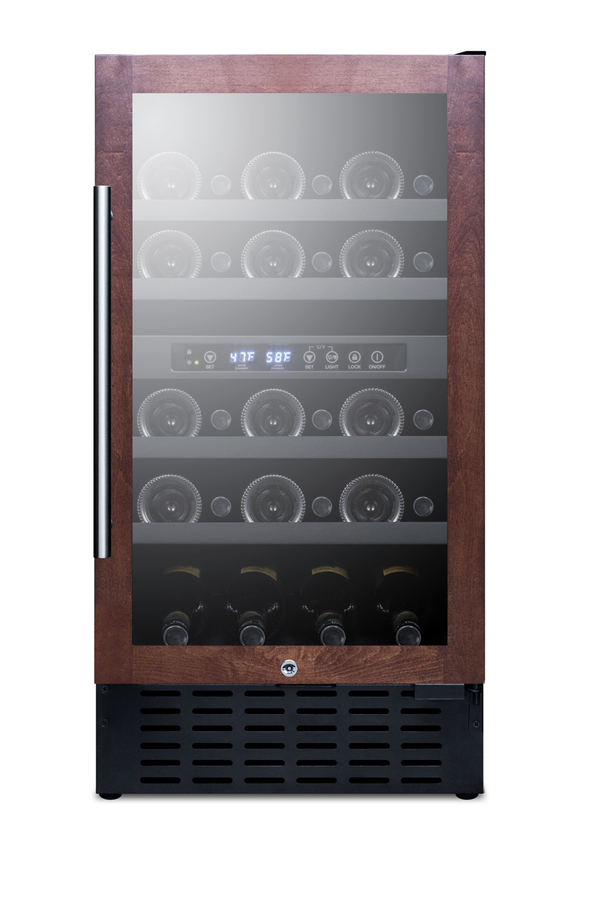

28 bottle capacity

Versatile interior can store up to 28 standard 750ml Bordeaux style or 22 wider Burgundy style bottles

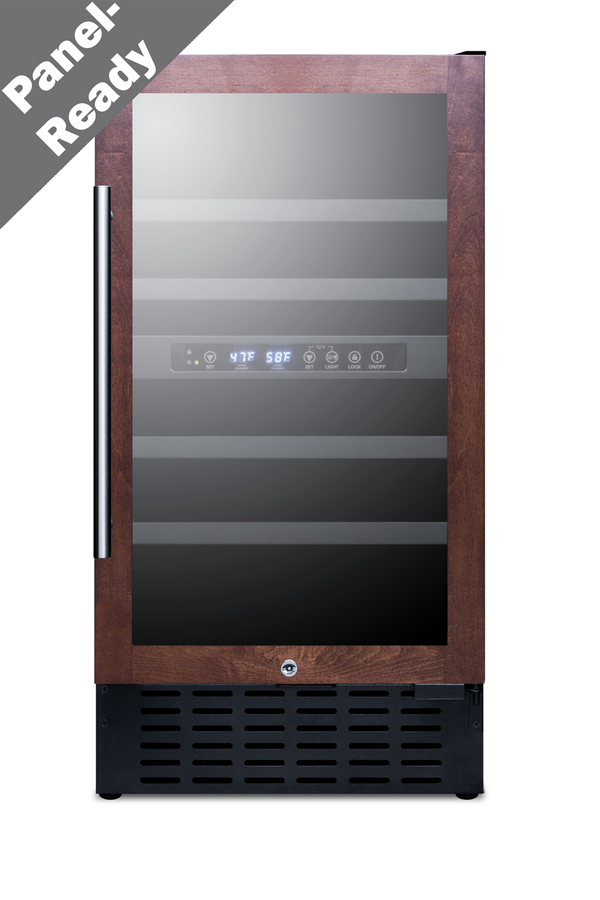

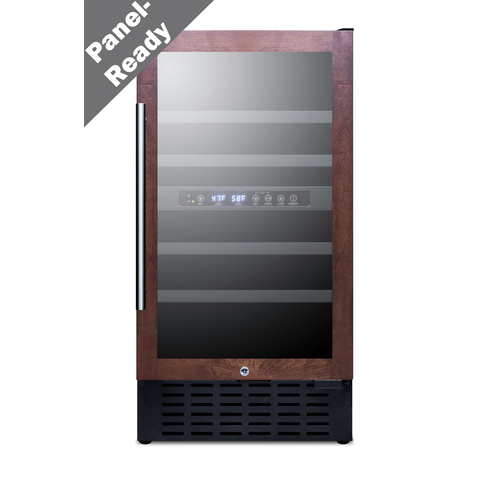

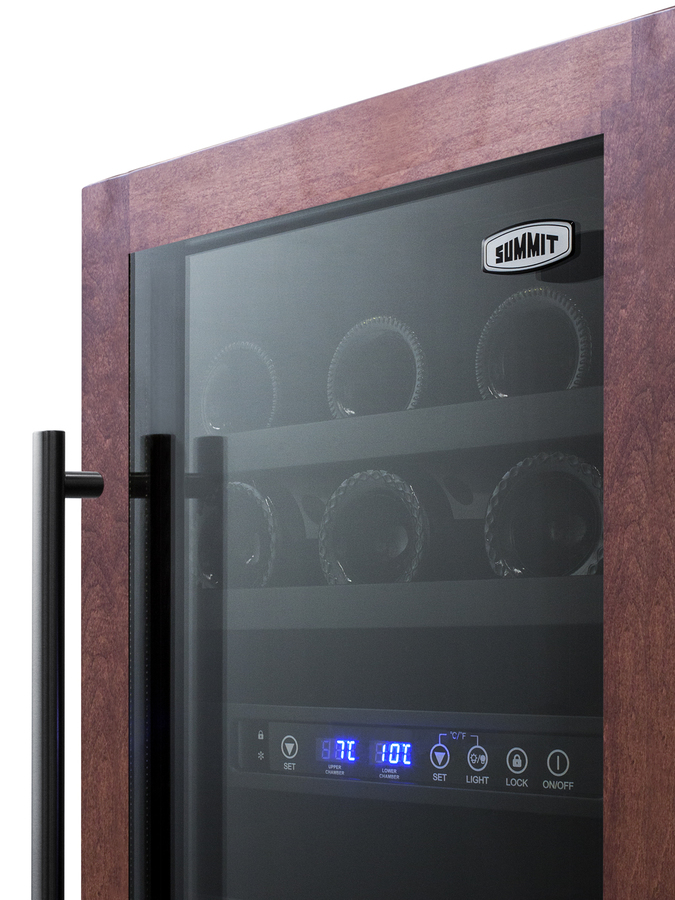

Panel-ready door trim

Door frame can be customized with a custom overlay panel (panel frame dimensions: 27 5/8" H x 17 3/8" W at 3/4" minimum thickness)

Glass door

Double pane tempered glass to provide an elegant display with added protection

Factory installed lock

Keyed lock for a secure interior, with 2 keys included

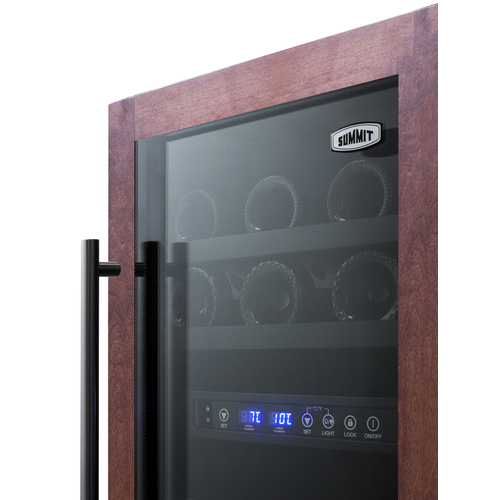

Digital thermostat

Electronic controls for precise temperature management.

Digital display

Temperature readout can be shown in Celsius or Fahrenheit

LED lighting

Gentle illumination for each temperature zone for an elegant presentation

Wooden shelves

4 wooden shelves in a painted black finish offer the perfect storage for wine bottles in a classic wooden finish

Automatic defrost

Reduced maintenance with the convenience of auto defrost

Professional handle

Stainless steel handle completes the look

Integrated door hinge

Hinge is flush with cabinet, adding no height to the unit

Fully finished black cabinet

Allows the unit to be used freestanding

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

SUMMIT's collection of built-in  wine cellars offers fully featured choices in slim fits, allowing smaller kitchens to bring convenient and reliable wine storage for every undercounter space.

Sized just under 18" wide, the SWC182ZPNR is front-breathing for built-in installation under counters, while the fully finished black cabinet also allows freestanding use. The glass door features a panel-ready stainless steel door trim that lets you customize the look to best match adjacent cabinetry (panel dimensions: 27 5/8" H x 17 3/8" W at 3/4" minimum thickness). NOTE: this unit ships with a right hand door swing. For a left hand version, add option LHD.

Two separate zones allow you to store your reds and whites at their own temperature, ensuring each bottle is kept under the proper conditions. This unit can hold up to 28 standard Bordeaux style bottles or 22 wider Burgundy-style bottles. The wooden shelves feature a black finish for a modern look, with recessed LED lighting to provide an attractive and efficient presentation. The digital controls are located in the center for easy temperature management.

With its slim fit and convenient design, the SWC182ZPNR makes an attractive addition to any room. For this unit in a 32" ADA compliant height, see the SWC182ZPNRADA.

Note: Panel is not included. The images provided are meant only to be suggestive of what the product with a wood panel installed could look like. Users must supply their own wood panel.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
