24" Wide Electric Wall Oven, 115V

SKU: SEW24115
One of the industry's only 110-120V wall ovens built for full cooking functionality with settings for bake, broil, convection, proofing, & more
DISCONTINUED

*Additional features may vary

23.5" H x 23.25" W x 22.75" D
(60cm H x 59cm W x 58cm D)

Overview
Height of Cabinet 23.5" (60 cm)
Width 23.25" (59 cm)
Depth 22.75" (58 cm)
Depth with Handle 24.25" (62 cm)
Depth with door at 90° 40.0" (102 cm)
Capacity 2.7 cu.ft. (76 L)
Door Black Glass
US Electrical Safety ETL
Amps 20.0
Voltage/Frequency 115 V AC/60 Hz
Weight 93.0 lbs. (42 kg)
Parts & Labor Warranty 1 Year
UPC 761101086699
Electric Walloven
Controls Digital
Oven Light Yes
Cooking Timer Yes
Digital Clock Yes
Cleaning Type Steam
Oven Rack Qty 2
Oven Window Yes
Interior Height 13.5" (34 cm)
Interior Width 18.0" (46 cm)
Interior Depth 16.5" (42 cm)
Cutout Height 23.18" (59 cm)
Cutout Width 22.18" (56 cm)
Cutout Depth 25.0" (64 cm)
Power Source 115V
Sabbath Mode Yes

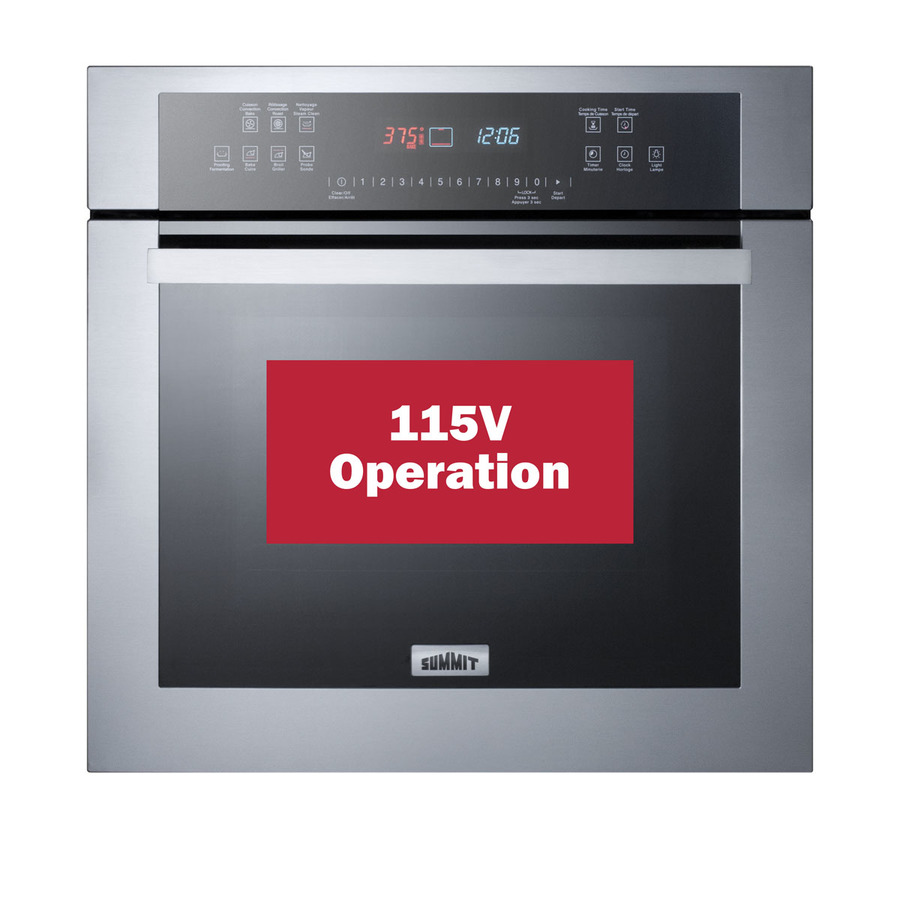

110-120V Operation

Designed for professional installation in 115V/60Hz/20 amp connections

24" size

Sized to fit 23 3/16" H x 22 3/16" W cutouts

Large capacity

2.7 cu.ft. oven interior offers more capacity than most other units in this size class

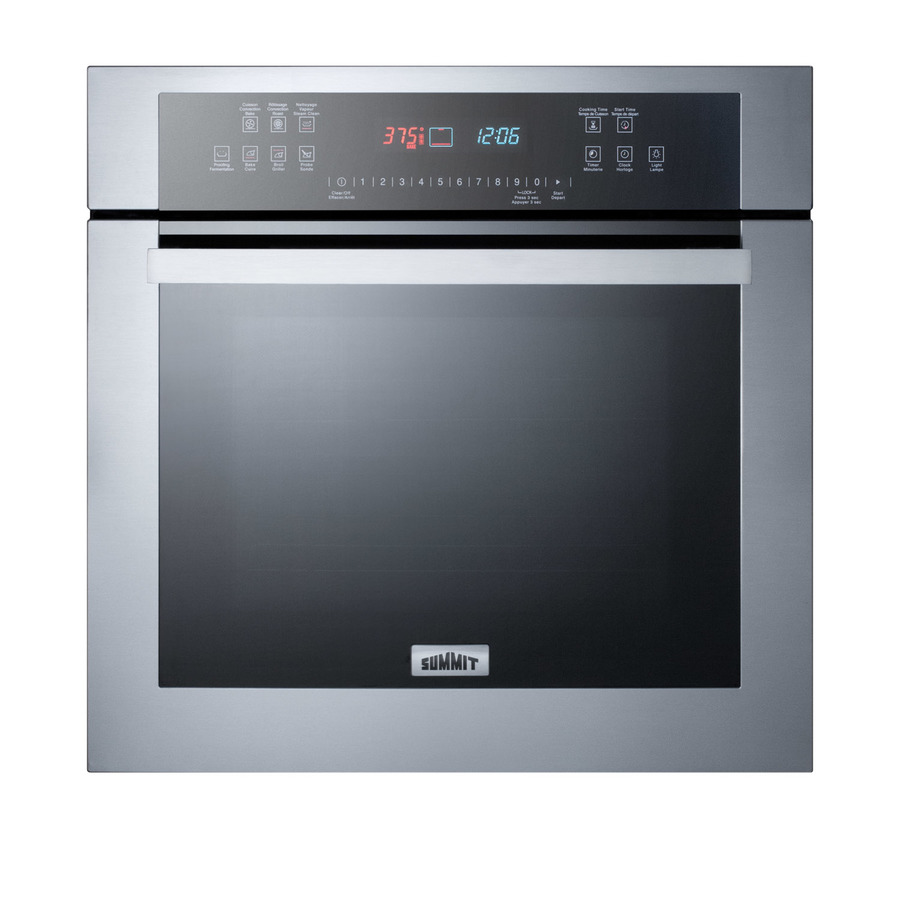

Stainless steel finish

Door and control panel feature a stainless steel trim for an attractive, modern look

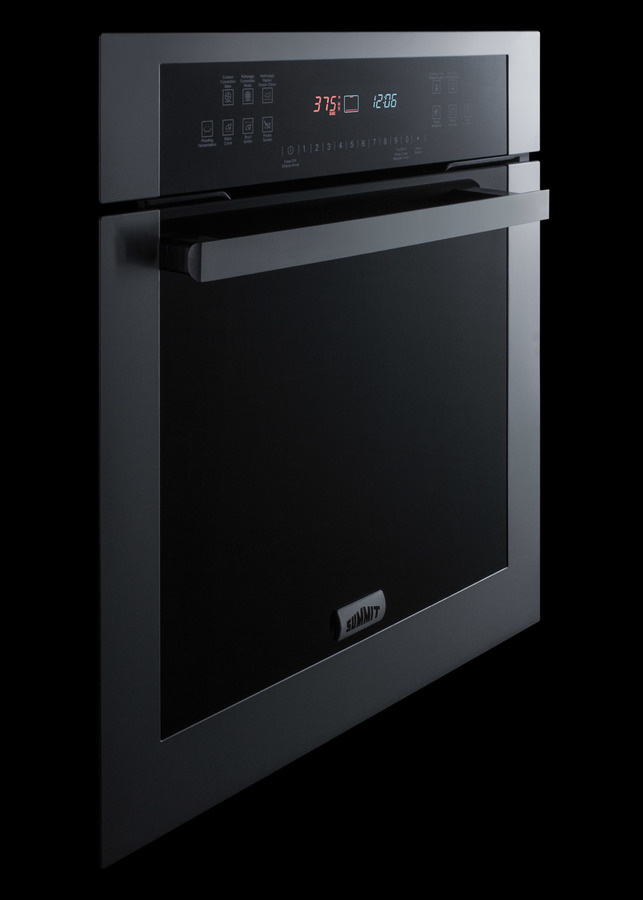

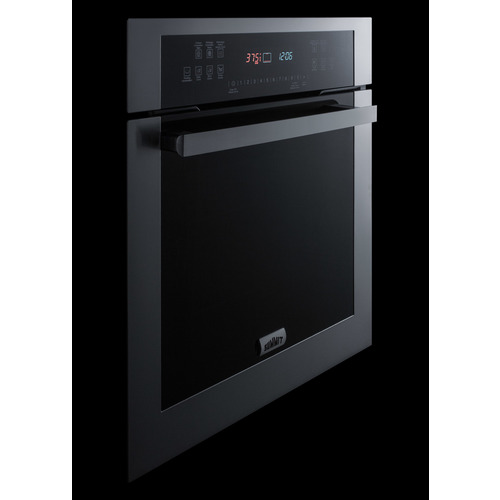

Black glass door

Large oven door in sleek black finish

Porcelain construction

Oven interior features solid porcelain construction for long-lasting durability and easy cleaning

Professional handle

Easy-to-grab handle in a brushed steel look

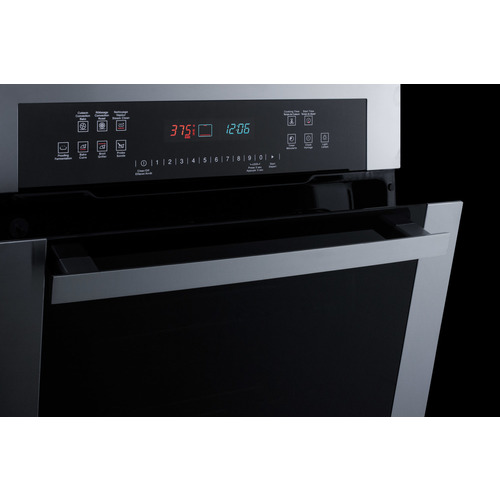

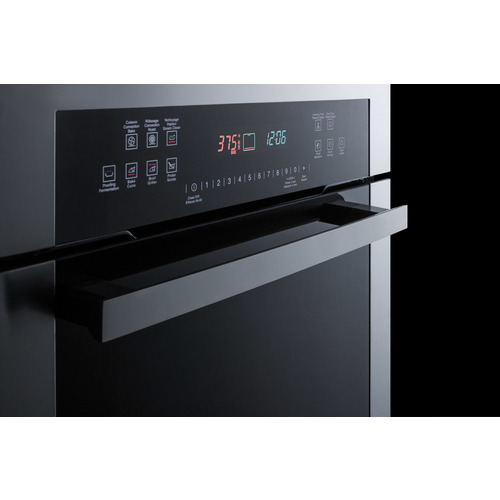

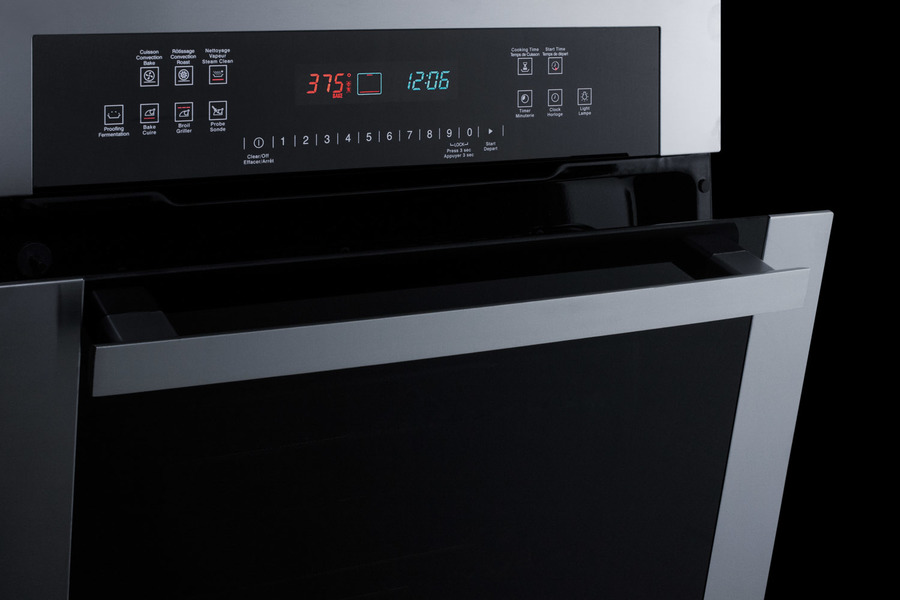

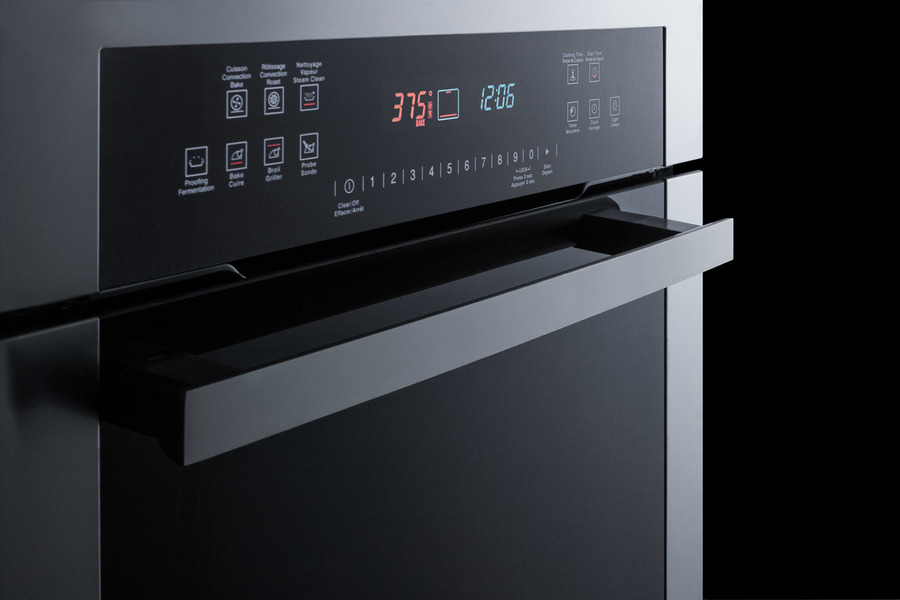

Touch control panel

Digital controls offer easy and intuitive cooking

Steam clean function

Easy-to-use function for faster, more efficient cleaning of the porcelain interior

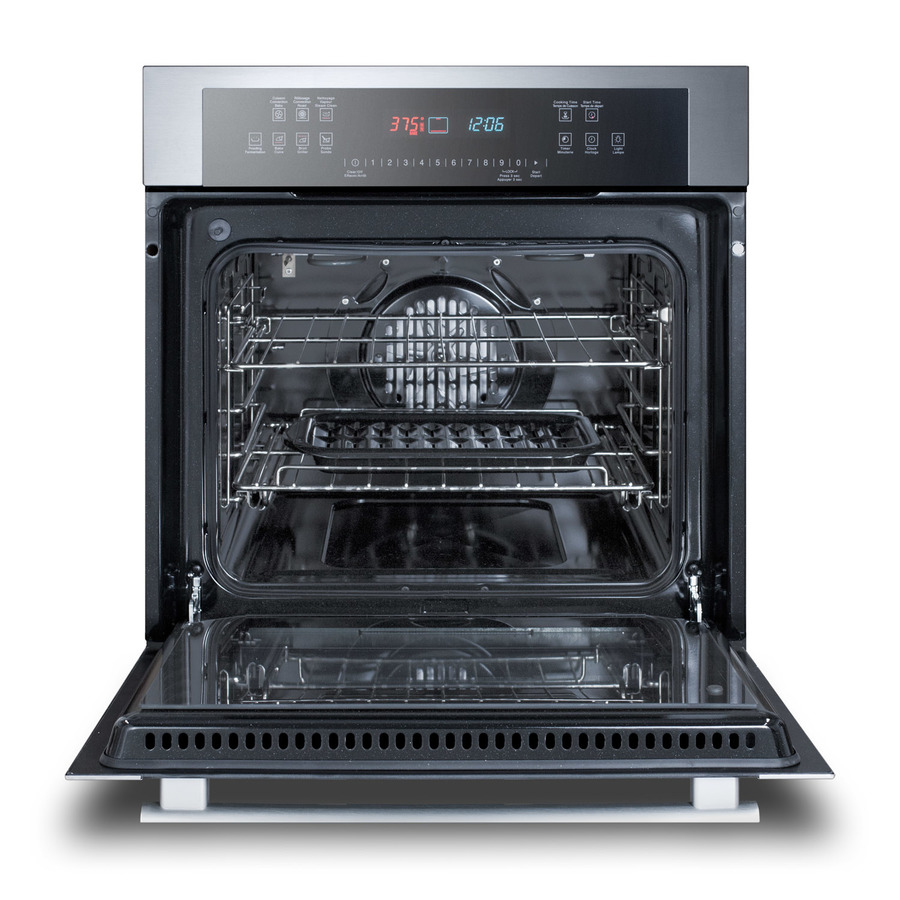

Adjustable racks with safety brakes

Five positions let you adjust to best accommodate your cooking

Convection function

Convection fan can be used with both the bake and roast functions for a more even cooking performance

Proofing setting

Perfect for baking bread, the proofing function lets you maintain a warm environment for rising yeast-leavened products

Digital clock and timer

Display can be shown in standard 12-hour format or in 24-hour military time

Versatile temperature display

Temperature will be shown in Fahrenheit, but can be switched to Celsius through the control panel

Delayed start function

Enjoy more efficient meal planning by programming the oven to cook at a certain time of day

Meat probe included

Probe can be used to safely gauge the internal temperature of your meat, and can be connected to the oven so the temperature displays on the control panel

Automatic shutoff

For added safety, the oven will automatically turn off if the bake function is left on for 12 hours or the broil function is left on for 3 hours. This feature can be disabled if needed

Control lockout

The control panel can be locked from use to prevent unsupervised access

Audible end of cycle alert

Oven will beep when timer has finished

Oven light

Automatically illuminates when the oven door is open for easier cooking

Sabbath mode

Optional setting can be used for baking and roasting during periods of observance (NOTE: The oven light comes on automatically when the door is opened. In order to disable this function, the bulb may be removed. Consult your user manual for more information)

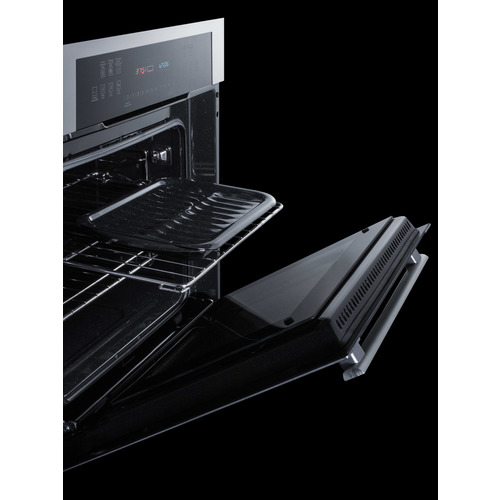

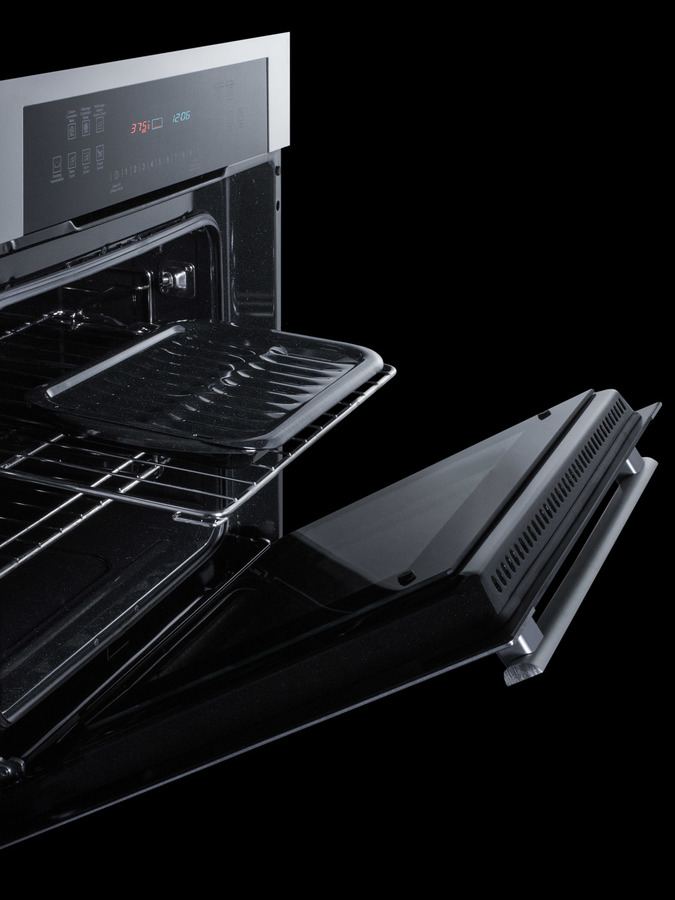

Broiler pan included

Two-piece porcelain broiler tray with lid

ADA compliant

When installed in accordance with section 804.6 of the ADA Standards for Accessible Design, this unit is ADA compliant

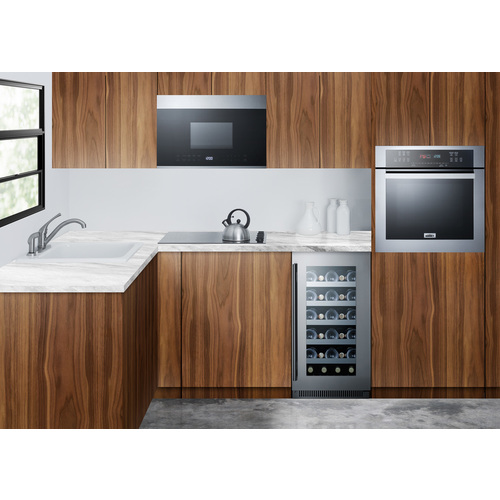

Summit brings endless possibility to small kitchen spaces with one of the industry's only 24 inch wall ovens designed to work with 110-120V connections.

Made in North America, the SEW24115 is a 115V electric wall oven designed for built-in installation in 23 3/16" H x 22 3/16" W x 25" D cutouts. Brushed stainless steel trim and a black glass window and control panel create a modern look, with a professional handle for added style. This unit requires professional installation and a dedicated 20 amp circuit. The user-friendly design allows use in ADA compliant kitchens if the unit is installed in compliance with ADA guidelines.

The generous 2.7 cu.ft. interior offers plenty of capacity for cooking family meals, with two heavy duty gliding racks with safety brakes that can be adjusted to five different positions to best accommodate a range of sizes. We include a two-piece broiler tray with lid for added convenience, as well as a meat probe that can be plugged into the oven and programmed and monitored through the oven's own control panel. A steam clean function offers a more efficient, safer method of keeping the porcelain interior clean over traditional self-cleaning settings.

The SEW24115 offers a range of heating functions to cover virtually all of your cooking needs. The digital control panel is easy to program, with specialty settings for baking, broiling, convection baking, and convection roasting. The proofing setting is perfect for using lower heat to activate yeast when making bread. Touch controls let you set the time and heat levels as you need. An audible timer sounds to alert when your program is finished. Safety features include an automatic shutdown (12 hours for bake function, 3 for broil), which can be disabled if needed. Additional programming options allow you to set a child lock or control lockout. There is also a Sabbath mode that can be used with the baking and roasting functions.

All controls are shown in English and Spanish. Temperature is set to Fahrenheit but can be displayed in Celsius in a few simple steps. This unit includes a digital display of the time (standard 12-hour or military 24-hour), oven temperature, and which mode the oven is in. The display can be blacked out if you prefer to disable all lighting.

With its easy-fitting size, versatile cooking options, and convenient 115V operation, the SEW24115 lets you enjoy all the functionality of a traditional wall oven. Perfect for tiny homes, second kitchens, ADUs, mobile housing, and other non-traditional settings looking for the full kitchen experience in a 110-120V setup.

Download
BROCHURE w/ DRAWINGS
SEW24115.pdf
Download
TECHNICAL DRAWING (.dwg)
SEW24115.dwg

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
