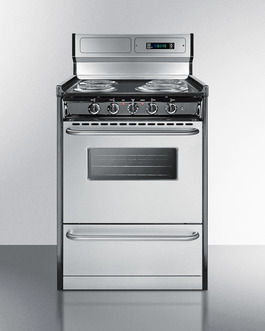

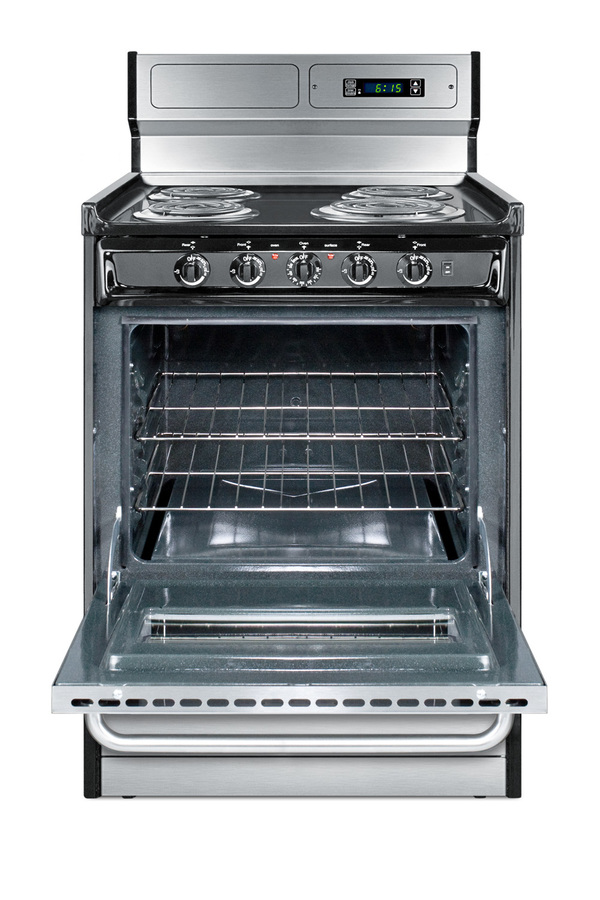

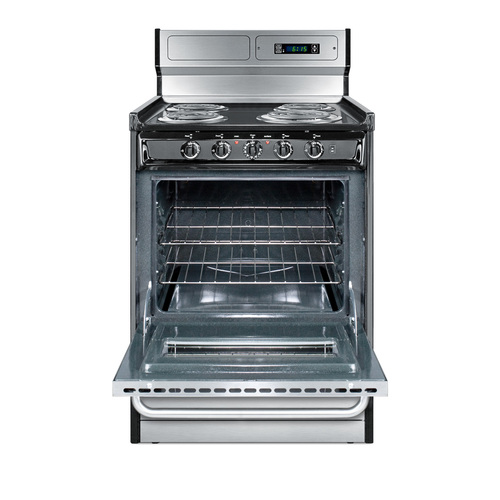

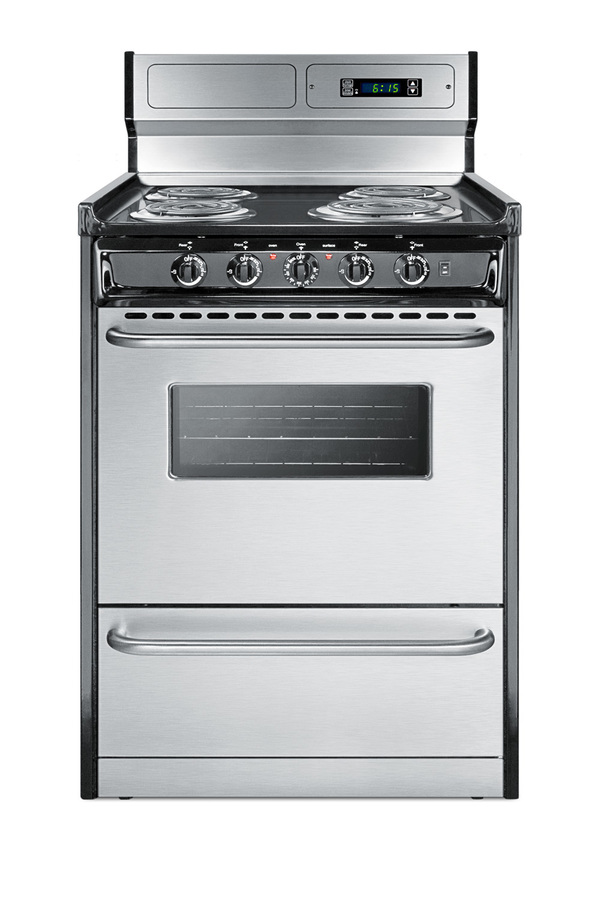

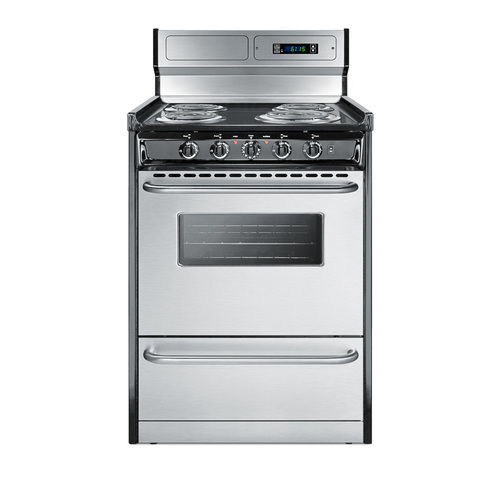

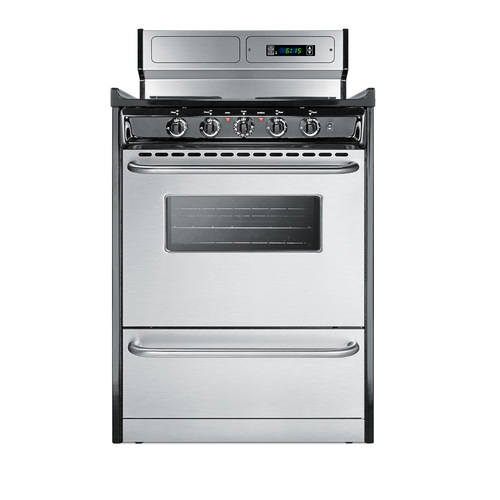

24" Wide Electric Coil Range

SKU: TEM630BKWY
Made in the USA
Estimated Time to Ship:

Next day shipping; multi-piece orders may extend lead time. Call 718-893-3900 ext. 507 to discuss

Color: Stainless Steel

*Additional features may vary

This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.
44.0" H x 24.0" W x 24.0" D
(112cm H x 61cm W x 61cm D)

Overview
Height of Cabinet 44.0" (112 cm)
Width 24.0" (61 cm)
Depth 24.0" (61 cm)
Door Stainless Steel
Cabinet Black
Voltage/Frequency 220 V AC/60 Hz
Weight 135.0 lbs. (61 kg)
Parts & Labor Warranty 1 Year
UPC 761101005027
Electric Range
Oven Capacity 2.92 cu.ft. (83 L)
Cooktop Surface Porcelain
Element Type Coils
Number of Elements 4
Element #1 Size 6.0" (15 cm)
Element #1 Wattage 1500.0
Element #2 Size 6.0" (15 cm)
Element #2 Wattage 1500.0
Element #3 Size 6.0" (15 cm)
Element #3 Wattage 1500.0
Element #4 Size 8.0" (20 cm)
Element #4 Wattage 2400.0
Burner Controls Dial
Oven Controls Dial
Oven Light Yes
Cooking Timer Yes
Backguard Yes
Backguard Display Yes
Oven Rack Qty 2
Oven Window Yes
Oven Interior Height 14.0" (36 cm)
Oven Interior Width 19.0" (48 cm)
Oven Interior Depth 19.0" (48 cm)
Storage Compartment Yes
Broiler Location Inside Oven

Exterior
RangeCord3P - Installed 3-pronged cord
3-pronged NEMA 10-50P cord installed on stove
RangeCord4P - Installed 4-pronged cord
4-pronged NEMA 14-50P cord installed on stove
Interior
Canadian Range Conversion
Range is modified at factory to meet CSA-C standards

Made in the USA

Designed and constructed domestically

Slim 24 inch width

Apartment-sized width offers all the functionality you need in a smaller footprint

24 inch depth

Shallower fit is ideal for L-shaped and galley kitchens

Stainless steel finish

Doors and backguard are constructed from brushed stainless steel for modern luxury built to last

Professional towel bar handles

Curved handles in brushed stainless steel offer an easier grip in attractive style

Storage compartment

Bottom drop-down compartment is ideal for storing cookware, helping to free up space in your small kitchen

Four coil elements

Three standard 6" and one large 8" element

Meets UL-858

Designed to comply with the latest UL safety standards, the elements include a sensor that will cycle the element off and on if it reaches flashpoint temperature

Chrome drip pans

Each coil element includes a removable chrome pan for easier cleaning

Oven window and interior lighting

Door includes a window and exterior on/off rocker light switch, making it easier to monitor your cooking without opening the door

Waist-high broiler

Broiler is located inside the oven, eliminating the need to transfer contents to a separate compartment towards the floor

Adjustable oven racks

Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes

Porcelain and steel construction

Solid construction built to hold up to everyday use

Recessed oven door

Smart design limits the depth and protects adjacent cabinets

Upfront oven/burner controls

All knobs are located in the front of the range, letting you adjust your heating without reaching over hot burners

Deluxe backguard

8" high backguard helps to protect your walls from spills and splashes

Digital clock and timer

Backguard includes clock and timer for added convenience

Push-to-turn knobs

Burner knobs require a small amount of force to turn on for added protection against accidents; oven knob is not push-to-turn

Indicator lights

Control panel includes an 'on' light for the oven and burners for added safety when using the range

Removable oven door and range top

Allows for easier cleaning as needed

Broiler pan included

Two-piece porcelain broiler tray with grease well

Anti-tip bracket

Included for user installation to help prevent tipping

Cord not included

Compatible with standard 40 amp 3 or 4-wire range cords

ADA compliant design

Upfront controls and easy-to-operate knobs offer easier accessibility that complies with the Americans for Disabilities Act (ADA) guidelines

Summit Appliance offers a wide selection of American-made household ranges built for long-lasting durability in space-challenged kitchens.

The TEM630BKWY is an apartment-sized 220V electric range sized at just 24" wide, with a generous 2.92 cu.ft oven interior that can accommodate large trays. The oven window and interior light with an on/off switch make it easy to monitor your cooking without opening the door. Two adjustable oven racks are included. The waist-high broiler is located inside the oven, allowing you to switch functions without moving contents to a separate compartment on the floor. The lower drop-down storage compartment is ideal for keeping pots and pans out of the way in small kitchens.

Designed to meet the most current UL-858 safety standards, this unit features one 8" 2400W and three 6" 1500W coil elements with a safety sensor that will cycle the element off before reaching dangerous flashpoint temperatures. Heating resumes automatically. Upfront push-to-turn knobs offer additional protection, ensuring users won't reach over hot burners to adjust the heat. This unit complies with ADA guidelines.

Stainless steel doors feature professional style towel bar handles, bringing classic elegance to smaller kitchen spaces.The deluxe 8" high backguard includes a digital clock and timer for added convenience when cooking. This unit has a recessed oven door and is conveniently sized at just 24" deep for a better fit in galley in L-shaped kitchens, where every inch counts. We include an anti-tip bracket for added safety. This unit does not include a line cord (a standard 40 amp 3 or 4-prong cord can be installed by your electrician).

With its classic style and quality construction, Summit's made in the USA cooking line offers reliable cooking for smaller homes. Additional choices are available in 20", 30", and 36" wide fits.


Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
