CLRE24WH

Delivery 9240a3e8870753a2ec143c34af2b405742ae73bfeb126dd29f201daa25ab8f11

This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.

Made in Europe with a smooth ceramic cooking surface for safer cooking

35.25" H x 23.5" W x 24.13" D

(90cm H x 60cm W x 61cm D)

OVERVIEW

Smooth ceramic glass cooking surface ensures easy cleanup and safer cooking
24" fit is ideal for smaller homes
Lower slide-out storage drawer lets you maximize your kitchen space
Large oven window with light makes it easy to monitor your cooking without opening the door
Slide-in look allows easy integration into your kitchen design
Waist-high broiler lets you bake and broil with ease
ADA compliant design for easier accessibility
Made in Europe

SPECIFICATIONS

Overview
Height of Cabinet	35.25" (90 cm)
Width	23.5" (60 cm)
Depth	24.13" (61 cm)
Depth with Handle	26.13" (66 cm)
Depth with door at 90°	41.25" (105 cm)
Door	White/Black
Cabinet	White
US Electrical Safety	UL
Amps	40.0
Voltage/Frequency	220 V AC/60 Hz
Weight	135.0 lbs. (61 kg)
Shipping Weight	140.0 lbs. (64 kg)
Parts & Labor Warranty	1 Year
Electric Range
Oven Capacity	2.4 cu.ft. (68 L)
Cooktop Surface	Glass
Element Type	Glasstop
Number of Elements	4
Element #1 Size	6.0" (15 cm)
Element #1 Wattage	1200.0
Element #2 Size	7.5" (19 cm)
Element #2 Wattage	1800.0
Element #3 Size	6.0" (15 cm)
Element #3 Wattage	1200.0
Element #4 Size	7.5" (19 cm)
Element #4 Wattage	1800.0
Burner Controls	Dial
Oven Controls	Dial
Oven Light	Yes
Cleaning Type	Manual
Oven Rack Qty	2
Oven Window	Yes
Oven Interior Height	14.0" (36 cm)
Oven Interior Width	18.5" (47 cm)
Oven Interior Depth	17.25" (44 cm)
Power Source	220V
Storage Compartment	Yes
Broiler Location	Inside Oven

California residents:

click here for information on Proposition 65

Due to our commitment to continuous product improvement, all specifications are subject to change without notice

WHERE TO BUY

DESCRIPTION

The Summit Classic Collection features deluxe appliances designed to bring modern luxury into the home.

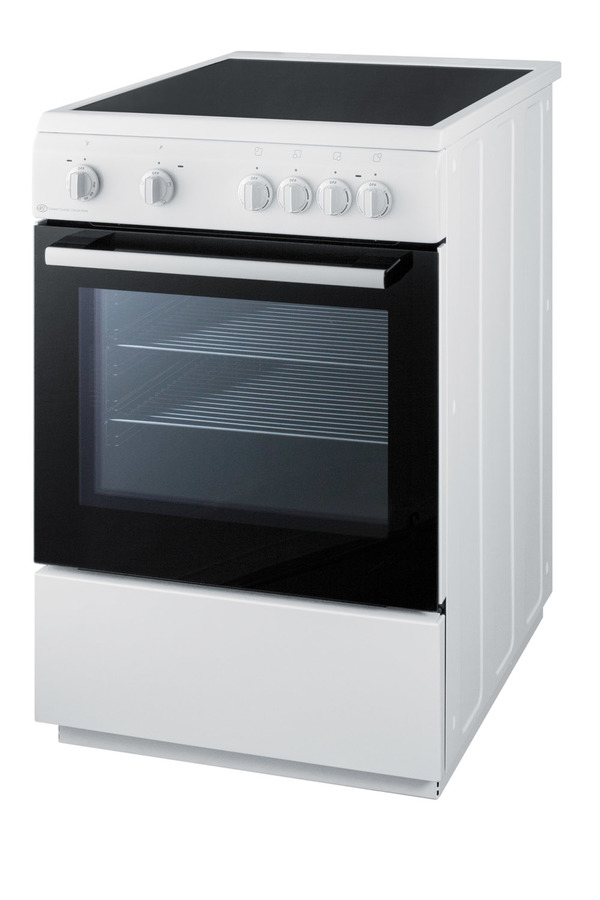

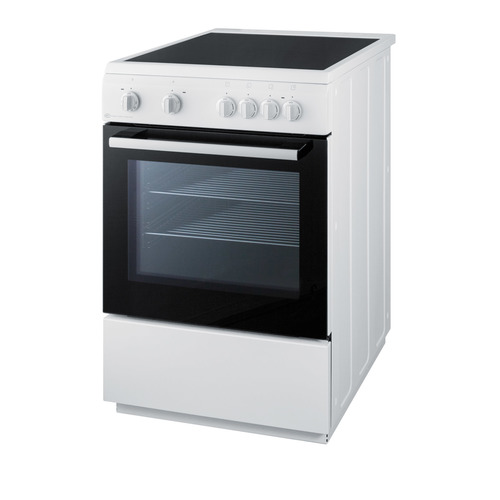

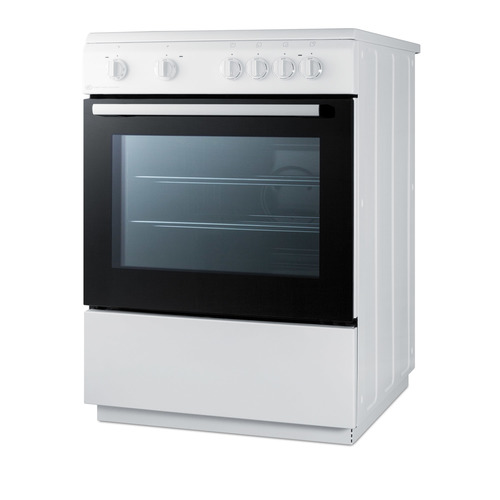

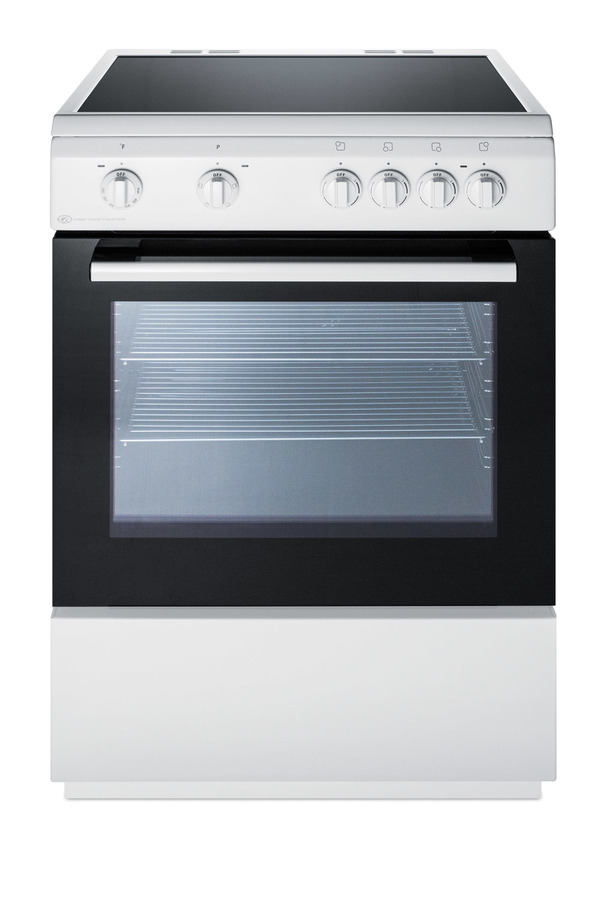

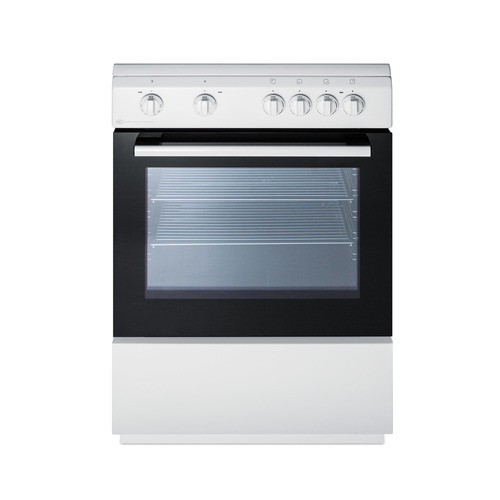

Made in Europe, the CLRE24WH is a 24" wide 220V electric range with a smooth Schott ceramic glass surface for safer heating with easy cleanup. Two 7.5" burners and two 6" burners accommodate a variety of cookware sizes. All push-to-turn cooking controls are located upfront, eliminating the danger of reaching across the cooktop surface. Indicator lights illuminate when the burners and oven are on for added kitchen safety. This unit features a 'slide-in' look without a backguard, ideal for integrating the stove into your own wall or backsplash design.

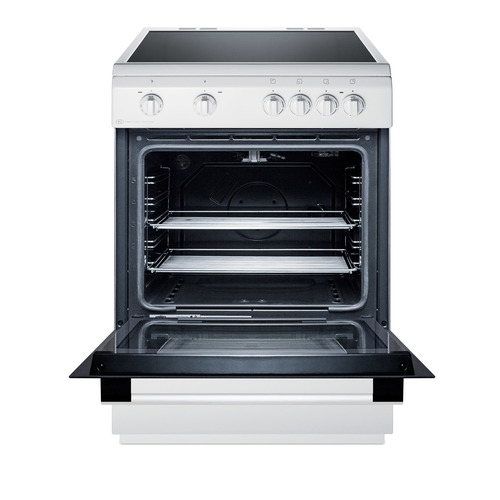

The large oven window provides a full view of your cooking, with an interior light that automatically turns on with the oven. The oven door is constructed from sleek black glass for a modern look, with a clean white finish on the cabinet, storage drawer, and manifold. Inside, the 2.4 cu.ft. interior includes two sliding wire racks with five positions to let you fit various dish sizes. Cooking settings include a low and high broil option, as well as a bottom heat function ideal for certain applications. This unit's accessible design meets ADA guidelines.

With its elegant design and user-friendly features, the CLRE24WH makes a stunning addition to any home kitchen.

FEATURES

24" width
Perfectly sized for apartments and smaller home kitchens

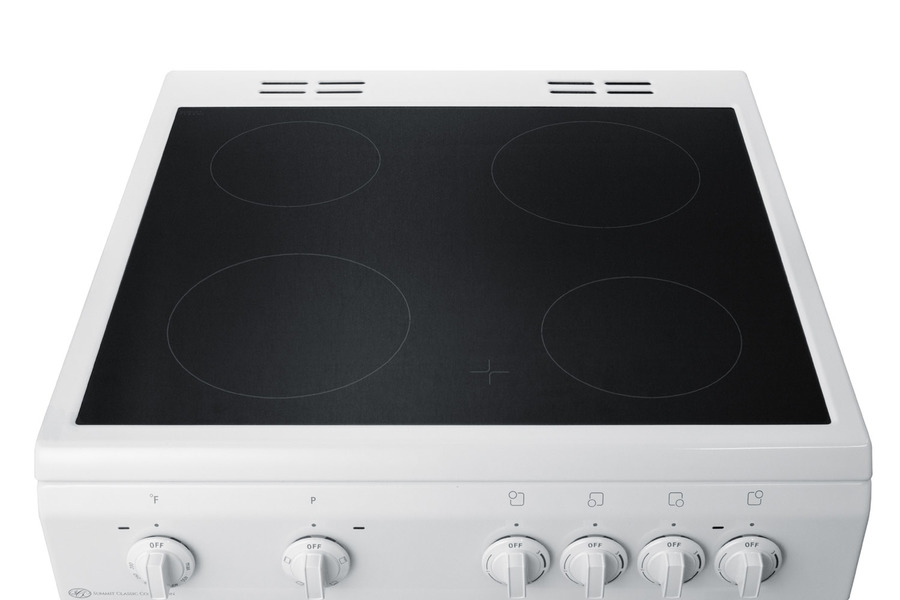

Smooth ceramic glass top
Smooth cooking surface made from Schott® ceramic glass ensures improved safety and easy cleaning

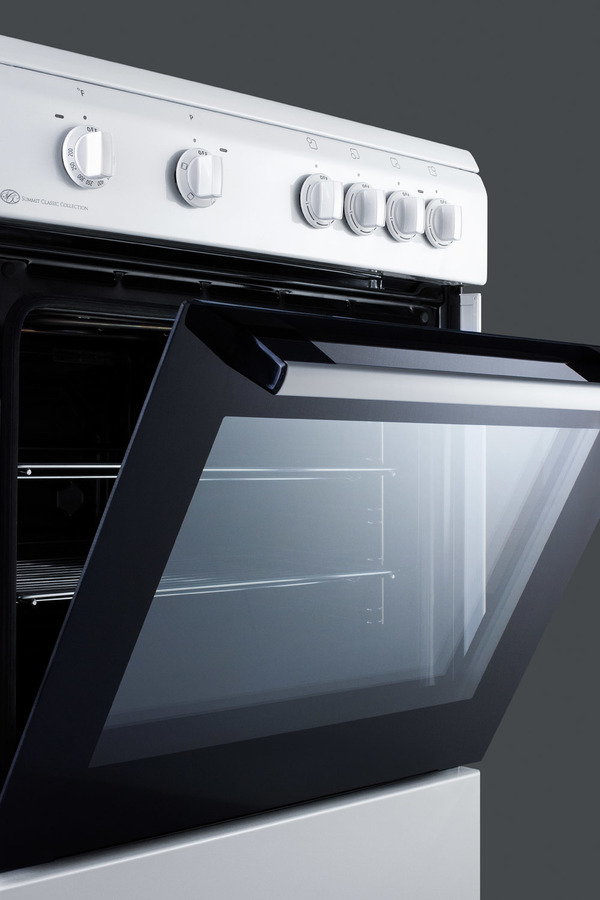

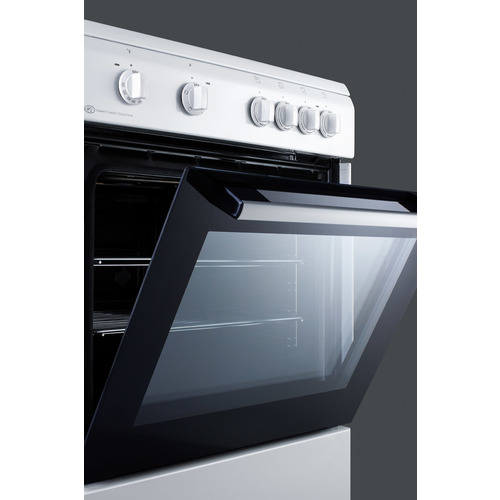

Oven window
Large oven window makes it easy to monitor your cooking progress

Interior light
Oven light automatically illuminates when the oven is on or when the door is opened

Slide-out storage drawer
Save even more space by storing your pots and pans in this pull-out compartment

Waist-high broiler
Broiler is located inside the oven, making it easier to use

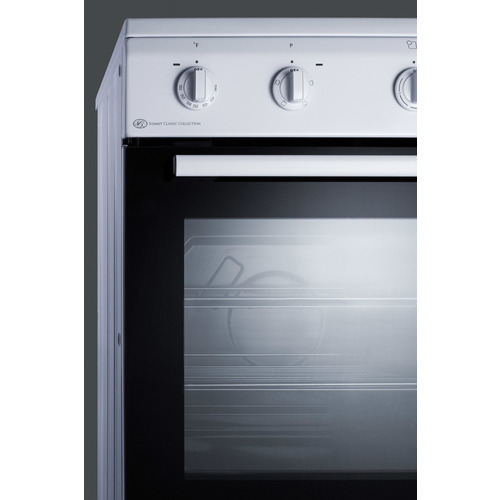

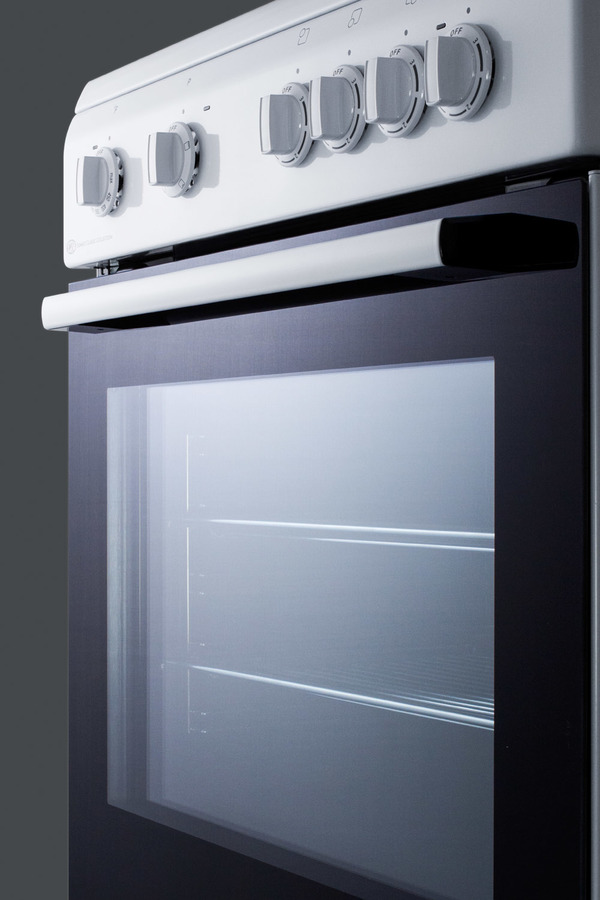

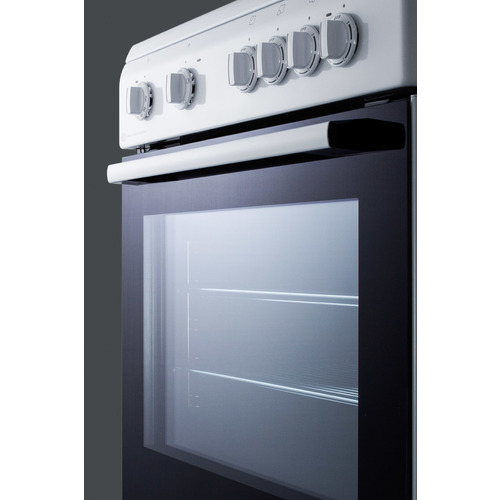

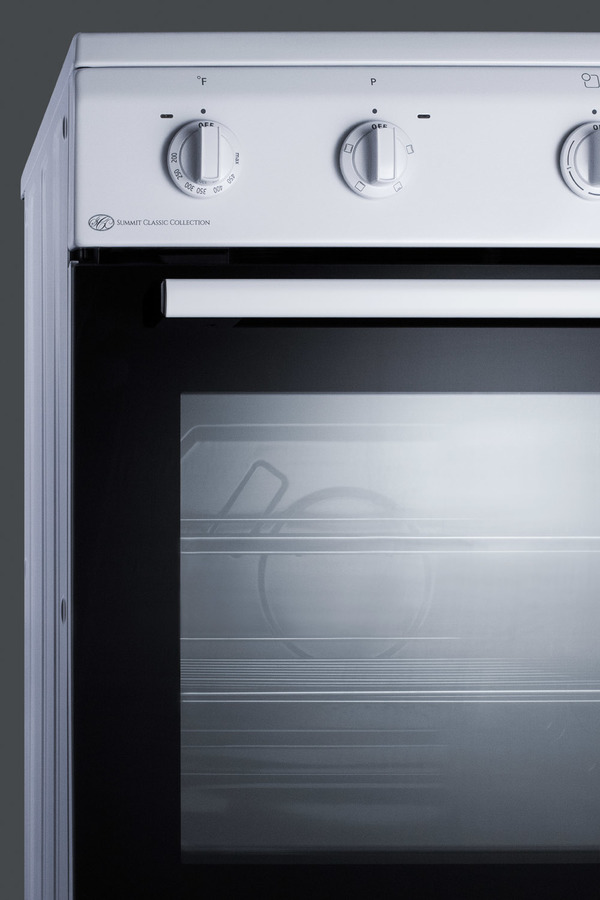

Upfront controls
Control panel is conveniently located to prevent users from reaching over hot cooktop surface for adjustments

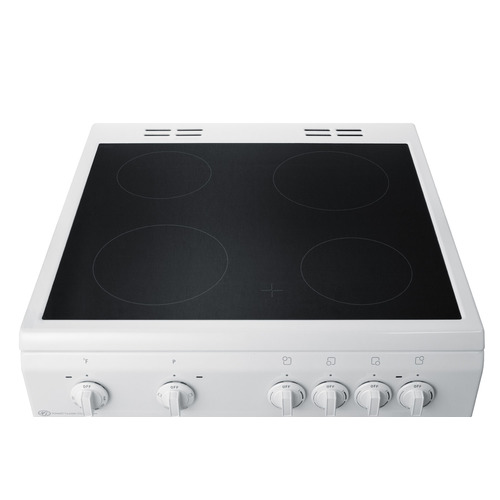

Four cooking zones
Surface features two 1200W 6" and two 1800W 7.5" elements to accommodate a range of sizes and cooking needs

Indicator lights
Control panel includes an 'on' light for the oven and burners for added safety when using the range

Bottom heat function
Setting allows you to heat only from the bottom of the oven, ideal for pizza and other dishes

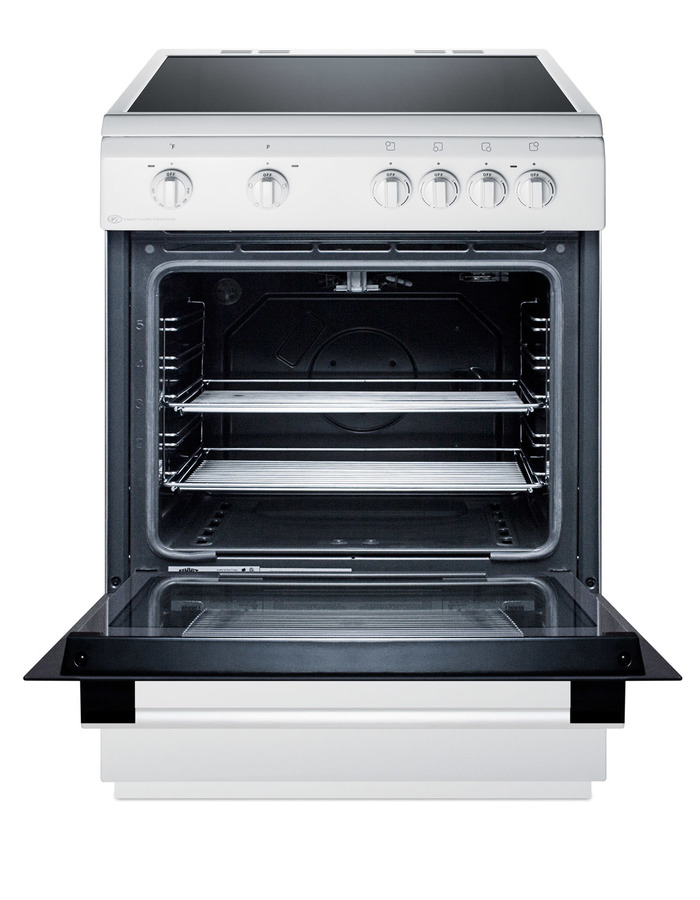

Adjustable wire racks
Five glide positions let you adjust the oven interior as needed

Slide-in style
No rear backguard to allow you to customize your backsplash

Low broil function
Great for broiling small or medium-sized portions where a full broiling effect may lead to overcooking

Push-to-turn knobs
To prevent accidents, all knobs require a small amount of force when turning

Anti-tip bracket
Recommended for installation to help prevent accidents

ADA compliant
Front-located controls and proper sizing meets ADA guidelines for added accessibility

SPECIFICATIONS

Overview
Height of Cabinet	35.25" (90 cm)
Width	23.5" (60 cm)
Depth	24.13" (61 cm)
Depth with Handle	26.13" (66 cm)
Depth with door at 90°	41.25" (105 cm)
Door	White/Black
Cabinet	White
US Electrical Safety	UL
Amps	40.0
Voltage/Frequency	220 V AC/60 Hz
Weight	135.0 lbs. (61 kg)
Shipping Weight	140.0 lbs. (64 kg)
Parts & Labor Warranty	1 Year
Electric Range
Oven Capacity	2.4 cu.ft. (68 L)
Cooktop Surface	Glass
Element Type	Glasstop
Number of Elements	4
Element #1 Size	6.0" (15 cm)
Element #1 Wattage	1200.0
Element #2 Size	7.5" (19 cm)
Element #2 Wattage	1800.0
Element #3 Size	6.0" (15 cm)
Element #3 Wattage	1200.0
Element #4 Size	7.5" (19 cm)
Element #4 Wattage	1800.0
Burner Controls	Dial
Oven Controls	Dial
Oven Light	Yes
Cleaning Type	Manual
Oven Rack Qty	2
Oven Window	Yes
Oven Interior Height	14.0" (36 cm)
Oven Interior Width	18.5" (47 cm)
Oven Interior Depth	17.25" (44 cm)
Power Source	220V
Storage Compartment	Yes
Broiler Location	Inside Oven

DOWNLOADS

BROCHURE w/ DRAWINGS
CLRE24WH.pdf

TECHNICAL DRAWING (.dwg)
CLRE24ELECTRICRANGEA-C2000.dwg

USE & CARE
CLRE24WH_User_Manual.pdf
