24" Wide Outdoor Kegerator, ADA Compliant

SKU: SBC54OSBIADANK
32 inch height allows installation under lower counters following ADA guidelines
Estimated Time to Ship:

1 to 2 weeks; For options that ship faster, contact our sales team at 718-893-3900 ext. 507

This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.
32.25" H x 23.75" W x 24.75" D
(82cm H x 60cm W x 63cm D)

Overview
Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.25" (82 cm)
Width 23.75" (60 cm)
Depth 24.75" (63 cm)
Depth with Handle 27.25" (69 cm)
Depth with door at 90° 47.0" (119 cm)
Capacity 5.5 cu.ft. (156 L)
Defrost Type Automatic
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.2
Voltage/Frequency 115 V AC/60 Hz
Weight 110.0 lbs. (50 kg)
Shipping Weight 120.0 lbs. (54 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101069593
Kegerator
Door Swing RHD
Reversible Factory Reversible
Thermostat Type Dial
Interior Light Yes
Fan Type Exterior
Refrigerant R600a
Refrigerant Amount 0.64 oz.
High Side PSI 180.0
Low Side PSI 80.0
Inter Height 26.25" (67 cm)
Interior Width 21.0" (53 cm)
Interior Depth 17.75" (45 cm)
Compressor Step Height 5.5" (14 cm)
Compressor Step Width 21.0" (53 cm)
Compressor Step Depth 5.5" (14 cm)
Temperature Range 34º to 43ºF

Lock
L-Installed Lock
Add a single key lock to the door with the L option
Exterior
SSK
Stainless steel kickplate factory installed
DT - Digital thermostat
Install a digital thermostat with external readout for precise temperature management
LHD - Left hand door swing
Door reversal to left hand swing

ADA compliant height

Sized at 32 inches high (32.25 to hinge cap) for installation under lower ADA compliant counters

Commercially approved

ETL-S listed to NSF-7 commercial standards and meets UL-471 for use in foodservice settings

Built-in capable

Front-breathing design allows fully recessed installation under counters

Tap kit not included

Install your own tapping equipment to create a customized beer cooler

Designed for 1/6 kegs

Interior can store up to two sixtel kegs

304 grade stainless steel exterior

Complete stainless steel construction for easy durability in the outdoors

Factory installed lock

Front lock located towards the top of the door for convenient access, with 2 keys included

Professional handle

Curved towel bar style handle in brushed stainless steel

Adjustable thermostat

Interior dial thermostat ensures easy temperature management

Automatic defrost

No-frost operation for minimum user maintenance

Stainless steel drip tray

Removable two-piece drip tray included for added convenience

Stainless steel guard rail

Durable railing makes it easier to neaten service

Interior light

Turn the light on when you need it and off when you're done with a convenient rocker switch

Interior CO2 holder

Bracket is installed inside, allowing you to save on depth by keeping the tank behind your kegs

Stainless steel floor cover

Interior includes steel cover to protect the floor when loading kegs

One piece interior liner

Easy clean-up with a seamless liner that won't hold a mess in hidden crevices

Hidden evaporator

Cold wall design with hidden evaporator and seamless interior

Fully finished cabinet

Allows the unit to be used freestanding

Ground Fault Circuit Interrupter

Our integrated GFCI exceeds U.L. requirements for safety by protecting your unit from shocks and circuit breaks

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

Summit Commercial brings unique appliance choices to outdoor ADA compliant settings with a new line of commercial kegerators made in Europe.

Sized at 32 inches high, the SBC54OSBIADANK is designed to fit under lower ADA compliant counters. The front-breathing design allows built-in installation, while the fully finished cabinet also enables freestanding use. This unit comes with a weatherproof 304 grade stainless steel wrapped cabinet and door, complete with a pro style towel bar handle and front-mounted lock. We include a guard rail (ships uninstalled) and removable two-piece stainless steel drip tray for cleaner service. This unit does not include any tapping equipment, allowing "do-it-yourselfers" to customize their draft system.

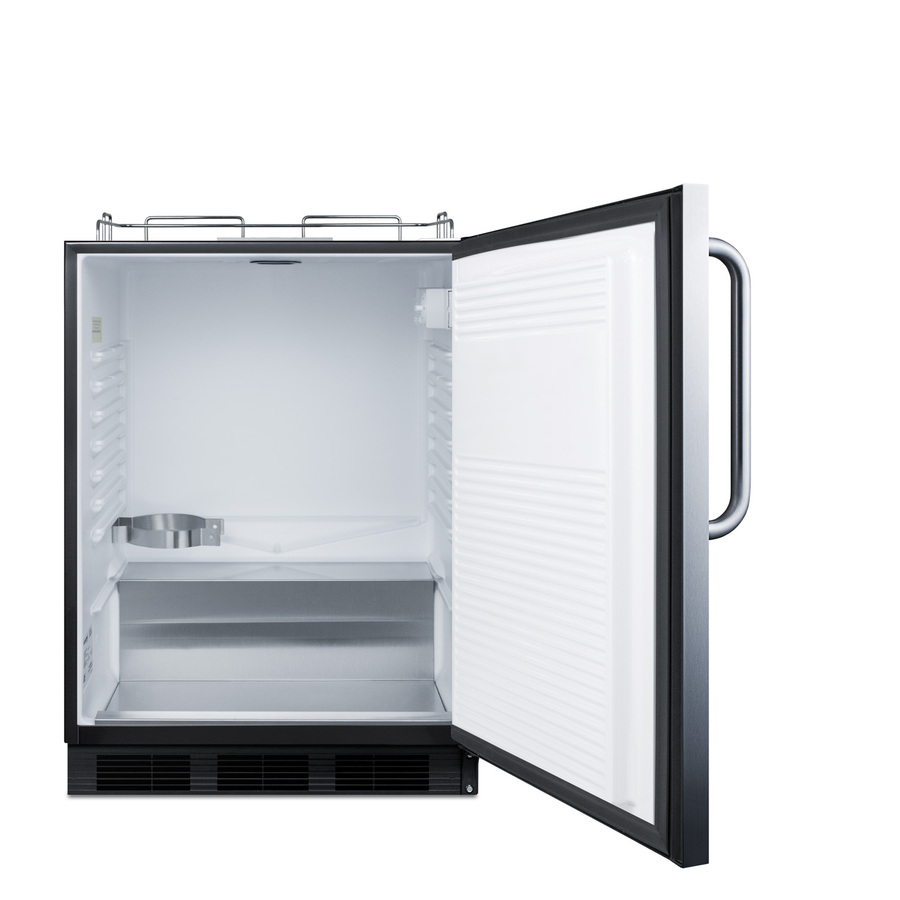

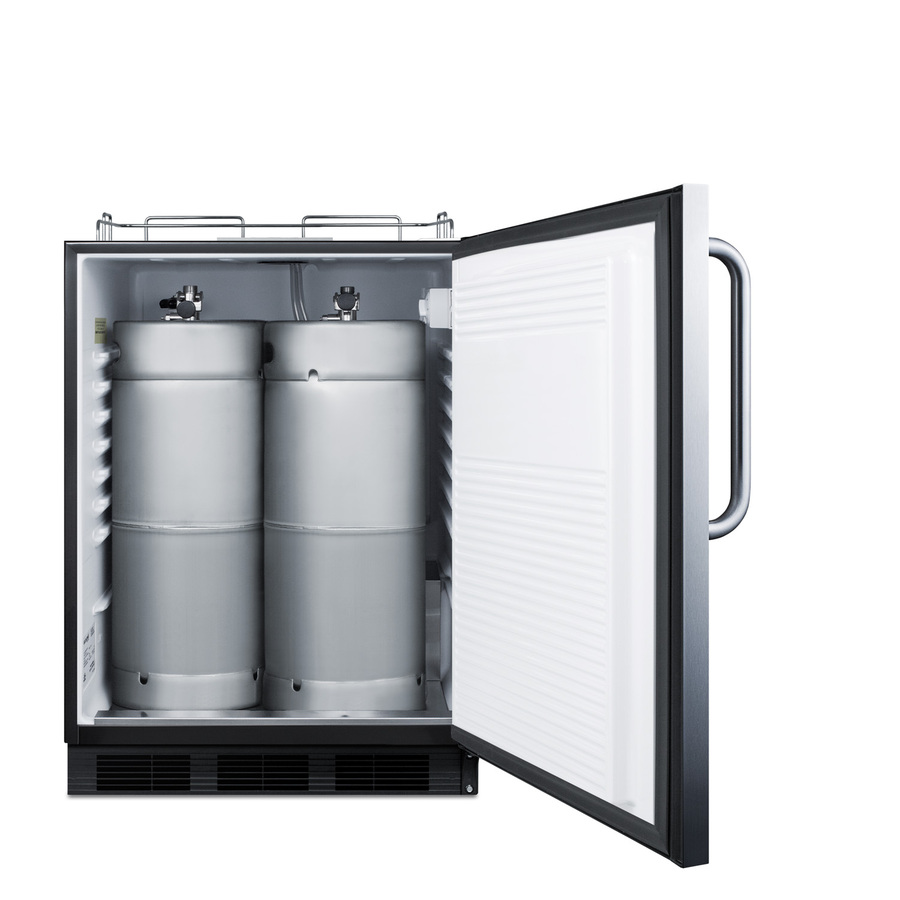

Inside, the SBC54OSBIADANK is designed to hold two 1/6 (sixtel) kegs (note: interior does not accommodate a standard half barrel). Automatic defrost ensures easy user maintenance, with a seamless interior for easier cleaning. The stainless steel floor offers added durability when loading kegs. This unit includes an interior light with an on/off rocker switch and a dial thermostat for easy and intuitive temperature management. A CO2 tank bracket is located inside, allowing you to keep the tank in the cabinet and save on exterior depth.

The SBC54OSBIADANK is ETL-S listed to NSF-7 commercial standards and uses environmentally friendly hydrocarbon based refrigerant (R600a) to comply with certain state's guidelines. This unit can also be ordered with tap equipment for beer, coffee, wine, or kombucha. Browse our website for more options or contact our sales team at 78-893-3900.


Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
