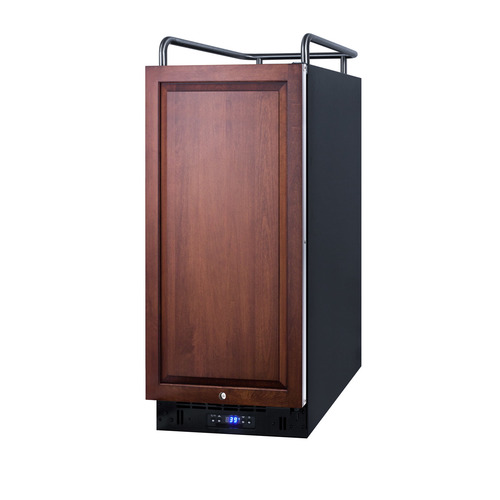

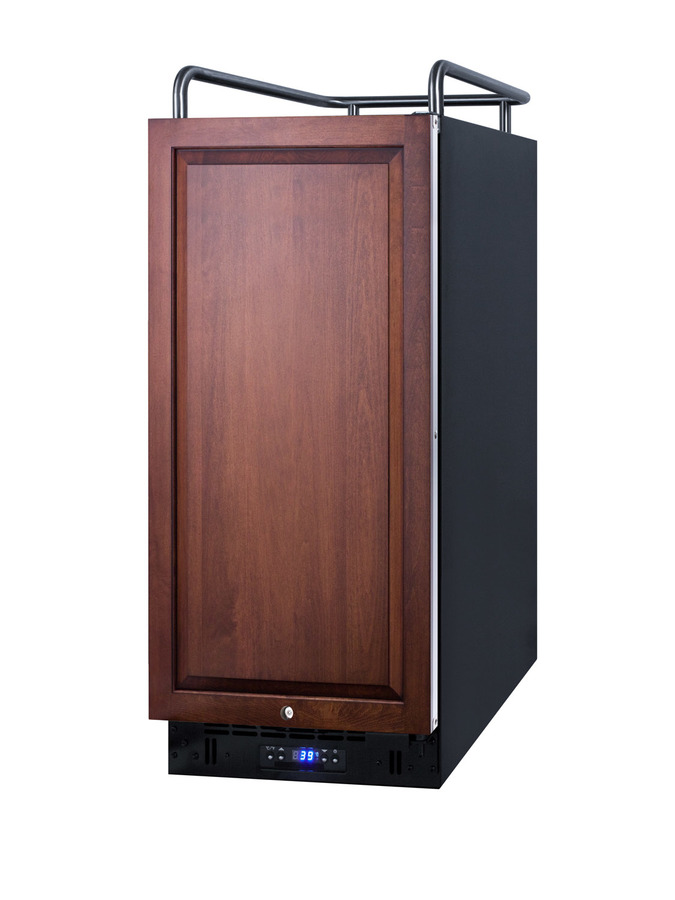

15" Wide Built-In Kegerator

SKU: SBC15NKIF

15" wide kegerator perfect for commercial and residential settings

Estimated Time to Ship: 3 to 5 days

This unit can be used for commercial or residential applications. It meets applicable U.S. Department of Energy (DOE) standards for both household and commercial energy usage. For information on its commercial sanitation listing, see Specifications.

34.25" H x 15.0" W x 22.5" D

(87cm H x 38cm W x 57cm D)

SPECIFICATIONS

Overview
Height of Cabinet	34.25" (87 cm)
Width	15.0" (38 cm)
Width with Door Open	15.25" (39 cm)
Depth	22.5" (57 cm)
Depth with Handle	24.5" (62 cm)
Depth with door at 90°	36.5" (93 cm)
Capacity	2.9 cu.ft. (82 L)
Defrost Type	Automatic
Door	Panel-Ready
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Energy Usage/Year	280.0kWh/year
Amps	1.25
Voltage/Frequency	115 V AC/60 Hz
Weight	74.0 lbs. (34 kg)
Shipping Weight	80.0 lbs. (36 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
Kegerator
Door Swing	RHD
Reversible	Factory Reversible
Adjustable Shelves	Yes
Shelf Type	Chrome
Shelf Qty	2
Thermostat Type	Digital
Fan Type	Exterior
Refrigerant	R600a
Refrigerant Amount	1.06 oz.
High Side PSI	150.0
Low Side PSI	50.0
Inter Height	26.75" (68 cm)
Interior Width	11.75" (30 cm)
Interior Depth	17.5" (44 cm)
Compressor Step Height	3.75" (10 cm)
Compressor Step Width	11.75" (30 cm)
Compressor Step Depth	5.0" (13 cm)
Level Legs Qty	4
Wheel Qty	4
Temperature Range	34º to 50º F

AVAILABLE UPGRADES

Exterior

Latch for door Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.	LHD - Left hand door swing Door reversal to left hand swing
Extra key for IF door Extra key for select IF (panel-ready) units

Due to our commitment to continuous product improvement, all specifications are subject to change without notice

California residents:

WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

FEATURES

15" wide design
Slim-fit design complements smaller commercial and residential spaces

Commercially approved
ETL-S listed to NSF-7 standard and meets UL-471 for use in commercial settings

Built-in capability
Make the best use of space by installing your appliance under the counter; NOTE: if installing flush with wall or cabinets, unit will require an extra ¼” of space due to the door design. For more information, see the user manual

Versatile kegerator

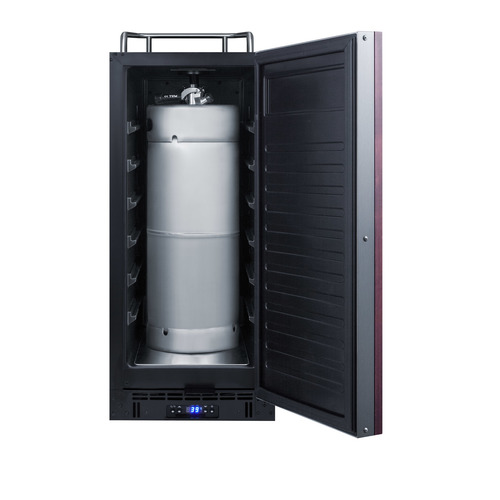

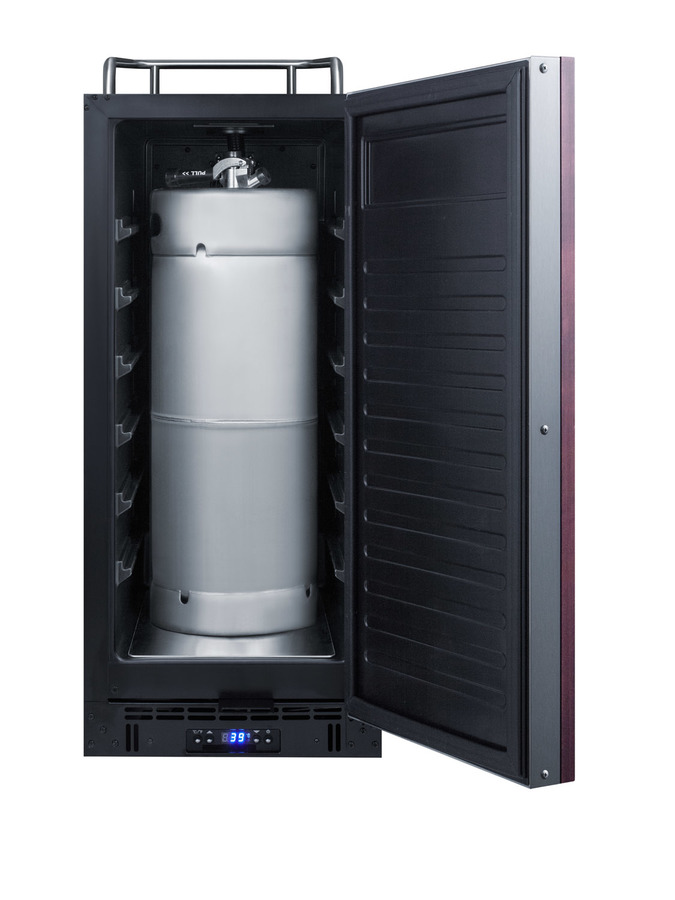

2.9 cu.ft. interior can accept a 1/6 (sixtel) barrel keg or a pony keg; compatible with beer, wine, coffee, or kombucha tap systems

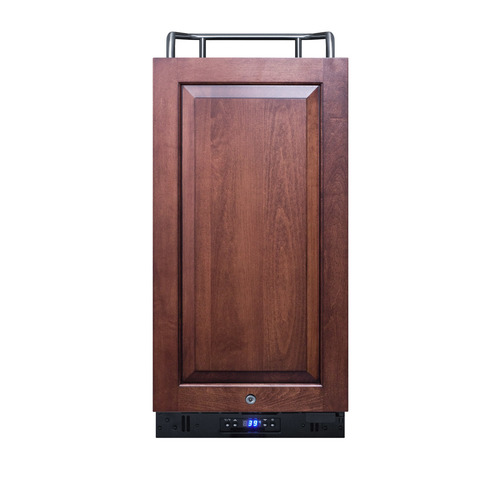

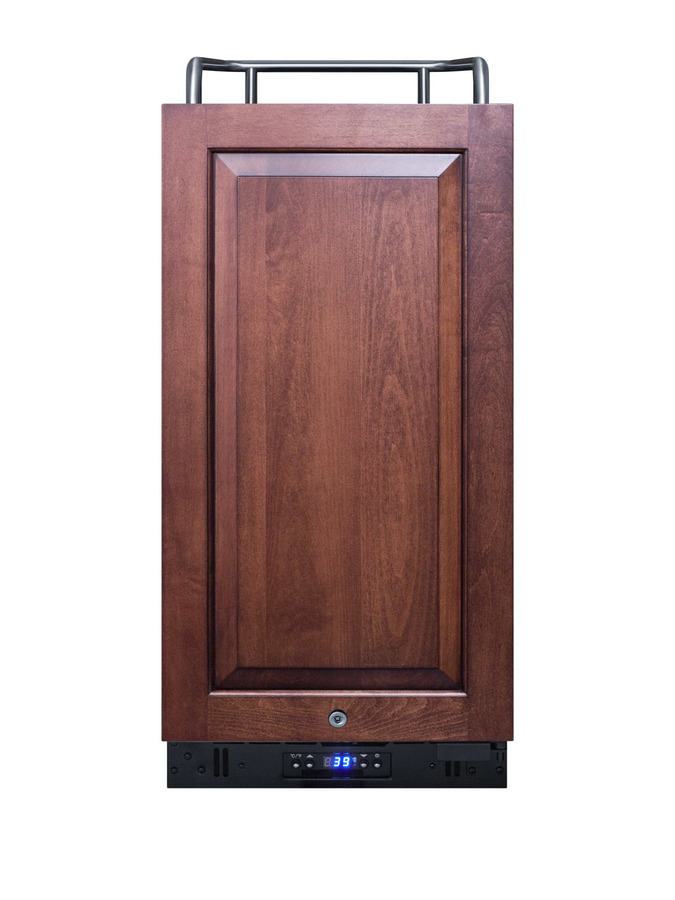

Panel-ready door
Integrated stainless steel door frame accepts full overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design

Automatic defrost
Reduced user maintenance with auto defrost operation

Digital thermostat
Electronic controls ensure easy temperature management, with an external readout in Celsius or Fahrenheit

Tap cool system
Keeps cold air flowing to the tower for consistently cold beer

Stainless steel floor cover
Interior includes steel cover to protect the floor when loading kegs

Top guard rail (ships unassembled)
Attractive chrome guard rail helps to reduce spills and neaten service

Stainless steel drip tray
Removable two-piece drip tray catches spills to help contain the mess

Ideal beer temperature
Operates between 34º and 50ºF to keep a variety of beers stored at just the right serving temperature

Wire shelves
2 wire shelves (with six placement options) allow unit to also function as a beverage refrigerator

Factory-reversible door swing
Factory-reversible door swing makes it easy to best accommodate your setting (unit comes with RHD but can be converted to LHD upon request at the time of purchase)

Factory installed lock
Keyed lock for a secure interior, with 2 keys included

Casters included (ship unassembled)
To make the beer dispenser portable, install this set of 4 1/2" high casters (2 locking)

Tap kit compatible
Accommodates user provided tap for dispensing beer, wine, coffee, nitro coffee, or kombucha

Fully finished black cabinet
Allows the beer dispenser to be used freestanding

Sealed back
Space saving design with easier cleanability

100% CFC free
Environmentally friendly design without ozone-damaging chemicals

DESCRIPTION

Summit offers a complete line of built-in kegerators/beer dispensers designed for use in commercial establishments.

The SBC15NKIF features a versatile design that meets NSF-7 and UL-471 commercial standards but is also approved for residential applications. Sized at 15" wide, it features a front-breathing design for built-in installation under counters and a fully finished cabinet for freestanding use. The sealed back allows for easy cleaning of the unit. The door comes with an integrated stainless steel frame designed to accept full panel overlays, allowing users to seamlessly blend the unit into their own cabinetry design (panel size: 30" H x 15 1/8" W at 3/4" thick). Users provide their own handle to complete the look. This unit ships with a right hand door swing. For a left hand version, order with suffix "LHD." Additional features include a removable two-piece stainless steel drip tray to collect spills and a chrome guard rail to help keep glasses and mugs in place. Four included casters (two are locking) make movement of the unit easy. A factory-installed lock provides added security.

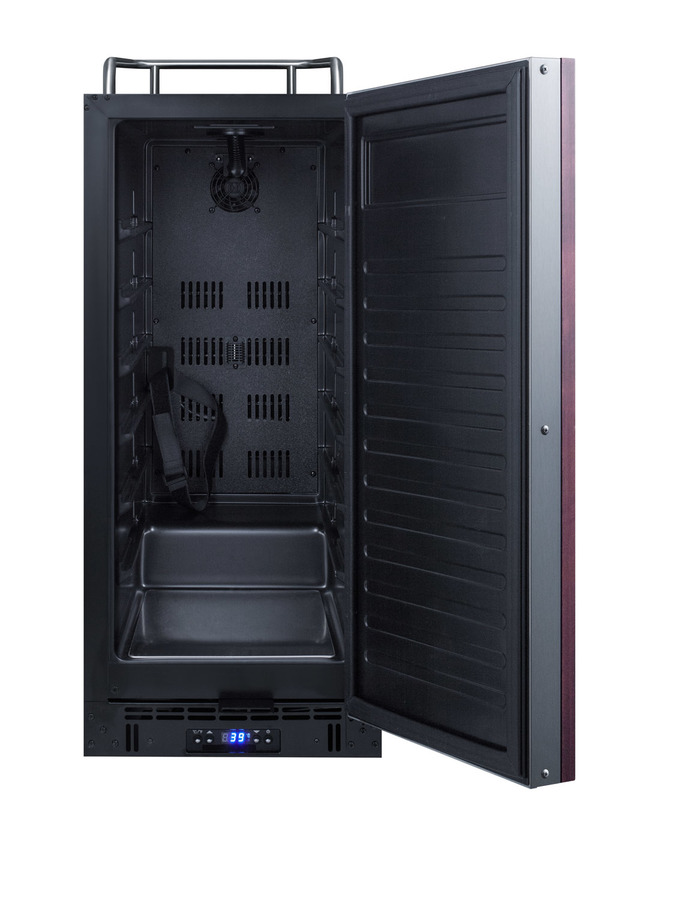

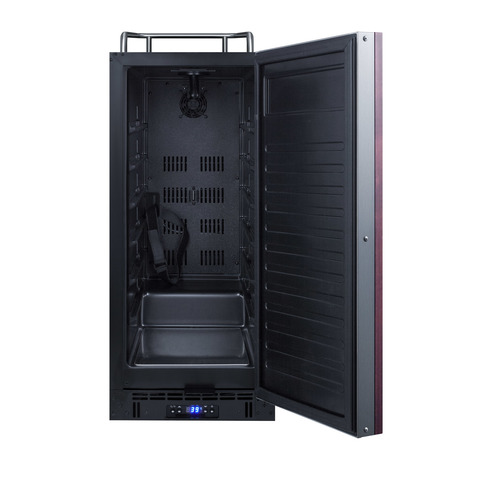

Inside, the 2.9 cu. ft. interior can hold a 1/6 (sixtel) or mini keg. Two chrome shelves, with six placement options, allow the kegerator to also function as a beverage refrigerator. A digital thermostat makes it easy to manage the temperature, while the external digital display has a readout in Celsius or Fahrenheit. Automatic defrost operation ensures minimal user maintenance. A tap cool system keeps your beer cold as it goes through your tower, and a Velcro strap holds the Co2 tank in place. A stainless steel floor plate provides added protection when placing and removing kegs.

This unit can accommodate a tap kit, purchased by the user or through Summit, for dispensing beer, wine, coffee, nitro coffee, or kombucha. Browse Summit's tap kit options at www.summitappliance.com.

Note: Due to its door design, the SBC15NKIF requires an additional 1/4" of width for the door to open to a full 90º. If placing this unit against a right angle wall, be sure to accommodate this extra space.
