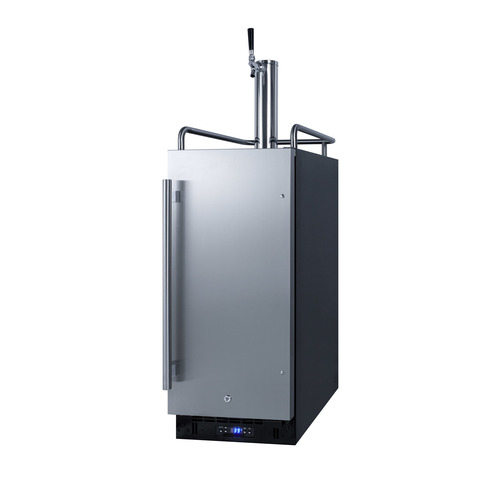

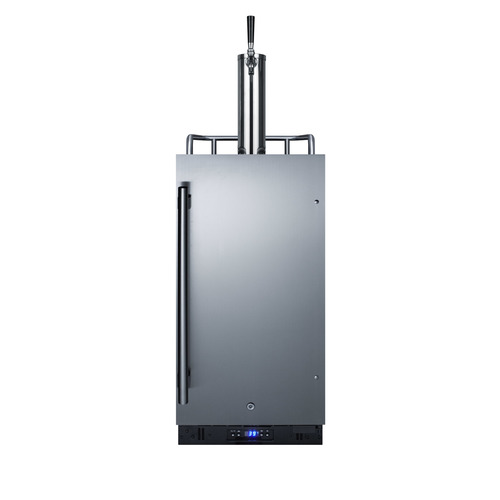

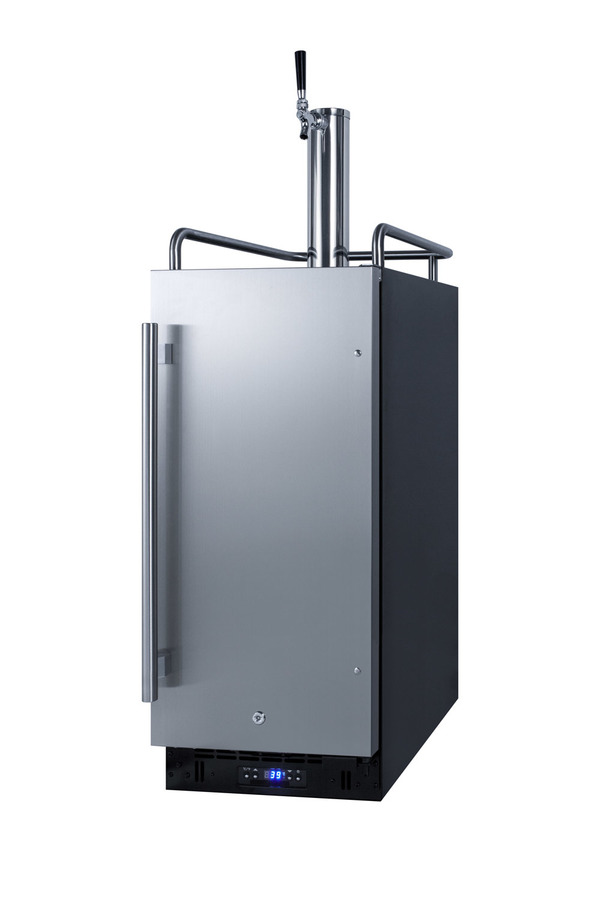

15" Wide Built-In Wine Kegerator

SKU: SBC15WK
15" wide kegerator perfect for commercial and residential settings serving wine on tap
Estimated Time to Ship:

1 to 2 days

*Additional features may vary

This unit can be used for commercial or residential applications. It meets applicable U.S. Department of Energy (DOE) standards for both household and commercial energy usage. For information on its commercial sanitation listing, see Specifications.
34.25" H x 15.0" W x 22.5" D
(87cm H x 38cm W x 57cm D)

Overview
Height of Cabinet 34.25" (87 cm)
Width 15.0" (38 cm)
Width with Door Open 15.25" (39 cm)
Depth 22.5" (57 cm)
Depth with Handle 24.5" (62 cm)
Depth with door at 90° 36.5" (93 cm)
Capacity 2.9 cu.ft. (82 L)
Defrost Type Automatic
Door Stainless Steel
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 280.0kWh/year
Amps 1.25
Voltage/Frequency 115 V AC/60 Hz
Weight 78.0 lbs. (35 kg)
Shipping Weight 120.0 lbs. (54 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101067896
Kegerator
Door Swing RHD
Reversible Yes
Tap Kit Yes
Height with Tap 49.75" (126 cm)
Number of Taps 1
Adjustable Shelves Yes
Shelf Type Chrome
Shelf Qty 2
Thermostat Type Digital
Fan Type Exterior
Refrigerant R600a
Refrigerant Amount 1.06 oz.
High Side PSI 150.0
Low Side PSI 50.0
Inter Height 26.75" (68 cm)
Interior Width 11.75" (30 cm)
Interior Depth 17.5" (44 cm)
Compressor Step Height 3.75" (10 cm)
Compressor Step Width 11.75" (30 cm)
Compressor Step Depth 5.0" (13 cm)
Level Legs Qty 4
Wheel Qty 4
Temperature Range 34º to 50º F

Exterior
LHD - Left hand door swing
Door reversal to left hand swing
Latch - Factory-installed door latch requires manual release to open unit
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.

15" wide design

Slim-fit design complements smaller commercial and residential spaces

Commercially approved

ETL-S listed to NSF-7 standard and meets UL-471 for use in commercial settings

Built-in capability

Make the best use of space by installing your appliance under the counter; NOTE: if installing flush with wall or cabinets, unit will require an extra ¼” of space due to the door design. For more information, see the user manual

Complete tap kit for serving wine

Commercially approved tap kit includes a stainless steel tower, Nitrogen/Co2 tank, and regulator

Nitrogen/Co2 tank included

5 lb. Nitrogen/Co2 tank included (ships empty)

Wine dispenser

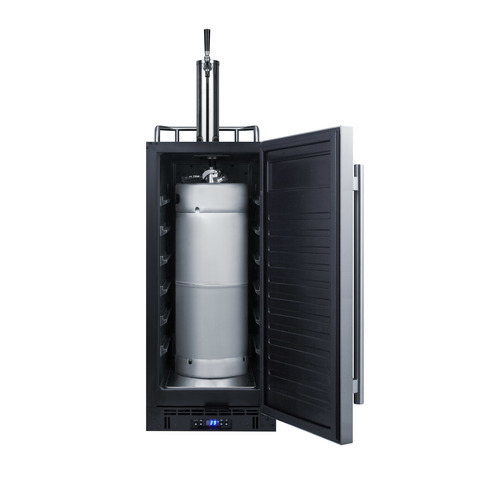

2.9 cu.ft. interior can accept a 1/6 (sixtel) wine keg

Automatic defrost

Reduced user maintenance with auto defrost operation

Digital thermostat

Electronic controls ensure easy temperature management, with an external readout in Celsius or Fahrenheit

Tap cool system

Keeps cold air flowing to the tower for consistently chilled wine

Stainless steel floor cover

Interior includes steel cover to protect the floor when loading kegs

Top guard rail (ships unassembled)

Attractive chrome guard rail helps to reduce spills and neaten service

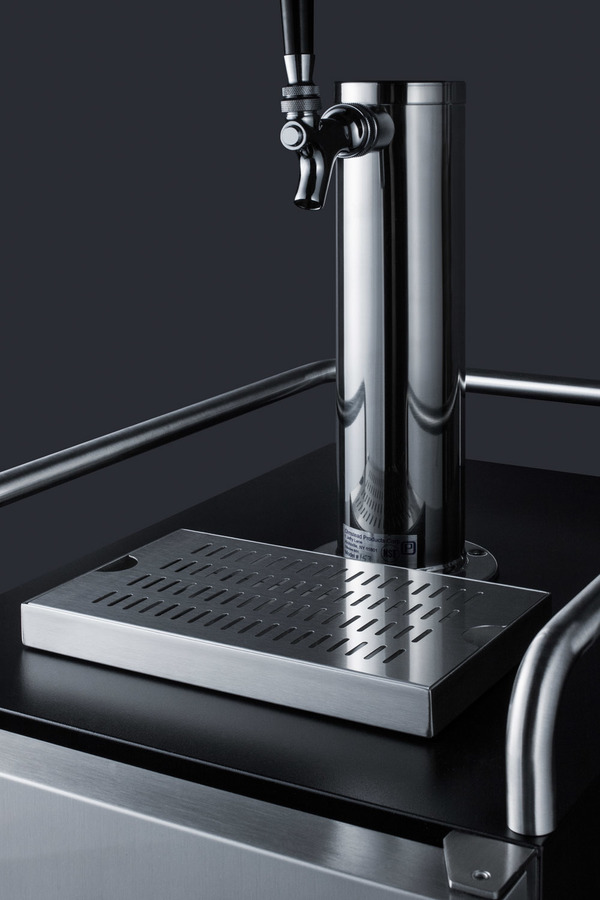

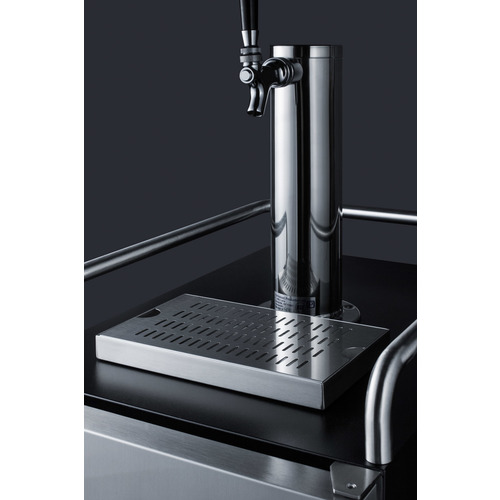

Stainless steel drip tray

Removable two-piece drip tray catches spills to help contain the mess

Ideal wine temperature

Operates between 34º and 50ºF to keep a variety of white and blush wine chilled

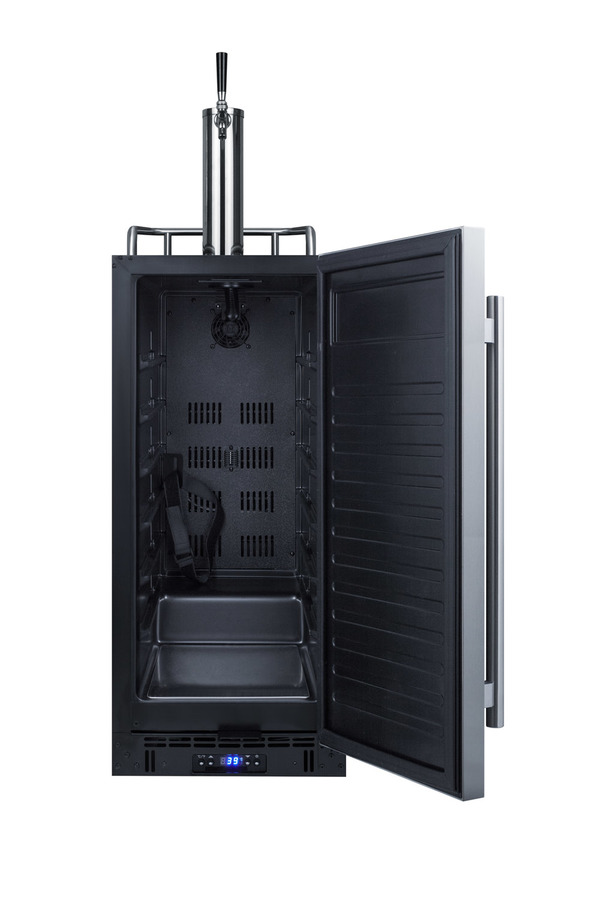

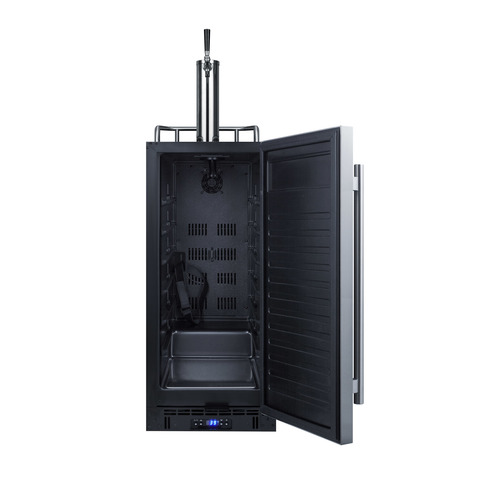

Chrome shelves

2 chrome shelves (with six placement options) allow unit to also function as a beverage refrigerator

Reversible door

User-reversible door swing for added flexibility

Factory installed lock

Keyed lock for a secure interior, with 2 keys included

Casters included (ship unassembled)

To make the wine dispenser portable, install this set of 4 1/2" high casters (2 locking)

Pro style handle

Stainless steel handle adds style to any setting

Fully finished black cabinet

Allows the wine dispenser to be used freestanding

Sealed back

Space saving design with easier cleanability

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit offers a complete line of built-in wine kegerators/wine dispensers designed for use in commercial establishments.

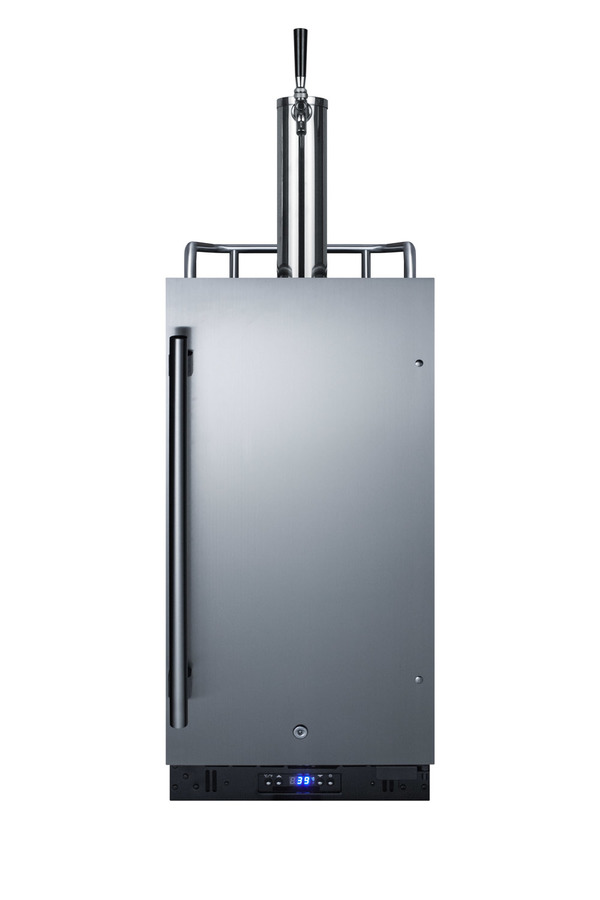

The SBC15WK features a versatile design that meets NSF-7 and UL-471 commercial standards but is also approved for residential applications. Sized at 15" wide, it features a front-breathing design for built-in installation under counters and a fully finished cabinet for freestanding use. A stainless steel door and black cabinet finish afford added elegance to any setting, while the stainless steel handle completes the look. The sealed back allows for easy cleaning of the unit. Additional features include a removable two-piece stainless steel drip tray to collect spills and a chrome guard rail to help keep glasses and mugs in place. The user-reversible door swing makes it easy to accommodate any location’s setup and four included casters (two are locking) make movement of the unit easy. A factory-installed lock provides added security.

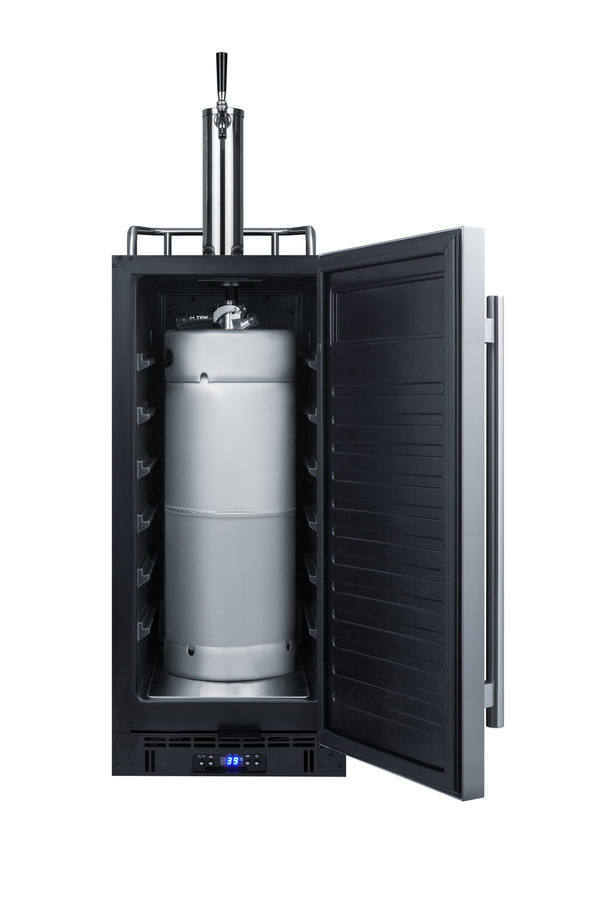

Inside, the 2.9 cu. ft. interior can hold a 1/6 wine keg (sixtel) or mini keg. Two chrome shelves, with six placement options, allow the kegerator to also function as a beverage refrigerator. A digital thermostat makes it easy to manage the temperature, while the external digital display has a readout in Celsius or Fahrenheit. Automatic defrost operation ensures minimal user maintenance. We include a commercially approved tap kit that includes everything you need to serve wine, including a stainless steel draft tower, regulator, and an empty Nitrogen/Co2 tank best suited for a 75% Nitrogen/25% Co2 mixture. A tap cool system keeps your wine cold as it goes through your tower, and a Velcro strap holds the Nitrogen/Co2 tank in place. A stainless steel floor plate provides added protection when placing and removing kegs.

For a similar unit designed to serve beer, see the SBC15BEER. You can also create your own custom cold brew kegerator by combining any of our "NK" beer dispensers with our selection of cold brew tap kits.

Note: Due to its door design, the SBC15WK requires an additional 1/4" of width for the door to open to a full 90º. If placing this unit against a right angle wall, be sure to accommodate this extra space.

Download
BROCHURE w/ DRAWINGS
SBC15WK.pdf
Download
TECHNICAL DRAWING (.dwg)
SBC15NK_BEER_DISPENSER__A-C_2018_.dwg
Download
MSDS INFORMATION
R600a_K.pdf
Energy Guide

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
