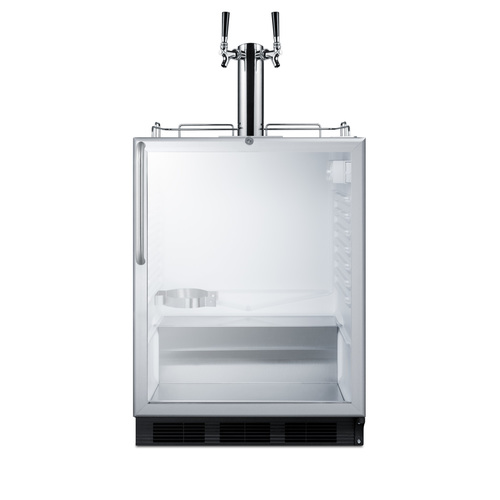

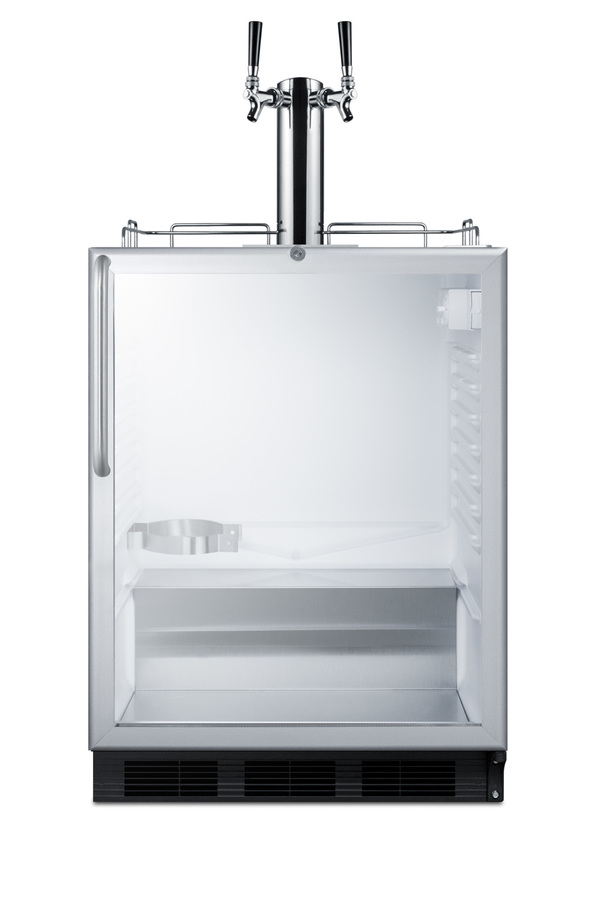

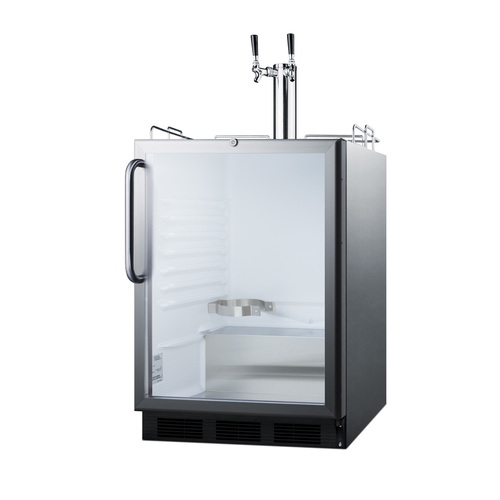

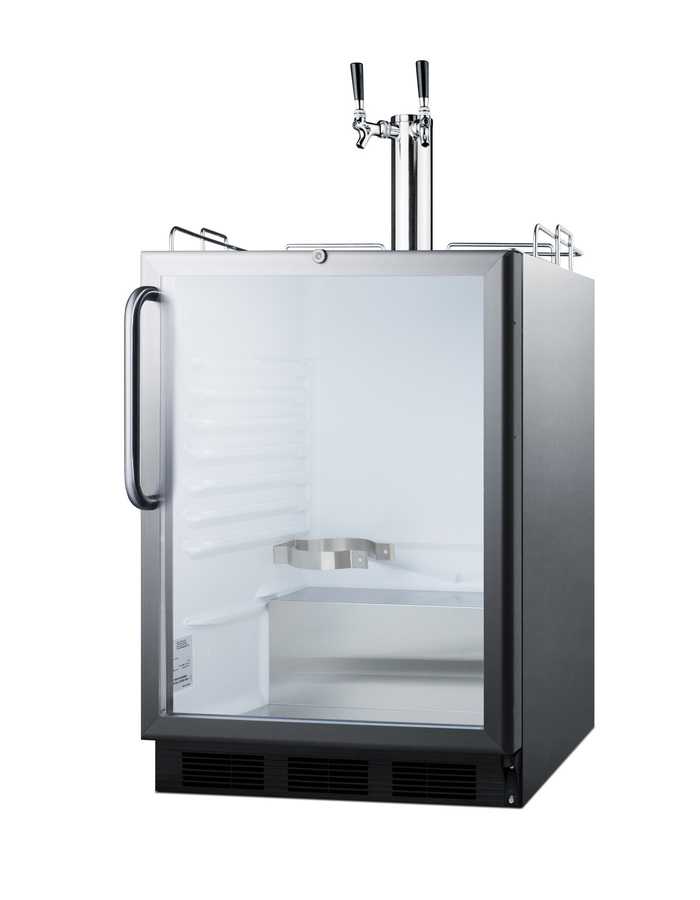

24" Wide Built-In Beer Dispenser, ADA Compliant
SKU: SBC56GBICSSADA
32 inch height allows installation under lower counters following ADA guidelines
Estimated Time to Ship: 3 days to 2 weeks; For options that ship faster, contact our sales team at 718-893-3900 ext. 507

Available with an energy saving door tint to protect the interior from natural and artificial light. Choose from four tint finishes with varying levels of visibility.
All tints reject up to 99% of UV rays. Click here to view these options and learn more about their efficiency.
All tints reject up to 99% of UV rays. Click here to view these options and learn more about their efficiency.

This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.
32.25" H x 23.38" W x 23.0" D
(82cm H x 59cm W x 58cm D)
SPECIFICATIONS
Overview | |
---|---|
Height of Cabinet | 32.0" (81 cm) |
Height to Hinge Cap | 32.25" (82 cm) |
Width | 23.38" (59 cm) |
Depth | 23.0" (58 cm) |
Depth with Handle | 25.5" (65 cm) |
Depth with door at 90° | 44.5" (113 cm) |
Capacity | 5.5 cu.ft. (156 L) |
Defrost Type | Automatic |
Door | Glass |
Cabinet | Stainless Steel |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Sanitation | ETL-S |
Amps | 1.8 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 110.0 lbs. (50 kg) |
Shipping Weight | 120.0 lbs. (54 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
UPC | 761101062877 |
Kegerator | |
Door Swing | RHD |
Reversible | Factory Reversible |
Height Adjustable | 47.5 |
Tap Kit | Yes |
Number of Taps | 2 |
Thermostat Type | Dial |
Interior Light | Yes |
Fan Type | Exterior |
Refrigerant | R600a |
Refrigerant Amount | 0.67 oz. |
High Side PSI | 124.0 |
Low Side PSI | 30.0 |
Inter Height | 26.0" (66 cm) |
Interior Width | 21.0" (53 cm) |
Interior Depth | 18.0" (46 cm) |
Compressor Step Height | 7.0" (18 cm) |
Compressor Step Width | 21.0" (53 cm) |
Compressor Step Depth | 5.5" (14 cm) |
Temperature Range | 34º to 43ºF |
AVAILABLE UPGRADES
Door | |||||
---|---|---|---|---|---|
|
|||||
Exterior | |||||
|
|||||
Handle | |||||
|
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
California residents:

Note: Nickel is a component of stainless steel.
FEATURES
ADA compliant height

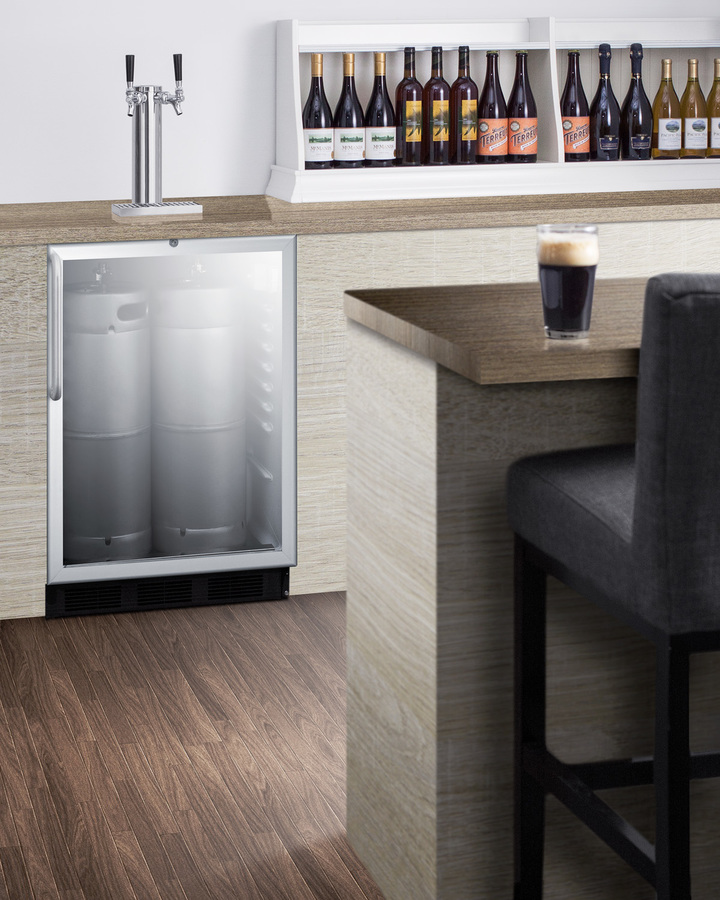

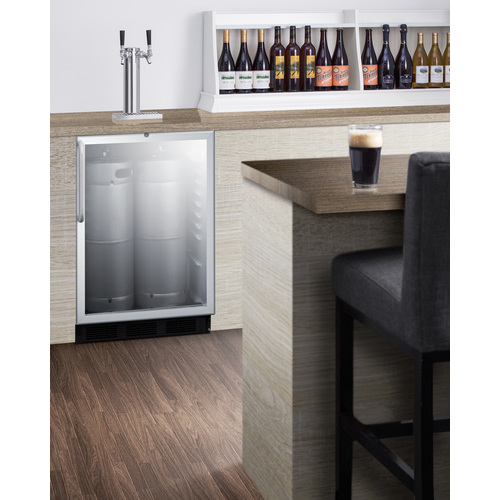

Sized at 32 inches high (32.25 to hinge cap) for installation under lower ADA compliant counters
Sized at 32 inches high (32.25 to hinge cap) for installation under lower ADA compliant counters
Commercially approved
ETL-S listed to NSF-7 commercial standards and meets UL-471 for use in foodservice settings
ETL-S listed to NSF-7 commercial standards and meets UL-471 for use in foodservice settings
Built-in capable
Front-breathing design allows fully recessed installation under counters
Front-breathing design allows fully recessed installation under counters
Complete tap kit
Includes a 5 lb. CO2 tank and regulator, dual tap draft arm, Sankey American tap, connection hardware, and cleaning kit
Includes a 5 lb. CO2 tank and regulator, dual tap draft arm, Sankey American tap, connection hardware, and cleaning kit
Dual tap system

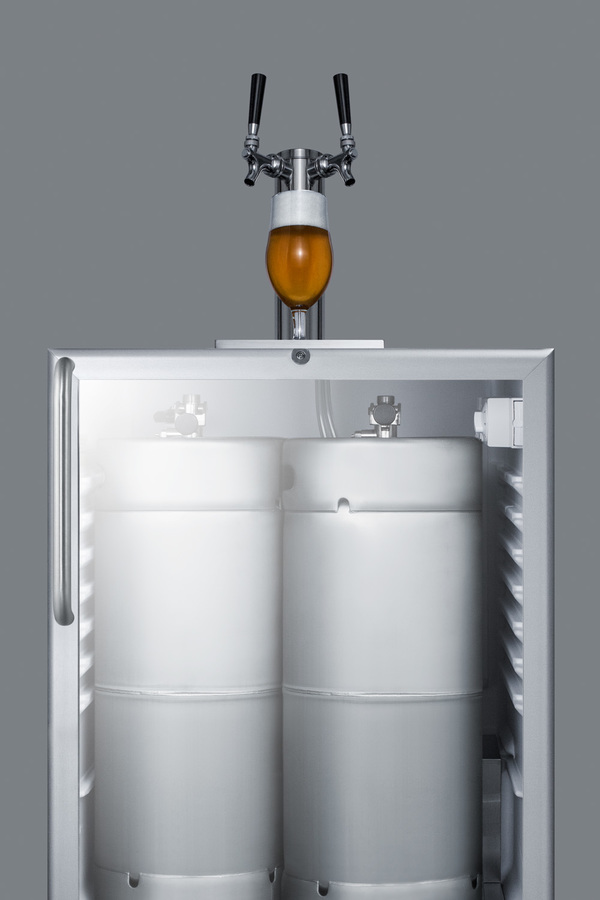

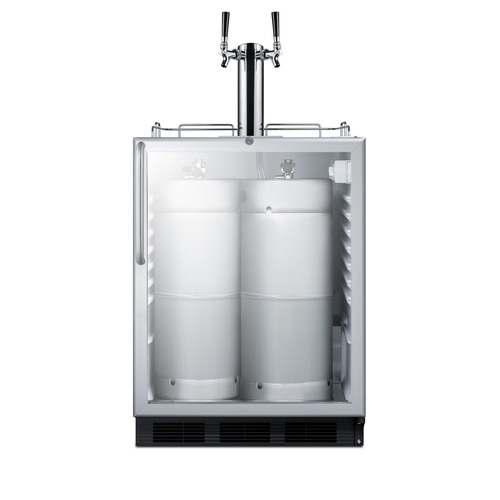

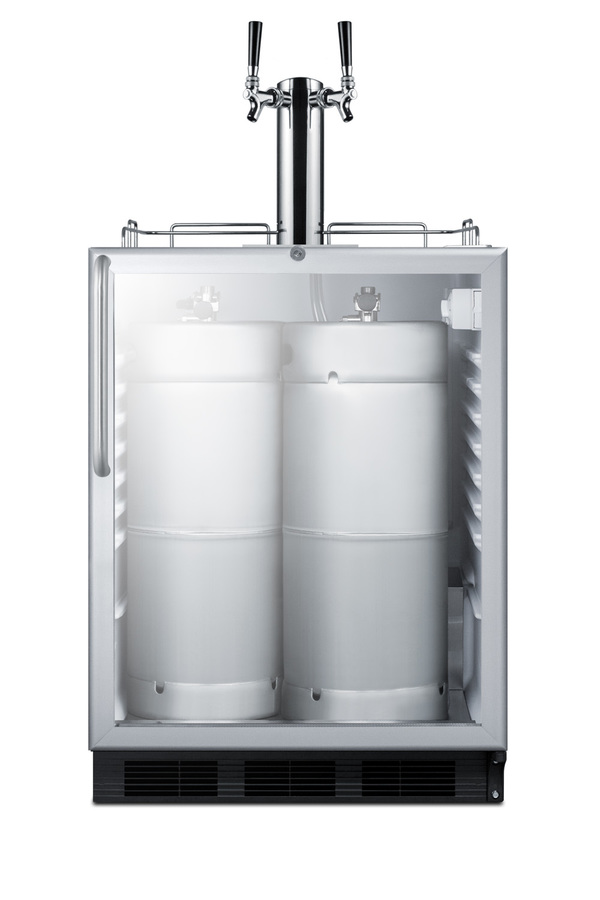

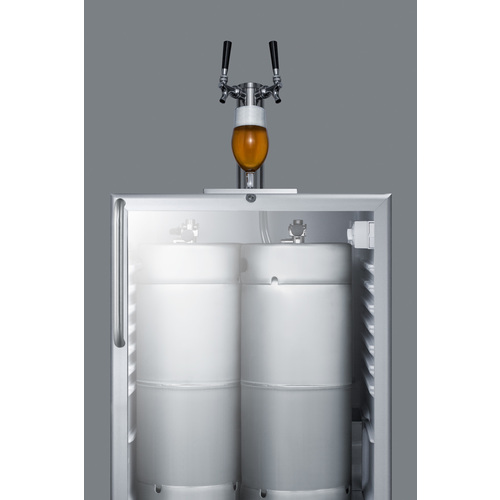

Twin draft tower allows you to serve from two 1/6 (sixtel) sized kegs
Twin draft tower allows you to serve from two 1/6 (sixtel) sized kegs
Double pane tempered glass door
Heat resistant design provides clear view to promote impulse buys
Heat resistant design provides clear view to promote impulse buys
Stainless steel wrapped cabinet
Exterior features a wrapped stainless steel finish for lasting durability in busy commercial settings
Exterior features a wrapped stainless steel finish for lasting durability in busy commercial settings
Professional handle
Curved towel bar style handle in brushed stainless steel
Curved towel bar style handle in brushed stainless steel
Factory-installed lock
Keyed lock conveniently located towards the top of the door for added security (2 keys included)
Keyed lock conveniently located towards the top of the door for added security (2 keys included)
Adjustable thermostat
Interior dial thermostat ensures easy temperature management
Interior dial thermostat ensures easy temperature management
Automatic defrost
No-frost operation for minimum user maintenance
No-frost operation for minimum user maintenance
Stainless steel drip tray
Removable two-piece drip tray included for added convenience
Removable two-piece drip tray included for added convenience
Stainless steel guard rail
Durable railing makes it easier to neaten service
Durable railing makes it easier to neaten service
Interior light
Turn the light on when you need it and off when you're done with a convenient rocker switch
Turn the light on when you need it and off when you're done with a convenient rocker switch
Interior CO2 holder
Bracket is installed inside, allowing you to save on depth by keeping the tank behind your kegs
Bracket is installed inside, allowing you to save on depth by keeping the tank behind your kegs
Stainless steel floor cover
Interior includes steel cover to protect the floor when loading kegs
Interior includes steel cover to protect the floor when loading kegs
One piece interior liner
Easy clean-up with a seamless liner that won't hold a mess in hidden crevices
Easy clean-up with a seamless liner that won't hold a mess in hidden crevices
Hidden evaporator
Cold wall design with hidden evaporator and seamless interior
Cold wall design with hidden evaporator and seamless interior
Factory reversible door
Unit ships with a right hand door swing. For a left hand version, add option LHD upon order
Unit ships with a right hand door swing. For a left hand version, add option LHD upon order
Fully finished cabinet
Allows the unit to be used freestanding
Allows the unit to be used freestanding
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
Environmentally friendly design without ozone-damaging chemicals
DESCRIPTION
Summit Commercial brings unique appliance choices to ADA compliant settings with a new line of commercial beer dispensers made in Europe. Sized at 32 inches high, the SBC56GBICSSADA is designed to fit under lower ADA compliant counters. The front-breathing design allows built-in installation, while the stainless steel wrapped cabinet also enables freestanding use. This unit features a double pane tempered glass door for a full display of the interior. A factory-installed lock is conveniently located towards the top of the door for added security and a curved towel bar style handle in brushed stainless steel completes the look. We include a guard rail (ships uninstalled) and removable two-piece stainless steel drip tray for cleaner service. The SBC56GBICSSADA ships with a complete Sankey American dual tap kit complete with a draft tower, regulator, 5 lb. CO2 tank, and all the equipment you need to serve beer on tap. Inside, the SBC56GBICSSADA is designed to hold two 1/6 (sixtel) kegs (note: interior does not accommodate a standard half barrel). Automatic defrost ensures easy user maintenance, with a seamless interior for easier cleaning. The stainless steel floor offers added durability when loading kegs. This unit includes an interior light with an on/off rocker switch and a dial thermostat for easy and intuitive temperature management. A CO2 tank bracket is located inside, allowing you to keep the tank inside and save on exterior depth. The SBC56GBICSSADA is ETL-S listed to NSF-7 commercial standards. Additional ADA compliant kegerator choices are available with panel-ready or glass doors. Browse our complete line for more choices.
SPECIFICATIONS
Overview | |
---|---|
Height of Cabinet | 32.0" (81 cm) |
Height to Hinge Cap | 32.25" (82 cm) |
Width | 23.38" (59 cm) |
Depth | 23.0" (58 cm) |
Depth with Handle | 25.5" (65 cm) |
Depth with door at 90° | 44.5" (113 cm) |
Capacity | 5.5 cu.ft. (156 L) |
Defrost Type | Automatic |
Door | Glass |
Cabinet | Stainless Steel |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Sanitation | ETL-S |
Amps | 1.8 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 110.0 lbs. (50 kg) |
Shipping Weight | 120.0 lbs. (54 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
UPC | 761101062877 |
Kegerator | |
Door Swing | RHD |
Reversible | Factory Reversible |
Height Adjustable | 47.5 |
Tap Kit | Yes |
Number of Taps | 2 |
Thermostat Type | Dial |
Interior Light | Yes |
Fan Type | Exterior |
Refrigerant | R600a |
Refrigerant Amount | 0.67 oz. |
High Side PSI | 124.0 |
Low Side PSI | 30.0 |
Inter Height | 26.0" (66 cm) |
Interior Width | 21.0" (53 cm) |
Interior Depth | 18.0" (46 cm) |
Compressor Step Height | 7.0" (18 cm) |
Compressor Step Width | 21.0" (53 cm) |
Compressor Step Depth | 5.5" (14 cm) |
Temperature Range | 34º to 43ºF |
AVAILABLE UPGRADES
Door | |||||
---|---|---|---|---|---|
|
|||||
Exterior | |||||
|
|||||
Handle | |||||
|
