24" Wide Built-In Beer Dispenser, ADA Compliant

SKU: SBC56GBINKCSSADA
32 inch height allows installation under lower counters following ADA guidelines
Estimated Time to Ship:

5 to 7 days

Available with an energy saving door tint to protect the interior from natural and artificial light. Choose from four tint finishes with varying levels of visibility.

All tints reject up to 99% of UV rays. Click here to view these options and learn more about their efficiency.
This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.
Add a naturally antimicrobial copper handle for added protection against germs and bacteria.
32.25" H x 23.63" W x 23.0" D
(82cm H x 60cm W x 58cm D)

Overview
Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.25" (82 cm)
Width 23.63" (60 cm)
Depth 23.0" (58 cm)
Depth with Handle 25.5" (65 cm)
Depth with door at 90° 44.5" (113 cm)
Capacity 5.5 cu.ft. (156 L)
Defrost Type Automatic
Door Glass
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.8
Voltage/Frequency 115 V AC/60 Hz
Weight 110.0 lbs. (50 kg)
Shipping Weight 120.0 lbs. (54 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101062860
Kegerator
Door Swing RHD
Reversible Factory Reversible
Thermostat Type Dial
Interior Light Yes
Fan Type Exterior
Refrigerant R600a
Refrigerant Amount 0.67 oz.
High Side PSI 124.0
Low Side PSI 30.0
Inter Height 26.0" (66 cm)
Interior Width 21.0" (53 cm)
Interior Depth 18.0" (46 cm)
Compressor Step Height 7.0" (18 cm)
Compressor Step Width 21.0" (53 cm)
Compressor Step Depth 5.5" (14 cm)
Temperature Range 34º to 43ºF

Exterior
SSK
Stainless steel kickplate factory installed
DT - Digital thermostat
Install a digital thermostat with external readout for precise temperature management
LHD - Left hand door swing
Door reversal to left hand swing
Door
T1 Door Tint
Tinted door in low-E mirror finish for maximum energy savings
T1SF Door Tint
Reflective door tint in dark smoke finish for maximum energy savings on full-size and two-door models
T2 Door Tint
Tinted door in reflective deep blue finish with high energy savings
T4 Door Tint
Neutral door tint in light smoke finish for moderate energy savings
T1S Door Tint
Reflective door tint in dark smoke finish for maximum energy savings
Handle
TBC Copper Towel Bar Handle Upgrade
Change this handle to a 12" vertically mounted towel bar style handle made from pure copper for antimicrobial protection

ADA compliant height

Sized at 32 inches high (32.25 to hinge cap) for installation under lower ADA compliant counters

Commercially approved

ETL-S listed to NSF-7 commercial standards and meets UL-471 for use in foodservice settings

Built-in capable

Front-breathing design allows fully recessed installation under counters

Tap kit not included

Install your own tapping equipment to create a customized beer cooler

Designed for 1/6 kegs

Interior can store up to two sixtel kegs

Double pane tempered glass door

Heat resistant design provides clear view to promote impulse buys

Stainless steel wrapped cabinet

Exterior features a wrapped stainless steel finish for lasting durability in busy commercial settings

Professional handle

Curved towel bar style handle in brushed stainless steel

Factory-installed lock

Keyed lock conveniently located towards the top of the door for added security (2 keys included)

Adjustable thermostat

Interior dial thermostat ensures easy temperature management

Automatic defrost

No-frost operation for minimum user maintenance

Stainless steel drip tray

Removable two-piece drip tray included for added convenience

Stainless steel guard rail

Durable railing makes it easier to neaten service

Interior light

Turn the light on when you need it and off when you're done with a convenient rocker switch

Interior CO2 holder

Bracket is installed inside, allowing you to save on depth by keeping the tank behind your kegs

Stainless steel floor cover

Interior includes steel cover to protect the floor when loading kegs

One piece interior liner

Easy clean-up with a seamless liner that won't hold a mess in hidden crevices

Hidden evaporator

Cold wall design with hidden evaporator and seamless interior

Factory reversible door

Unit ships with a right hand door swing. For a left hand version, add option LHD upon order

Fully finished cabinet

Allows the unit to be used freestanding

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit Commercial brings unique appliance choices to ADA compliant settings with a new line of commercial beer dispensers made in Europe.

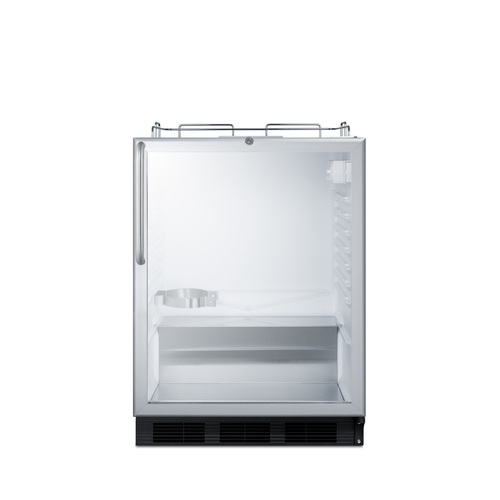

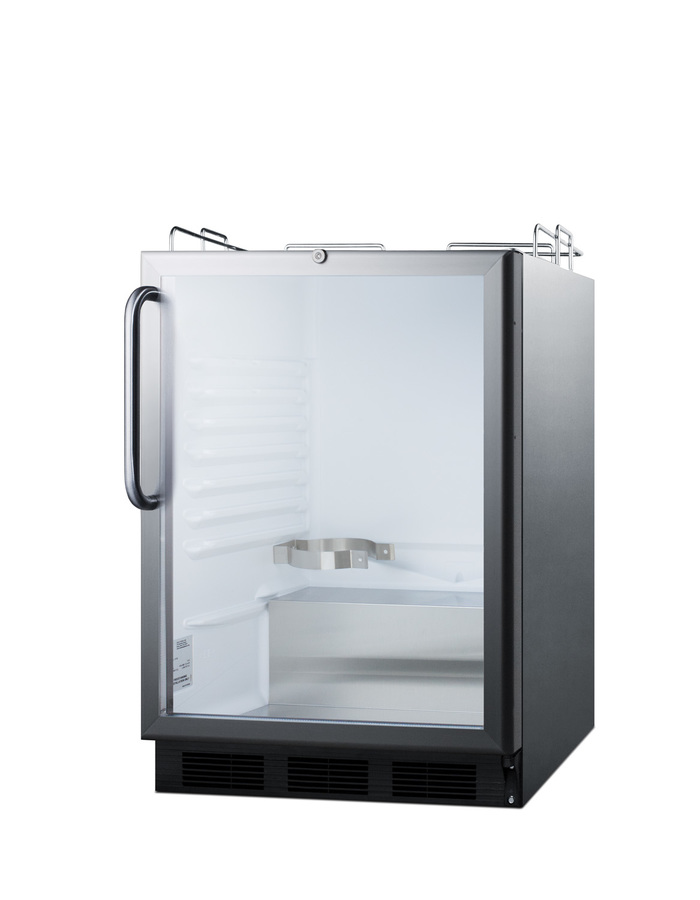

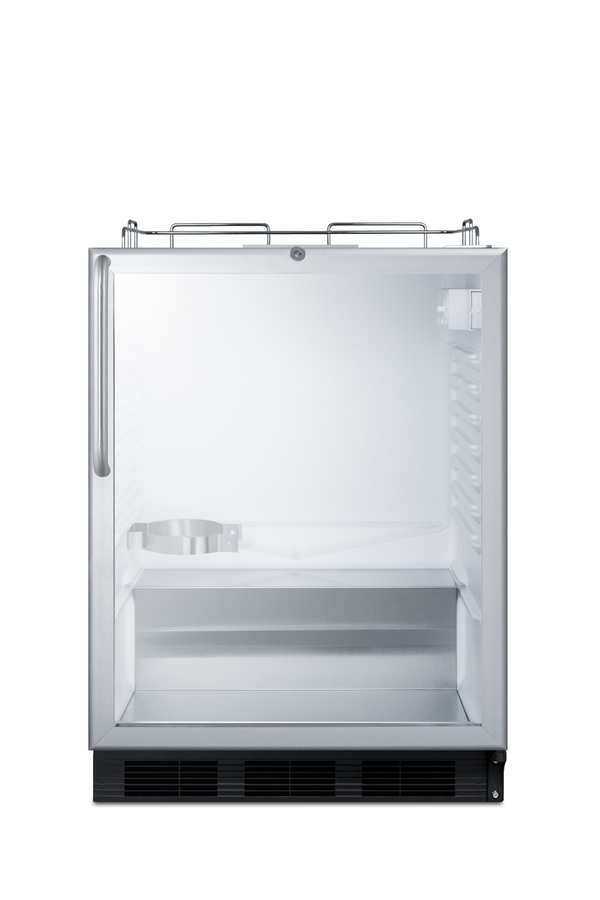

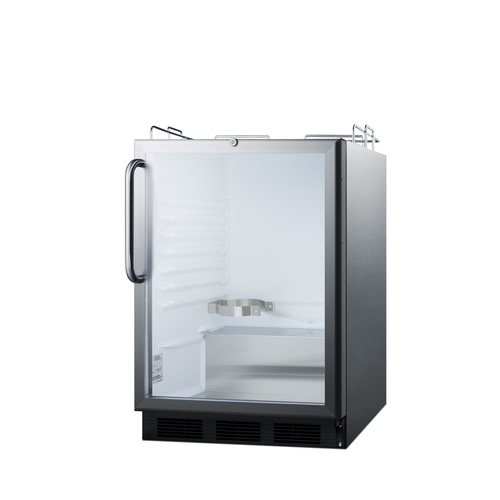

Sized at 32 inches high, the SBC56GBINKCSSADA is designed to fit under lower ADA compliant counters. The front-breathing design allows built-in installation, while the stainless steel wrapped cabinet also enables freestanding use. This unit features a double pane tempered glass door for a full display of the interior. A factory-installed lock is conveniently located towards the top of the door for added security and a curved towel bar style handle in brushed stainless steel completes the look. We include a guard rail (ships uninstalled) and removable two-piece stainless steel drip tray for cleaner service. The SBC56GBINKCSSADA does not include any tapping equipment, allowing "do-it-yourselfers" to customize their draft system.

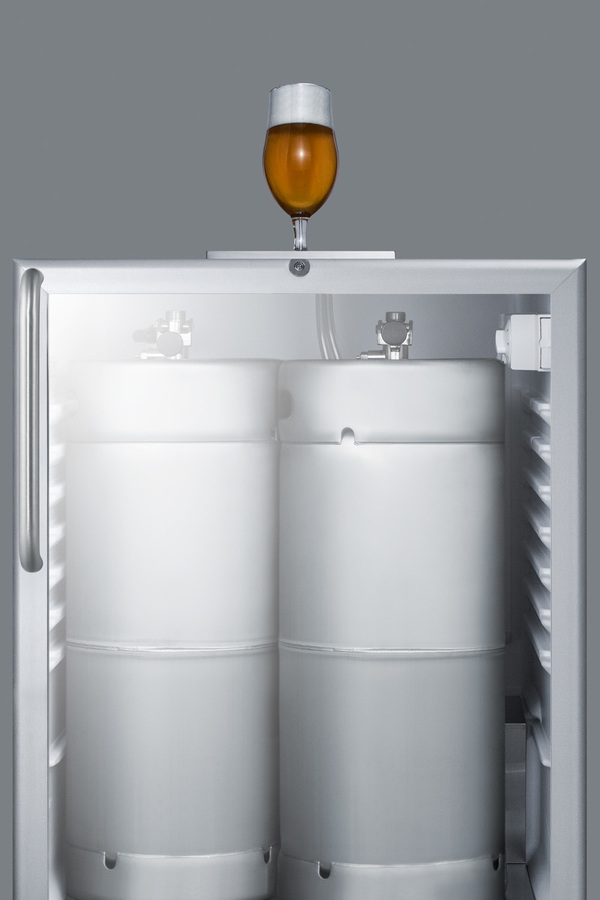

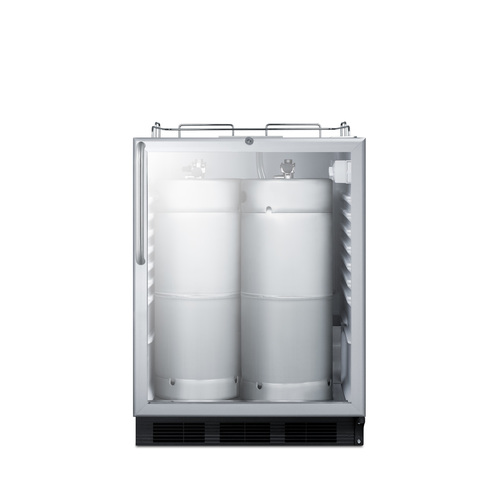

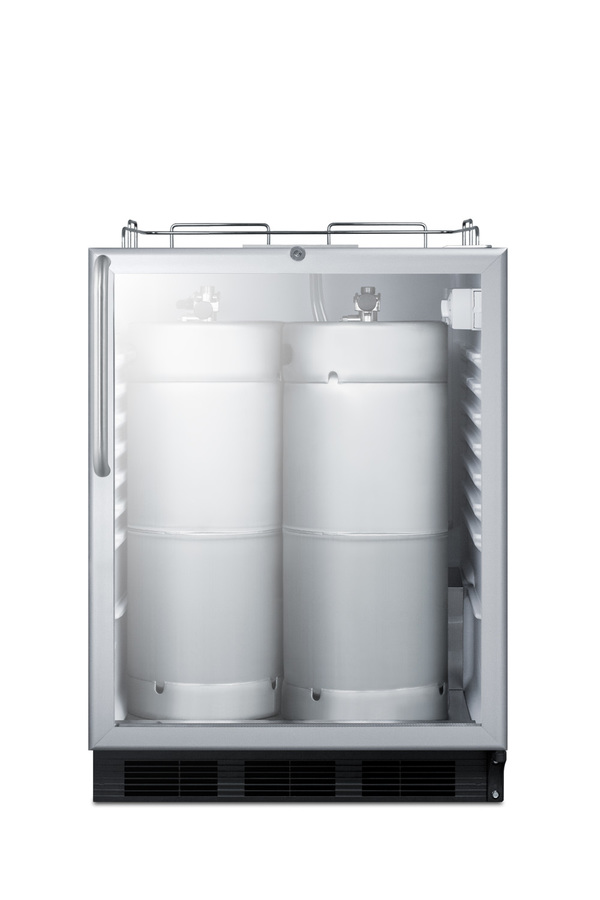

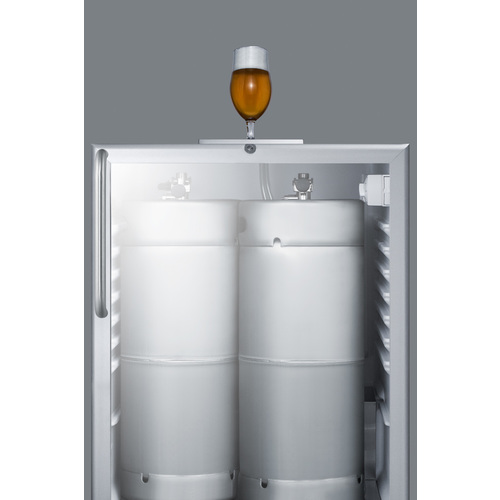

Inside, the SBC56GBINKCSSADA is designed to hold two 1/6 (sixtel) kegs (note: interior does not accommodate a standard half barrel). Automatic defrost ensures easy user maintenance, with a seamless interior for easier cleaning. The stainless steel floor offers added durability when loading kegs. This unit includes an interior light with an on/off rocker switch and a dial thermostat for easy and intuitive temperature management. A CO2 tank bracket is located inside, allowing you to keep the tank inside and save on exterior depth.

The SBC56GBINKCSSADA is ETL-S listed to NSF-7 commercial standards. Additional ADA compliant kegerator choices are available with panel-ready or glass doors. Browse our complete line for more choices.



Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
