Shallow Depth Built-In All-Refrigerator (Panel Not Included)

SKU: FF195IF
Shallow 18" depth design ideal for small-spaced commercial and residential settings
Estimated Time to Ship:

3 to 5 days

Cabinet:
Color: Black

*Additional features may vary

This unit can be used for commercial or residential applications. It meets applicable U.S. Department of Energy (DOE) standards for both household and commercial energy usage. For information on its commercial sanitation listing, see Specifications.
34.0" H x 19.0" W x 18.0" D
(86cm H x 48cm W x 46cm D)

Overview
Height of Cabinet 34.0" (86 cm)
Width 19.0" (48 cm)
Depth 18.0" (46 cm)
Depth with door at 90° 35.0" (89 cm)
Capacity 3.13 cu.ft. (89 L)
Defrost Type Automatic
Door Panel-Ready
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 259.0kWh/year
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Weight 70.0 lbs. (32 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101074931
Refrigerator Features
Door Swing RHD
Reversible Factory Reversible
Height Adjustable Yes
Shelf Type Glass
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Dial
Fan Type Interior
Refrigerant Type R600a
Refrigerant Amount 0.88oz.
High Side PSI 320.0
Low Side PSI 120.0
Level Legs Qty 2
Interior Light Yes
Temperature Range 34 to 50ºF
Sound Level 33.4 dB
Dimensions
Interior Height 29.0" (74 cm)
Interior Width 16.0" (41 cm)
Interior Depth 12.75" (32 cm)
Compressor Step Height 7.0" (18 cm)
Compressor Step Width 16.0" (41 cm)
Compressor Step Depth 6.25" (16 cm)

Exterior
LHD - Left hand door swing
Door reversal to left hand swing

18" shallow depth

Ideal for home wet bars, island kitchens, and other applications with limited footprint space

ENERGY STAR certified

Rated by the DOE to perform with more efficiency than federal standards require, saving your unit energy and you on higher utility costs

Commercially approved

ETL-S listed to NSF-7 standard and meets UL-471 for use in commercial settings

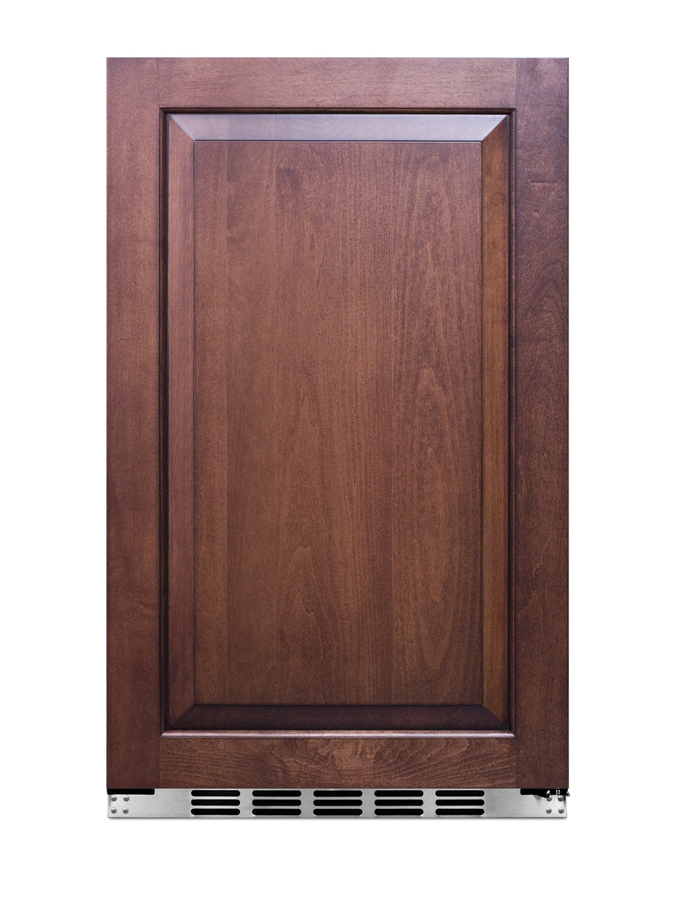

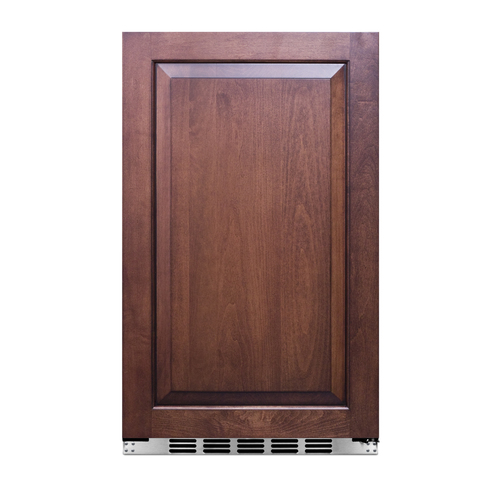

Panel-ready door

Integrated stainless steel door frame accepts full overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design; panel size: 18 7/8" W x 31 9/16" H and at least 3/4" thick; 10 lbs. maximum; customers provide their own handles

Built-in capable

Front-breathing design lets you make the best use of space by installing your appliance under the counter

Automatic defrost

Reduced user maintenance with auto defrost system

Adjustable shelves

Three glass shelves with brake system ensures safe, optimal storage

Door racks

Two chrome racks accommodate a variety of sizes for optimal interior storage

LED lighting

Automatically illuminates when the door is open for an attractive and energy efficient view

Black interior finish

Allows for easy cleaning and organization within the interior of the unit

Adjustable thermostat

Dial thermostat with seven temperature settings offers easy temperature management

Versatile construction

Meets both residential and commercial standards

Sealed back

Space saving design for easier cleanability

Right-angle plug

Provides flexibility in unit placement without needing added depth

Factory installed lock

Door includes a lock and key for optional security. If planning to use the lock, be sure to include a 5/8" hole in the lower center of your custom panel

Height adjustable

Four leveling legs allow you to adjust the height between 33 7/8" and 34 1/2" to best fit your undercounter space

Fully finished black cabinet

Allows the unit to be used freestanding

100% CFC free

Environmentally friendly design does not contain ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit's shallow depth series of built-in undercounter refrigeration includes ENERGY STAR certified choices for improved efficiency in modern style.

The FF195IF features a versatile design that meets NSF-7 and UL-471 commercial standards but is also approved for residential use. Sized at just 19 inches wide and 18 inches deep, it comes in a jet black cabinet with a sealed back for easy cleaning of the unit. The height can be adjusted between 33 7/8 and 34 1/2 inches to best suit your space. The stainless steel door features an integrated stainless steel frame designed to accept panels, allowing you to create a custom look under the counter (panel size: 31 9/16 inch H x 18 7/8 inch W at 3/4 inch thick). Customers provide their own handle to best match their setting. The space-saving right-angle plug and integrated hinge provide added flexibility in unit placement.

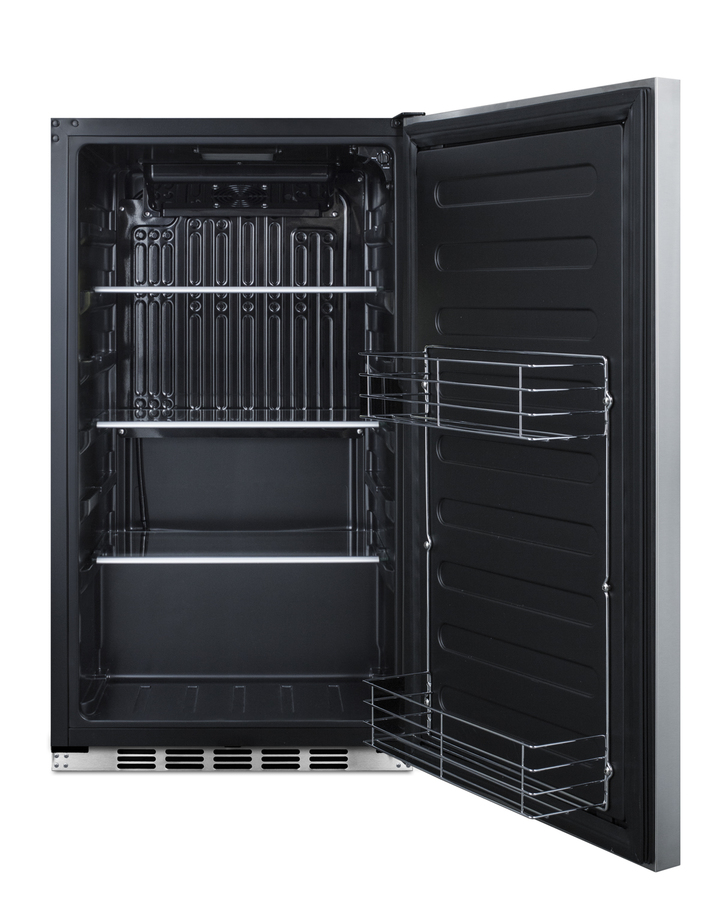

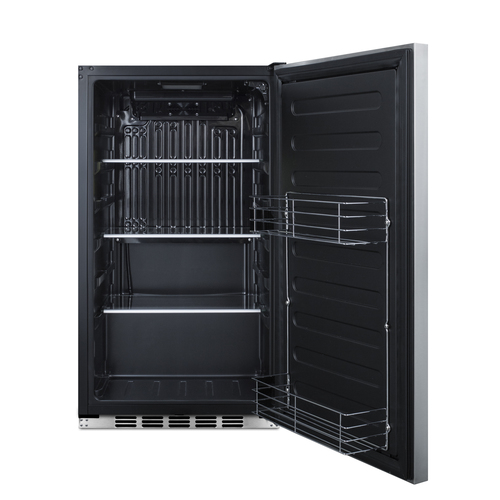

Inside, the FF195IF utilizes an internal fan to ensure the unit is evenly cooled from top to bottom. An automatic defrost system ensures minimal user maintenance, while LED lighting allows full visibility of stored items in the jet black interior. Three adjustable slide-out glass shelves  provide flexible storage capacity inside the 3.1 cu. ft. interior. A shelving brake system offers added safety when moving and storing contents, while two chrome door racks are ideal for storing condiments, canned beverages, and other larger items. The dial thermostat, with seven temperature settings, is located in the front upper-right corner for easy temperature management.

The FF195IF is ENERGY STAR certified and designed for built-in or freestanding use. For a similar glass door unit commercially approved for outdoor use, see the SPR489OSPNR.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
