24" Wide Built-In All-Refrigerator, ADA Compliant

SKU: ASDS2413KSHH
Just under 18" deep for an easy fit in island kitchens, wet bars, and other undercounter spaces with shallower cutouts
Estimated Time to Ship:

2 to 4 days

This unit can be used for commercial or residential applications. It meets applicable U.S. Department of Energy (DOE) standards for both household and commercial energy usage. For information on its commercial sanitation listing, see Specifications.
This item can be ordered in one of our new vibrant door finishes: cobalt blue, lavender purple, emerald green, or saffron gold. Click the icon to explore our new palette!

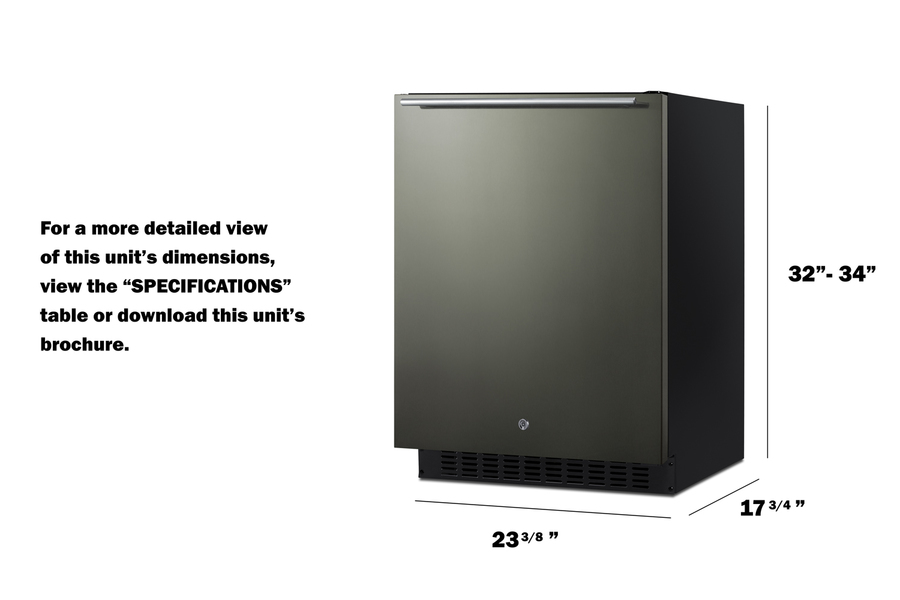

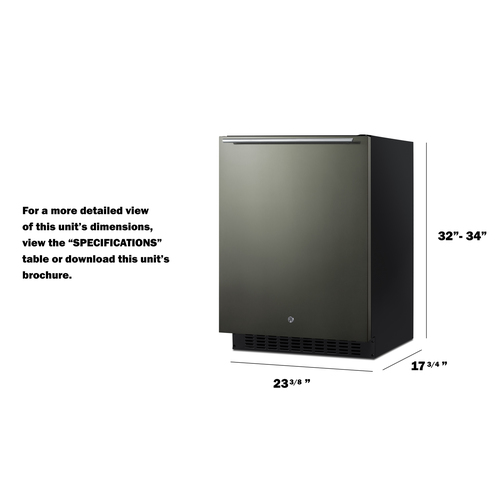

32.0" H x 23.38" W x 17.75" D
(81cm H x 59cm W x 45cm D)

Overview
Height of Cabinet 32.0" (81 cm)
Width 23.38" (59 cm)
Depth 17.75" (45 cm)
Depth with Handle 19.5" (50 cm)
Depth with door at 90° 40.0" (102 cm)
Capacity 3.1 cu.ft. (88 L)
Defrost Type Frost-Free
Door Black Stainless Steel
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 215.0kWh/year
Amps 1.0
Voltage/Frequency 115 V AC/60 Hz
Weight 89.0 lbs. (40 kg)
Shipping Weight 110.0 lbs. (50 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101088839
Refrigerator Features
Sabbath Mode Yes
Door Swing RHD
Reversible Yes
Height Adjustable Yes
Shelf Type Chrome
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.38oz.
High Side PSI 270.0
Low Side PSI 105.0
Level Legs Qty 4
Interior Light Yes
Temperature Range 36 to 43ºF
Sound Level 32.9 dB
Dimensions
Interior Height 24.25" (62 cm)
Interior Width 19.5" (50 cm)
Interior Depth 12.25" (31 cm)
Compressor Step Height 3.75" (10 cm)
Compressor Step Width 19.5" (50 cm)
Compressor Step Depth 4.25" (11 cm)

Exterior
LHD - Left hand door swing
Door reversal to left hand swing
Latch - Factory-installed door latch requires manual release to open unit
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
SSK - Stainless steel kickplate
Stainless steel kickplate factory installed
Door
CDG-Emerald green door
Emerald green door wrap with horizontally mounted stainless steel handle and matching kickplate
CDY-Saffron gold door wrap
Saffron gold door wrap with horizontally mounted stainless steel handle and matching kickplate
CDB-Cobalt blue door wrap
Cobalt blue door wrap with horizontally mounted stainless steel handle and matching kickplate
CDP-Lavender purple door wrap
Lavender purple door wrap with horizontally mounted stainless steel handle and matching kickplate

24" wide all-refrigerator

3.1 cu.ft. interior for residential or commercial cold storage

Less than 18" deep

Unique 17.75" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space

ADA compliant design

32" height allows easy installation under lower ADA compliant counters

Adjustable height

Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinets

Built-in capable

Front-breathing design lets you make the best use of space by installing your appliance under the counter

Stainless steel interior

Walls and floor are constructed from stainless steel for added strength and easy cleanup

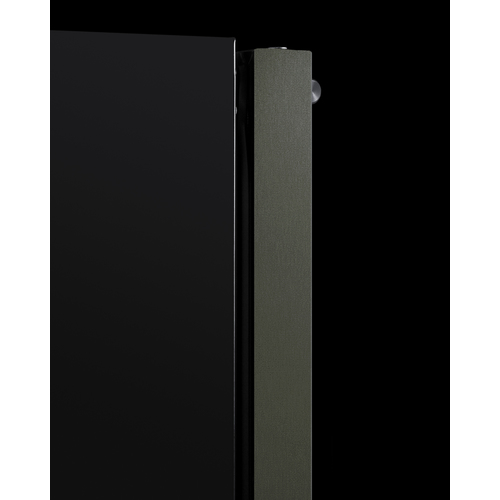

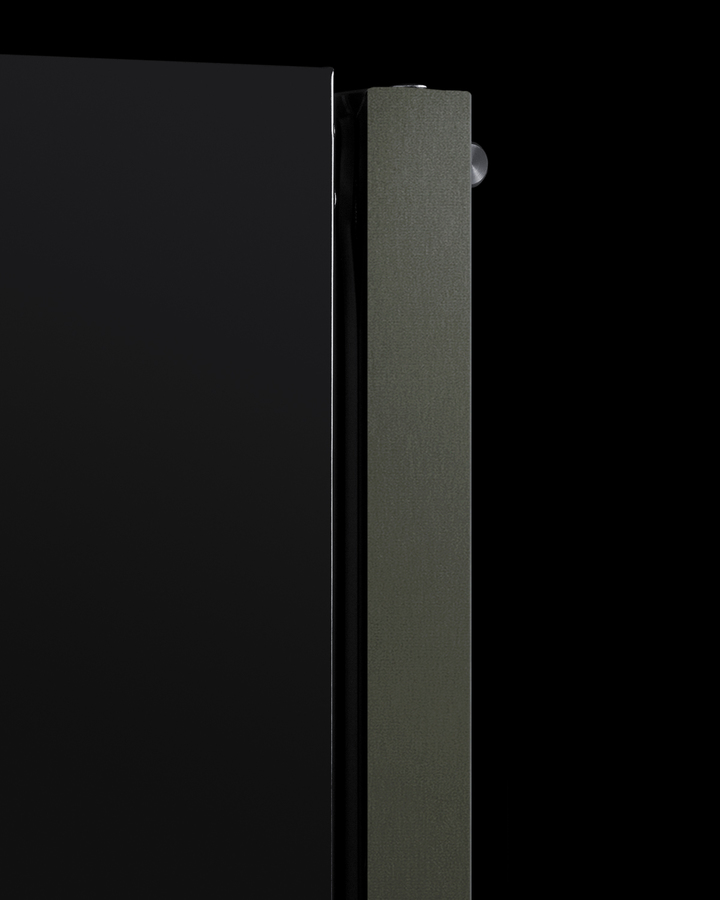

Black stainless steel wrapped door

304 grade stainless steel painted black with a slight gloss finish

Professional handle

Brushed stainless steel handle with a thin 14mm diameter is mounted horizontally across the door for a sleek look

Factory installed lock

Keyed lock for a secure interior (2 keys included)

Frost-free operation

No-frost operation for minimum user maintenance

Internal fan

Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom

Digital thermostat

Electronic controls located inside the unit for precise temperature management, with a readout viewable in Celsius or Fahrenheit at the touch of a button

Dimmable LED lighting

Efficient and attractive presentation with LED lighting that can be adjusted between three levels of brightness

Cantilevered shelving

Adjustable chrome shelves with stainless steel clips allow you to adjust the shelf height for the best fit

Open door alarm

Audible alarm will sound if the door is left open longer than one minute

High temperature alarm

High temperature alarm sounds if the unit's interior goes out of the recommended range

Sabbath mode setting

Optional setting lets you disable the lighting and alarm for up to 48 hours

Temperature Memory Function

Unit will retain its last settings when power is restored in the event of power loss

Integrated hinge

Flat hinge ensures no added height is needed when installing under a counter

Right angle plug

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Sealed back

Space-saving design with no exposed coils that offers easier cleanability

Reversible door

User-reversible door swing for added flexibility

Commercially approved

ETL-S listed to NSF-7 Standards for use in commercial establishments

Fully finished black cabinet

Allows the unit to be used freestanding

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit's shallow depth series of built-in undercounter refrigeration brings full functionality to kitchen islands, wet bars, and other settings with space limitations.

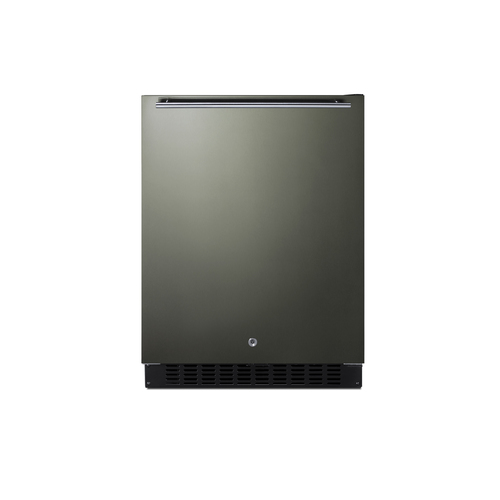

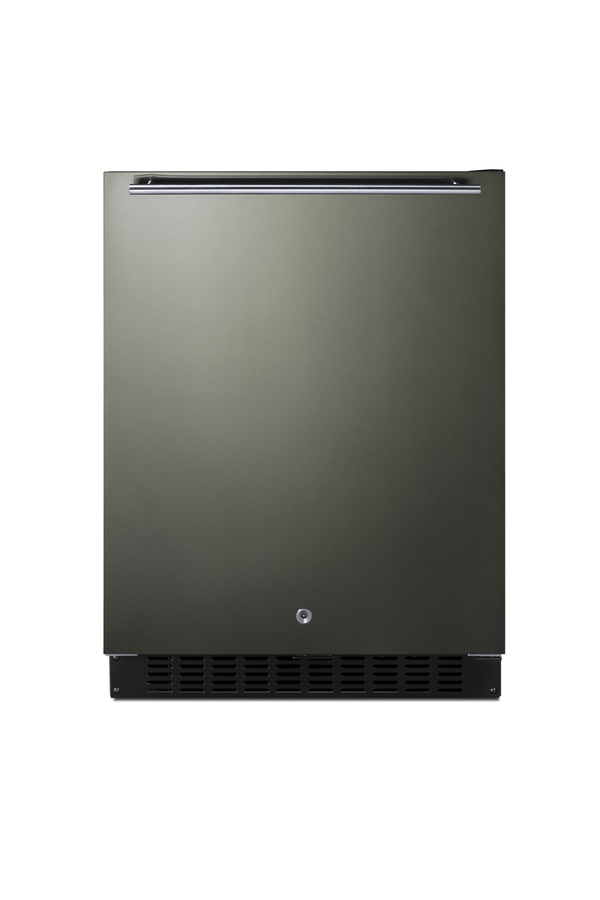

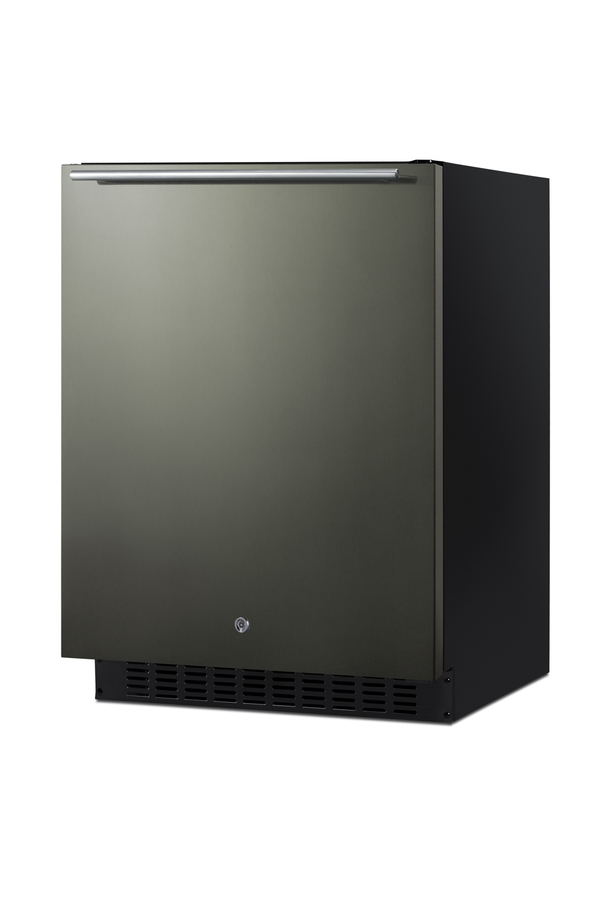

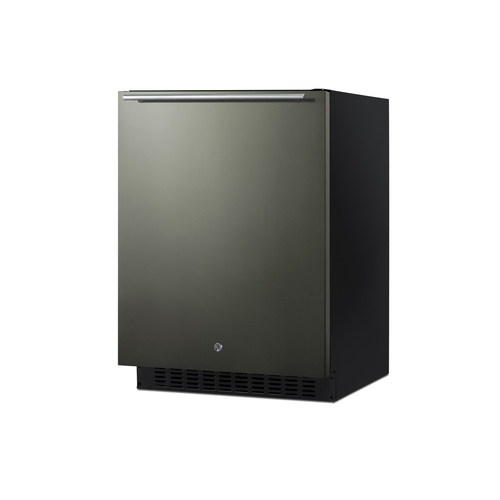

Model ASDS2413KSHH is a 24" wide all-refrigerator sized under 18" deep. It comes in a 32" height to fit under lower ADA compliant counters, with adjustable legs and a sliding kickplate cover that also allows you to raise the overall height up to 34" to fit standard counter spaces. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. This unit has a sealed rear and right angle cord for a better fit. The user-reversible door comes in our popular black stainless steel finish from our exclusive basalt collection. The wrapped door is made from 304 grade stainless steel with a high gloss finish in a neutral hue to perfectly accent or complement your kitchen design. The door is strongly resistant to most fingerprints and can easily be wiped clean with a dry cloth. Our signature thin handle in brushed stainless steel is mounted horizontally to complete the modern look, with a front lock for added security as needed.

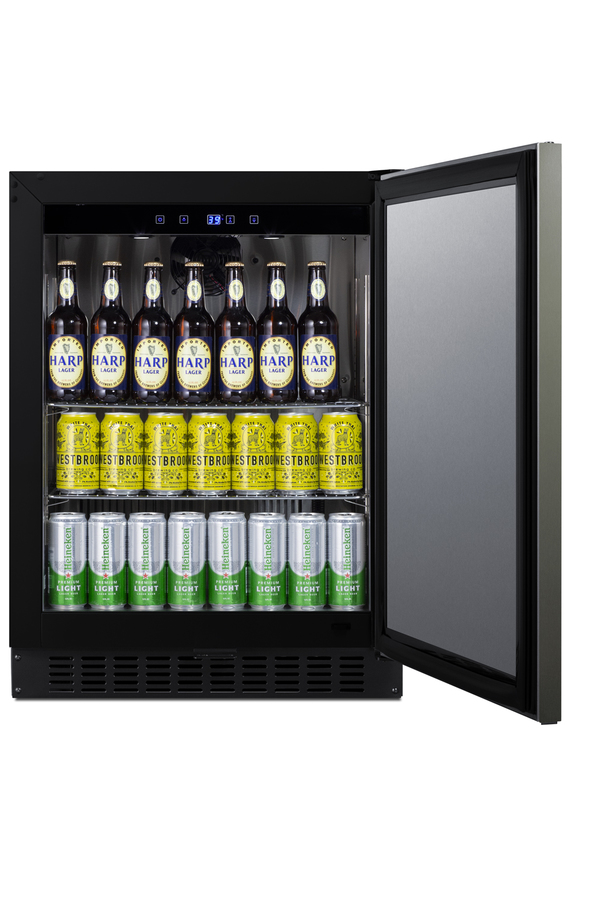

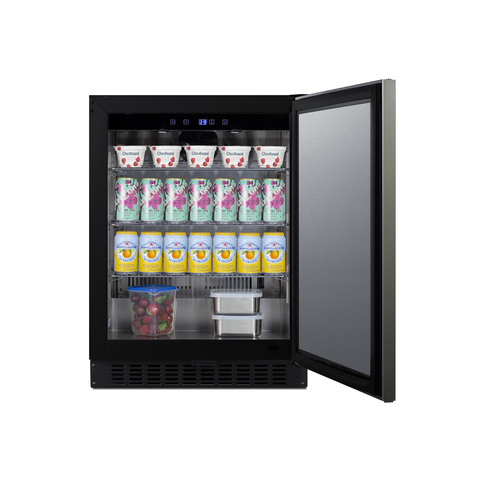

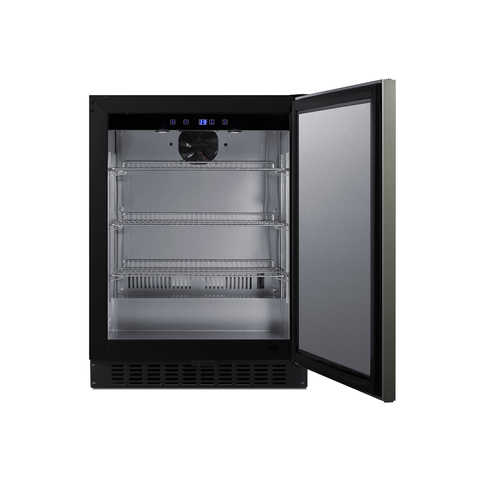

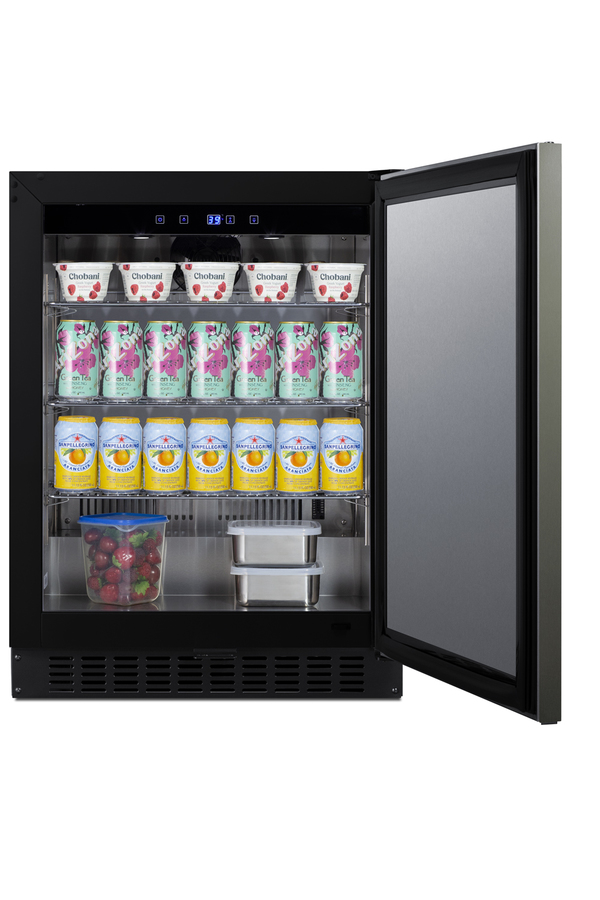

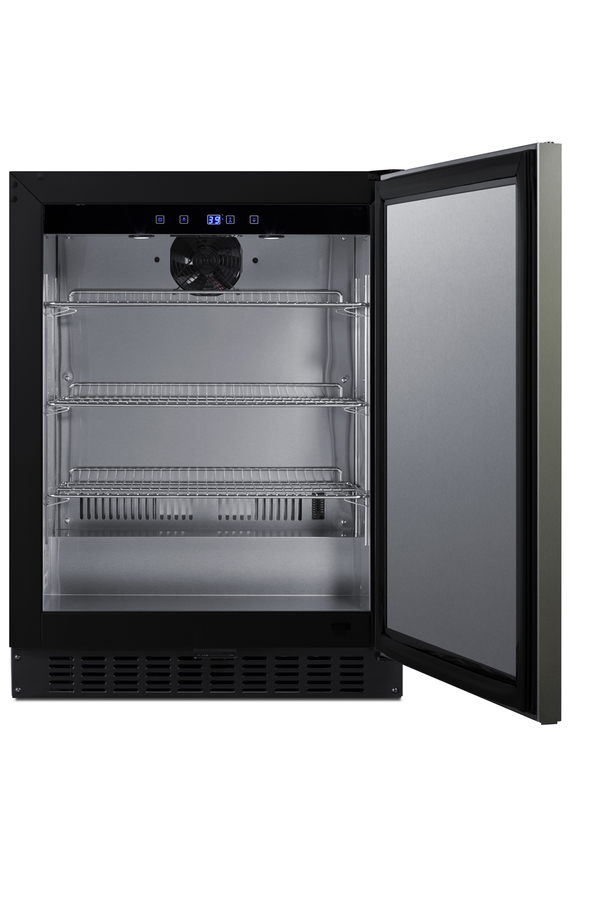

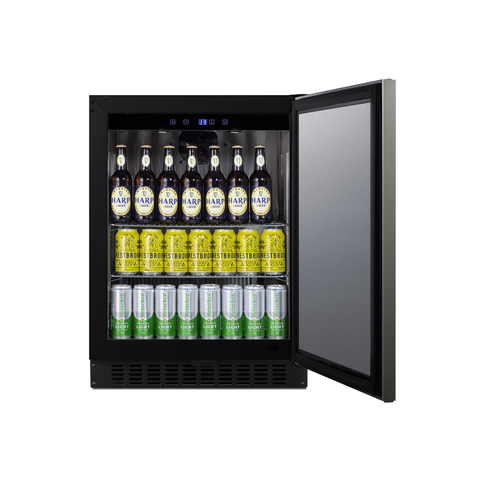

Inside, the ASDS2413KSHH features stainless steel construction for improved durability and sanitation. Fan-forced cooling ensures even temperature distribution and fast temperature recovery. Recessed LED lighting offers an attractive yet efficient look. The digital thermostat makes it easy to manage the interior temperature. This unit includes cantilevered shelving in chrome for flexible storage. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance.

The ASDS2413KSHH refrigerator is ETL-S listed to NSF-7 commercial standards but can also be used in the home. With its deluxe style, user-friendly features, and uniquely shallow depth, this unit offers premium value for a variety of settings. Additional 18" deep choices are available in 15", 19", and 24" widths, including outdoor refrigerators, refrigerator drawers, wine cellars, and more.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
