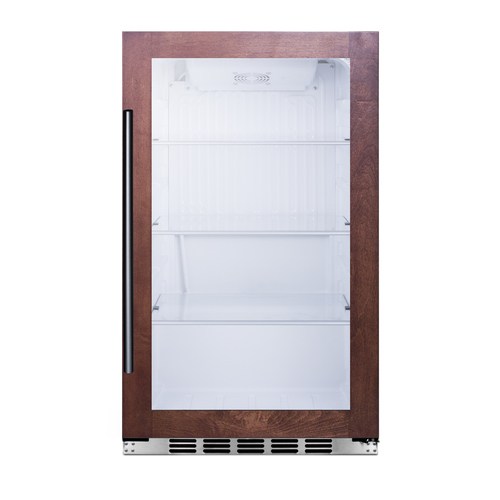

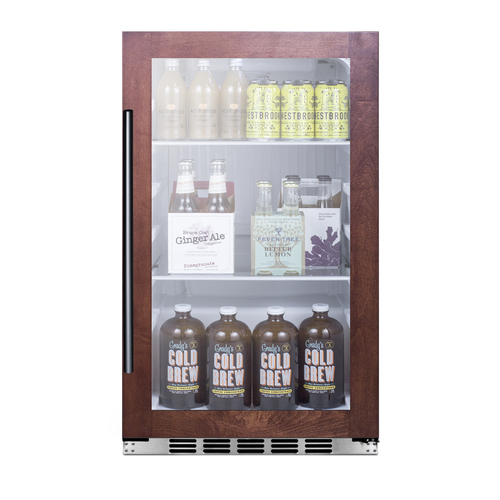

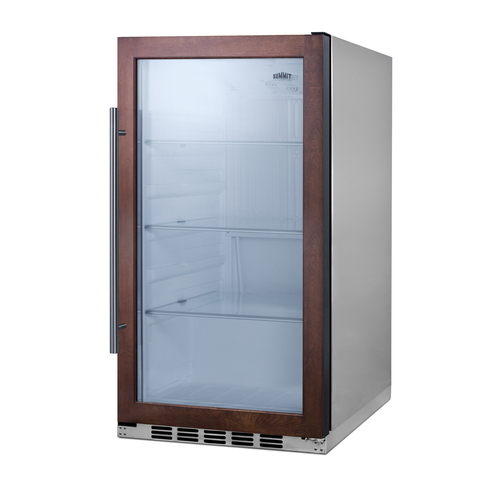

Shallow Depth Indoor/Outdoor Beverage Cooler

SKU: SPR489OSCSSPNR

Tints
Available with an energy saving door tint to protect the interior from natural and artificial light. Choose from four tint finishes with varying levels of visibility.

All tints reject up to 99% of UV rays. Click here to view these options and learn more about their efficiency.
Commercial home
This unit can be used for commercial or residential applications. It meets applicable U.S. Department of Energy (DOE) standards for both household and commercial energy usage. For information on its commercial sanitation listing, see Specifications.

Panel-ready door trim lets you customize the unit to best match your setting

33.88" H x 19.0" W x 17.75" D

(86cm H x 48cm W x 45cm D)

OVERVIEW

  • Shallow depth under 18" makes it ideal for smaller commercial and residential settings
  • Designed and constructed for safe use in the outdoors
  • Panel-ready door frame allows you to create a truly custom look under the counter
  • Commercially listed to NSF-7 standards and meets UL-471 for commercial applications
  • Stainless steel wrapped exterior cabinet for added luxury with lasting durability
  • Flexible design allows built-in or freestanding use

SPECIFICATIONS

Overview
Height of Cabinet 33.88" (86 cm)
Width 19.0" (48 cm)
Depth 17.75" (45 cm)
Depth with door at 90° 34.75" (88 cm)
Capacity 3.13 cu.ft. (89 L)
Defrost Type Automatic
Door Glass/Panel-Ready Frame
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 285.0kWh/year
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Weight 85.0 lbs. (39 kg)
Shipping Weight 90.0 lbs. (41 kg)
Estimated Time to Ship 2 to 4 days
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator Features
Door Swing RHD
Reversible Factory Reversible
Height Adjustable Yes
Shelf Type Glass
Shelf Qty 3
Adjustable Shelves Yes
Can Storage Yes
Thermostat Type Dial
Fan Type Interior
Refrigerant Type R600a
Refrigerant Amount 0.88oz.
High Side PSI 320.0
Low Side PSI 120.0
Level Legs Qty 2
Interior Light Yes
Temperature Range 34 to 50ºF
Sound Level 32.6 dB
Dimensions
Interior Height 29.0" (74 cm)
Interior Width 16.0" (41 cm)
Interior Depth 12.75" (32 cm)
Compressor Step Height 7.0" (18 cm)
Compressor Step Width 16.0" (41 cm)
Compressor Step Depth 6.25" (16 cm)

AVAILABLE UPGRADES

Exterior
LHD - Left hand door swing
Door reversal to left hand swing
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
Door
T4 Door Tint
Neutral door tint in light smoke finish for moderate energy savings
T3 Door Tint
Reflective door tint in light blue finish for medium energy savings
T2 Door Tint
Tinted door in reflective deep blue finish with high energy savings
T1S Door Tint
Reflective door tint in dark smoke finish for maximum energy savings
T1 Door Tint
Tinted door in low-E mirror finish for maximum energy savings
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

WHERE TO BUY

Invalid Format

DESCRIPTION

Summit's line of built-in undercounter outdoor appliances includes slim-fitting display beverage centers designed for optimum storage and product presentation.

The SPR489OSCSSPNR features a versatile design that meets NSF-7 and UL-471 commercial standards, but is also approved for residential use. Sized with a slim 19 inch width and 17 3/4 inch shallow depth, it features a stainless steel wrapped cabinet with a sealed back for safe installation in the outdoors. The height can be adjusted between 33 7/8 and 34 1/2 inches to best suit your space. The double pane tempered glass door includes a panel-ready trim that lets you create a custom look to match or complement other cabinetry (panel dimensions: 18 3/4 inch W x 31 1/2 inch H at a minimum of 3/4 inches thick). Customers supply their own handle to best match their setting. The space-saving right angle plug and integrated hinge offer added space savings, while the stainless steel kickplate completes the look.

Inside, the SPR489OSCSSPNR utilizes an internal fan to ensure the interior is evenly cooled from top to bottom. An automatic defrost system allows for minimal user maintenance, while the white interior and LED lighting allows full visibility of stored items. Three adjustable glass shelves with six positions provide optimal storage capacity inside the 3.1 cu. ft. interior. The dial thermostat, with seven temperature settings, is located in the upper-right corner for easy temperature management.

The SPR489OSCSSPNR can be installed indoors or outdoors and is designed for built-in or freestanding use. Additional panel-ready choices are available in 15 inch, 18 inch, and 24 inch wide fits. Browse our full selection to find the perfect fit.

FEATURES

Shallow depth
Unique 17 3/4" depth is ideal for home wet bars, island kitchens, and other applications with limited footprint space
Built-in capable
Make the best use of space by installing your refrigerator under the counter
Panel-ready door trim
Door frame can be customized with a custom overlay panel (panel frame dimensions: 31 1/2" H x 18 3/4" W at 3/4" minimum thickness)
Weatherproof design
Approved for use in the outdoors, with a sealed exterior and double pane tempered glass door
Commercially approved
ETL-S listed to NSF-7 standard and meets UL-471 for use in commercial settings
Stainless steel wrapped exterior
Cabinet features 304 grade stainless steel construction for added durability and a professional look
Double pane tempered glass door
Heat resistant design provides clear view of stored products
Automatic defrost
Reduced user maintenance with auto defrost system
Adjustable shelves
Three glass shelves with six positions for optimal storage and easy cleaning
LED lighting
Automatically illuminates when the door is open for an attractive and energy efficient view
White interior finish
White interior offers improved visibility of stored contents
Adjustable thermostat
Dial thermostat with seven temperature settings offers easy temperature management
Versatile construction
Meets both residential and commercial standards
Sealed back
Space saving design with easier cleanability and added protection from the elements
Right-angle plug
Provides flexibility in unit placement without needing added depth
Factory installed lock
Door includes a lock and key for optional security. If planning to use the lock, be sure to include a 5/8" hole in the lower center of your custom panel
Height adjustable
Four leveling legs allow you to adjust the height between 33 7/8" and 34 1/2" to best fit your undercounter space
Fully finished cabinet
Allows the unit to be used freestanding
100% CFC free
Environmentally friendly design does not contain ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet 33.88" (86 cm)
Width 19.0" (48 cm)
Depth 17.75" (45 cm)
Depth with door at 90° 34.75" (88 cm)
Capacity 3.13 cu.ft. (89 L)
Defrost Type Automatic
Door Glass/Panel-Ready Frame
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 285.0kWh/year
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Weight 85.0 lbs. (39 kg)
Shipping Weight 90.0 lbs. (41 kg)
Estimated Time to Ship 2 to 4 days
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator Features
Door Swing RHD
Reversible Factory Reversible
Height Adjustable Yes
Shelf Type Glass
Shelf Qty 3
Adjustable Shelves Yes
Can Storage Yes
Thermostat Type Dial
Fan Type Interior
Refrigerant Type R600a
Refrigerant Amount 0.88oz.
High Side PSI 320.0
Low Side PSI 120.0
Level Legs Qty 2
Interior Light Yes
Temperature Range 34 to 50ºF
Sound Level 32.6 dB
Dimensions
Interior Height 29.0" (74 cm)
Interior Width 16.0" (41 cm)
Interior Depth 12.75" (32 cm)
Compressor Step Height 7.0" (18 cm)
Compressor Step Width 16.0" (41 cm)
Compressor Step Depth 6.25" (16 cm)

AVAILABLE UPGRADES

Exterior
LHD - Left hand door swing
Door reversal to left hand swing
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
Door
T4 Door Tint
Neutral door tint in light smoke finish for moderate energy savings
T3 Door Tint
Reflective door tint in light blue finish for medium energy savings
T2 Door Tint
Tinted door in reflective deep blue finish with high energy savings
T1S Door Tint
Reflective door tint in dark smoke finish for maximum energy savings
T1 Door Tint
Tinted door in low-E mirror finish for maximum energy savings

DOWNLOADS

Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
