24" Wide Built-In All-Refrigerator, ADA Compliant
Next day shipping
(80cm H x 60cm W x 59cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 31.63" (80 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.5" (60 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 23.38" (59 cm) |
| Depth with Handle | 25.38" (64 cm) |
| Depth with door at 90° | 45.0" (114 cm) |
| Capacity | 4.2 cu.ft. (119 L) |
| Defrost Type | Automatic |

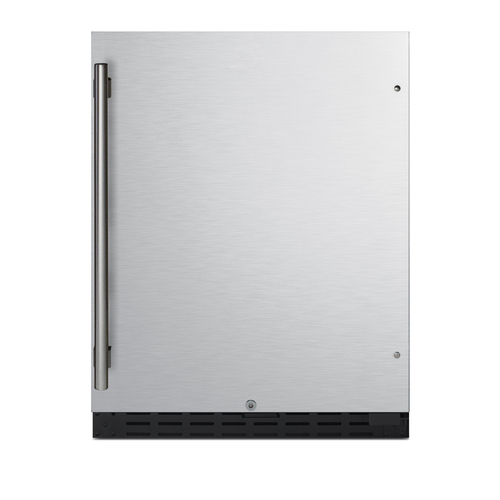

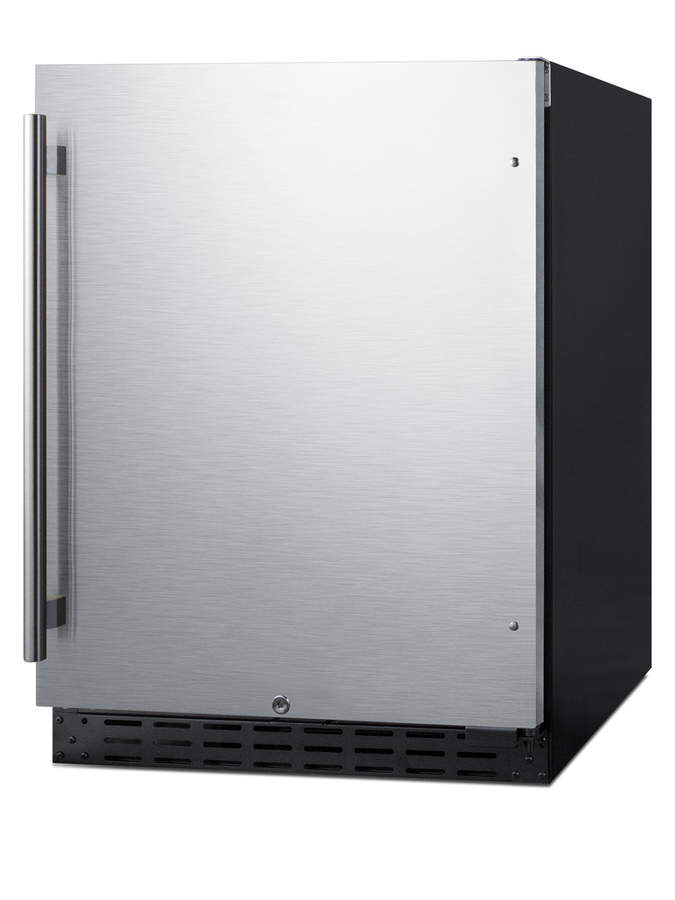

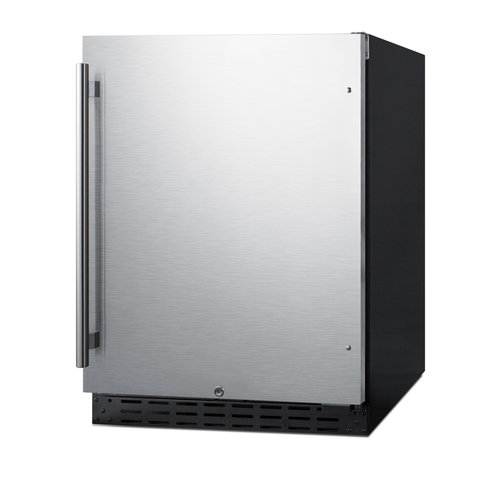

| Door | Stainless Steel |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 250.0kWh/year |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 95.0 lbs. (43 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101063362 |
|
Refrigerator Features
|
|
| Sabbath Mode | Yes |
| Door Swing | RHD |
| Reversible | Yes |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Full Door Shelf Qty | 2 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.23oz. |
| High Side PSI | 150.0 |
| Low Side PSI | 50.0 |
| Level Legs Qty | 4 |
| Interior Light | Yes |
| Temperature Range | 36 to 46ºF |
| Sound Level | 33.7 dB |
|
Dimensions
|
|
| Interior Height | 23.5" (60 cm) |
| Interior Width | 19.0" (48 cm) |
| Interior Depth | 17.25" (44 cm) |
| Compressor Step Height | 5.5" (14 cm) |
| Compressor Step Width | 19.0" (48 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
AVAILABLE UPGRADES
| Exterior | ||
|---|---|---|
|
||
| Handle | ||
|
FEATURES

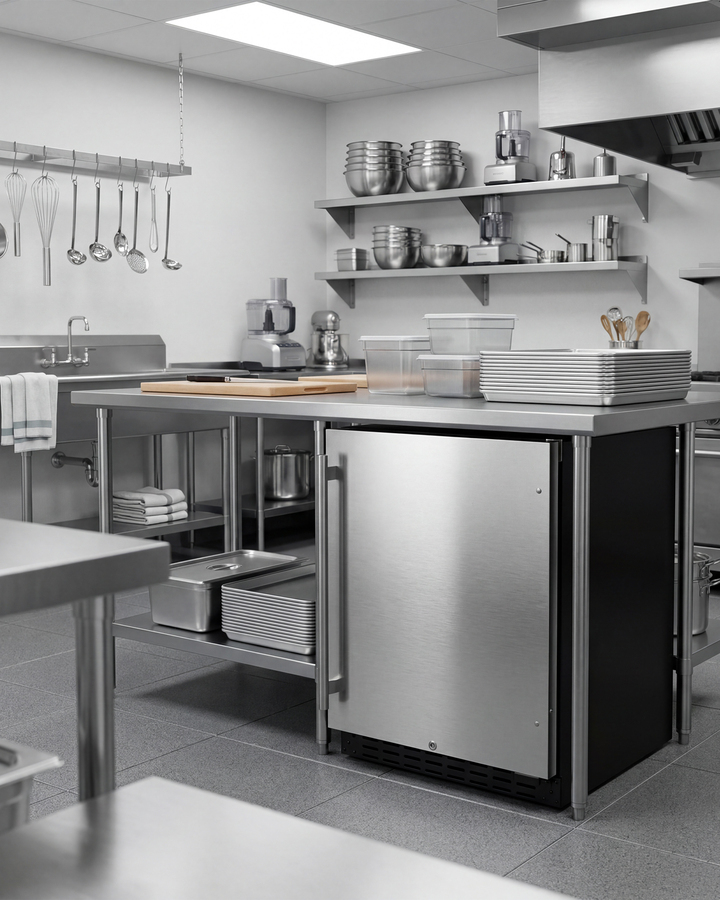

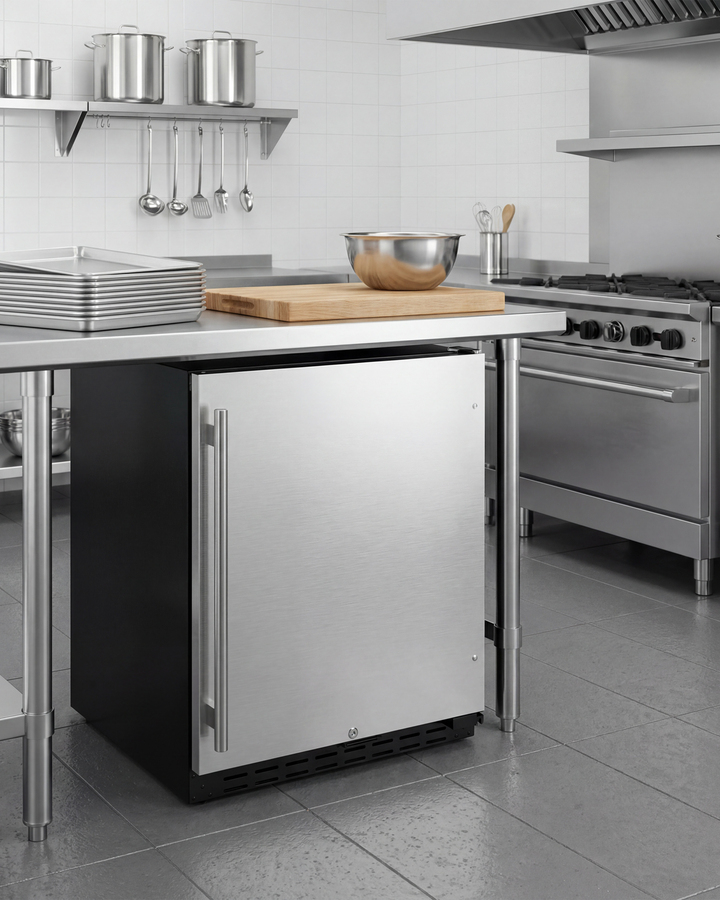

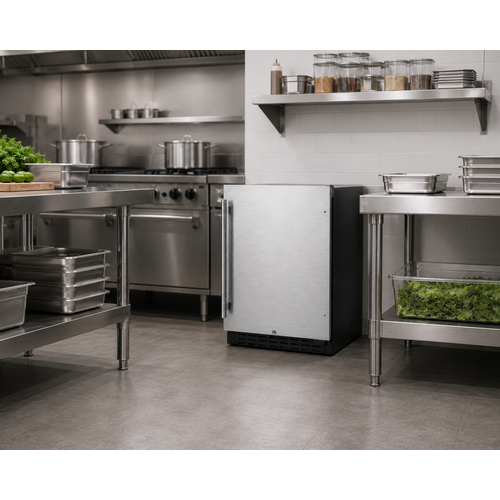

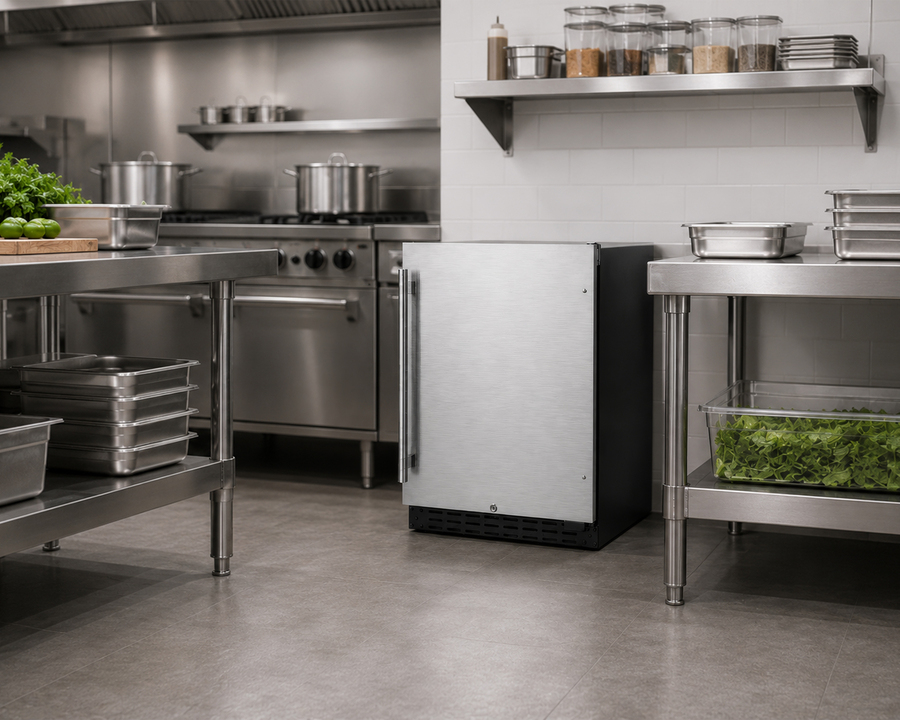

Undercounter all-refrigerator for storage in foodservice settings
ETL-S listed to NSF-7 Standards for use in commercial establishments
32” height allows for installation within ADA-compliant spaces

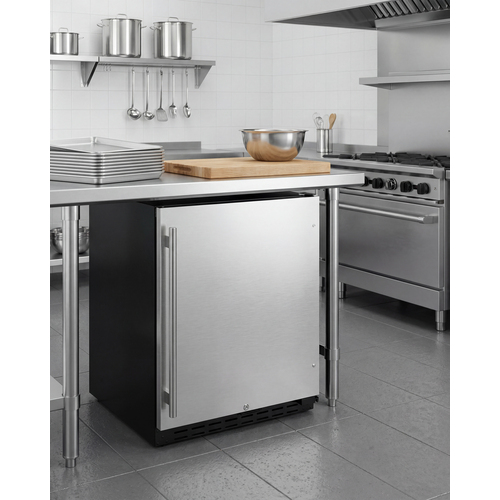

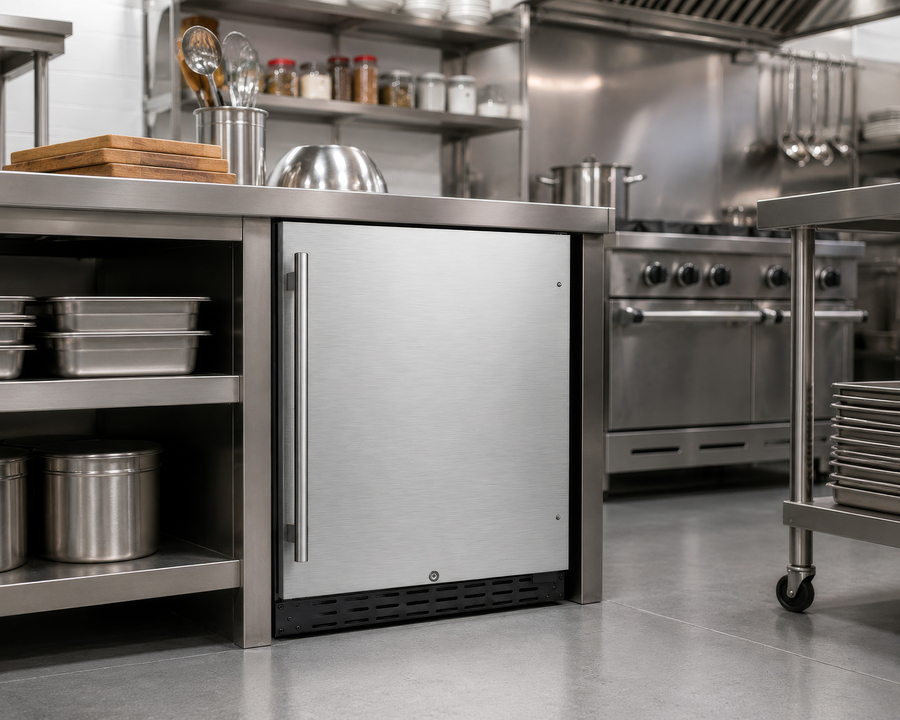

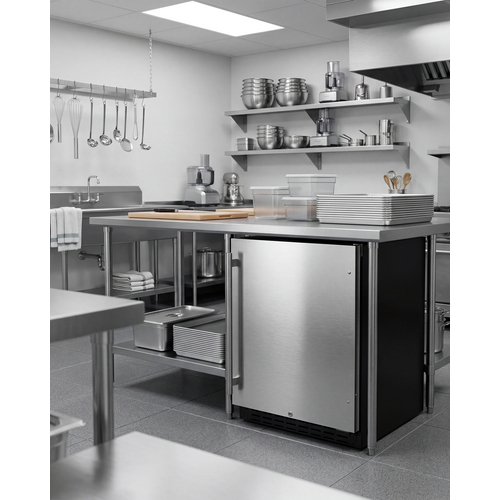

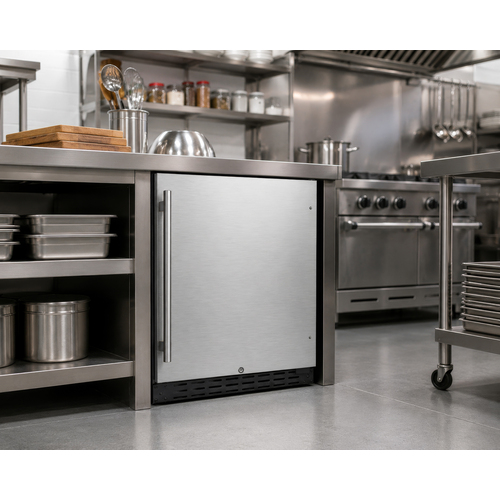

Front-breathing design allows the unit to be built-in under counters
Durable construction with a professional look ideal for restaurants, cafes, convenience storages, and other commercial spaces
Keyed lock for a secure interior to protect stored contents from customers as needed
No-frost operation for minimum staff maintenance
Fan-forced cooling to ensure fast temperature recovery after door openings
Makes for easy temperature reading/management with electronic controls inside and away from customers
Durable construction with an stylish look
Classic interior allows for easy cleaning and viewing of products
Three easy-glide shelves that extend 50% give space and flexibility when organizing the interior’s contents
Provides added safety when loading and unloading the unit's 3 shelves
Allows for easy storage of bottles
Dimmable LED lighting (with 3 brightness settings) in a blue hue allows for easy viewing of contents while maintaining an elegant feel

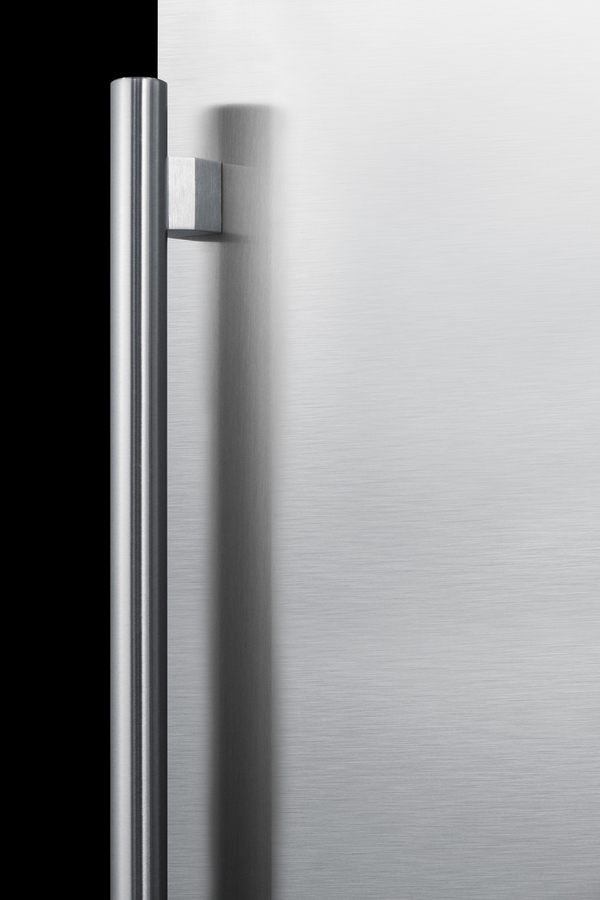

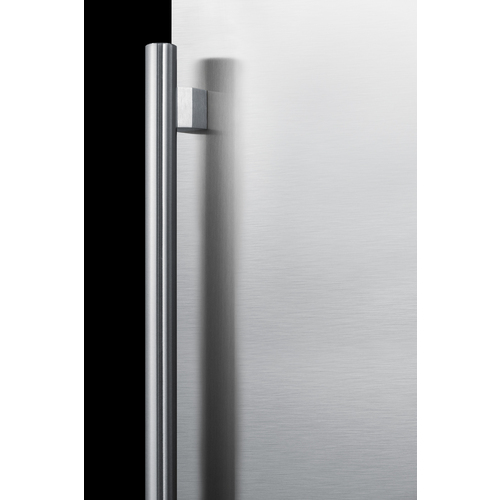

Stainless steel handle adds style to any setting
Alarm sounds if temperature goes out of recommended range after 2 hours
Optional feature disables alarms, interior light, and displays for up to 96 hours
User-reversible door swing makes it easy to best accommodate your setting
Flat stainless steel hinge ensures no added height is needed when installing under a counter

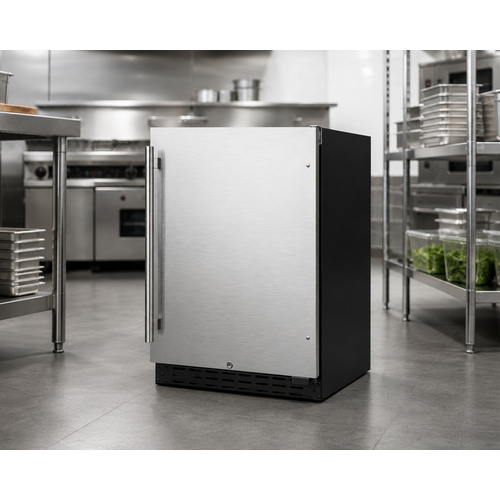

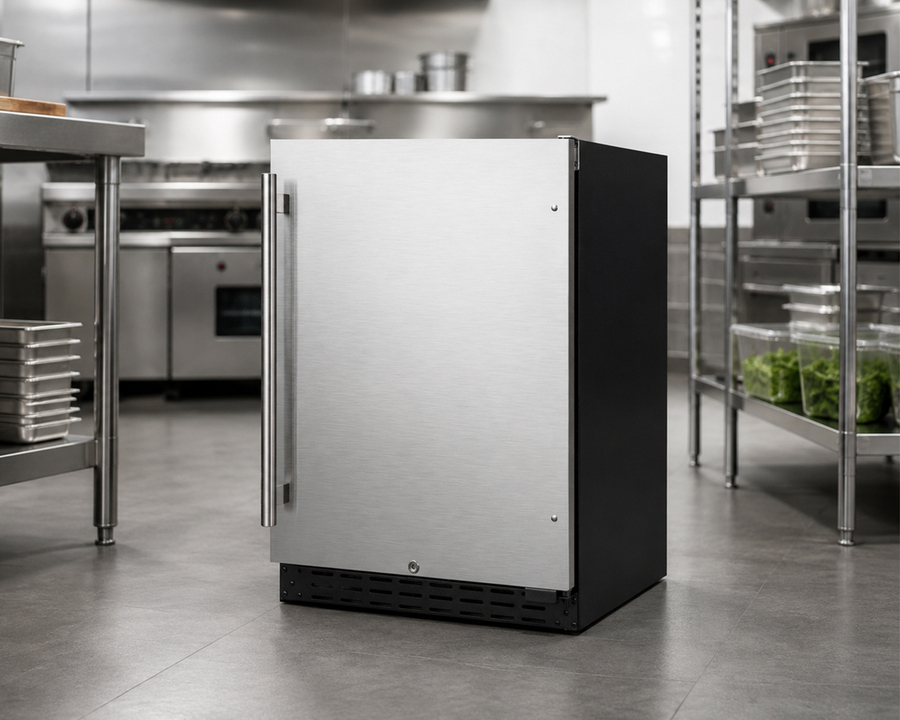

Allows unit to be used freestanding
Pair with Summit ALFZ51 to create a matching ADA height set
Environmentally friendly design with no ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DESCRIPTION

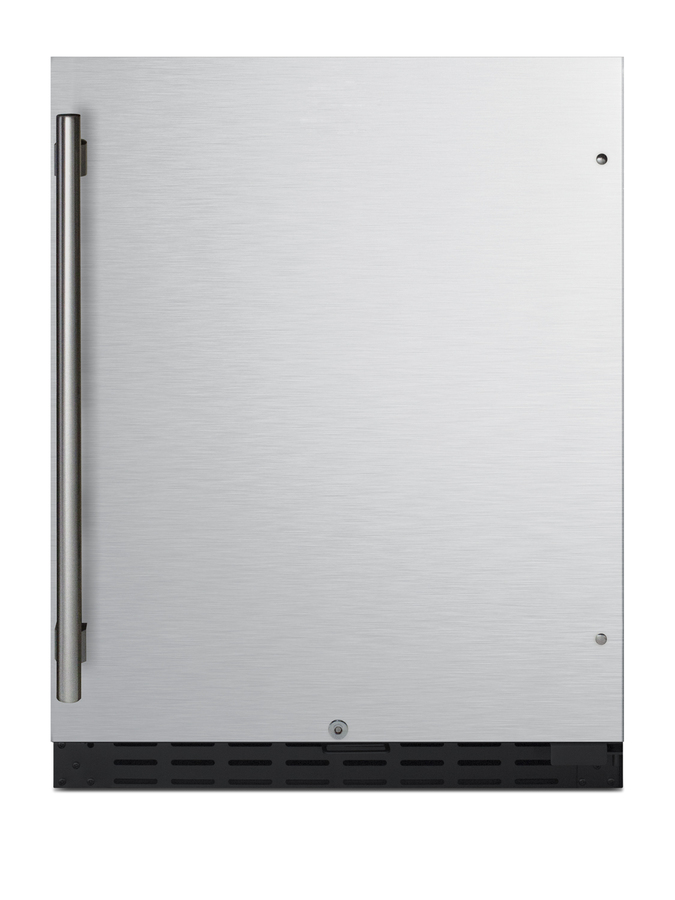

Summit Commercial specializes in manufacturing trusted cold storage equipment approved to NSF-7 for use in foodservice settings. Model ADA49 is a 24" wide all-refrigerator sized at 32" high to fit under lower ADA compliant counters in commercial settings and public facilities. This unit can be built-in or used freestanding. It features a flush rear for easy cleaning, a requirement of commercial standards. The reversible stainless steel door includes a pro style handle and a factory installed lock for added security in busy settings. Inside, this refrigerator utilizes frost-free operation with fan-forced cooling to ensure low maintenance, even temperature distribution, and fast temperature recovery from door openings. Recessed LED lighting includes a dimming feature to best meet your customers' needs. The digital thermostat makes it easy to manage the interior temperature. This unit includes adjustable glass shelves for flexible, spill-proof storage and two large door racks ideal for keeping smaller bottles in easy reach. The floor is specially slotted to hold bottles in place. Additional features include an open door alarm and high temperature alarm to alert staff as needed. The ADA49 refrigerator is ETL-S listed to NSF-7 commercial standards. It's the ideal storage solution for space-restrained restaurants, bodegas, cafes, convenience stores, hotel lounges, and other areas in need of reliable refrigeration in a slim fit.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
