24" Wide Built-In All-Freezer, ADA Compliant

SKU: ALFZ51
Designed to fit under lower ADA compliant counters
Estimated Time to Ship:

Next day shipping

This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.
This unit can be used for commercial or residential applications. It meets applicable U.S. Department of Energy (DOE) standards for both household and commercial energy usage. For information on its commercial sanitation listing, see Specifications.
Add a naturally antimicrobial copper handle for added protection against germs and bacteria.

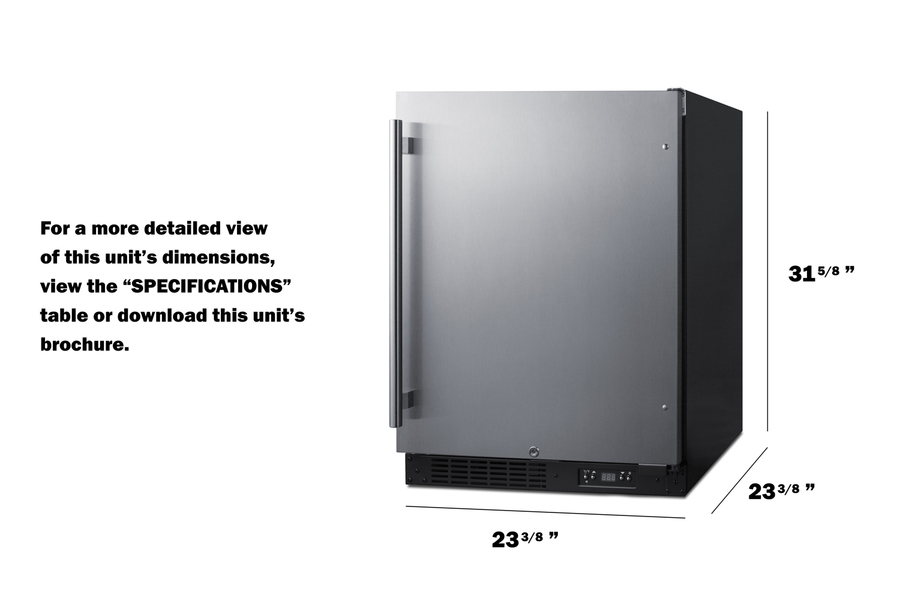

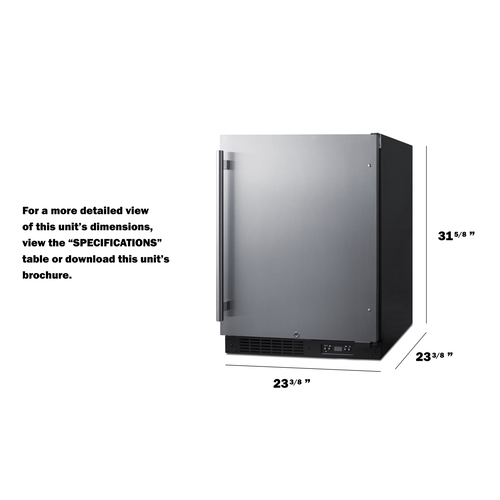

31.63" H x 23.38" W x 23.38" D
(80cm H x 59cm W x 59cm D)

Overview
Height of Cabinet 31.63" (80 cm)
Width 23.38" (59 cm)
Depth 23.38" (59 cm)
Depth with Handle 25.38" (64 cm)
Depth with door at 90° 45.75" (116 cm)
Capacity 4.0 cu.ft. (113 L)
Defrost Type Automatic
Door Stainless Steel
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 380.0kWh/year
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Weight 95.0 lbs. (43 kg)
Shipping Weight 130.0 lbs. (59 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101085043
Freezer
Door Swing RHD
Reversible Yes
Interior Height 23.75" (60 cm)
Interior Width 18.5" (47 cm)
Interior Depth 16.75" (43 cm)
Shelf Type Glass
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.06 oz.
High Side PSI 150.0
Low Side PSI 50.0
Level Legs 4
Compressor Step Height 5.0" (13 cm)
Compressor Step Width 18.5" (47 cm)
Compressor Step Depth 5.0" (13 cm)
Temperature Range -11°F to 11°F
Sabbath Mode Yes
Sound Level 40.1 dB

Exterior
Latch - Factory-installed door latch requires manual release to open unit
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD - Left hand door swing
Door reversal to left hand swing
Handle
TBC Copper Towel Bar Handle
Factory-installed handle made from pure copper for antimicrobial protection
CP Full-Length Copper Pipe Handle
Factory-installed full-length handle made from pure copper for antimicrobial protection

ADA compliant

32” height allows for installation within ADA compliant spaces

Commercially approved

ETL-S listed to NSF-7 commercial standards

Built-in capable

Front-breathing design allows the unit to be built-in under counters

Digital control panel

Makes for easy temperature reading/management with electronic controls inside

Factory installed lock

Keyed lock for secure interior, with two keys included

Stainless steel door

Durable construction with an stylish look

White interior

Classic interior allows for easy cleaning and viewing of products

Adjustable shelving

Three easy-glide shelves that extend 50% give space and flexibility when organizing the interior’s contents

Brake shelving system

Provides added safety when loading and unloading the unit's 3 shelves

Automatic defrost

Reduced maintenance with auto defrost system

Internal fan

Fan-forced cooling ensures the unit is evenly cooled from top to bottom

Interior lighting

Dimmable LED lighting (with 3 brightness settings) in a blue hue allows for easy viewing of contents while maintaining an elegant feel

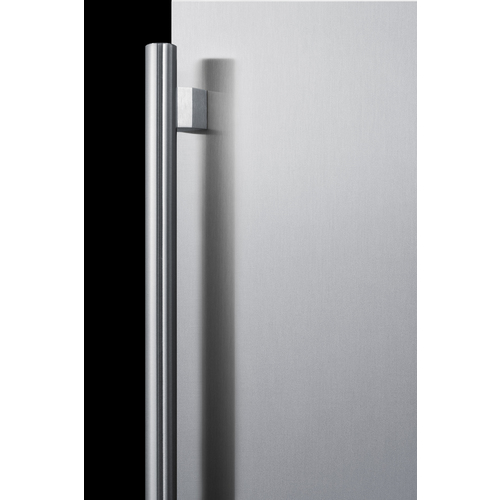

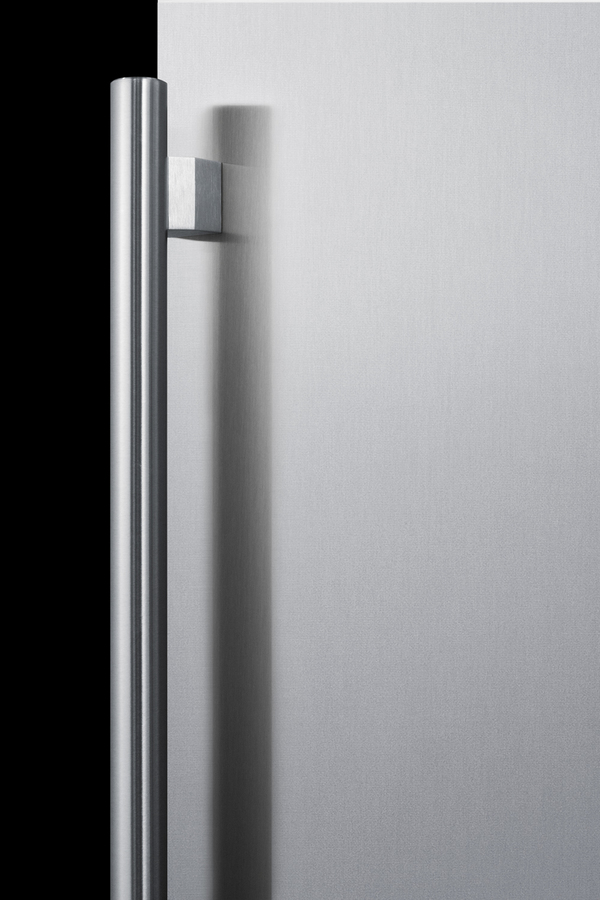

Professional handle

Stainless steel handle adds style to any setting

Temperature alarm

Alarm sounds if temperature goes out of recommended range after 2 hours

Sabbath mode

Optional feature disables alarms, interior light, and displays for up to 96 hours

Reversible door

User-reversible door swing makes it easy to best accommodate your setting

Integrated hinge

Flat stainless steel hinge ensures no added height is needed when installing under a counter

Fully finished black cabinet

Allows unit to be used freestanding

Matching refrigerator

Pair with Summit AL55 to create a matching ADA height set

100% CFC free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit manufactures the industry's largest selection of built-in appliances sized for use under lower ADA compliant counters, including frost-free freezers specially designed to match our popular ADA compliant refrigerators.

The ALFZ51 is a 24 inch wide all-freezer designed and approved for residential or commercial use. The front-breathing design allows built-in installation, while the fully finished black cabinet also enables freestanding use. Sized just under 32 inches high and 24 inches wide, this unit makes an ideal fit under lower ADA compliant counters. The user-reversible door comes in a stainless steel finish and a pro style handle provides a professional, elegant look for any setting. A temperature alarm offers added security should the temperature go beyond the setpoint, and the optional Sabbath Mode can be used to disable certain electrical features during periods of religious observance for up to 96 hours. The frost-free cooling system keeps the unit running efficiently with little user maintenance, and the internal fan ensures the unit is evenly cooled.

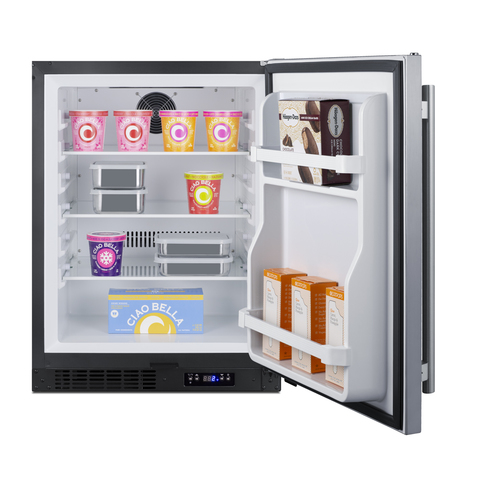

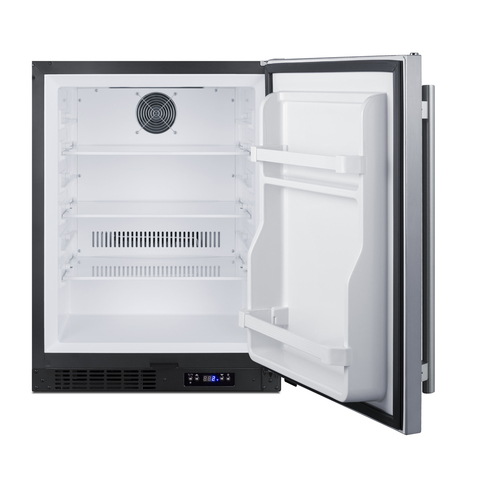

Digital controls ensure easy temperature management. Inside, three easy-glide glass shelves that extend 50% provide flexible storage, and the shelving brake system keeps unit contents safe when loading and unloading. Two door racks are ideal for keeping commonly accessed items in easy reach. The dimmable soft LED lighting in a gentle blue hue with three brightness settings offers an attractive and efficient presentation inside the white interior.

With its advanced user features and versatile design, the ALFZ51 is an excellent addition to any ADA compliant setting looking for a frost-free freezer with a modern, elegant look. To create a matching set, pair with the AL55 refrigerator.

Download
BROCHURE w/ DRAWINGS
ALFZ51.pdf
Download
TECHNICAL DRAWING (.dwg)
ALFZ51_FREEZER.dwg
Download
ASSEMBLY DRAWING
ALFZ51_ASS_Y.pdf
Download
MSDS INFORMATION
R600a_K.pdf
Energy Guide

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
