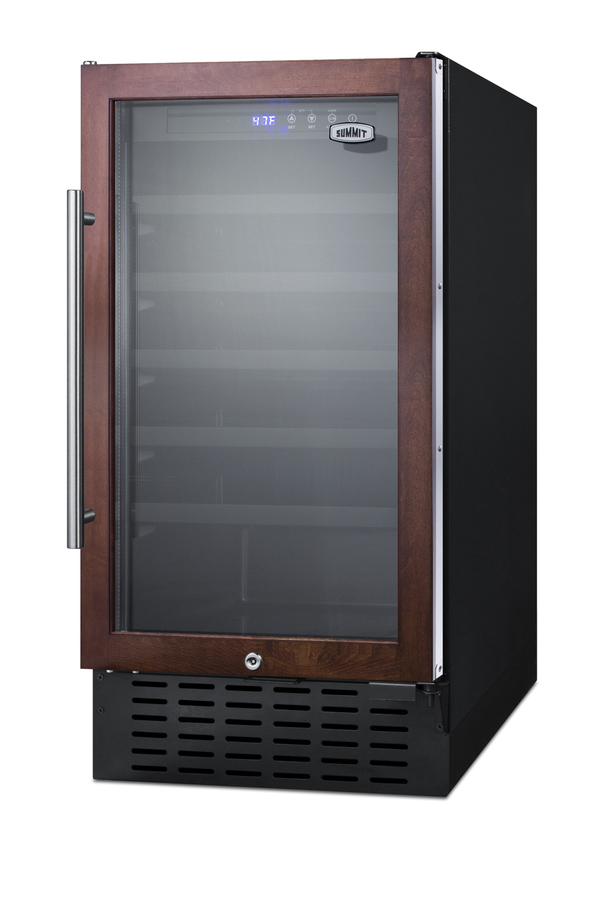

18" Wide Undercounter Wine Cellar (Panel Not Included)

SKU: SWC1840BPNR

Perfectly designed for built-in installation in 18" wide spaces, with a panel-ready door trim for easy customization

Estimated Time to Ship: 3 to 5 days
Available with an energy saving door tint to protect the interior from natural and artificial light. Choose from four tint finishes with varying levels of visibility.

All tints reject up to 99% of UV rays. Click here to view these options and learn more about their efficiency.
This unit can be used for commercial or residential applications. It meets applicable U.S. Department of Energy (DOE) standards for both household and commercial energy usage. For information on its commercial sanitation listing, see Specifications.

34.25" H x 17.75" W x 23.5" D

(87cm H x 45cm W x 60cm D)

SPECIFICATIONS

Overview
Height of Cabinet 34.25" (87 cm)
Width 17.75" (45 cm)
Depth 23.5" (60 cm)
Depth with door at 90° 39.75" (101 cm)
Capacity 3.3 cu.ft. (93 L)
Bottles 34 bottles
Defrost Type Automatic
Door Glass/Panel-Ready Frame
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.25
Voltage/Frequency 115 V AC/60 Hz
Weight 95.0 lbs. (43 kg)
Shipping Weight 105.0 lbs. (48 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101073699
Wine Cellar
Number of Zones 1
Door Swing RHD
Reversible Factory Reversible
Shelf Type Wood
Shelf Qty 5
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.06 oz.
High Side PSI 150.0
Low Side PSI 50.0
Level Legs 4
Temperature Range 41º to 68ºF

AVAILABLE UPGRADES

Exterior
LHD - Left hand door swing
Door reversal to left hand swing
SSK
Stainless steel kickplate factory installed
Door
T1 Door Tint
Tinted door in low-E mirror finish for maximum energy savings
T1S Door Tint
Reflective door tint in dark smoke finish for maximum energy savings
T2 Door Tint
Tinted door in reflective deep blue finish with high energy savings
T3 Door Tint
Reflective door tint in light blue finish for medium energy savings
T4 Door Tint
Neutral door tint in light smoke finish for moderate energy savings
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

FEATURES

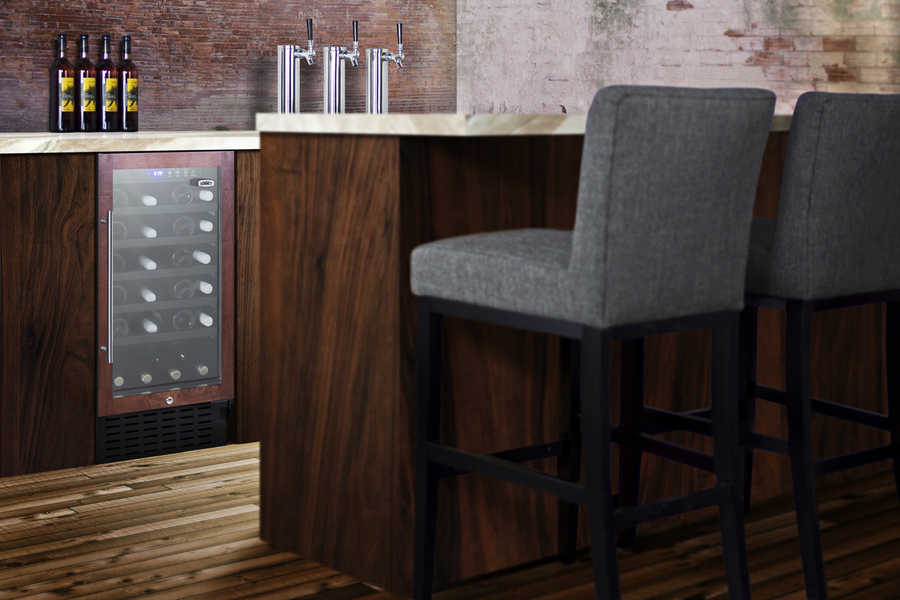

Built-in capable
Make the best use of space by installing your appliance under the counter
Commercially approved
ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments

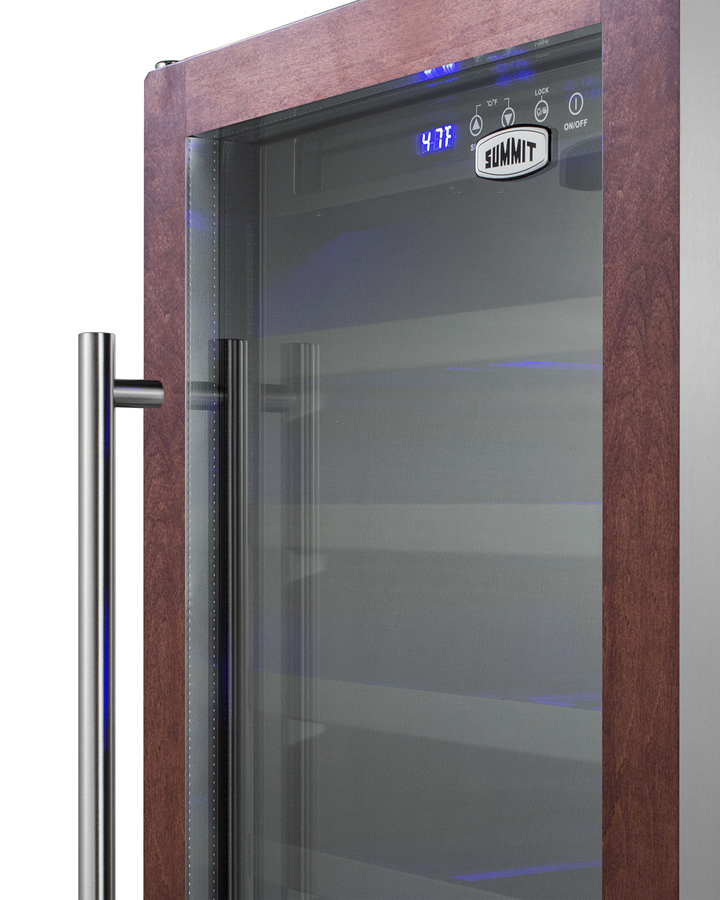

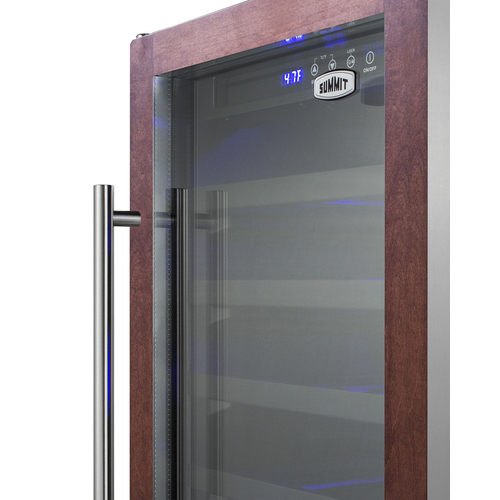

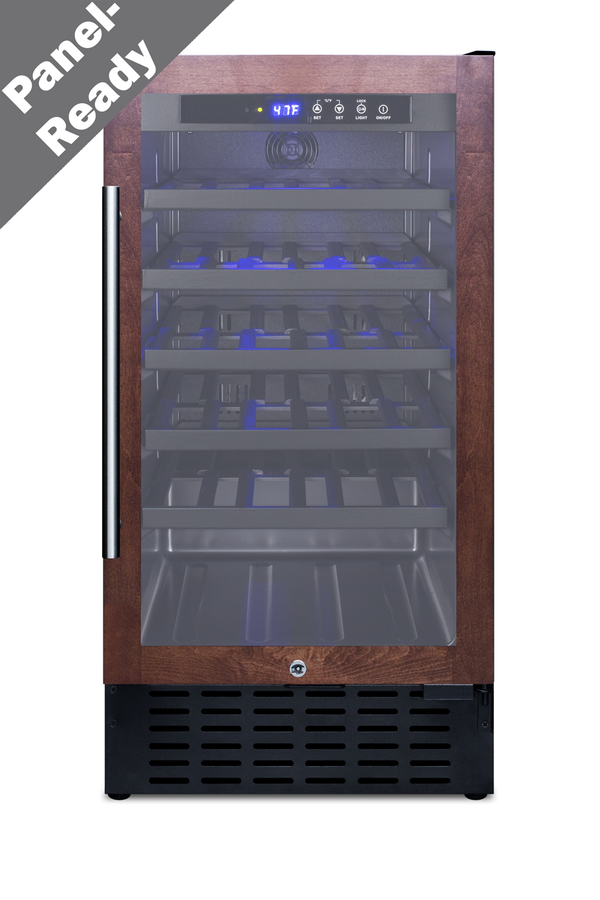

Panel-ready door trim
Door frame can be customized with a custom overlay panel (panel frame dimensions: 27 5/8" H x 17 3/8" W at 3/4" minimum thickness)

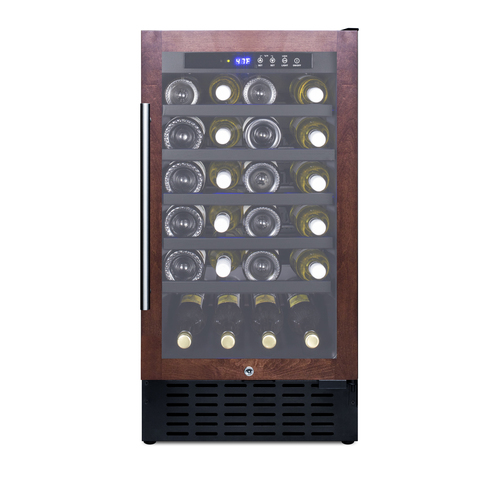

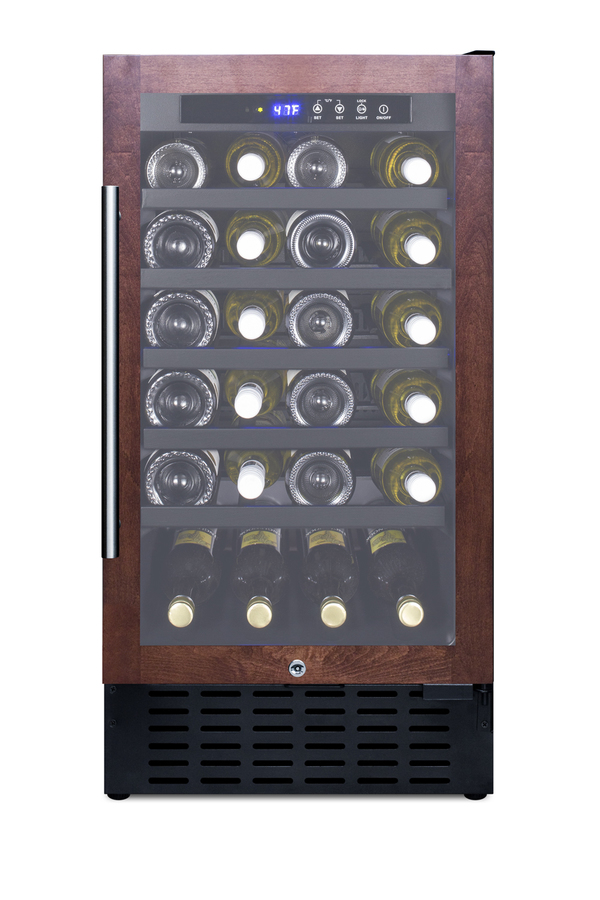

34 bottle capacity
Versatile interior can store up to 34 standard 750ml Bordeaux style or wider Burgundy style bottles
Glass door
Double pane tempered glass to provide an elegant display with added protection
Factory installed lock
Keyed security on the door
Digital thermostat
Electronic controls for precise temperature management.
Digital display
Temperature readout can be shown in Celsius or Fahrenheit
LED lighting
Gentle illumination with an on/off switch
Wooden shelves
5 shelves offer the perfect storage for wine bottles in a classic wooden finish
Automatic defrost
Reduced maintenance with the convenience of auto defrost
Professional handle
Stainless steel look for added elegance
Fully finished black cabinet
Allows the unit to be used freestanding
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals

DESCRIPTION

SUMMIT's collection of built-in undercounter wine cellars offers quality storage with user-friendly convenience and elegant style.

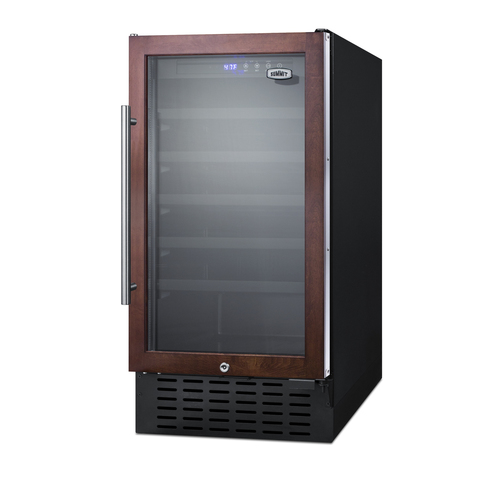

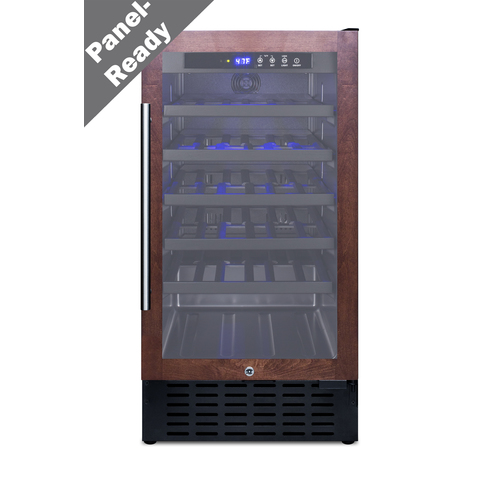

Sized just under 18" wide, the SWC1840BPNR is front-breathing for built-in installation under counters, while the fully finished black cabinet also allows freestanding use. The glass door features a panel-ready stainless steel door trim that lets you customize the look to best match adjacent cabinetry (panel dimensions: 27 5/8" H x 17 3/8" W at 3/4" minimum thickness). A factory-installed lock and a professional style handle complete the look. NOTE: this unit ships with a right hand door swing. For a left hand version, add option LHD.

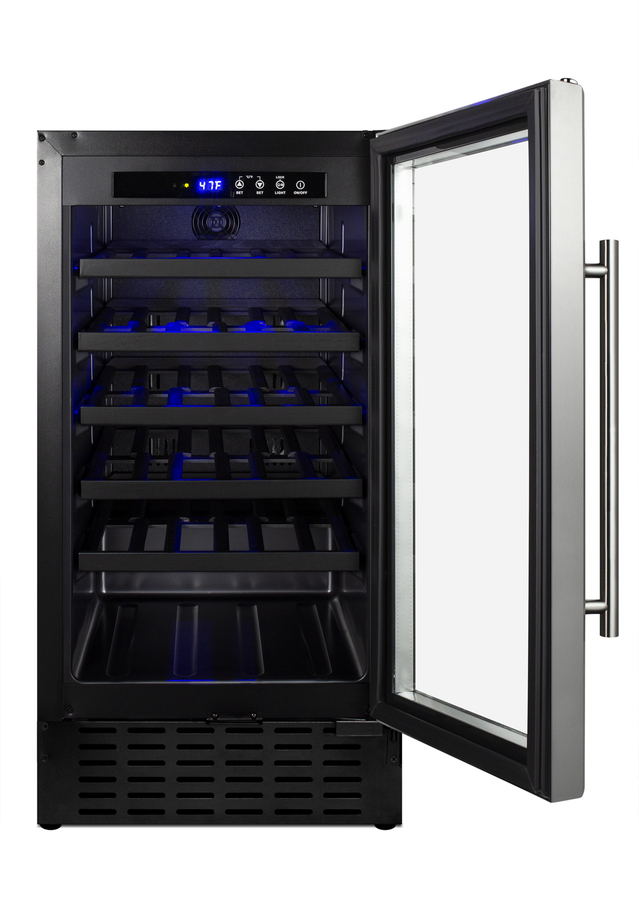

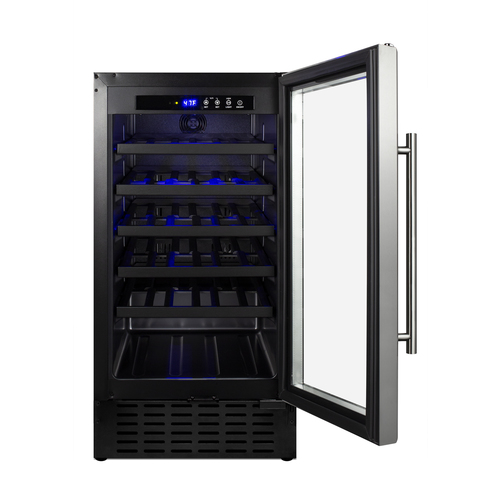

Inside, this auto defrost wine cellar can store up to 34 Bordeaux or Burgundy-style bottles, with a slotted floor that can also accommodate champagne if needed. The slide-out wooden shelves come in a deep red color. Recessed LED lighting offers an elegant view of the items, while the digital thermostat ensures easy temperature management.

With its slim fit and convenient design, the SWC1840BPNR makes an attractive addition to any room. The SWC1840BPNR is also available in a 32" height for use in ADA compliant settings (see the SWC1840BPNRADA) and can be paired with our matching beverage center for a complete set, see the SCR1841BPNR.

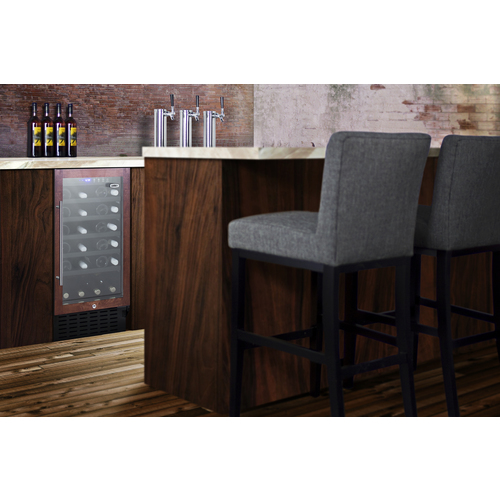

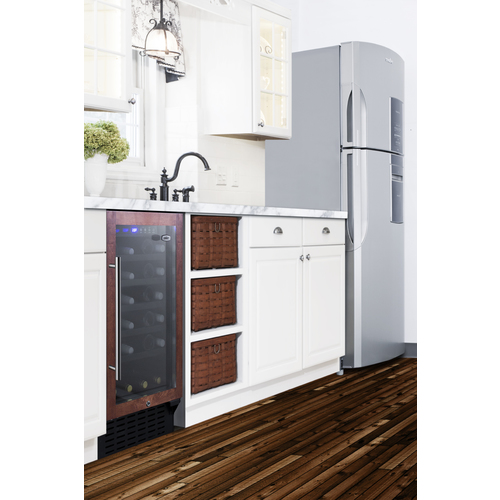

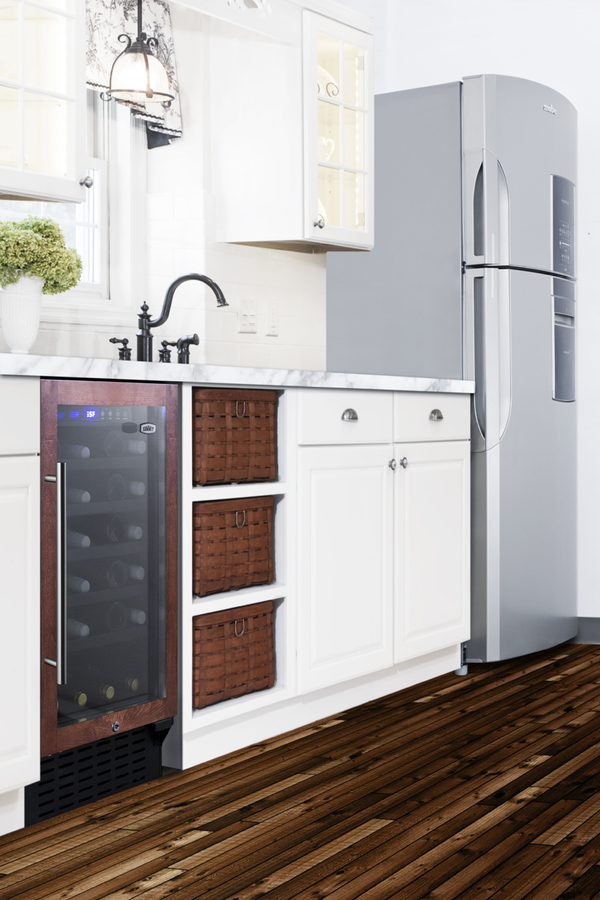

Note: Panel is not included. The images provided are meant only to be suggestive of what the product with a wood panel installed could look like. Users must supply their own wood panel.

SPECIFICATIONS

Overview
Height of Cabinet 34.25" (87 cm)
Width 17.75" (45 cm)
Depth 23.5" (60 cm)
Depth with door at 90° 39.75" (101 cm)
Capacity 3.3 cu.ft. (93 L)
Bottles 34 bottles
Defrost Type Automatic
Door Glass/Panel-Ready Frame
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.25
Voltage/Frequency 115 V AC/60 Hz
Weight 95.0 lbs. (43 kg)
Shipping Weight 105.0 lbs. (48 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101073699
Wine Cellar
Number of Zones 1
Door Swing RHD
Reversible Factory Reversible
Shelf Type Wood
Shelf Qty 5
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.06 oz.
High Side PSI 150.0
Low Side PSI 50.0
Level Legs 4
Temperature Range 41º to 68ºF

AVAILABLE UPGRADES

Exterior
LHD - Left hand door swing
Door reversal to left hand swing
SSK
Stainless steel kickplate factory installed
Door
T1 Door Tint
Tinted door in low-E mirror finish for maximum energy savings
T1S Door Tint
Reflective door tint in dark smoke finish for maximum energy savings
T2 Door Tint
Tinted door in reflective deep blue finish with high energy savings
T3 Door Tint
Reflective door tint in light blue finish for medium energy savings
T4 Door Tint
Neutral door tint in light smoke finish for moderate energy savings
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
