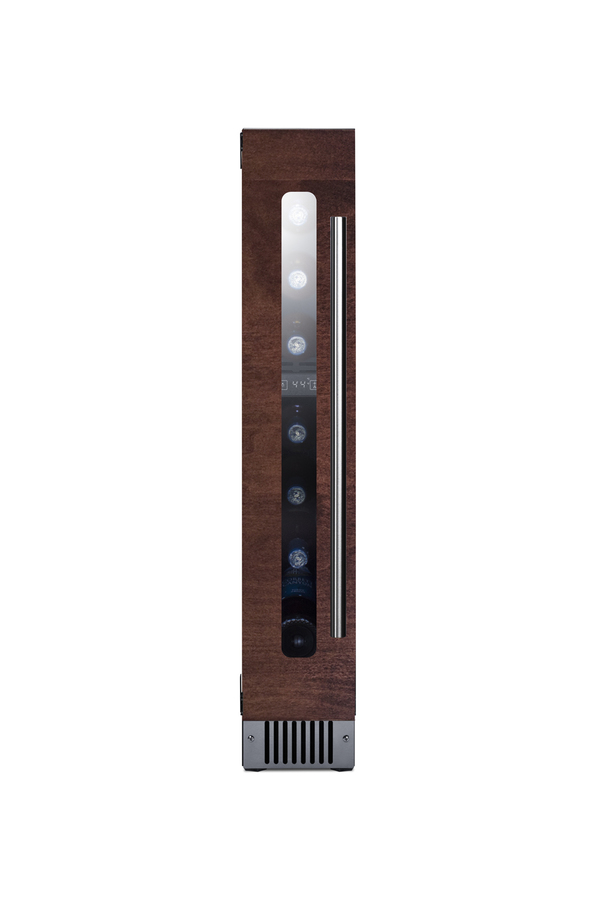

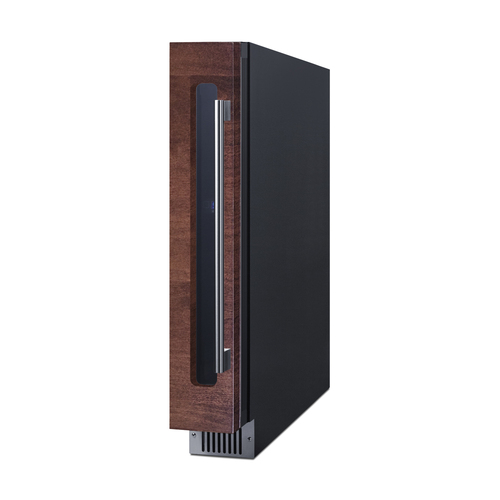

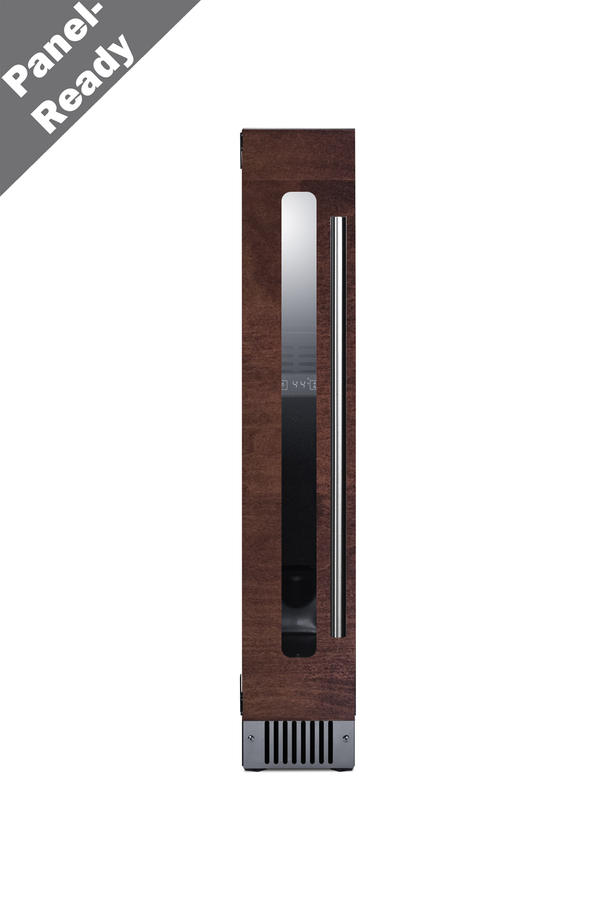

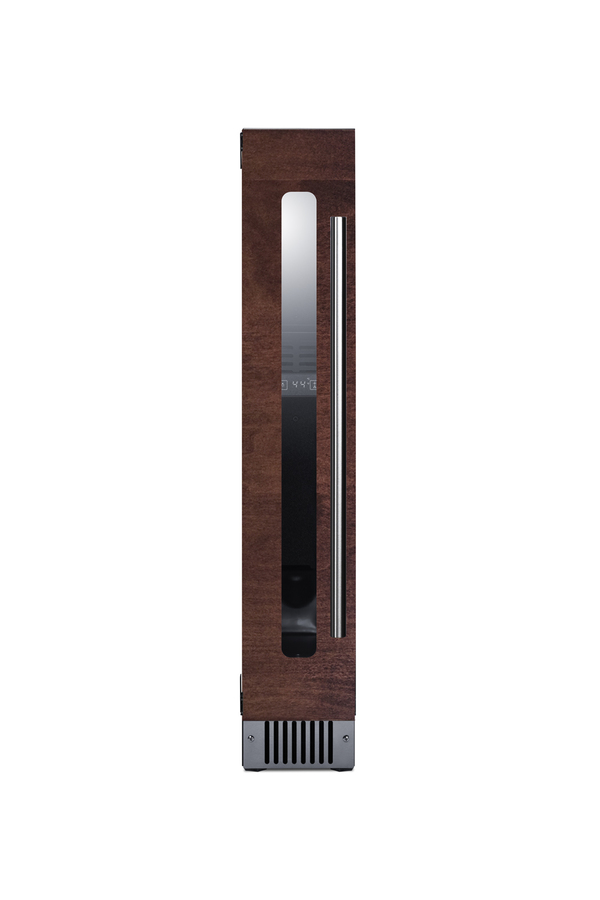

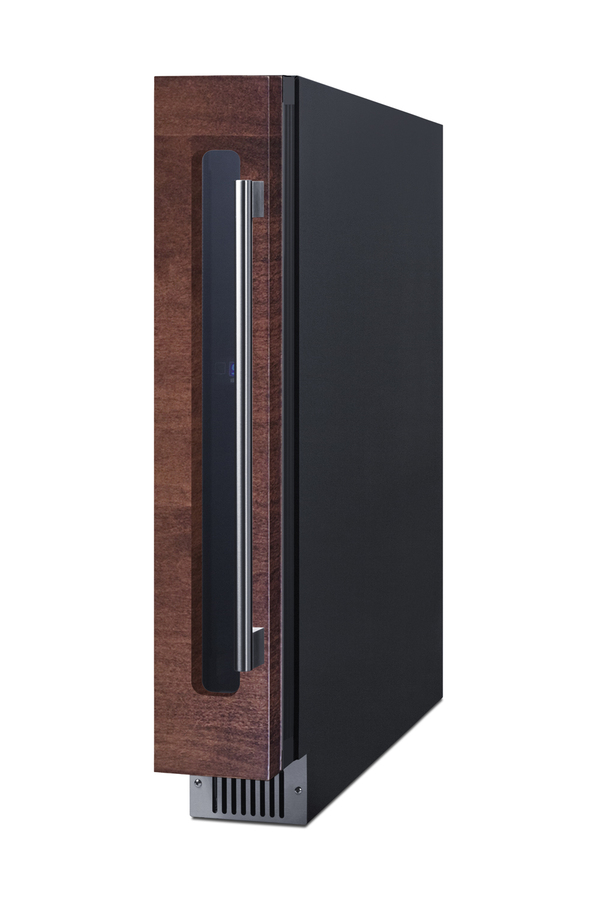

6" Wide Built-In Wine Cellar (Panel Not Included)
1 to 2 days
All tints reject up to 99% of UV rays. Click here to view these options and learn more about their efficiency.

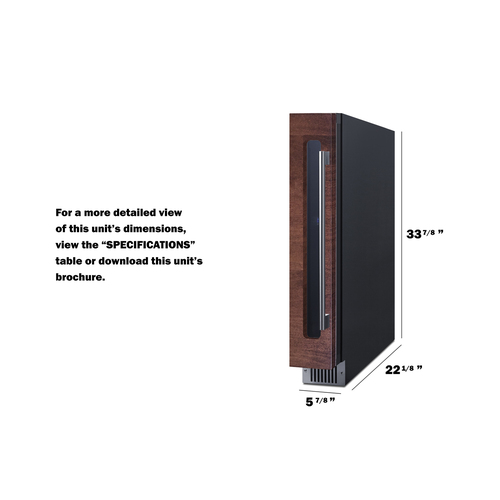

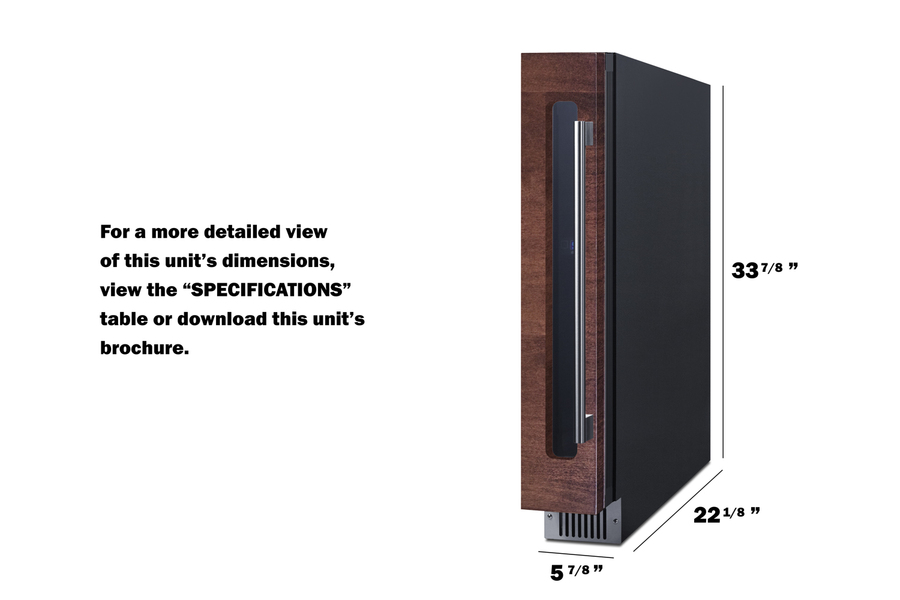

(86cm H x 15cm W x 56cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 34.0" (86 cm) |
| Height of Cabinet | 33.88" (86 cm) |
| Nominal Width | 6.0" (15 cm) |
| Width | 5.88" (15 cm) |
| Nominal Depth | 22.0" (56 cm) |
| Depth | 22.13" (56 cm) |
| Depth with Panel | 22.88" (58 cm) |
| Depth with door at 90° | 28.63" (73 cm) |
| Bottles | 7 bottles |
| Defrost Type | Automatic |
| Door | Glass/Panel-Ready Frame |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 44.0 lbs. (20 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101161235 |
|
Wine Cellar
|
|
| Number of Zones | 1 |
| Door Swing | LHD |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.57 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Interior Height 1 | 25.88" (66 cm) |
| Interior Width 1 | 3.5" (9 cm) |
| Interior Depth 1 | 14.25" (36 cm) |
| Compressor Step Height | 3.0" (8 cm) |
| Compressor Step Width | 3.5" (9 cm) |
| Compressor Step Depth | 6.0" (15 cm) |
| Temperature Range | 41 to 72ºF |
| Sabbath Mode | Yes |
| Sound Level | 33.8 dB |
AVAILABLE UPGRADES
| Door | |||||
|---|---|---|---|---|---|
|
FEATURES
Single zone wine cellar sized for built-in installation in 6" wide spaces

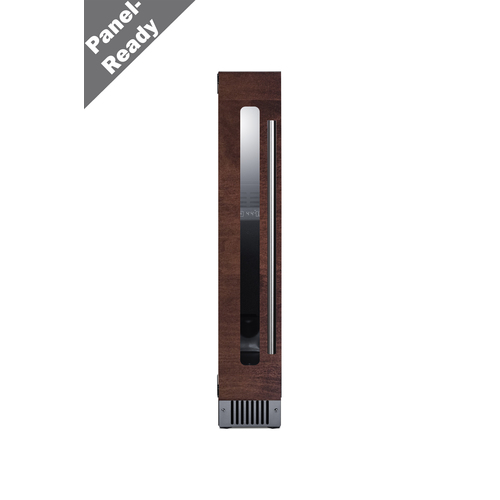

Panel-ready door lets you customize the unit for a seamless look that integrates into your kitchen
Enhanced panel execution allows the unit to be flush with cabinets (recommended panel size: 3/4" thickness at 30" H x 5 3/4 W with a 3 1/4" inner frame)
Innovative panel-ready bracket kit allows easy custom panel installation, but can also be removed cleanly if you redesign your space and prefer the look of a stainless steel trimmed door
European style hinge design ensures a flush fit and allows for a smoother opening

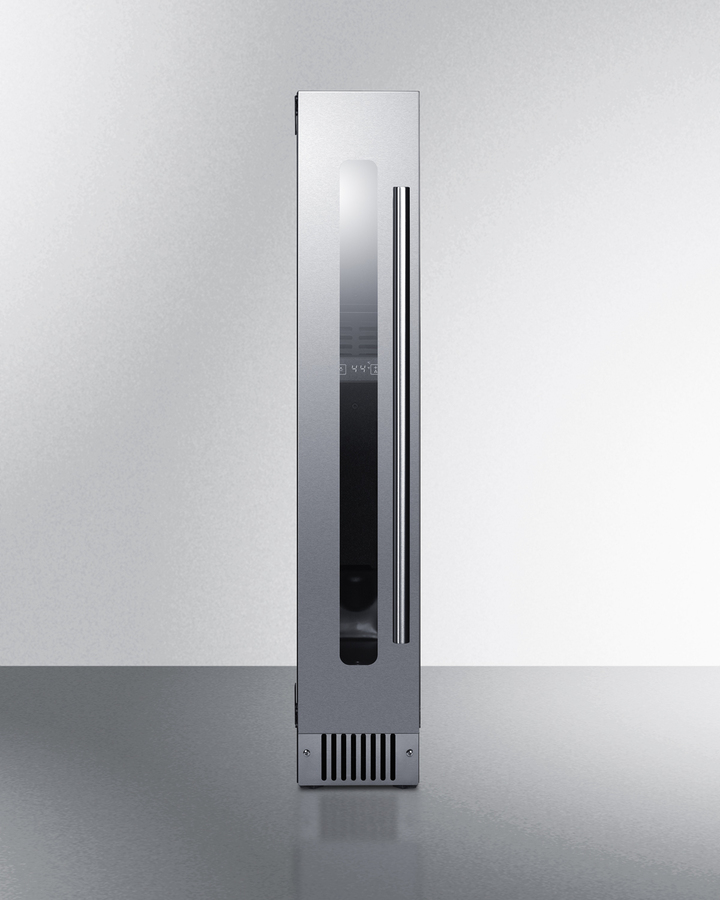

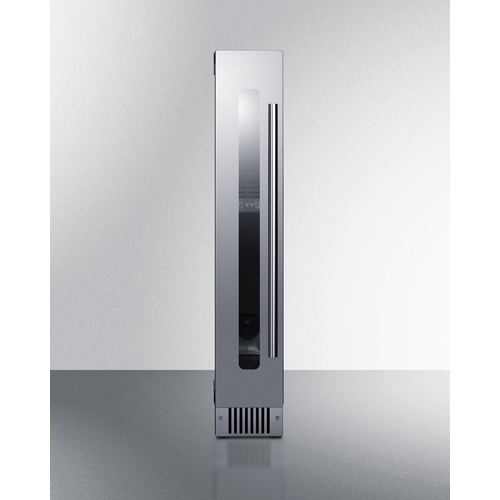

Single-piece stainless steel door trim frames the window for a premium look
Uniquely slim fit lets you transform extra cabinet space into a 7-bottle wine storage center

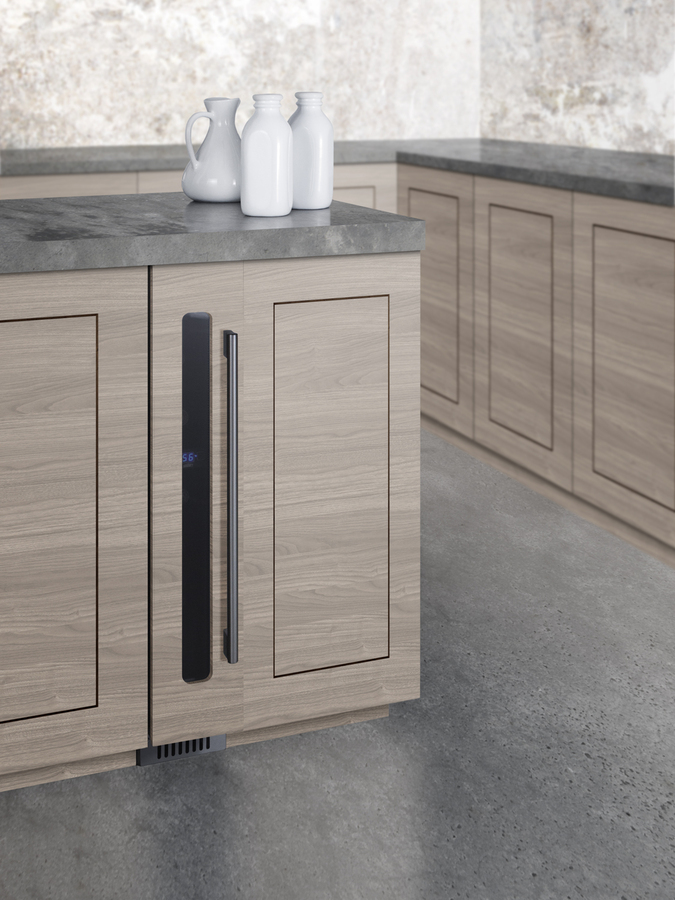

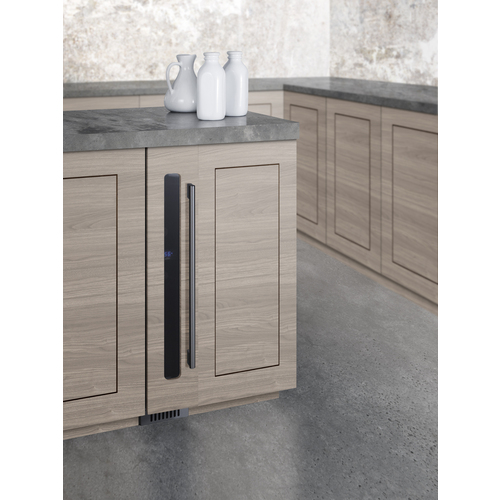

Make the best use of space by installing your appliance under the counter
Meets UL-471 commercial standards
Allows for seamless integration with other appliances
Double pane tempered glass provides a full display of your collection
Electronic controls for precise temperature management

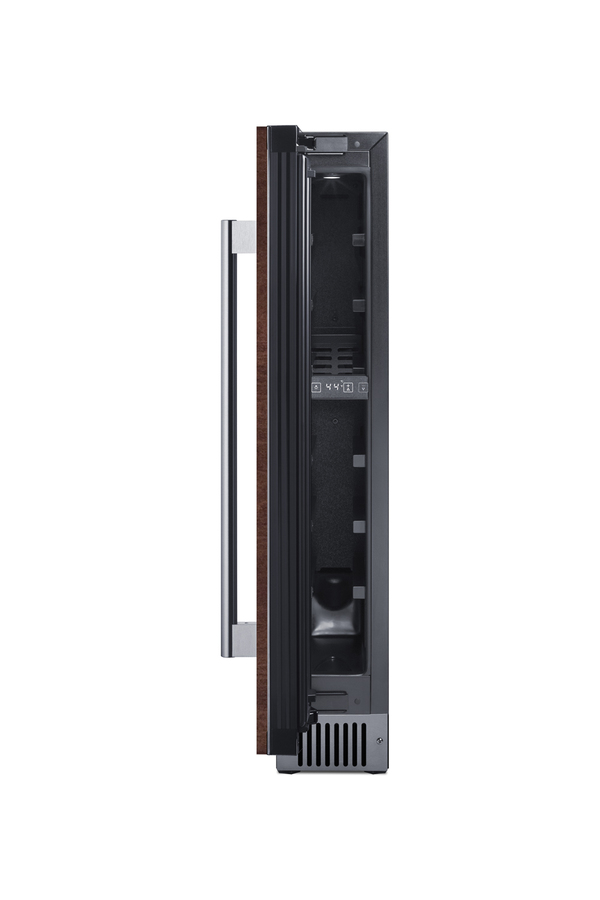

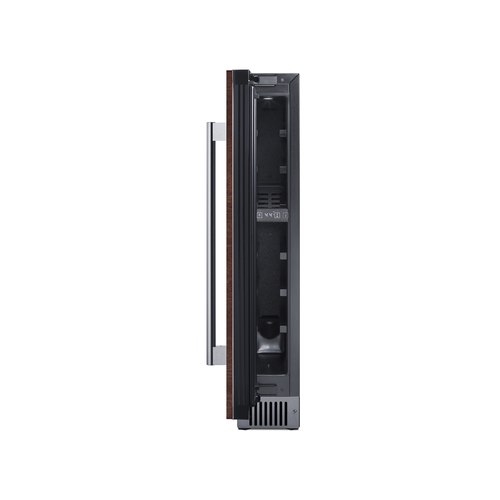

Interior can hold up to 7 Bordeaux style bottles. Most wider Burgundy style bottles fit as well
The floor slight is slightly angled, allowing you store one bottle that has been uncorked at a gentle tilt
Temperature readout can be shown in Celsius or Fahrenheit
Provides an attractive and efficient bottle display
Reduced maintenance and steady temperature performance
Interior fan helps to ensure the temperature is evenly distributed
Audible alarm will sound if the door is left ajar for over 60 seconds
If the interior temperature becomes too warm, an audible alarm will sound and the temperature display will flash until the proper temperature is restored
Optional setting lets you disable the lighting and alarm for up to 48 hours
Unit will retain last temperature settings in the event of a power failure
Flat design offers added space savings by requiring no extra depth to plug the unit in
Space saving design with easier cleanability
Complete luxury down to the toe kick
Runs at under 34 dB for a quiet performance in any setting
Compressor-based operation to ensure reliable temperature performance
Environmentally friendly design with no ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DESCRIPTION
Summit lets you transform even the slimmest undercounter space into a fully functional wine cellar with our 6 inch wide SWC008PNR. Designed for built-in installation, the SWC008PNRLHD features a front-breathing compressor-based cooling system to ensure proper wine temperature is maintained. The stainless steel door features a European-style fully articulating hinge for zero clearance opening. We include a 2-piece bracket kit that allows easy installation of overlay panels to create a custom look that can seamlessly blend into your existing cabinetry design (recommended panel size: 30" H x 5 3/4" W; maximum weight: 10 lbs.). The door is fully finished with a seamless stainless steel trim over a glass window, giving you the option to keep the look if preferred. This unit has a right angle plug and sealed rear for added space savings. It ships with a left hand door swing. Inside, the SWC008PNRLHD features a digital thermostat with easy touch controls and a temperature readout that can be viewed in Celsius or Fahrenheit. The temperature can be set between 41 and 72ºF to suit red or white wine. Seven slots let you store wine bottles with ease. The floor is set at a slight angle, ideal for holding an open bottle. This unit is equipped with an open door and high temperature alarm for added assurance. The Sabbath mode setting allows you to disable certain electrical features during periods of observance. The commercial grade compressor operates quietly, keeping the sound levels under 34 dB. With its innovative size and customizable design, the SWC008PNRLHD can be installed in virtually any space to bring reliable wine storage to kitchens, home bars, offices, walk-in closets, and more.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
