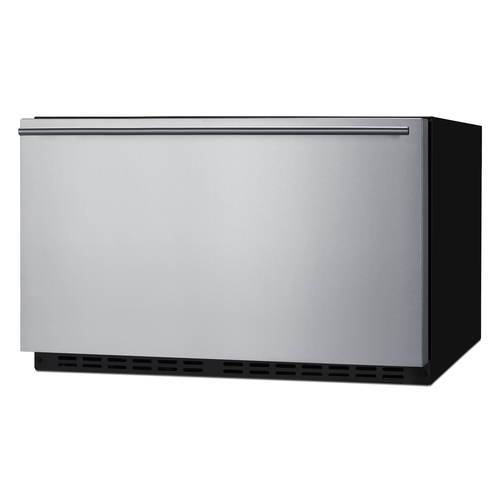

30" Wide Built-In Outdoor Drawer Refrigerator

SKU: SDR301OS
Weatherproof design for installation in outdoor kitchens
Estimated Time to Ship:

Next day shipping

This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.
This unit can be used for commercial or residential applications. It meets applicable U.S. Department of Energy (DOE) standards for both household and commercial energy usage. For information on its commercial sanitation listing, see Specifications.
17.75" H x 29.5" W x 22.0" D
(45cm H x 75cm W x 56cm D)

Overview
Height of Cabinet 17.75" (45 cm)
Width 29.5" (75 cm)
Depth 22.0" (56 cm)
Depth with Handle 23.5" (60 cm)
Depth with door at 90° 37.88" (96 cm)
Capacity 2.5 cu.ft. (71 L)
Defrost Type Frost-Free
Door Stainless Steel/Panel-Ready
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 280.0kWh/year
Amps 1.0
Voltage/Frequency 115 V AC/60 Hz
Weight 77.0 lbs. (35 kg)
Shipping Weight 108.0 lbs. (49 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101088990
Refrigerator Features
Sabbath Mode Yes
Door Swing Drawer
Reversible No
Shelf Type Glass
Shelf Qty 1
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 0.92oz.
High Side PSI 270.0
Low Side PSI 105.0
Level Legs Qty 4
Interior Light Yes
Temperature Range 36 to 43ºF
Sound Level 34.3 dB
Dimensions
Interior Height 13.0" (33 cm)
Interior Width 23.63" (60 cm)
Interior Depth 15.5" (39 cm)
Compressor Step Height 6.5" (17 cm)
Compressor Step Width 23.63" (60 cm)
Compressor Step Depth 4.5" (11 cm)

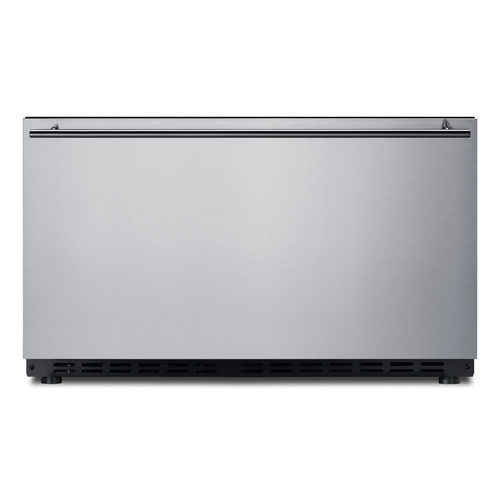

30" wide single drawer refrigerator

2.5 cu.ft. all-refrigerator in a single drawer style

Weatherproof design for outdoor use

Durable construction allows safe installation in outdoor kitchens

Commercially approved

ETL-S listed to NSF-7 standard and meets UL-471 for use in commercial settings

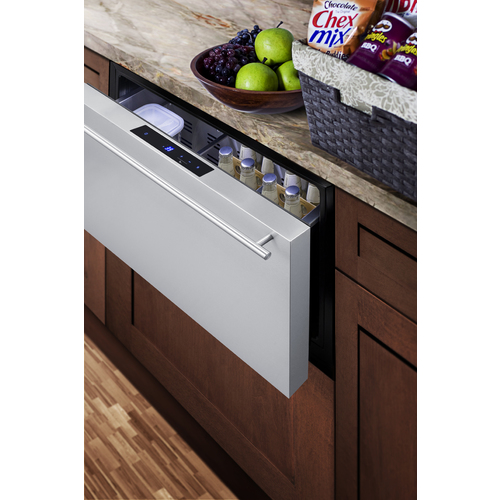

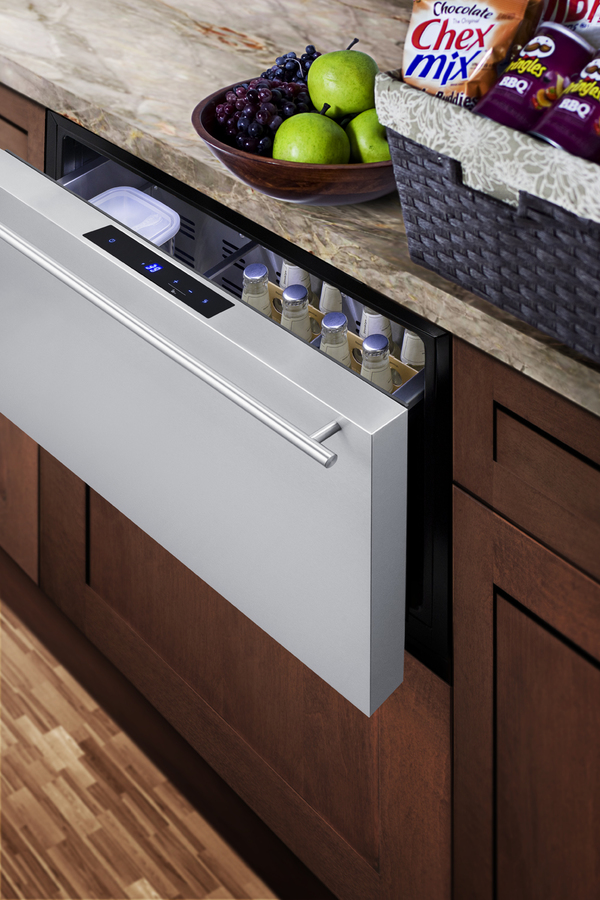

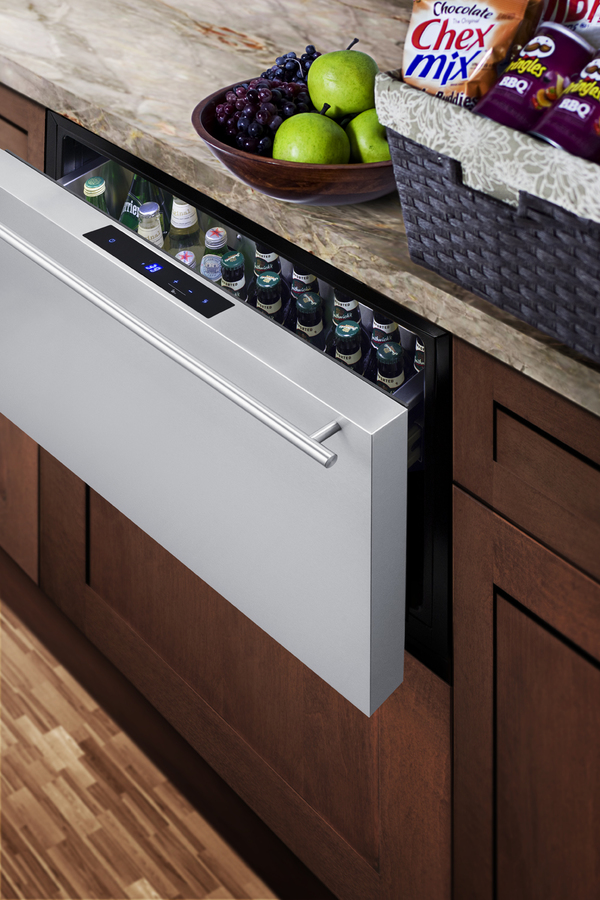

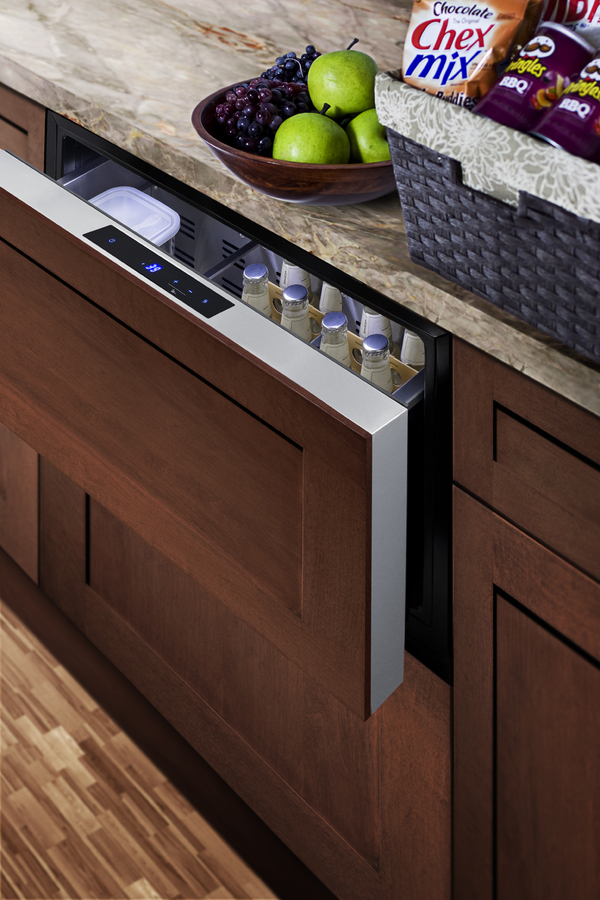

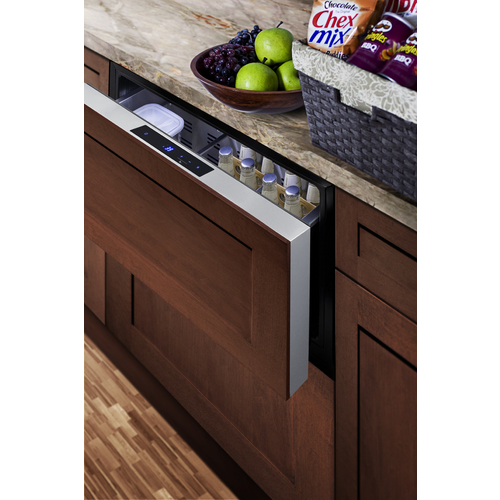

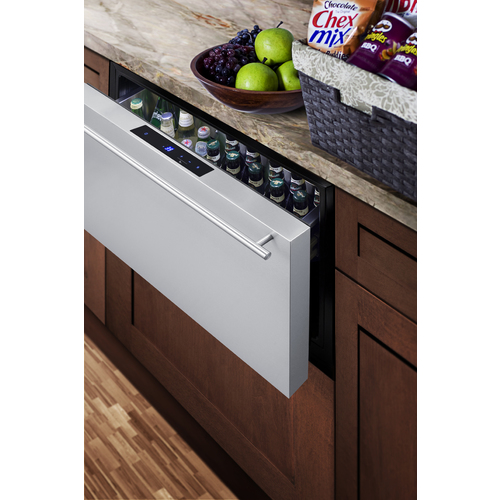

Built-in capable

Front-breathing design allows you to build the drawer into cabinetry

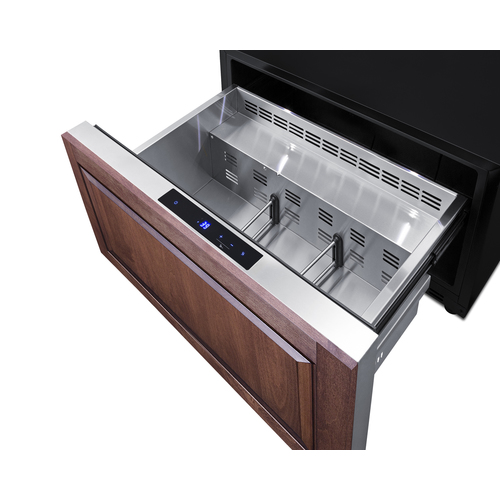

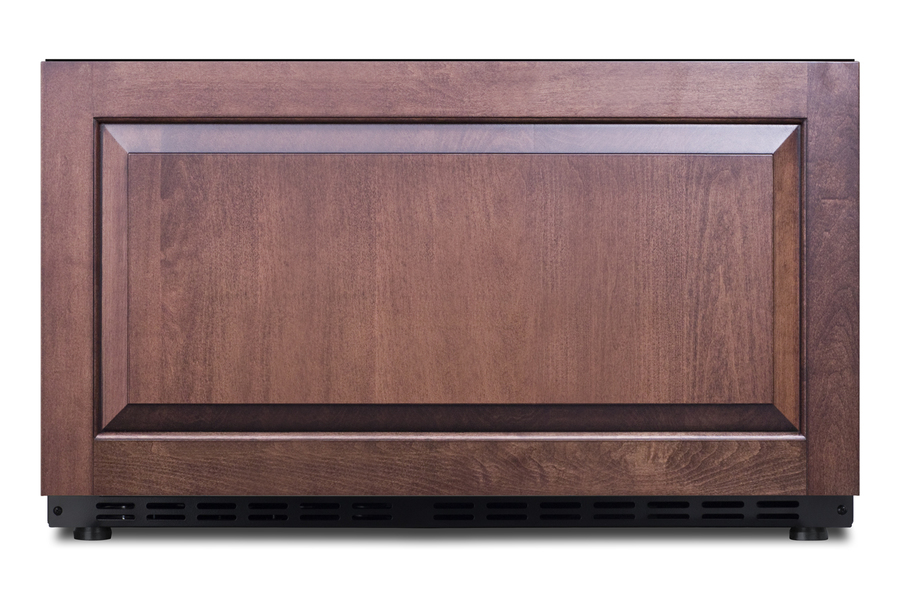

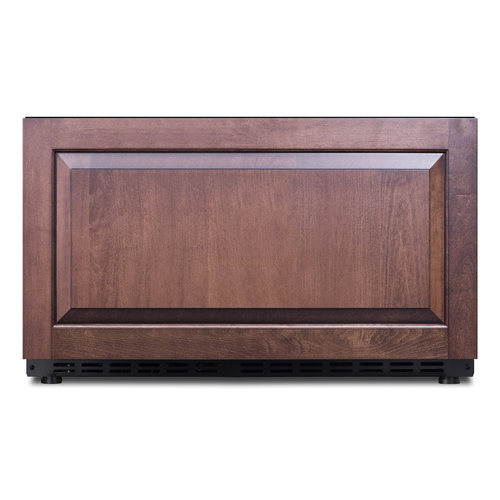

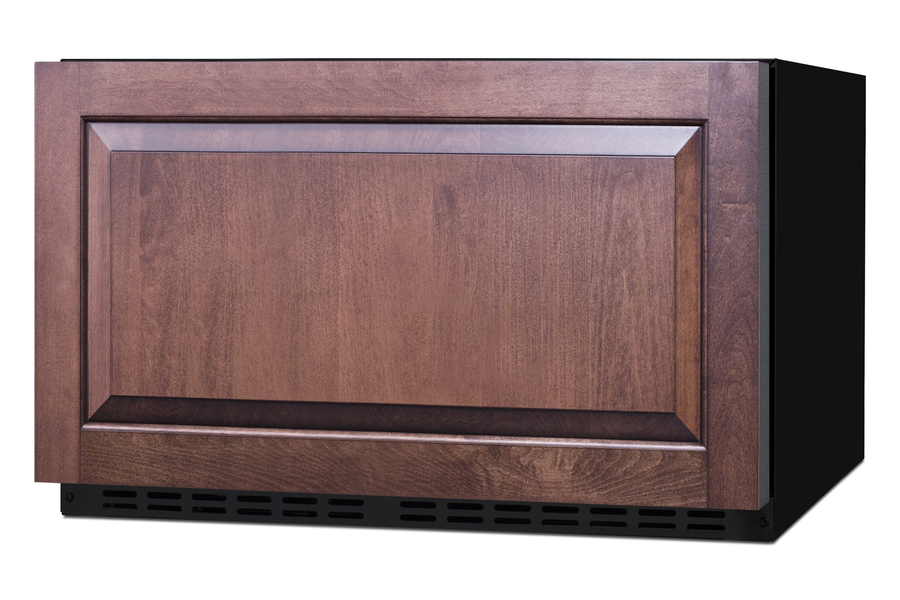

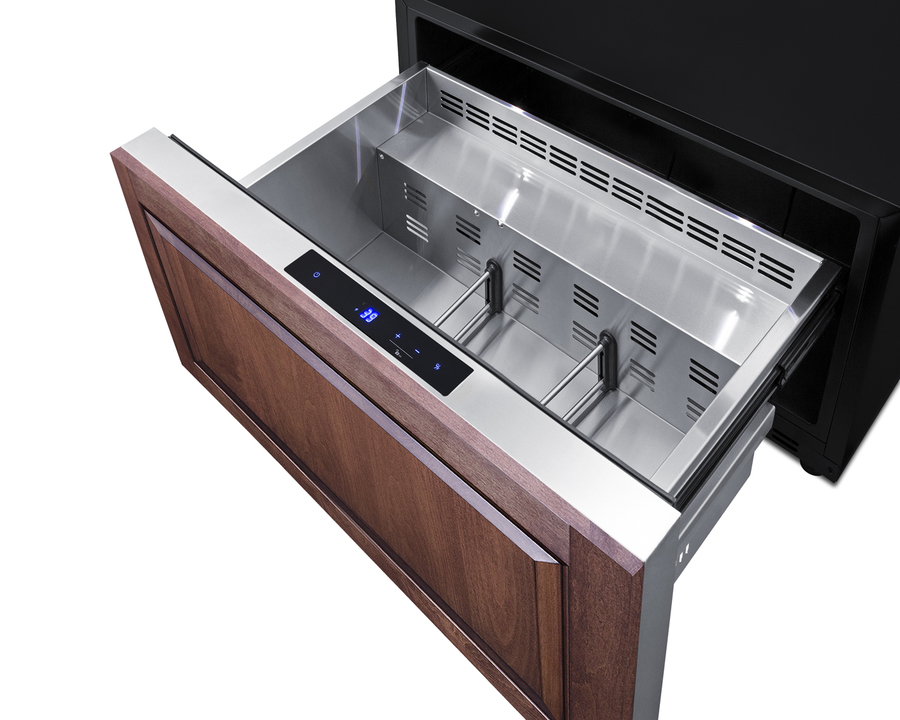

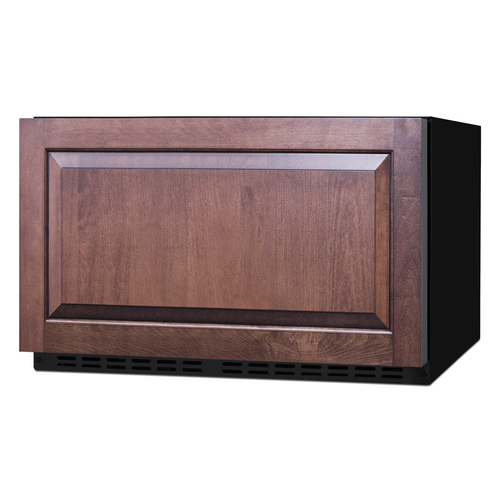

Panel-ready drawer front

Drawer accepts an overlay panel to let you seamlessly blend the unit into an existing cabinetry design (panel dimensions: 15.6" H x 29.5" W at 3/4" maximum thickness)

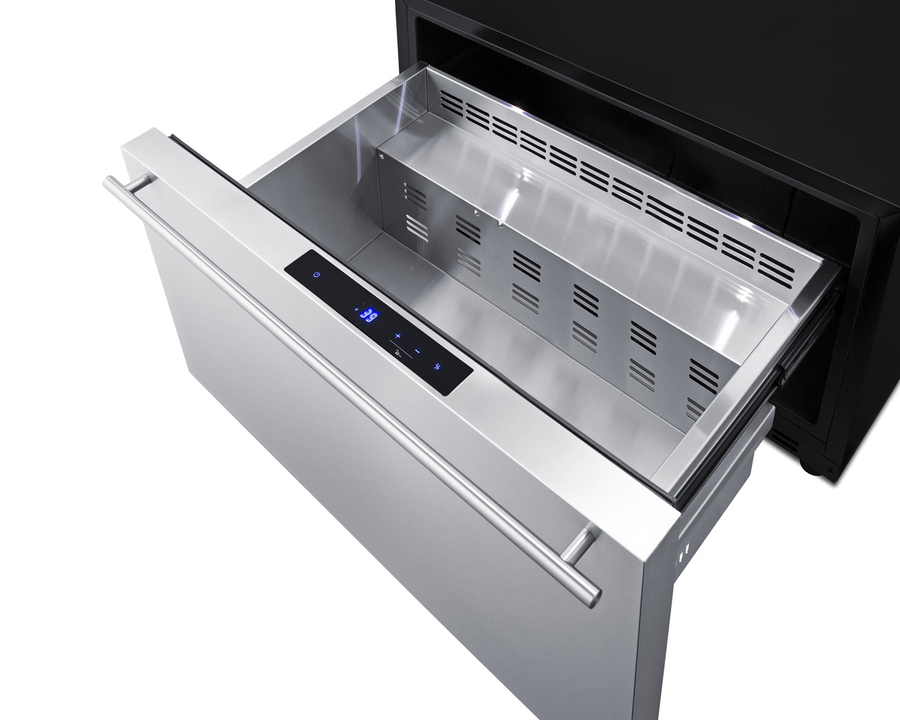

304 grade stainless steel drawer

Drawer front and interior constructed from stainless steel for added durability and easy cleanability

Frost-free operation

Minimum user maintenance with a fully no-frost operation system

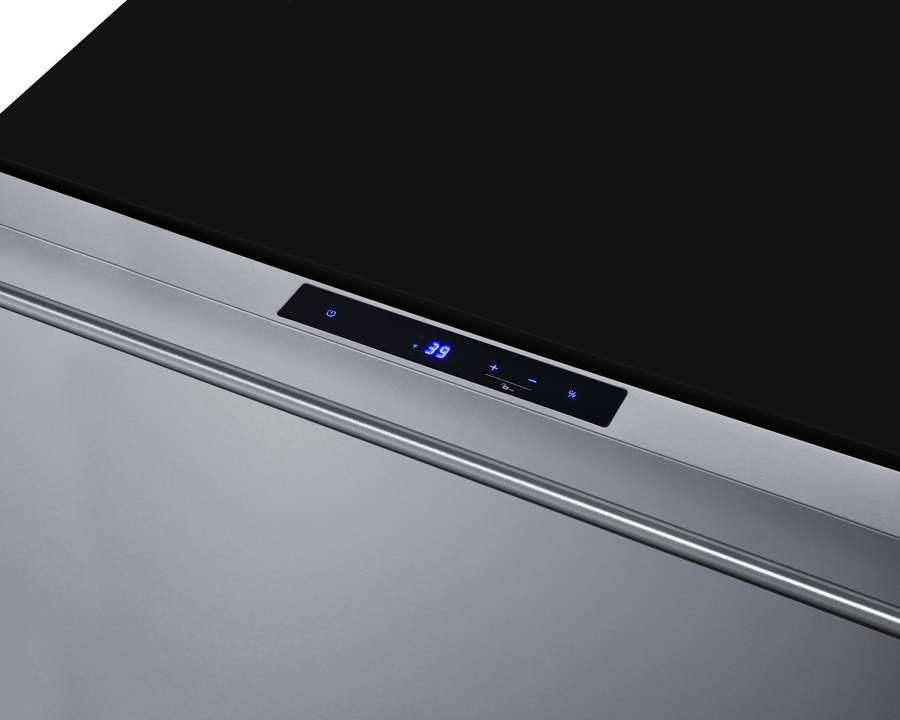

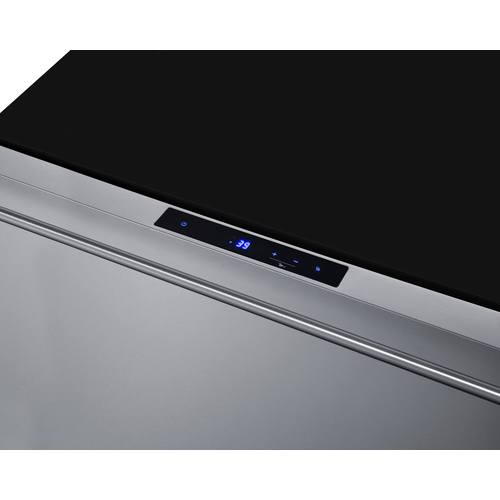

Digital thermostat

Electronic controls located on the top drawer ensure easy temperature management, with an external readout of Celsius or Fahrenheit

LED lighting

Elegant LED lighting in a gentle white hue illuminates the refrigerator for an easy view of the interior

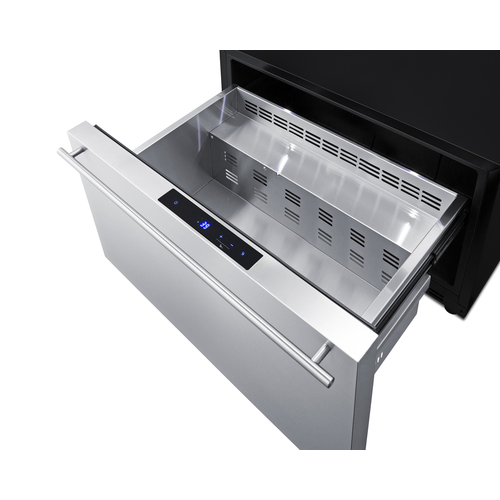

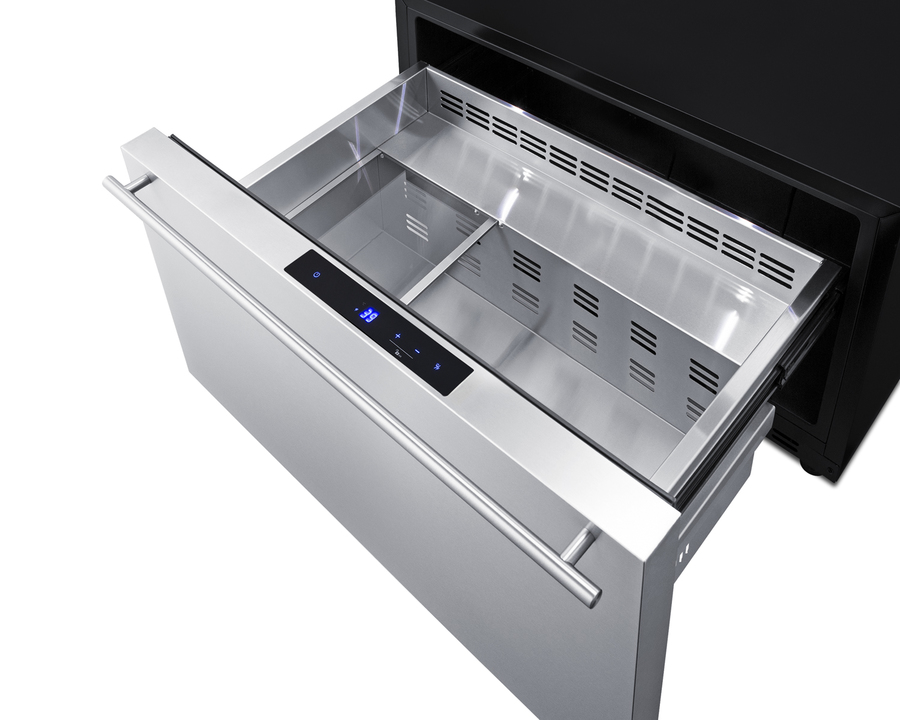

Drawer divider

Removable divider makes it easy to organize stored items

Glass shelf

Includes one half-sized shelf that lets you create more separation as needed

Internal fan

Fan-forced cooling ensures the unit is evenly cooled

Temperature Memory Function

Unit will retain its last settings when power is restored in the event of power loss

Professional handle

A sleek stainless steel handle adds an elegant touch to any setting

Temperature alarm

High temperature alarm sounds if the unit's interior goes out of the recommended range

Open drawer alarm

Audible alarm will sound if the drawer is left open longer than one minute

Sabbath Mode

Optional setting lets you disable certain electrical functions during periods of religious observance for 48 hours

Child lock

Disables digital controls after two minutes of activity for added safety

Sealed back

Space-saving design with no exposed coils for easier cleanability

Right angle plug

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Fully finished black cabinet

Allows the unit to be used freestanding

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit manufactures an extensive selection of built-in refrigeration specially constructed for safe and reliable cooling in outdoor kitchens.

The SDR301OS is a single drawer all-refrigerator that meets NSF-7 and UL-471 commercial standards and is also approved for residential settings. It's sized at just under 30" wide for an easy fit in standard cutouts, with a front-breathing design that allows built-in installation. The weatherproof construction allows safe use in outdoor settings, with a sealed back and fully finished black cabinet to ensure all components are protected from the elements. The drawer is constructed from 304 grade stainless steel, with a pro style handle and fully finished front. For more custom style, the drawer is panel-ready, allowing you to match or complement existing cabinetry in a few simple steps (suggested panel dimensions: 15.6" H x 29.5" W at 3/4" maximum thickness).

Frost-free operation with fan-forced cooling ensures even temperature distribution with minimal user maintenance. A digital thermostat, located atop the refrigerator drawer, makes it easy to manage the temperature, with an LED display that can be read in Celsius or Fahrenheit. We include a removable clear cover that helps protect all components from the elements. To adjust the settings, slide the off to access the screen.

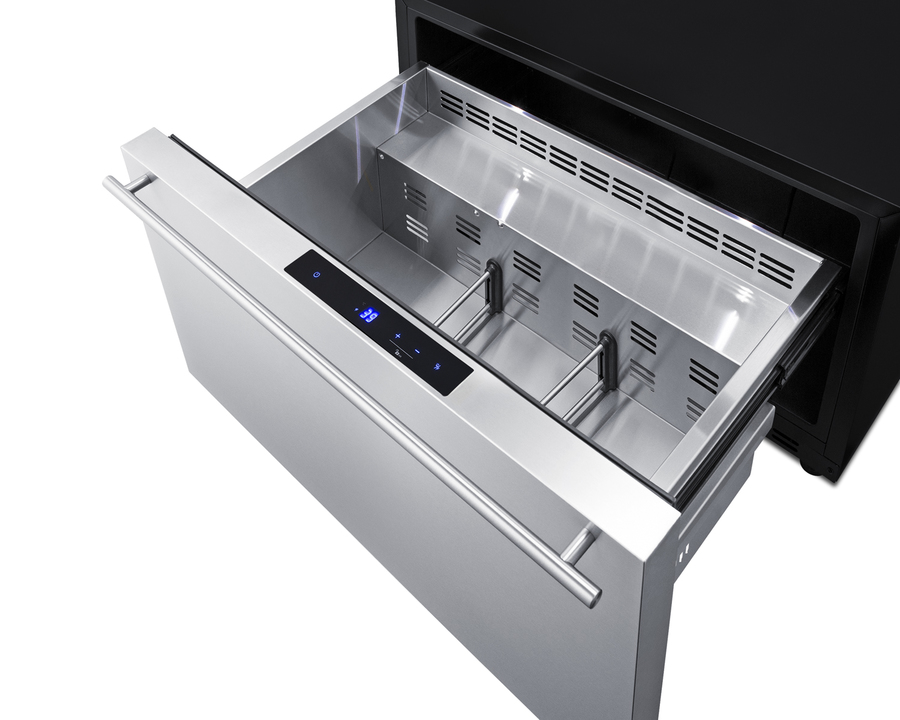

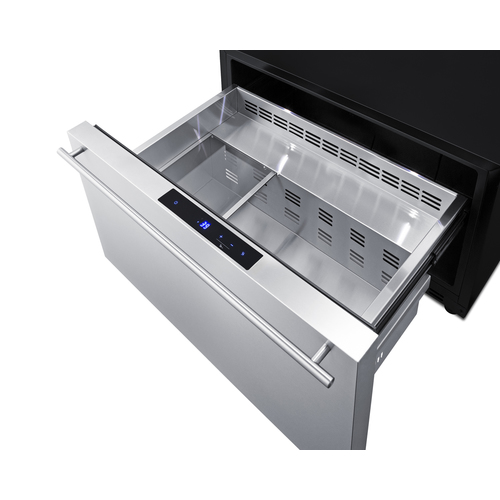

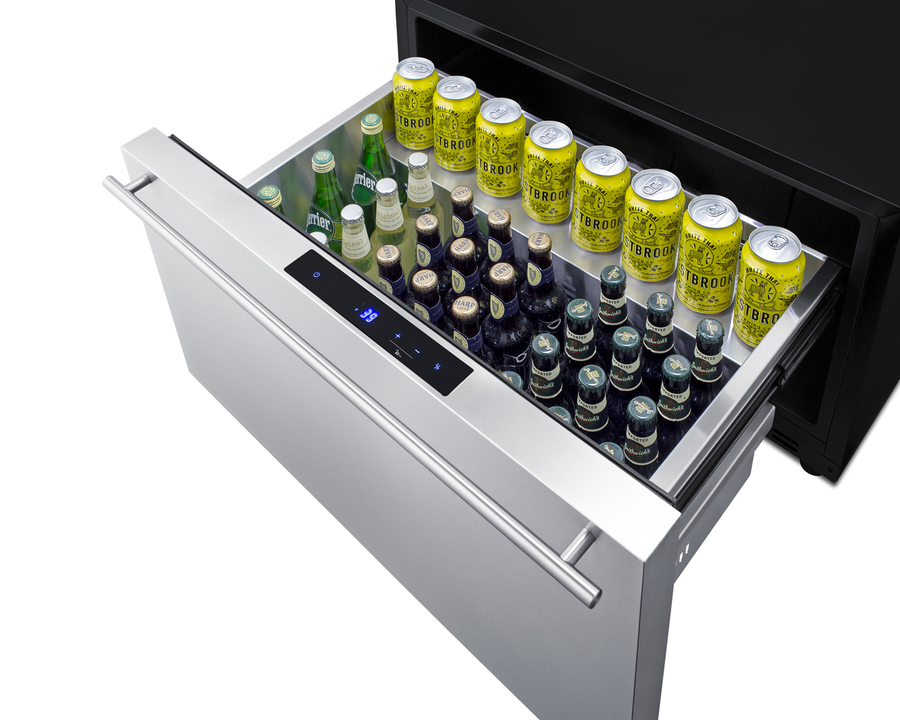

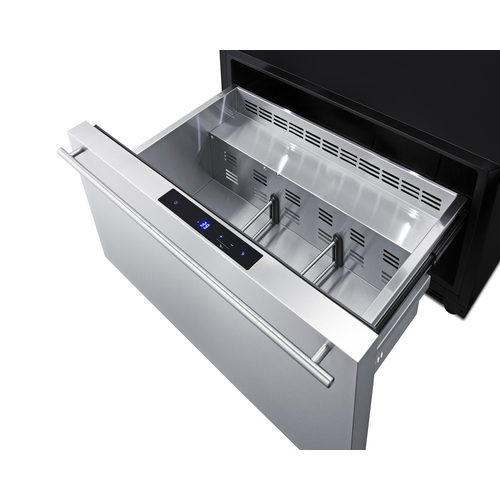

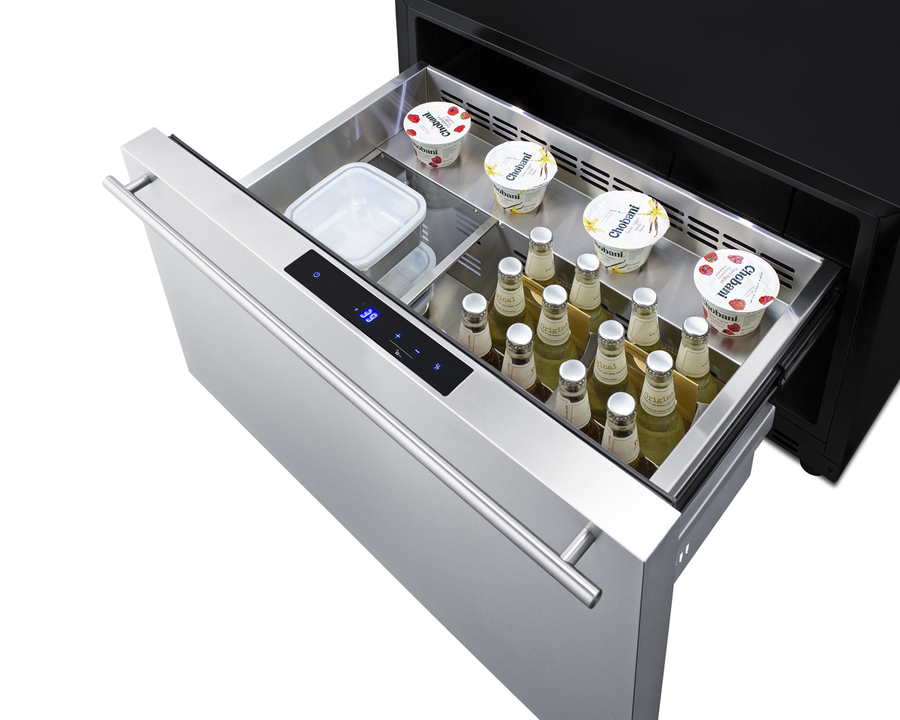

Inside, the SDR301OS offers a full 2.5 cu.ft. capacity to accommodate your storage needs. Two removable dividers let you separate the drawer into one, two, or three zones to accommodate a variety of sizes. We also include a half-sized glass shelf. LED lighting affords a convenient view of store contents, while a child lock will disable the digital controls after two minutes of inactivity to prevent accidental adjustments. Additional features include audible alarms for high-temperature fluctuations and open drawer alerts, while a temporary memory function helps to recover all settings in the event of power loss. The Sabbath Mode setting disables certain electrical features during periods of religious observance.

With its fully-featured, weatherproof design, the SDR301OS is the perfect cooling compartment or beverage holder in outdoor or indoor home kitchens, as well as hotel spaces, foodservice areas, and more.

Note: This unit ships with a polycarbonate strip over the control panel to protect it from the elements. If installing this drawer in outdoor kitchens, keep the cover in place.

Download
BROCHURE w/ DRAWINGS
SDR301OS.pdf
Download
TECHNICAL DRAWING (.dwg)
SDR30.dwg
Download
ASSEMBLY DRAWING
SDR30-Assembly.pdf
Energy Guide

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
